Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#115238) — 345 parça

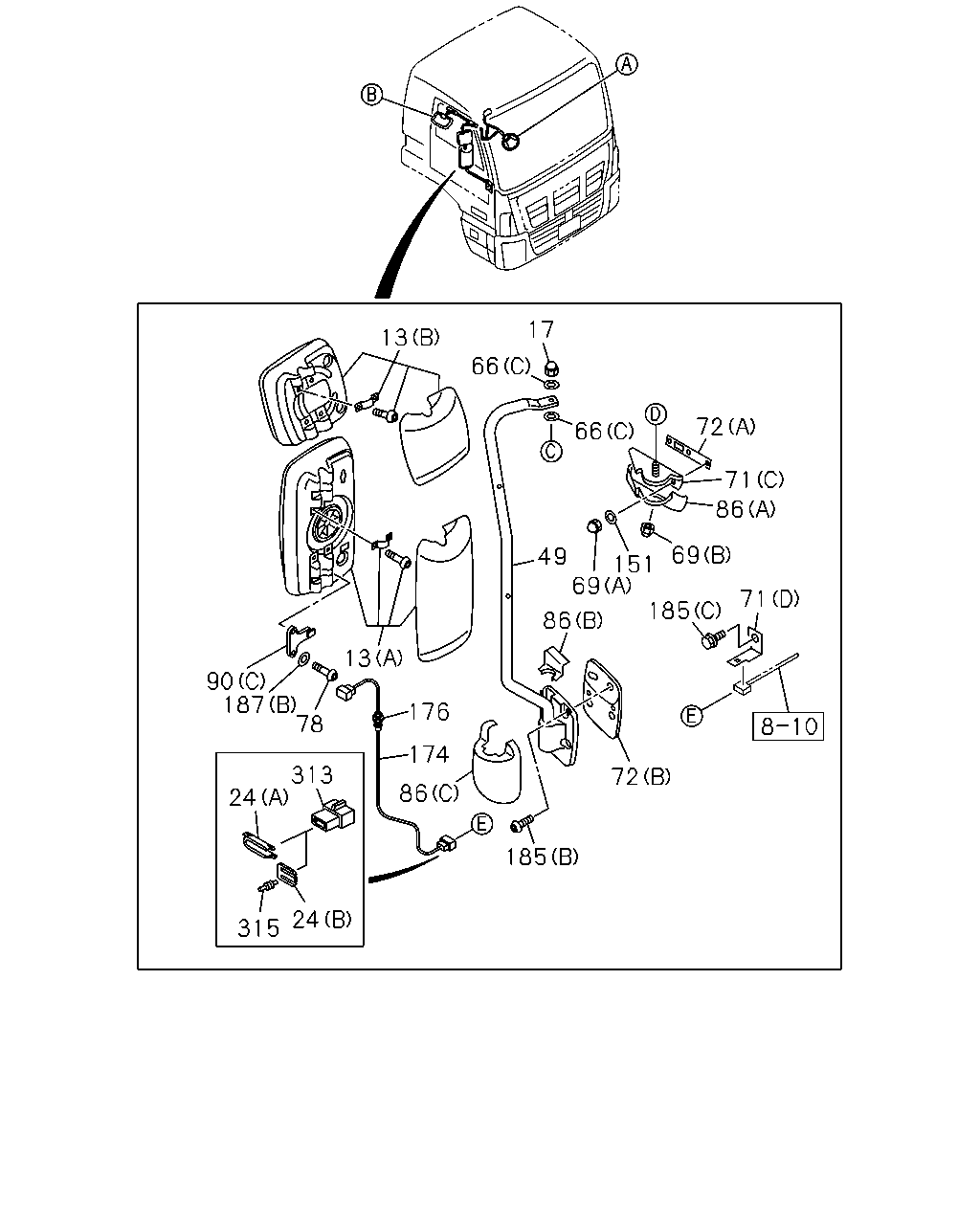

13 17 66 66 72 71 69 86 151 69 49 86 72 71 185 185 24 315 24 78 313 187 90 13 176 174 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-991-1	01	1	1303-1511	●
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98055-991-1	01	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98055-991-1	01	1	1512-		●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-992-1	01	1	1303-1511	●
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98055-992-1	01	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98055-992-1	01	1	1512-		●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	8-98162-676-1	02	1	1303-1511	●
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (B)	8-98162-676-1	02	1	1512-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> CHILE EQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) (B)	8-98162-676-1	02	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW CHILE EQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3), TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98162-676-1	02	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD) EXC. MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98162-676-1	02	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98162-676-1	02	1	1512-		●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) (A)	8-98043-060-1	01	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (A)	8-98043-060-1	01	1	1512-		●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) (A)	8-98043-176-1	01	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (A)	8-98043-176-1	01	1	1512-		●
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-058-1	01	1	1512-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-174-1	01	1	1512-	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	1303-1511	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	1512-	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	03	1	1303-1511	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	03	1	1512-	●	●
24	HOLDER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) (B)	8-94447-536-0	02	1	1512-	●
24	HOLDER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (B)	8-94447-536-0	02	1	1512-		●
24	HOLDER; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12) (A)	8-94447-506-0	02	1	1512-	●	●
49	STAY; MIRROR SIDE	8-98138-906-1	01	1	1303-1310	●
49	STAY; MIRROR SIDE	8-98234-647-0	01	1	1311-1511	●
49	STAY; MIRROR SIDE VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98234-647-0	01	1	1512-	●
49	STAY; MIRROR SIDE VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98234-647-0	01	1	1512-		●
49	STAY; MIRROR SIDE	8-98138-909-1	01	1	1303-1310	●
49	STAY; MIRROR SIDE	8-98234-648-0	01	1	1311-1511	●
49	STAY; MIRROR SIDE VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98234-648-0	01	1	1512-	●
49	STAY; MIRROR SIDE VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98234-648-0	01	1	1512-		●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3)	8-98222-324-0	01	1	1512-	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-98222-324-0	01	1	1512-		●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3)	8-98222-325-0	01	1	1512-	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-98222-325-0	01	1	1512-		●
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-649-0	01	1	1512-	●	●
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-650-0	01	1	1512-	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1303-1511	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1512-	●	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1303-1511	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1512-	●	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1303-1511	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1512-	●	●
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1303-1511	●
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1512-	●	●
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1303-1511	●
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D)	8-98039-277-2	02	1	1512-	●	●
72	SHEET (B)	8-98116-604-0	01	1	1303-1511	●
72	SHEET VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98116-604-0	01	1	1512-	●
72	SHEET VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98116-604-0	01	1	1512-		●
72	SHEET (B)	8-98116-605-0	01	1	1303-1511	●
72	SHEET VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98116-605-0	01	1	1512-	●
72	SHEET VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98116-605-0	01	1	1512-		●
72	SHEET (A)	8-98147-891-0	02	1	1303-1511	●
72	SHEET (A)	8-98147-891-0	02	1	1512-	●	●
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-864-0	01	1	1512-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) (B)	8-98101-864-0	01	1	1512-	●
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (B)	8-98101-864-0	01	1	1512-		●
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-865-0	01	1	1512-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) (B)	8-98101-865-0	01	1	1512-	●
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (B)	8-98101-865-0	01	1	1512-		●
78	SCREW; BRKT FIX RUSSIA EQUIPMENT(B12)	8-98317-369-0	02	1	1512-	●	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1303-1511	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1512-	●	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1303-1511	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1512-	●	●
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1303-1511	●
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1512-	●	●
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1303-1511	●
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1512-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1303-1511	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1512-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1303-1511	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1512-	●	●
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1303-1511	●
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1512-	●	●
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1303-1511	●
90	BRACKET; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	1-71798-829-1	01	1	1512-	●	●
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1303-1511	●
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1512-	●	●
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1512-	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1303-1511	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1512-	●	●
174	HARNESS; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3)	8-97644-030-0	02	1	1512-	●
174	HARNESS; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-97644-030-0	02	1	1512-		●
174	HARNESS; MIRROR RUSSIA EQUIPMENT(B12)	8-98144-513-1	02	1	1512-	●	●
176	GROMMET; HARNESS RUSSIA EQUIPMENT(B12)	1-82699-906-0	02	1	1512-	●	●
176	GROMMET; HARNESS MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3)	1-82699-906-0	02	1	1512-	●
176	GROMMET; HARNESS MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	1-82699-906-0	02	1	1512-		●
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1303-1511	●
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1512-	●	●
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1303-1511	●
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1512-	●	●
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1512-	●	●
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●	●
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1303-1511	●
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1512-	●	●
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1512-	●	●
313	CONNECTOR; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3)	8-94447-532-0	02	1	1512-	●
313	CONNECTOR; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-94447-532-0	02	1	1512-		●
313	CONNECTOR; MIRROR RUSSIA EQUIPMENT(B12)	8-94447-498-0	02	1	1512-	●	●
315	RUBBER ASM; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3)	1-82691-026-0	02	1	1512-	●
315	RUBBER ASM; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	1-82691-026-0	02	1	1512-		●

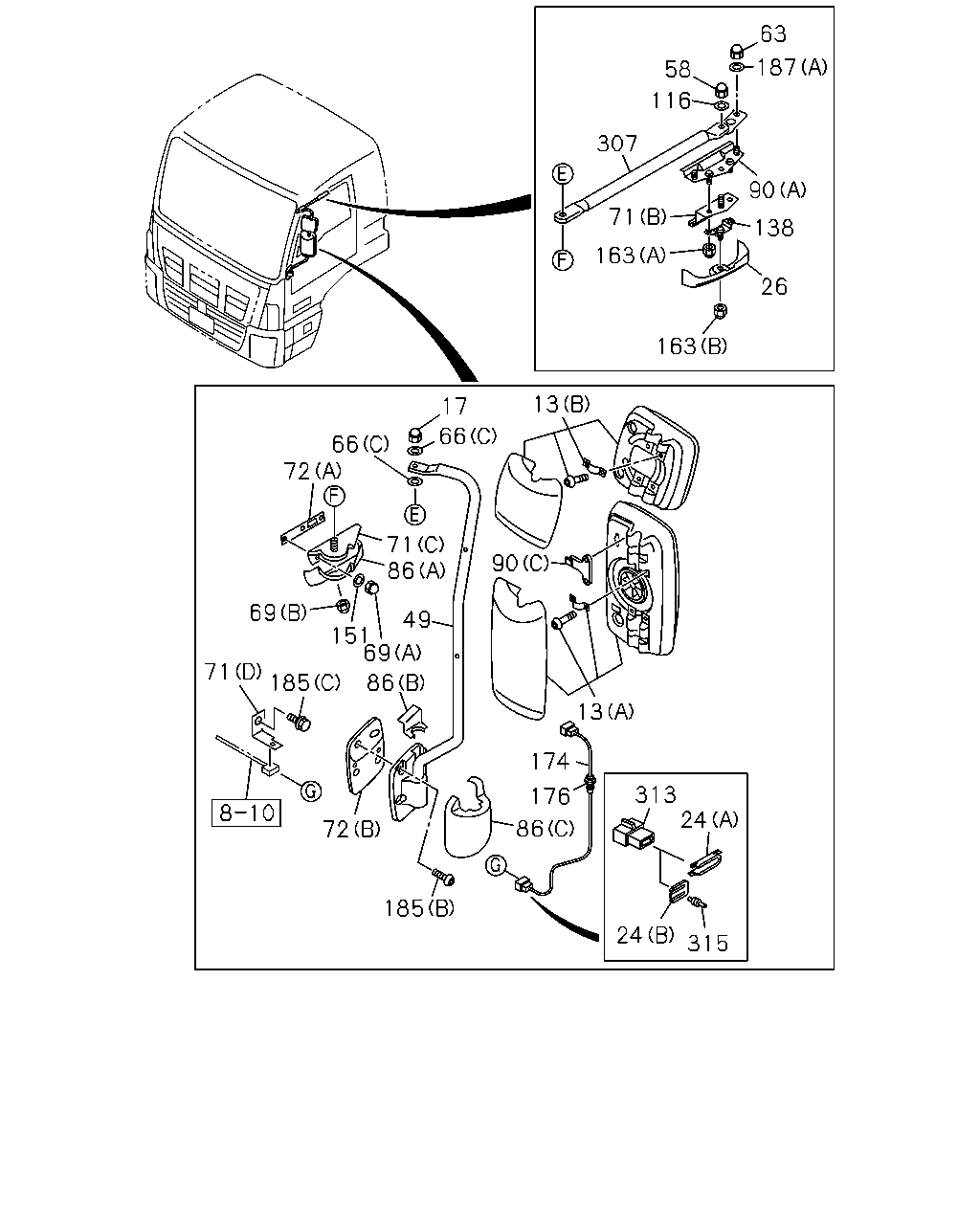

63 58 187 116 307 71 163 90 138 26 163 13 17 66 66 72 71 86 69 71 185 151 49 69 86 72 185 86 176 174 13 90 313 24 315 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-991-1	01	1	1303-1511	●
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98055-991-1	01	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98055-991-1	01	1	1512-		●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	8-98055-992-1	01	1	1303-1511	●
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98055-992-1	01	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98055-992-1	01	1	1512-		●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	8-98162-676-1	02	1	1303-1511	●
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (B)	8-98162-676-1	02	1	1512-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> CHILE EQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) (B)	8-98162-676-1	02	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW CHILE EQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3), TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98162-676-1	02	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD) EXC. MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98162-676-1	02	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98162-676-1	02	1	1512-		●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) (A)	8-98043-060-1	01	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (A)	8-98043-060-1	01	1	1512-		●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) (A)	8-98043-176-1	01	1	1512-	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (A)	8-98043-176-1	01	1	1512-		●
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-058-1	01	1	1512-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-174-1	01	1	1512-	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	1303-1511	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	1512-	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	03	1	1303-1511	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	03	1	1512-	●	●
24	HOLDER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) (B)	8-94447-536-0	02	1	1512-	●
24	HOLDER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (B)	8-94447-536-0	02	1	1512-		●
24	HOLDER; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12) (A)	8-94447-506-0	02	1	1512-	●	●
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1303-1511	●
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1512-	●	●
49	STAY; MIRROR SIDE	8-98138-906-1	01	1	1303-1310	●
49	STAY; MIRROR SIDE	8-98234-647-0	01	1	1311-1511	●
49	STAY; MIRROR SIDE VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98234-647-0	01	1	1512-	●
49	STAY; MIRROR SIDE VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98234-647-0	01	1	1512-		●
49	STAY; MIRROR SIDE	8-98138-909-1	01	1	1303-1310	●
49	STAY; MIRROR SIDE	8-98234-648-0	01	1	1311-1511	●
49	STAY; MIRROR SIDE VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98234-648-0	01	1	1512-	●
49	STAY; MIRROR SIDE VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98234-648-0	01	1	1512-		●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3)	8-98222-324-0	01	1	1512-	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-98222-324-0	01	1	1512-		●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3)	8-98222-325-0	01	1	1512-	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-98222-325-0	01	1	1512-		●
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-649-0	01	1	1512-	●	●
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-650-0	01	1	1512-	●	●
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1303-1511	●
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1512-	●	●
63	NUT; STAY M8	1-09984-187-0	06	1	1303-1511	●
63	NUT; STAY M8	1-09984-187-0	06	1	1512-	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1303-1511	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1512-	●	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1303-1511	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1512-	●	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1303-1511	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1512-	●	●
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1303-1511	●
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1512-	●	●
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1303-1511	●
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D)	8-98039-277-2	02	1	1512-	●	●
72	SHEET (B)	8-98116-604-0	01	1	1303-1511	●
72	SHEET VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98116-604-0	01	1	1512-	●
72	SHEET VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98116-604-0	01	1	1512-		●
72	SHEET (B)	8-98116-605-0	01	1	1303-1511	●
72	SHEET VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3),TAIWAN EQUIPMENT(WW5) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98116-605-0	01	1	1512-	●
72	SHEET VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98116-605-0	01	1	1512-		●
72	SHEET (A)	8-98147-891-0	02	1	1303-1511	●
72	SHEET (A)	8-98147-891-0	02	1	1512-	●	●
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-864-0	01	1	1512-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) (B)	8-98101-864-0	01	1	1512-	●
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (B)	8-98101-864-0	01	1	1512-		●
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-865-0	01	1	1512-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3) (B)	8-98101-865-0	01	1	1512-	●
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (B)	8-98101-865-0	01	1	1512-		●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1303-1511	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1512-	●	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1303-1511	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1512-	●	●
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1303-1511	●
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1512-	●	●
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1303-1511	●
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1512-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1303-1511	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1512-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1303-1511	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1512-	●	●
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1303-1511	●
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1512-	●	●
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1303-1511	●
90	BRACKET; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	1-71798-829-1	01	1	1512-	●	●
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1303-1511	●
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1512-	●	●
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1512-	●	●
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1303-1511	●
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1512-	●	●
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1303-1511	●
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1512-	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1303-1511	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1512-	●	●
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1303-1511	●
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1512-	●	●
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1303-1511	●
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1512-	●	●
174	HARNESS; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3)	8-97644-030-0	02	1	1512-	●
174	HARNESS; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-97644-030-0	02	1	1512-		●
174	HARNESS; MIRROR RUSSIA EQUIPMENT(B12)	8-98144-513-1	02	1	1512-	●	●
176	GROMMET; HARNESS RUSSIA EQUIPMENT(B12)	1-82699-906-0	02	1	1512-	●	●
176	GROMMET; HARNESS MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3)	1-82699-906-0	02	1	1512-	●
176	GROMMET; HARNESS MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	1-82699-906-0	02	1	1512-		●
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1303-1511	●
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1512-	●	●
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1303-1511	●
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1512-	●	●
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1512-	●	●
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●	●
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1303-1511	●
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1512-	●	●
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1512-	●	●
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1303-1511	●
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1512-	●	●
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1303-1511	●
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1512-	●	●
313	CONNECTOR; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3)	8-94447-532-0	02	1	1512-	●
313	CONNECTOR; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-94447-532-0	02	1	1512-		●
313	CONNECTOR; MIRROR RUSSIA EQUIPMENT(B12)	8-94447-498-0	02	1	1512-	●	●
315	RUBBER ASM; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),CHILE EQUIPMENT(KE1), PHILIPPINE EQUIPMENT(WE3)	1-82691-026-0	02	1	1512-	●
315	RUBBER ASM; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	1-82691-026-0	02	1	1512-		●

164 66 63 17 66 66 17 66 185 71 66 164 85 85 66 99 66 17 30 63 187 33 307 71 163 163 26 138 90 85 116 22 58 85 14

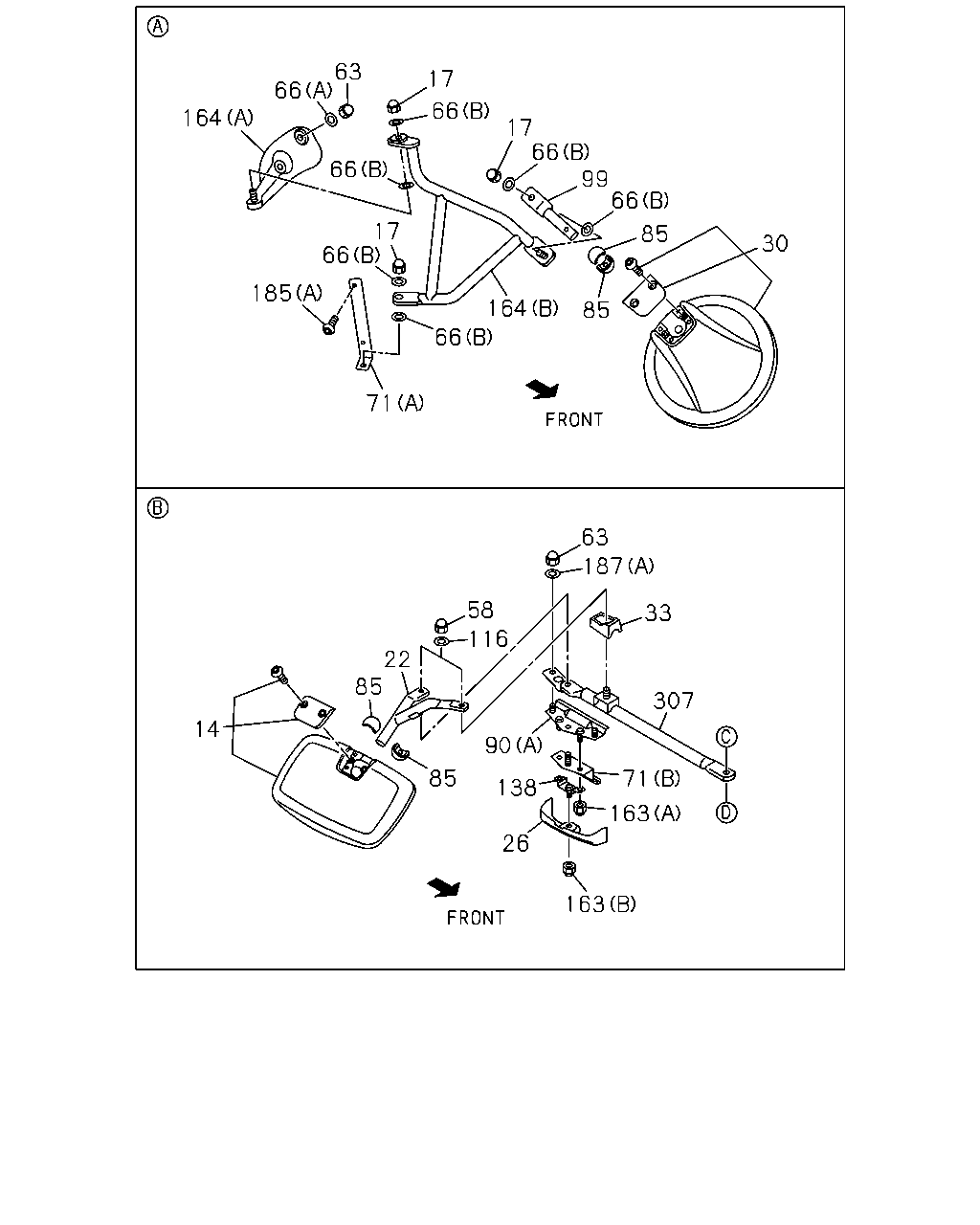

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	MIRROR ASM; OUTSIDE	8-98043-065-0	01	1	1303-1511	●
14	MIRROR ASM; OUTSIDE	8-98043-065-0	01	1	1512-	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	1303-1511	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	1512-	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	03	1	1303-1511	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	03	1	1512-	●	●
22	STAY; OUTSIDE MIRROR	8-98154-821-0	01	1	1303-1511	●
22	STAY; OUTSIDE MIRROR	8-98154-821-0	01	1	1512-	●	●
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1303-1511	●
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1512-	●	●
30	MIRROR; UNDER	8-98055-994-0	01	1	1303-1504	●
30	MIRROR; UNDER	8-98309-725-0	01	1	1505-1511	●
30	MIRROR; UNDER	8-98309-725-0	01	1	1512-	●	●
33	COVER; MIRROR	8-98171-925-0	01	1	1303-1511	●
33	COVER; MIRROR	8-98171-925-0	01	1	1512-	●	●
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1303-1511	●
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1512-	●	●
63	NUT; STAY M8	1-09984-187-0	06	1	1303-1511	●
63	NUT; STAY M8	1-09984-187-0	06	1	1512-	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1303-1511	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1512-	●	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1303-1511	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1512-	●	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1303-1511	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1303-1511	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1512-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D)	8-98039-277-2	02	1	1512-	●	●
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1303-1511	●
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1303-1511	●
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1512-	●	●
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1512-	●	●
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1303-1511	●
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1512-	●	●
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1303-1511	●
90	BRACKET; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	1-71798-829-1	01	1	1512-	●	●
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1303-1511	●
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1512-	●	●
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1512-	●	●
99	STAY; MAIN UNDER MIRROR	8-98092-493-0	01	1	1303-1511	●
99	STAY; MAIN UNDER MIRROR	8-98092-493-0	01	1	1512-	●	●
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1303-1511	●
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1512-	●	●
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1303-1511	●
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1512-	●	●
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1303-1511	●
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1512-	●	●
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1303-1511	●
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1512-	●	●
164	STAY; ROOF (A)	1-71798-300-5	01	1	1303-1511	●
164	STAY; ROOF (A)	1-71798-300-5	01	1	1512-	●	●
164	STAY; ROOF (B)	8-98138-918-1	01	1	1303-1511	●
164	STAY; ROOF (B)	8-98138-918-1	01	1	1512-	●	●
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1303-1511	●
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1512-	●	●
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1303-1511	●
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1512-	●	●
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1512-	●	●
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●	●
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1303-1511	●
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1512-	●	●
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1512-	●	●
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1303-1511	●
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1512-	●	●
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1303-1511	●
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1512-	●	●

150 1 2 181 185 316 316 181 90

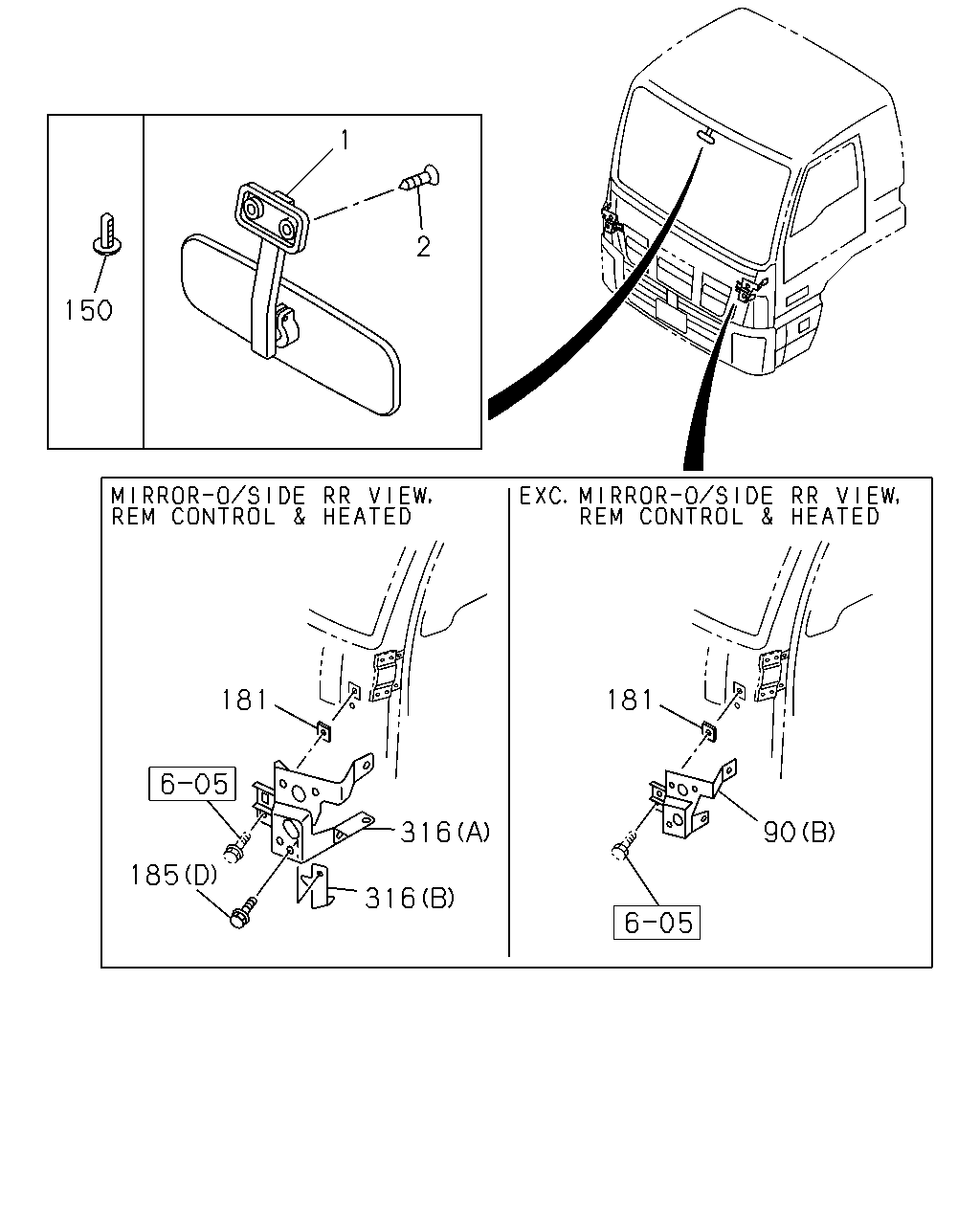

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM	1-73117-033-1	01	1	1303-1511	●
1	MIRROR; ROOM RR VIEW MIRROR<D31>	1-73117-033-1	01	1	1512-	●	●
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	1303-1511	●
2	SCREW; MIRROR TO BODY RR VIEW MIRROR<D31> M6X20	1-09981-310-0	02	1	1512-	●	●
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1303-1511	●
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1512-	●	●
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1303-1511	●
90	BRACKET; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	1-71798-829-1	01	1	1512-	●	●
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1303-1511	●
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1512-	●	●
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1512-	●	●
150	PLUG; MIRROR HOLE EXC. RR VIEW MIRROR<D31> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	1512-	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1303-1511	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1512-	●	●
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1303-1511	●
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1512-	●	●
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1303-1511	●
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1512-	●	●
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1512-	●	●
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) M8X16 FLANGE	0-28050-816-0	02	1	1512-	●	●
316	BRACKET; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98245-438-0	01	1	1512-	●	●
316	BRACKET; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98245-440-0	01	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
