Sayfa 0-10 - Isuzu EPC

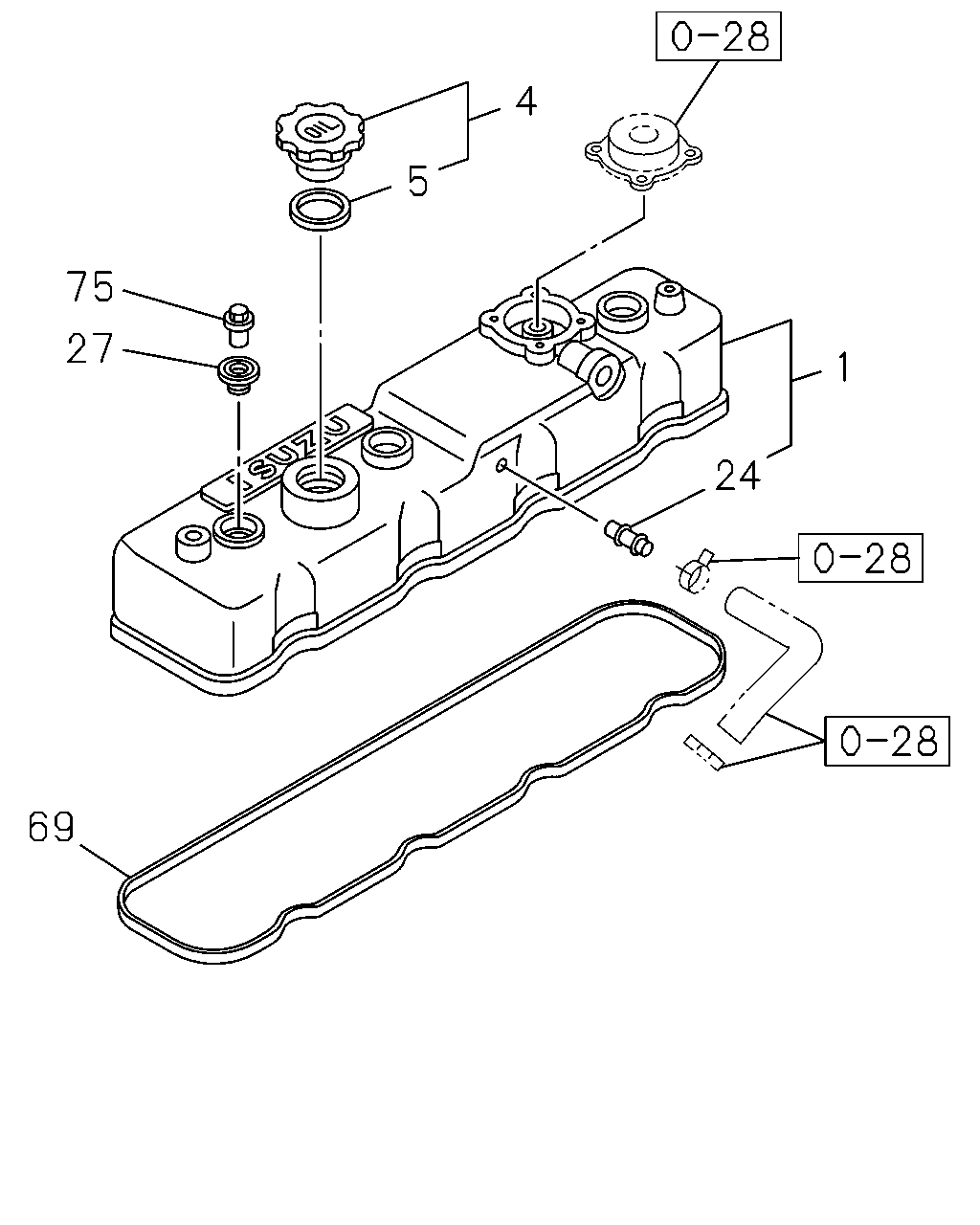

0-10 — CYLINDER HEAD COVER (#115236) — 7 parça

75 69 27 24 1 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.386 COVER; CYL HD	8-97287-782-1	01	1	1302-
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1302-
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1302-
24	00.413 PIPE; BREATHER,OIL FILLER 01.430	8-94455-311-1	01	1	1302-
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	1302-
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	1302-
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
