Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#115232) — 23 parça
◀

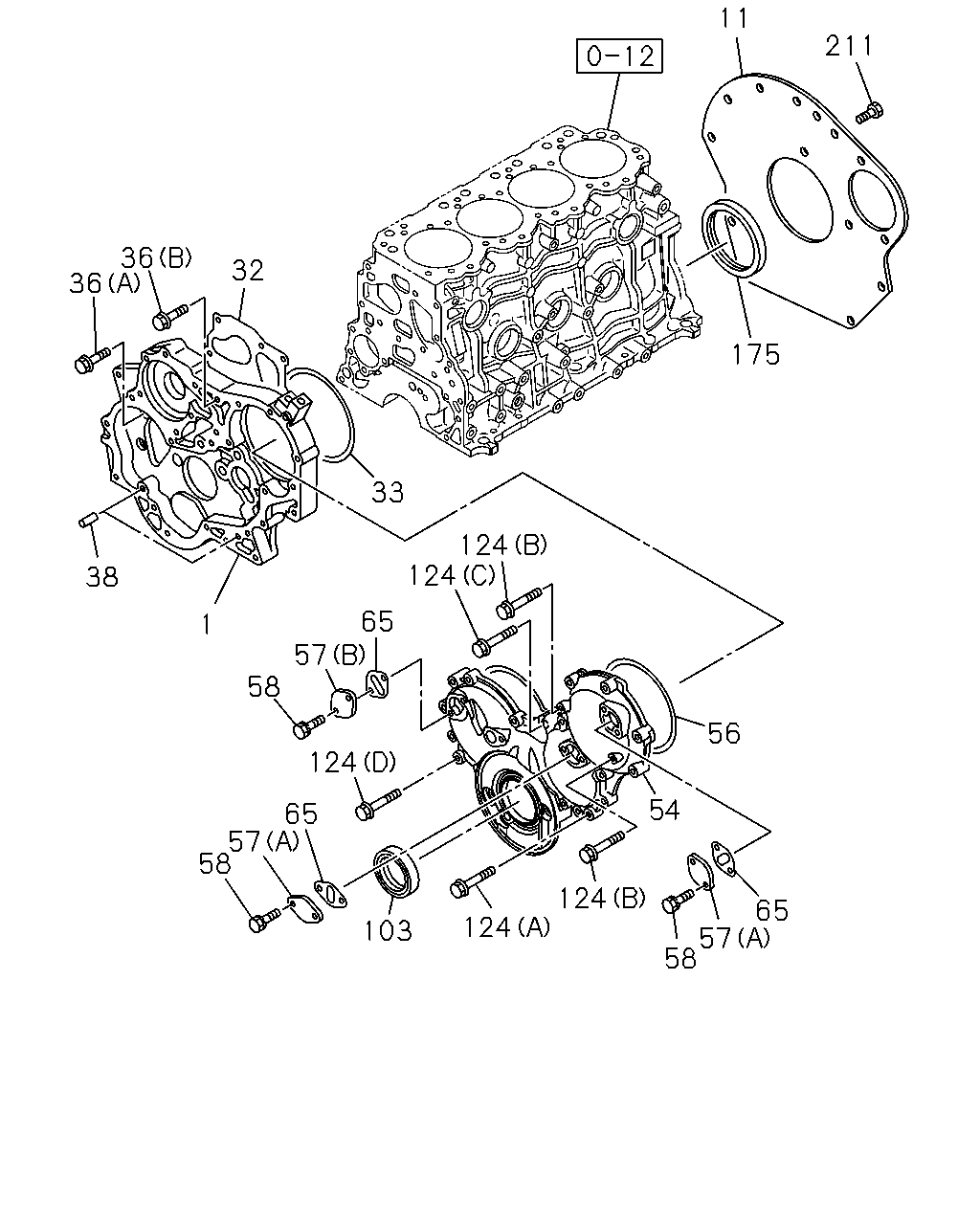

[020A] NO.1 (20 parça)
[020A] NO.2 (3 parça)
▶
56
54
124
124
103
57
58
65
124
58
57
65
124
124
33
38
36
36
32
1
57
58
65
175
11
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.206 CASE; TIMING GEAR
8-97239-983-2
01
1
1302-
11
00.683 PLATE; RR,C/BL
8-94437-923-2
01
1
1302-
32
00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97129-427-1
01
1
1302-
33
00.207 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97287-672-0
01
1
1302-
36
00.206 BOLT; GEAR CASE
(A) M8X20 W/LK WASHER
0-50540-820-0
06
1
1302-
36
00.206 BOLT; GEAR CASE
03.704 (B) M8X45 W/LK WASHER
0-50540-845-0
02
1
1302-
38
00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20
8-97135-423-0
02
1
1302-
54
00.206 COVER; GEAR CASE
8-98214-059-2
01
1
1302-
56
00.207 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97287-694-0
01
1
1302-
57
00.206 COVER; TIMING CHECK HOLE
(A)
5-11321-009-0
02
1
1302-
57
00.206 COVER; TIMING CHECK HOLE
(B)
8-97304-608-1
01
1
1302-
58
00.206 BOLT; CHECK HOLE COVER
03.162 M6X12 FLANGE
0-28050-612-0
06
1
1302-
65
00.207 GASKET; COVER,TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97118-698-1
03
1
1302-
103
00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97351-704-0
01
1
1302-
124
00.206 BOLT; TIMING COVER
(A) M8X30 FLANGE
0-28050-830-0
08
1
1302-
124
00.206 BOLT; TIMING COVER
(B) M8X70 W/LK WASHER
0-50540-870-0
06
1
1302-
124
00.206 BOLT; TIMING COVER
(C) M12X55 HEX SOCKET
0-58331-255-0
01
1
1302-
124
00.206 BOLT; TIMING COVER
01.252 (D) M8X58 FLANGE
8-94130-055-1
01
1
1302-
175
00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118
8-97071-561-1
01
1
1302-
211
00.669 BOLT; HSG
00.683 M12X25
5-09000-227-0
03
1
1302-
192
191
191
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
191
00.669 STAY; FLYWHEEL HSG
04.083
8-97074-108-3
01
1
1302-
191
00.669 STAY; FLYWHEEL HSG
04.083
8-97084-390-2
01
1
1302-
192
00.206 BOLT; STAY TO HSG
02.277 M10X35 FLANGE
0-28651-035-0
02
1
1302-
