◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶

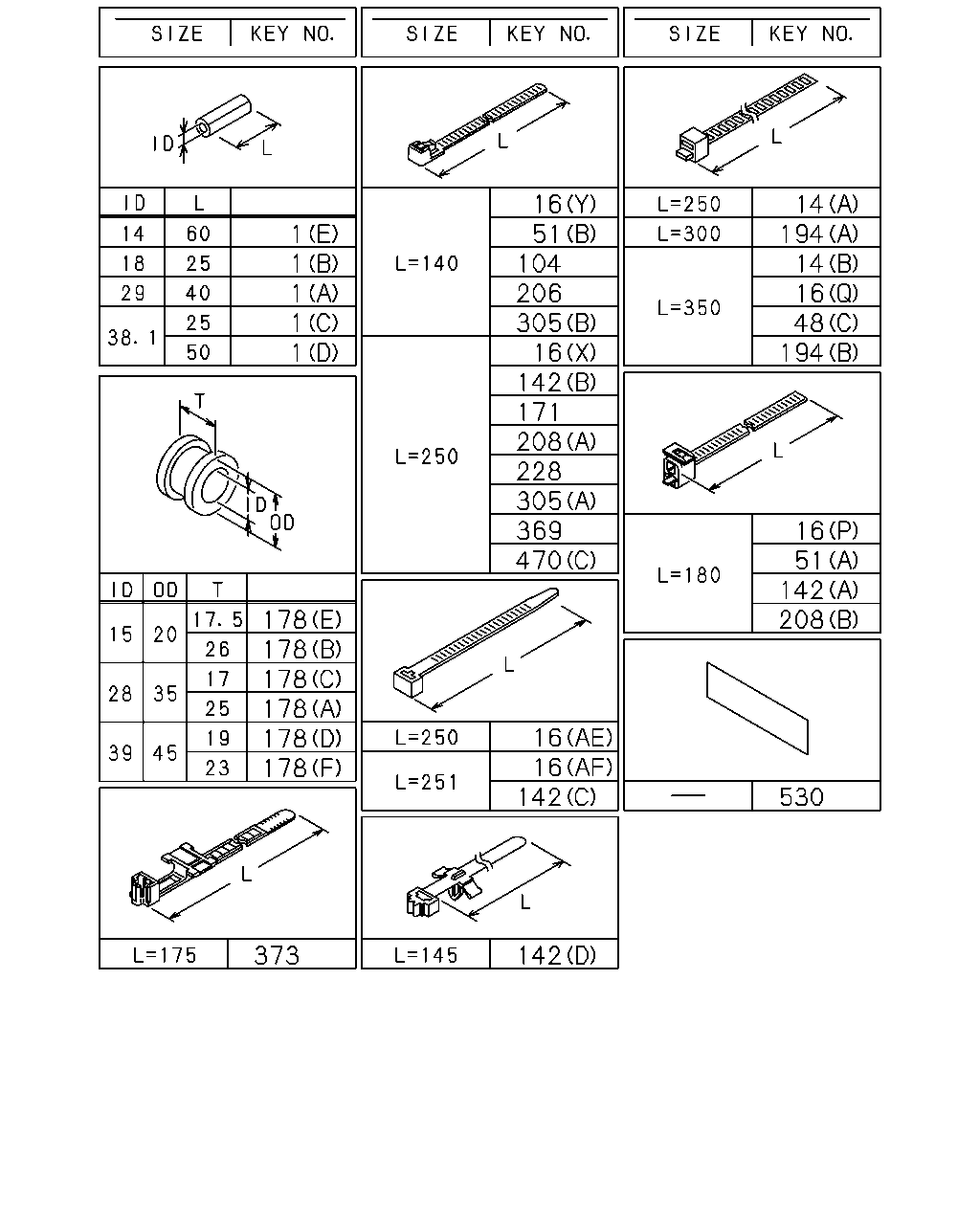

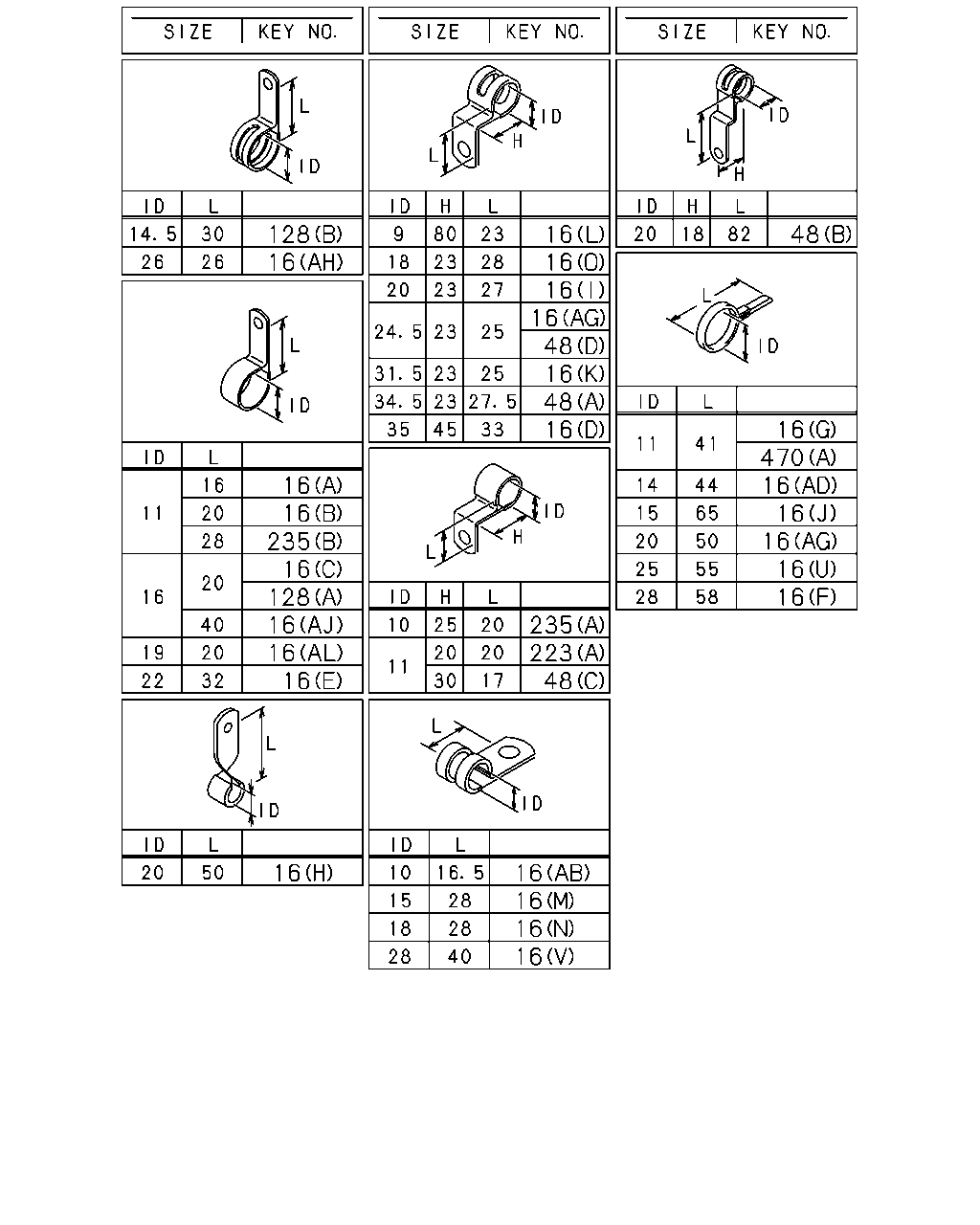

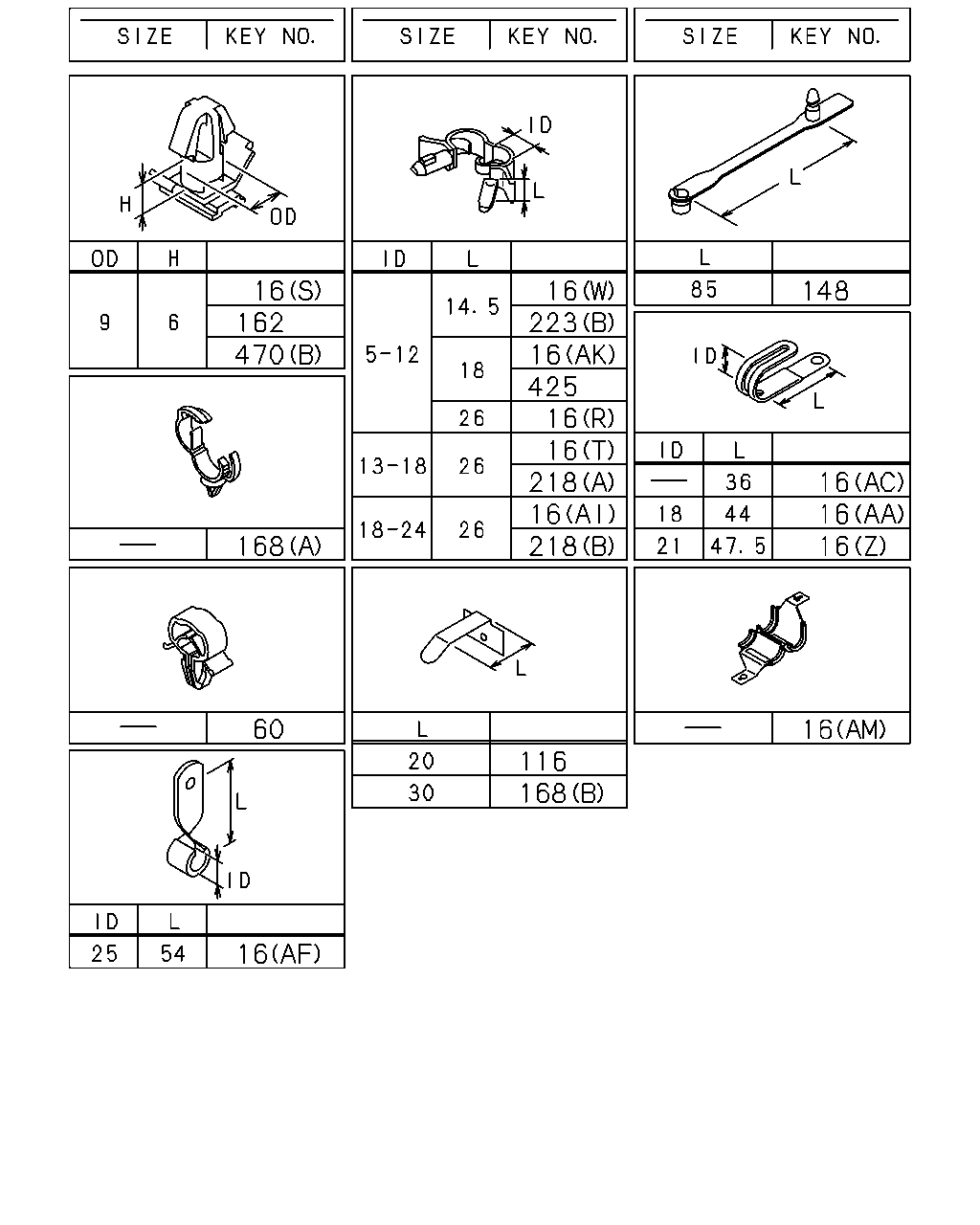

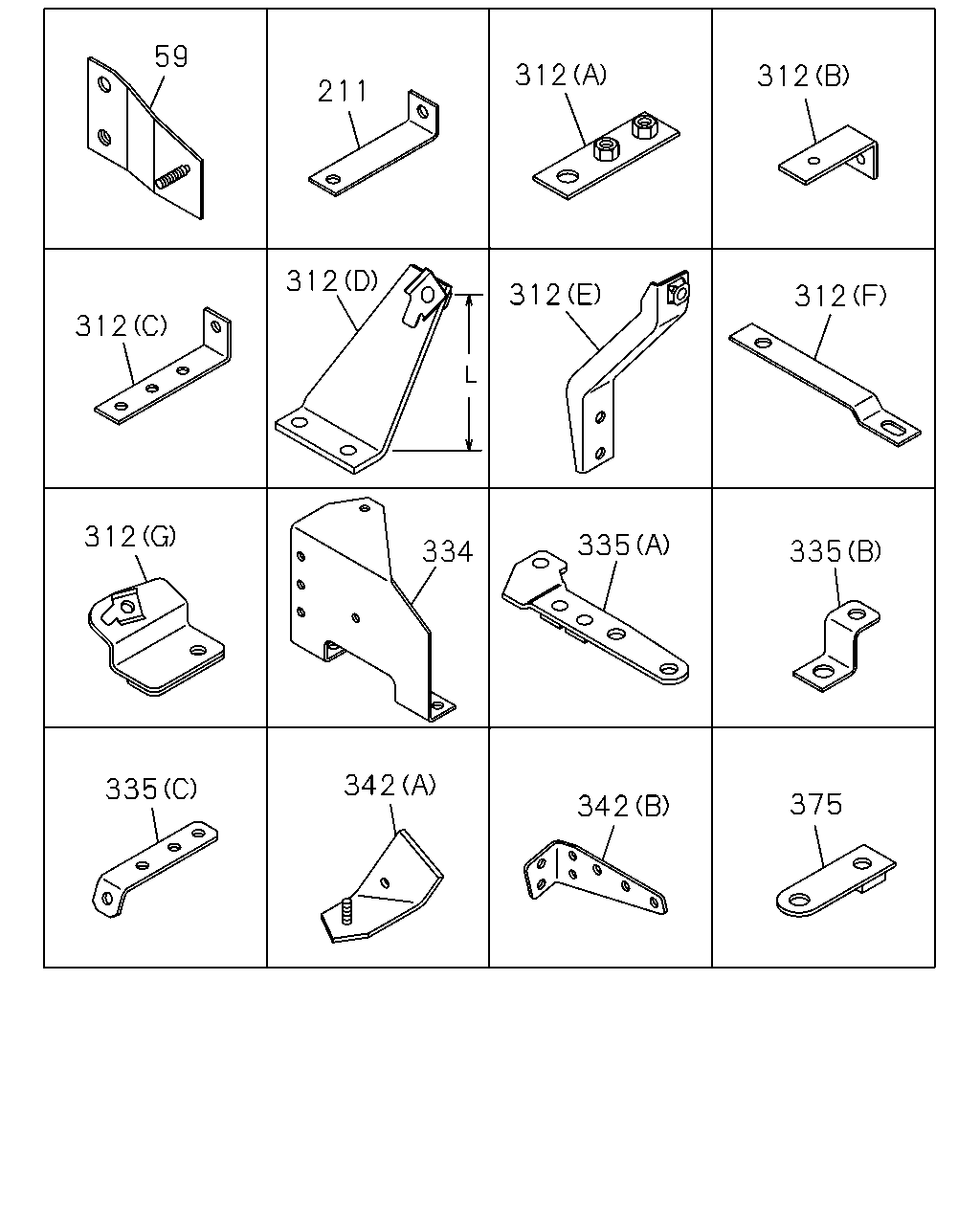

8-15 — FIXING PARTS; WIRING HARNESS (#115225) — 817 parça
çizim 336747
1 1 1 1 1 178 178 178 178 178 178 373 142 142 16 16 530 208 16 51 142 16 104 51 206 305 142 16 171 228 208 305 470 14 14 194 16 48 194 369
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1512- ● ●
1 SLEEVE; RUBBER
EXC. TAIWAN EQUIPMENT(WW5) (E) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1512- ●
1 SLEEVE; RUBBER
(E) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1512- ●
1 SLEEVE; RUBBER
(A) ID=29 OD=39 L=40 		1-09337-013-0 02 1 1303-1511 ●
1 SLEEVE; RUBBER
(A) ID=29 OD=39 L=40 		1-09337-013-0 02 1 1512- ● ●
1 SLEEVE; RUBBER
(C) ID=38.1 OD=48.1 L=25 		1-09337-052-0 01 1 1303-1511 ●
1 SLEEVE; RUBBER
(C) ID=38.1 OD=48.1 L=25 		1-09337-052-0 01 1 1512- ● ●
1 SLEEVE; RUBBER
(B) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1303-1511 ●
1 SLEEVE; RUBBER
(B) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1512- ● ●
1 SLEEVE; RUBBER
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1512- ●
14 CLIP; BAND,HARNESS
TAIWAN EQUIPMENT(WW5) (B) L=350 		1-09707-183-0 02 1 1512- ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1303-1511 ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1512- ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 02 1 1303-1511 ●
14 CLIP; BAND,HARNESS
EXC. TAIWAN EQUIPMENT(WW5) (B) L=350 		1-09707-183-0 01 1 1512- ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (T) ID=13-18 L=26 		1-09709-293-0 01 1 1511-1511 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 02 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5),FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 02 1 1512- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AF) ID=25 L=54 		1-09700-392-1 01 1 1512- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AG) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1512- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AH) ID=26 L=26 		1-09701-236-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (AI) ID=18-24 L=26 		1-09709-296-0 02 1 1512- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) EXC. RUSSIA EQUIPMENT(B12) (AE) L=250 		8-98216-430-0 09 1 1512- ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1304-1511 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1304-1511 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1512- ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (X) L=250 		5-09707-030-1 02 1 1512- ● ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (X) L=250 		5-09707-030-1 02 1 1512- ●
16 CLIP; HARNESS
RUSSIA EQUIPMENT(B12) (AE) L=250 		8-98216-430-0 11 1 1512- ●
16 CLIP; HARNESS
RUSSIA EQUIPMENT(B12) EXC. ENGINE REAR PTO(SV1) (AE) L=250 		8-98216-430-0 11 1 1512- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (S) OD=9 H=6 		1-09709-178-0 03 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (S) OD=9 H=6 		1-09709-178-0 03 1 1512- ● ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 03 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Y) L=140 		5-09707-031-1 03 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (B) ID=11 L=20 		0-95235-035-0 01 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AJ) ID=16 L=40 		0-95235-576-0 02 1 1512- ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (AK) ID=5-12 L=18 		1-09709-287-0 03 1 1512- ● ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> (AI) ID=18-24 L=26 		1-09709-296-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12) BATTERY LAYOUT REAR VAR1<NCT> FULL TRAILER PIPING<Z25> (AI) ID=18-24 L=26 		1-09709-296-0 01 1 1512- ●
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 04 1 1512- ● ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 1512- ● ●
16 CLIP; HARNESS
(AG) ID=20 L=50 		9-09917-430-0 06 1 1512- ● ●
16 CLIP; HARNESS
EXC. TAIWAN EQUIPMENT(WW5) (AG) ID=20 L=50 		9-09917-430-0 05 1 1512- ●
16 CLIP; HARNESS
(AG) ID=20 L=50 		9-09917-430-0 05 1 1512- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AG) ID=20 L=50 		9-09917-430-0 03 1 1512- ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (U) ID=25 L=55 		9-09917-573-0 05 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) TAIWAN EQUIPMENT(WW5) (T) ID=13-18 L=26 		1-09709-293-0 03 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (T) ID=13-18 L=26 		1-09709-293-0 03 1 1512- ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (Q) L=350 		1-09707-183-0 01 1 1303-1304 ●
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1512- ● ●
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1512- ● ●
16 CLIP; HARNESS
(C) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(C) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1512- ● ●
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1303-1511 ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (E) ID=22 L=32 		1-09700-126-1 01 1 1512- ●
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1512- ●
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 04 1 1303-1511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (AL) ID=19 L=20 		0-95235-836-0 01 1 1512- ● ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (AL) ID=19 L=20 		0-95235-836-0 01 1 1512- ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 1303-1511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (Q) L=350 		1-09707-183-0 01 1 1512- ● ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (Q) L=350 		1-09707-183-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (J) ID=15 L=65 		1-09700-466-0 01 1 1303-1511 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) TAIWAN EQUIPMENT(WW5) (J) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
16 CLIP; HARNESS
(H) ID=20 L=50 		1-09700-679-1 01 1 1303-1511 ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (H) ID=20 L=50 		1-09700-679-1 01 1 1512- ●
16 CLIP; HARNESS
(H) ID=20 L=50 		1-09700-679-1 01 1 1512- ●
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 02 1 1303-1303 ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1304-1511 ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1512- ● ●
16 CLIP; HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 01 1 1512- ● ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1303-1511 ●
16 CLIP; HARNESS
MJT7S M/T(Y3E) (C) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1512- ● ●
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1512- ● ●
16 CLIP; HARNESS
(N) ID=18 L=28 		1-09701-067-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(N) ID=18 L=28 		1-09701-067-0 03 1 1512- ● ●
16 CLIP; HARNESS
MAP6U M/T(Y4B) (O) ID=18 H=23 L=28 		1-09701-070-0 02 1 1303- ●
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 1512- ● ●
16 CLIP; HARNESS
(V) ID=28 L=40 		1-09701-261-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(V) ID=28 L=40 		1-09701-261-0 01 1 1512- ● ●
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1303-1511 ●
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1512- ● ●
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 04 1 1303-1511 ●
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 04 1 1512- ● ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1512- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (T) ID=13-18 L=26 		1-09709-293-0 03 1 1303-1511 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) EXC. FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> EXC. FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM(52W) (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303-1304 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1305-1511 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1512- ● ●
16 CLIP; HARNESS
BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1512- ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 1303-1304 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1305-1511 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1305-1511 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1512- ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1512- ● ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 1303-1304 ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 03 1 1305-1511 ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1512- ● ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1512- ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1303-1511 ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1512- ● ●
16 CLIP; HARNESS
(AF) L=251 		8-97619-917-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(AF) L=251 		8-97619-917-0 01 1 1512- ● ●
16 CLIP; HARNESS
(AB) ID=10 L=16.5 		8-98082-034-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(AB) ID=10 L=16.5 		8-98082-034-0 02 1 1512- ● ●
16 CLIP; HARNESS
(AE) L=250 		8-98216-430-0 10 1 1303-1511 ●
16 CLIP; HARNESS
EXC. RUSSIA EQUIPMENT(B12),ENGINE REAR PTO(SV1) (AE) L=250 		8-98216-430-0 10 1 1512- ● ●
16 CLIP; HARNESS
(AG) ID=20 L=50 		9-09917-430-0 06 1 1303-1511 ●
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1512- ● ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1512- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1512- ●
16 CLIP; HARNESS
(U) ID=25 L=55 		9-09917-573-0 05 1 1303-1511 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AM) W/SPONGE RUBBER 		1-09709-150-0 01 1 1512- ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1512- ● ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1512- ● ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1512- ● ●
16 CLIP; HARNESS
MAP6U M/T(Y4B) (S) OD=9 H=6 		1-09709-178-0 02 1 1512- ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 1512- ● ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM(52W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (X) L=250 		5-09707-030-1 01 1 1303-1303 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1303-1303 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1304-1304 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1305-1511 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1305-1511 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1512- ● ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (X) L=250 		5-09707-030-1 01 1 1512- ● ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (X) L=250 		5-09707-030-1 01 1 1512- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (X) L=250 		5-09707-030-1 01 1 1512- ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-1303 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-1303 ●
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1511 ●
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1511 ●
16 CLIP; HARNESS
RUSSIA EQUIPMENT(B12) (Q) L=350 		1-09707-183-0 02 1 1512- ● ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 01 1 1303-1511 ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 01 1 1303-1511 ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 01 1 1512- ● ●
16 CLIP; HARNESS
MAP6U M/T(Y4B) (AC) L=36 		8-94224-891-1 01 1 1512- ●
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 1512- ● ●
16 CLIP; HARNESS
EXC. FULL TRAILER PIPING<Z25> (AD) ID=14 L=44 		9-09917-427-0 03 1 1512- ●
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 1512- ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 03 1 1303-1303 ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 02 1 1303-1304 ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304-1511 ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1512- ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 H=30 L=17 		1-09700-113-0 01 1 1303-1511 ●
48 CLIP; FRAME HARNESS
(C) ID=11 H=30 L=17 		1-09700-113-0 01 1 1512- ● ●
48 CLIP; FRAME HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303-1511 ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1512- ● ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1303-1511 ●
48 CLIP; FRAME HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1512- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1303-1511 ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1512- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1303-1511 ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1303-1511 ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1512- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1512- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1512- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 1512- ● ●
104 CLIP; HEADLAMP HARNESS
L=140 		5-09707-031-1 02 1 1303-1511 ●
104 CLIP; HEADLAMP HARNESS
L=140 		5-09707-031-1 02 1 1512- ● ●
142 CLIP; HARNESS,ENG
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (D) L=145 		8-98116-079-0 01 1 1512- ● ●
142 CLIP; HARNESS,ENG
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) L=250 		8-98216-430-0 01 1 1512- ●
142 CLIP; HARNESS,ENG
(C) L=251 		8-97619-917-0 01 1 1303-1511 ●
142 CLIP; HARNESS,ENG
(C) L=251 		8-97619-917-0 01 1 1512- ● ●
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1303-1511 ●
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1512- ● ●
142 CLIP; HARNESS,ENG
(B) L=250 		8-98216-430-0 02 1 1303-1511 ●
142 CLIP; HARNESS,ENG
(B) L=250 		8-98216-430-0 02 1 1512- ● ●
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 02 1 1304-1511 ●
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 02 1 1512- ● ●
178 GROMMET; HARNESS
EXC. TAIWAN EQUIPMENT(WW5) (F) ID=39 OD=45 T=23 		8-98288-452-0 01 1 1512- ●
178 GROMMET; HARNESS
(F) ID=39 OD=45 T=23 		8-98288-452-0 01 1 1512- ●
178 GROMMET; HARNESS
(D) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1303-1303 ●
178 GROMMET; HARNESS
(E) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1303-1303 ●
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 1303-1511 ●
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 1512- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1303-1511 ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1512- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1303-1303 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1303-1303 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1304-1511 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1304-1511 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1304-1511 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1512- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1512- ● ●
178 GROMMET; HARNESS
TAIWAN EQUIPMENT(WW5) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1512- ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 1303-1410 ●
194 CLIP; BAND
WHEEL BASE 5900MM(59W) (B) L=350 		1-09707-183-0 01 1 1411-1511 ●
194 CLIP; BAND
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 01 1 1512- ●
194 CLIP; BAND
EXC. TAIWAN EQUIPMENT(WW5) (B) L=350 		1-09707-183-0 01 1 1512- ●
194 CLIP; BAND
WHEEL BASE 5200MM(52W) (B) L=350 		1-09707-183-0 01 1 1512- ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 1512- ●
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 1303-1511 ●
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 1512- ● ●
194 CLIP; BAND
WHEEL BASE 5900MM(59W) (B) L=350 		1-09707-183-0 03 1 1303-1303 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 03 1 1303-1304 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 04 1 1305-1511 ●
194 CLIP; BAND
TAIWAN EQUIPMENT(WW5) (B) L=350 		1-09707-183-0 04 1 1512- ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 1303-1511 ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 1512- ● ●
208 CLIP; HARNESS,MAG VLV
(A) L=250 		5-09707-030-1 01 1 1303-1511 ●
208 CLIP; HARNESS,MAG VLV
(A) L=250 		5-09707-030-1 01 1 1512- ● ●
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180 		1-09707-162-1 01 1 1303-1511 ●
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180 		1-09707-162-1 01 1 1512- ● ●
228 CLIP; COOLER HARNESS
EXC. TAIWAN EQUIPMENT(WW5) L=250 		5-09707-030-1 02 1 1512- ●
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 1512- ●
305 CLIP; ENG HARNESS
EXC. TAIWAN EQUIPMENT(WW5) (B) L=140 		5-09707-031-1 01 1 1512- ●
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 01 1 1512- ●
305 CLIP; ENG HARNESS
(A) L=250 		5-09707-030-1 04 1 1303-1511 ●
305 CLIP; ENG HARNESS
(A) L=250 		5-09707-030-1 04 1 1512- ● ●
369 CLIP; BAND EDS HARNESS
FULL TRAILER PIPING<Z25> L=250 		5-09707-030-1 02 1 1512- ●
373 CLIP; BAND,GEN HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=175 		1-09707-176-1 01 1 1512- ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. TAIWAN EQUIPMENT(WW5) (C) L=250 		5-09707-030-1 04 1 1512- ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=250 		5-09707-030-1 04 1 1512- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 1303-1511 ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. RUSSIA EQUIPMENT(B12) (A) ID=11 L=41 		1-09700-403-0 01 1 1512- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1303-1511 ●
470 CLIP; HARNESS,LICENSE LAMP
TAIWAN EQUIPMENT(WW5) (B) OD=9 H=6 		1-09709-178-0 01 1 1512- ●
530 SEAL; HARNESS
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 180X40 		1-72498-019-1 01 1 1512- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 12 1 1303-1511 ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 12 1 1512- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 1303-1511 ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 1512- ● ●
çizim 336768
128 16 16 16 235 16 128 16 16 16 16 16 16 16 16 48 16 48 16 235 223 48 16 16 16 16 48 16 470 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (T) ID=13-18 L=26 		1-09709-293-0 01 1 1511-1511 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 02 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5),FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 02 1 1512- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AF) ID=25 L=54 		1-09700-392-1 01 1 1512- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AG) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1512- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AH) ID=26 L=26 		1-09701-236-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (AI) ID=18-24 L=26 		1-09709-296-0 02 1 1512- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) EXC. RUSSIA EQUIPMENT(B12) (AE) L=250 		8-98216-430-0 09 1 1512- ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1304-1511 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1304-1511 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1512- ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (X) L=250 		5-09707-030-1 02 1 1512- ● ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (X) L=250 		5-09707-030-1 02 1 1512- ●
16 CLIP; HARNESS
RUSSIA EQUIPMENT(B12) (AE) L=250 		8-98216-430-0 11 1 1512- ●
16 CLIP; HARNESS
RUSSIA EQUIPMENT(B12) EXC. ENGINE REAR PTO(SV1) (AE) L=250 		8-98216-430-0 11 1 1512- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (S) OD=9 H=6 		1-09709-178-0 03 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (S) OD=9 H=6 		1-09709-178-0 03 1 1512- ● ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 03 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Y) L=140 		5-09707-031-1 03 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (B) ID=11 L=20 		0-95235-035-0 01 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AJ) ID=16 L=40 		0-95235-576-0 02 1 1512- ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (AK) ID=5-12 L=18 		1-09709-287-0 03 1 1512- ● ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> (AI) ID=18-24 L=26 		1-09709-296-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12) BATTERY LAYOUT REAR VAR1<NCT> FULL TRAILER PIPING<Z25> (AI) ID=18-24 L=26 		1-09709-296-0 01 1 1512- ●
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 04 1 1512- ● ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 1512- ● ●
16 CLIP; HARNESS
(AG) ID=20 L=50 		9-09917-430-0 06 1 1512- ● ●
16 CLIP; HARNESS
EXC. TAIWAN EQUIPMENT(WW5) (AG) ID=20 L=50 		9-09917-430-0 05 1 1512- ●
16 CLIP; HARNESS
(AG) ID=20 L=50 		9-09917-430-0 05 1 1512- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AG) ID=20 L=50 		9-09917-430-0 03 1 1512- ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (U) ID=25 L=55 		9-09917-573-0 05 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) TAIWAN EQUIPMENT(WW5) (T) ID=13-18 L=26 		1-09709-293-0 03 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (T) ID=13-18 L=26 		1-09709-293-0 03 1 1512- ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (Q) L=350 		1-09707-183-0 01 1 1303-1304 ●
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1512- ● ●
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1512- ● ●
16 CLIP; HARNESS
(C) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(C) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1512- ● ●
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1303-1511 ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (E) ID=22 L=32 		1-09700-126-1 01 1 1512- ●
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1512- ●
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 04 1 1303-1511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (AL) ID=19 L=20 		0-95235-836-0 01 1 1512- ● ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (AL) ID=19 L=20 		0-95235-836-0 01 1 1512- ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 1303-1511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (Q) L=350 		1-09707-183-0 01 1 1512- ● ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (Q) L=350 		1-09707-183-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (J) ID=15 L=65 		1-09700-466-0 01 1 1303-1511 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) TAIWAN EQUIPMENT(WW5) (J) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
16 CLIP; HARNESS
(H) ID=20 L=50 		1-09700-679-1 01 1 1303-1511 ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (H) ID=20 L=50 		1-09700-679-1 01 1 1512- ●
16 CLIP; HARNESS
(H) ID=20 L=50 		1-09700-679-1 01 1 1512- ●
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 02 1 1303-1303 ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1304-1511 ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1512- ● ●
16 CLIP; HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 01 1 1512- ● ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1303-1511 ●
16 CLIP; HARNESS
MJT7S M/T(Y3E) (C) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1512- ● ●
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1512- ● ●
16 CLIP; HARNESS
(N) ID=18 L=28 		1-09701-067-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(N) ID=18 L=28 		1-09701-067-0 03 1 1512- ● ●
16 CLIP; HARNESS
MAP6U M/T(Y4B) (O) ID=18 H=23 L=28 		1-09701-070-0 02 1 1303- ●
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 1512- ● ●
16 CLIP; HARNESS
(V) ID=28 L=40 		1-09701-261-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(V) ID=28 L=40 		1-09701-261-0 01 1 1512- ● ●
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1303-1511 ●
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1512- ● ●
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 04 1 1303-1511 ●
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 04 1 1512- ● ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1512- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (T) ID=13-18 L=26 		1-09709-293-0 03 1 1303-1511 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) EXC. FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> EXC. FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM(52W) (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303-1304 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1305-1511 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1512- ● ●
16 CLIP; HARNESS
BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1512- ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 1303-1304 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1305-1511 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1305-1511 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1512- ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1512- ● ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 1303-1304 ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 03 1 1305-1511 ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1512- ● ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1512- ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1303-1511 ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1512- ● ●
16 CLIP; HARNESS
(AF) L=251 		8-97619-917-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(AF) L=251 		8-97619-917-0 01 1 1512- ● ●
16 CLIP; HARNESS
(AB) ID=10 L=16.5 		8-98082-034-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(AB) ID=10 L=16.5 		8-98082-034-0 02 1 1512- ● ●
16 CLIP; HARNESS
(AE) L=250 		8-98216-430-0 10 1 1303-1511 ●
16 CLIP; HARNESS
EXC. RUSSIA EQUIPMENT(B12),ENGINE REAR PTO(SV1) (AE) L=250 		8-98216-430-0 10 1 1512- ● ●
16 CLIP; HARNESS
(AG) ID=20 L=50 		9-09917-430-0 06 1 1303-1511 ●
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1512- ● ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1512- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1512- ●
16 CLIP; HARNESS
(U) ID=25 L=55 		9-09917-573-0 05 1 1303-1511 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AM) W/SPONGE RUBBER 		1-09709-150-0 01 1 1512- ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1512- ● ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1512- ● ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1512- ● ●
16 CLIP; HARNESS
MAP6U M/T(Y4B) (S) OD=9 H=6 		1-09709-178-0 02 1 1512- ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 1512- ● ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM(52W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (X) L=250 		5-09707-030-1 01 1 1303-1303 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1303-1303 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1304-1304 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1305-1511 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1305-1511 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1512- ● ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (X) L=250 		5-09707-030-1 01 1 1512- ● ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (X) L=250 		5-09707-030-1 01 1 1512- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (X) L=250 		5-09707-030-1 01 1 1512- ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-1303 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-1303 ●
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1511 ●
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1511 ●
16 CLIP; HARNESS
RUSSIA EQUIPMENT(B12) (Q) L=350 		1-09707-183-0 02 1 1512- ● ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 01 1 1303-1511 ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 01 1 1303-1511 ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 01 1 1512- ● ●
16 CLIP; HARNESS
MAP6U M/T(Y4B) (AC) L=36 		8-94224-891-1 01 1 1512- ●
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 1512- ● ●
16 CLIP; HARNESS
EXC. FULL TRAILER PIPING<Z25> (AD) ID=14 L=44 		9-09917-427-0 03 1 1512- ●
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 1512- ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 03 1 1303-1303 ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 02 1 1303-1304 ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1304-1511 ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1512- ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 H=30 L=17 		1-09700-113-0 01 1 1303-1511 ●
48 CLIP; FRAME HARNESS
(C) ID=11 H=30 L=17 		1-09700-113-0 01 1 1512- ● ●
48 CLIP; FRAME HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303-1511 ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1512- ● ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1303-1511 ●
48 CLIP; FRAME HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1512- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1303-1511 ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1512- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1303-1511 ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1303-1511 ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1512- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1512- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1303-1511 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1512- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1303-1511 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1512- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1303-1511 ●
223 CLIP; AIR TANK HARNESS
TAIWAN EQUIPMENT(WW5) (B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1512- ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1303-1511 ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1512- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJX16P M/T(Y3Z) (B) ID=11 L=28 		9-09917-544-0 01 1 1512- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MAP6U M/T(Y4B) (A) ID=10 H=25 L=20 		1-09700-519-0 01 1 1303-1511 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJT7S M/T(Y3E),MAP6U M/T(Y4B) (A) ID=10 H=25 L=20 		1-09700-519-0 01 1 1512- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJT7S M/T(Y3E) (A) ID=10 H=25 L=20 		1-09700-519-0 01 1 1512- ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. TAIWAN EQUIPMENT(WW5) (C) L=250 		5-09707-030-1 04 1 1512- ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=250 		5-09707-030-1 04 1 1512- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 1303-1511 ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. RUSSIA EQUIPMENT(B12) (A) ID=11 L=41 		1-09700-403-0 01 1 1512- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1303-1511 ●
470 CLIP; HARNESS,LICENSE LAMP
TAIWAN EQUIPMENT(WW5) (B) OD=9 H=6 		1-09709-178-0 01 1 1512- ●
çizim 336778
16 162 470 168 60 16 16 16 223 425 16 16 218 218 116 168 148 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (T) ID=13-18 L=26 		1-09709-293-0 01 1 1511-1511 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 02 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5),FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 02 1 1512- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AF) ID=25 L=54 		1-09700-392-1 01 1 1512- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AG) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1512- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AH) ID=26 L=26 		1-09701-236-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (AI) ID=18-24 L=26 		1-09709-296-0 02 1 1512- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) EXC. RUSSIA EQUIPMENT(B12) (AE) L=250 		8-98216-430-0 09 1 1512- ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1304-1511 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1304-1511 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1512- ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (X) L=250 		5-09707-030-1 02 1 1512- ● ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (X) L=250 		5-09707-030-1 02 1 1512- ●
16 CLIP; HARNESS
RUSSIA EQUIPMENT(B12) (AE) L=250 		8-98216-430-0 11 1 1512- ●
16 CLIP; HARNESS
RUSSIA EQUIPMENT(B12) EXC. ENGINE REAR PTO(SV1) (AE) L=250 		8-98216-430-0 11 1 1512- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (S) OD=9 H=6 		1-09709-178-0 03 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (S) OD=9 H=6 		1-09709-178-0 03 1 1512- ● ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 03 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Y) L=140 		5-09707-031-1 03 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (B) ID=11 L=20 		0-95235-035-0 01 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1512- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AJ) ID=16 L=40 		0-95235-576-0 02 1 1512- ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (AK) ID=5-12 L=18 		1-09709-287-0 03 1 1512- ● ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> (AI) ID=18-24 L=26 		1-09709-296-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) RUSSIA EQUIPMENT(B12) BATTERY LAYOUT REAR VAR1<NCT> FULL TRAILER PIPING<Z25> (AI) ID=18-24 L=26 		1-09709-296-0 01 1 1512- ●
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 04 1 1512- ● ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 1512- ● ●
16 CLIP; HARNESS
(AG) ID=20 L=50 		9-09917-430-0 06 1 1512- ● ●
16 CLIP; HARNESS
EXC. TAIWAN EQUIPMENT(WW5) (AG) ID=20 L=50 		9-09917-430-0 05 1 1512- ●
16 CLIP; HARNESS
(AG) ID=20 L=50 		9-09917-430-0 05 1 1512- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AG) ID=20 L=50 		9-09917-430-0 03 1 1512- ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (U) ID=25 L=55 		9-09917-573-0 05 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) TAIWAN EQUIPMENT(WW5) (T) ID=13-18 L=26 		1-09709-293-0 03 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (T) ID=13-18 L=26 		1-09709-293-0 03 1 1512- ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (Q) L=350 		1-09707-183-0 01 1 1303-1304 ●
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1512- ● ●
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1512- ● ●
16 CLIP; HARNESS
(C) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(C) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1512- ● ●
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1303-1511 ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (E) ID=22 L=32 		1-09700-126-1 01 1 1512- ●
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1512- ●
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 04 1 1303-1511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (AL) ID=19 L=20 		0-95235-836-0 01 1 1512- ● ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (AL) ID=19 L=20 		0-95235-836-0 01 1 1512- ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 1303-1511 ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (Q) L=350 		1-09707-183-0 01 1 1512- ● ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (Q) L=350 		1-09707-183-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (J) ID=15 L=65 		1-09700-466-0 01 1 1303-1511 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) TAIWAN EQUIPMENT(WW5) (J) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
16 CLIP; HARNESS
(H) ID=20 L=50 		1-09700-679-1 01 1 1303-1511 ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (H) ID=20 L=50 		1-09700-679-1 01 1 1512- ●
16 CLIP; HARNESS
(H) ID=20 L=50 		1-09700-679-1 01 1 1512- ●
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 02 1 1303-1303 ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1304-1511 ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1512- ● ●
16 CLIP; HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 01 1 1512- ● ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1303-1511 ●
16 CLIP; HARNESS
MJT7S M/T(Y3E) (C) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1512- ● ●
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1512- ● ●
16 CLIP; HARNESS
(N) ID=18 L=28 		1-09701-067-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(N) ID=18 L=28 		1-09701-067-0 03 1 1512- ● ●
16 CLIP; HARNESS
MAP6U M/T(Y4B) (O) ID=18 H=23 L=28 		1-09701-070-0 02 1 1303- ●
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 1512- ● ●
16 CLIP; HARNESS
(V) ID=28 L=40 		1-09701-261-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(V) ID=28 L=40 		1-09701-261-0 01 1 1512- ● ●
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1303-1511 ●
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1512- ● ●
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 04 1 1303-1511 ●
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 04 1 1512- ● ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1512- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (T) ID=13-18 L=26 		1-09709-293-0 03 1 1303-1511 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) EXC. FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> EXC. FULL TRAILER PIPING<Z25> (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) EXC. BATTERY LAYOUT REAR VAR1<NCT> (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM(52W) (T) ID=13-18 L=26 		1-09709-293-0 01 1 1512- ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303-1304 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1305-1511 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1512- ● ●
16 CLIP; HARNESS
BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1512- ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 1303-1304 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1305-1511 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1305-1511 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1512- ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1512- ● ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 1303-1304 ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 03 1 1305-1511 ●
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1512- ● ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1512- ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1303-1511 ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1512- ● ●
16 CLIP; HARNESS
(AF) L=251 		8-97619-917-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(AF) L=251 		8-97619-917-0 01 1 1512- ● ●
16 CLIP; HARNESS
(AB) ID=10 L=16.5 		8-98082-034-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(AB) ID=10 L=16.5 		8-98082-034-0 02 1 1512- ● ●
16 CLIP; HARNESS
(AE) L=250 		8-98216-430-0 10 1 1303-1511 ●
16 CLIP; HARNESS
EXC. RUSSIA EQUIPMENT(B12),ENGINE REAR PTO(SV1) (AE) L=250 		8-98216-430-0 10 1 1512- ● ●
16 CLIP; HARNESS
(AG) ID=20 L=50 		9-09917-430-0 06 1 1303-1511 ●
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1512- ● ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1512- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1512- ●
16 CLIP; HARNESS
(U) ID=25 L=55 		9-09917-573-0 05 1 1303-1511 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AM) W/SPONGE RUBBER 		1-09709-150-0 01 1 1512- ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1512- ● ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1512- ● ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1303-1511 ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1512- ● ●
16 CLIP; HARNESS
MAP6U M/T(Y4B) (S) OD=9 H=6 		1-09709-178-0 02 1 1512- ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 1303-1511 ●
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 1512- ● ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM(52W) (R) ID=5-12 L=26 		1-09709-289-0 01 1 1512- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (X) L=250 		5-09707-030-1 01 1 1303-1303 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1303-1303 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1304-1304 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1305-1511 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1305-1511 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1512- ● ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (X) L=250 		5-09707-030-1 01 1 1512- ● ●
16 CLIP; HARNESS
TAIWAN EQUIPMENT(WW5) (X) L=250 		5-09707-030-1 01 1 1512- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (X) L=250 		5-09707-030-1 01 1 1512- ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-1303 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-1303 ●
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1511 ●
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-1511 ●
16 CLIP; HARNESS
RUSSIA EQUIPMENT(B12) (Q) L=350 		1-09707-183-0 02 1 1512- ● ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 01 1 1303-1511 ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 01 1 1303-1511 ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 01 1 1512- ● ●
16 CLIP; HARNESS
MAP6U M/T(Y4B) (AC) L=36 		8-94224-891-1 01 1 1512- ●
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 1303-1511 ●
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 1512- ● ●
16 CLIP; HARNESS
EXC. FULL TRAILER PIPING<Z25> (AD) ID=14 L=44 		9-09917-427-0 03 1 1512- ●
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 03 1 1512- ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 03 1 1303-1303 ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 02 1 1303-1304 ●
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 1512- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 1303-1409 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-1511 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1512- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 1303-1511 ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 1512- ● ●
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1303-1511 ●
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1512- ● ●
168 CLIP; DASH HARNESS
(B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 1303-1511 ●
168 CLIP; DASH HARNESS
HEATER & DEFROSTER(C41) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 1512- ● ●
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 1303-1511 ●
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 1512- ● ●
218 CLIP; BAND,RR COMB
FULL TRAILER PIPING<Z25> (A) ID=13-18 L=26 		1-09709-293-0 05 1 1512- ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) EXC. FULL TRAILER PIPING<Z25> (A) ID=13-18 L=26 		1-09709-293-0 05 1 1512- ●
218 CLIP; BAND,RR COMB
FULL TRAILER PIPING<Z25> (B) ID=18-24 L=26 		1-09709-296-0 01 1 1512- ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) EXC. FULL TRAILER PIPING<Z25> (B) ID=18-24 L=26 		1-09709-296-0 01 1 1512- ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5200MM(52W) RUSSIA EQUIPMENT(B12) (B) ID=18-24 L=26 		1-09709-296-0 01 1 1512- ●
218 CLIP; BAND,RR COMB
(A) ID=13-18 L=26 		1-09709-293-0 06 1 1303-1510 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5900MM(59W) (A) ID=13-18 L=26 		1-09709-293-0 06 1 1511-1511 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. FULL TRAILER PIPING<Z25> (A) ID=13-18 L=26 		1-09709-293-0 06 1 1512- ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5500MM(55W) EXC. RUSSIA EQUIPMENT(B12),FULL TRAILER PIPING<Z25> (A) ID=13-18 L=26 		1-09709-293-0 06 1 1512- ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5200MM(52W) (A) ID=13-18 L=26 		1-09709-293-0 06 1 1512- ●
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1303-1511 ●
223 CLIP; AIR TANK HARNESS
TAIWAN EQUIPMENT(WW5) (B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1512- ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1303-1511 ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1512- ● ●
425 CLIP; MODULATOR
EXC. TAIWAN EQUIPMENT(WW5) ID=5-12 L=18 		1-09709-287-0 01 1 1512- ●
425 CLIP; MODULATOR
ID=5-12 L=18 		1-09709-287-0 01 1 1512- ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. TAIWAN EQUIPMENT(WW5) (C) L=250 		5-09707-030-1 04 1 1512- ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=250 		5-09707-030-1 04 1 1512- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 1303-1511 ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. RUSSIA EQUIPMENT(B12) (A) ID=11 L=41 		1-09700-403-0 01 1 1512- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 1303-1511 ●
470 CLIP; HARNESS,LICENSE LAMP
TAIWAN EQUIPMENT(WW5) (B) OD=9 H=6 		1-09709-178-0 01 1 1512- ●
çizim 336815
38 242 150 139 38 150 242 38 38 133 38 480 242 38 139 38 242 38 313 86 313 139 38 139 242 139 358 516 239 377 386 38 88
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> (I) M8X50 FLANGE 		0-28050-850-0 01 1 1512- ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) FULL TRAILER PIPING<Z25> (J) M8X35 FLANGE 		0-28650-835-0 01 1 1512- ●
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (D) M8X20 FLANGE 		0-28650-820-0 05 1 1512- ● ●
38 BOLT; CLIP,HARNESS
(A) M6X10 FLANGE 		0-28050-610-0 01 1 1303-1511 ●
38 BOLT; CLIP,HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) M6X10 FLANGE 		0-28050-610-0 01 1 1512- ●
38 BOLT; CLIP,HARNESS
(A) M6X10 FLANGE 		0-28050-610-0 01 1 1512- ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1303-1303 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1304-1304 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1305-1511 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1305-1511 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1512- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1512- ● ●
38 BOLT; CLIP,HARNESS
(B) M12X16 FLANGE 		0-28051-216-0 01 1 1303-1511 ●
38 BOLT; CLIP,HARNESS
(B) M12X16 FLANGE 		0-28051-216-0 01 1 1512- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1303-1303 ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1304-1511 ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1304-1511 ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1304-1511 ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ● ●
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E),MAP6U M/T(Y4B) (D) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E) (D) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28650-830-0 06 1 1303-1511 ●
38 BOLT; CLIP,HARNESS
(F) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1512- ● ●
38 BOLT; CLIP,HARNESS
MAP6U M/T(Y4B) (G) M10X20 FLANGE 		0-28751-020-0 01 1 1303-1511 ●
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (G) M10X20 FLANGE 		0-28751-020-0 01 1 1512- ● ●
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E),MAP6U M/T(Y4B) (G) M10X20 FLANGE 		0-28751-020-0 01 1 1512- ●
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E) (G) M10X20 FLANGE 		0-28751-020-0 01 1 1512- ●
38 BOLT; CLIP,HARNESS
(F) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303-1511 ●
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28650-830-0 06 1 1512- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1303-1303 ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1303-1303 ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1304-1511 ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1304-1511 ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1511 ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1511 ●
38 BOLT; CLIP,HARNESS
MAP6U M/T(Y4B) (D) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1511 ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ● ●
38 BOLT; CLIP,HARNESS
ENGINE REAR PTO(SV1) (D) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ●
86 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1303-1511 ●
86 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1512- ● ●
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1303-1511 ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1512- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1303-1511 ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1512- ● ●
139 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (E) M8X35 FLANGE 		0-28650-835-0 01 1 1512- ●
139 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 1512- ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1303-1511 ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1512- ● ●
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28151-030-0 01 1 1303-1511 ●
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28151-030-0 01 1 1512- ● ●
139 BOLT; BRKT
WHEEL BASE 5900MM(59W) (C) M8X40 FLANGE 		0-28650-840-0 01 1 1303- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1303-1511 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1303-1511 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1512- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1512- ● ●
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 05 1 1303-1511 ●
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 05 1 1512- ● ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 07 1 1303-1511 ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 07 1 1512- ● ●
239 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1303-1511 ●
239 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1512- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1303-1511 ●
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1512- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 02 1 1303-1511 ●
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ●
242 BOLT; BRKT,HARNESS
EXC. ENGINE REAR PTO(SV1) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ●
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1303-1511 ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 02 1 1512- ● ●
242 BOLT; BRKT,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1303-1511 ●
242 BOLT; BRKT,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1512- ● ●
242 BOLT; BRKT,HARNESS
(E) M10X25 FLANGE 		0-28651-025-0 01 1 1303-1511 ●
242 BOLT; BRKT,HARNESS
(E) M10X25 FLANGE 		0-28651-025-0 01 1 1512- ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1303-1511 ●
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1512- ● ●
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1303-1511 ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1512- ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1303-1511 ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1512- ● ●
377 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1303-1511 ●
377 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1512- ● ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1303-1511 ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1512- ● ●
480 BOLT; BRKT
TAIWAN EQUIPMENT(WW5) M8X20 FLANGE 		0-28650-820-0 04 1 1512- ●
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1303-1511 ●
480 BOLT; BRKT
EXC. TAIWAN EQUIPMENT(WW5) M8X20 FLANGE 		0-28650-820-0 03 1 1512- ●
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1512- ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-1511 ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
çizim 336841
119 423 524 219 294 515 219 515 294 340 515
BalonParca AdiParca NoAdetTipApplied Date A B
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1303-1511 ●
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1512- ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1303-1303 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1304-1304 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1304-1304 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1305-1511 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1512- ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 1303-1304 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1305-1511 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1303-1511 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1512- ● ●
219 NUT
MAP6U M/T(Y4B) (B) M10 FLANGE 		0-91180-210-0 01 1 1303- ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1303-1303 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1303-1303 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1303-1303 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1304-1304 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1304-1304 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1305-1511 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1305-1511 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1305-1511 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1305-1511 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
219 NUT
FULL TRAILER PIPING<Z25> (A) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
219 NUT
EXC. ENGINE REAR PTO(SV1) (A) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1304-1511 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1512- ● ●
294 NUT
MAP6U M/T(Y4B) (B) M10 FLANGE 		0-91180-210-0 02 1 1303- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1303-1511 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1303-1511 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1303-1511 ●
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1512- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1303-1511 ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1512- ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1303-1511 ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1303-1511 ●
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1512- ● ●
515 NUT; BRKT
(C) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 06 1 1303-1511 ●
515 NUT; BRKT
(C) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 06 1 1512- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 1303-1511 ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 1512- ● ●
çizim 336857
53 53 53 53 19 27 53 53 53 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
M8X50 W/LK&PL WASHER 		0-50640-850-0 02 1 1303-1511 ●
19 BOLT; PROTECTOR
M8X50 W/LK&PL WASHER 		0-50640-850-0 02 1 1512- ● ●
27 PROTECTOR; EDGE 8-98201-145-0 01 1 1303-1511 ●
27 PROTECTOR; EDGE 8-98201-145-0 01 1 1512- ● ●
53 BRACKET; HARNESS
(K) 		8-98212-499-0 01 1 1512- ● ●
53 BRACKET; HARNESS
(D) 		8-97610-339-1 01 1 1303-1511 ●
53 BRACKET; HARNESS
(D) 		8-97610-339-1 01 1 1512- ● ●
53 BRACKET; HARNESS
(G) 		8-97625-412-0 02 1 1303-1511 ●
53 BRACKET; HARNESS
(G) 		8-97625-412-0 02 1 1512- ● ●
53 BRACKET; HARNESS
(J) 		8-97625-794-0 01 1 1303-1511 ●
53 BRACKET; HARNESS
(J) 		8-97625-794-0 01 1 1512- ● ●
53 BRACKET; HARNESS
(I) 		8-97630-437-0 01 1 1303-1511 ●
53 BRACKET; HARNESS
(I) 		8-97630-437-0 01 1 1512- ● ●
53 BRACKET; HARNESS
(C) 		8-97638-190-0 01 1 1303-1511 ●
53 BRACKET; HARNESS
(C) 		8-97638-190-0 01 1 1512- ● ●
53 BRACKET; HARNESS
(F) 		8-98123-474-0 01 1 1303-1511 ●
53 BRACKET; HARNESS
GENERATOR NIKKO 24V-60A 1.5KW(SC8) (F) 		8-98123-474-0 01 1 1512- ● ●
53 BRACKET; HARNESS
(E) 		8-98123-475-0 01 1 1303-1511 ●
53 BRACKET; HARNESS
(E) 		8-98123-475-0 01 1 1512- ● ●
53 BRACKET; HARNESS
(B) 		8-98124-778-0 01 1 1303-1511 ●
53 BRACKET; HARNESS
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (M) 		8-97640-913-0 01 1 1512- ● ●
53 BRACKET; HARNESS
(H) 		8-98194-068-0 01 1 1303-1511 ●
53 BRACKET; HARNESS
(H) 		8-98194-068-0 01 1 1512- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1303-1511 ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1303-1511 ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1512- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1512- ● ●
53 BRACKET; HARNESS
(K) 		8-98212-499-0 01 1 1304-1511 ●
53 BRACKET; HARNESS
(B) 		8-98124-778-0 01 1 1512- ● ●
53 BRACKET; HARNESS
(L) 		8-98212-500-1 01 1 1304-1511 ●
53 BRACKET; HARNESS
(L) 		8-98212-500-1 01 1 1512- ● ●
çizim 337121
59 312 312 335 211 312 334 342 312 312 335 342 312 312 335 375
BalonParca AdiParca NoAdetTipApplied Date A B
59 BRACKET; FRAME HARNESS 8-98061-135-1 01 1 1303-1511 ●
59 BRACKET; FRAME HARNESS 8-98061-135-1 01 1 1512- ● ●
59 BRACKET; FRAME HARNESS
NON BURRS AND SHARP EDGES 		8-98201-144-0 01 1 1303-1511 ●
59 BRACKET; FRAME HARNESS
NON BURRS AND SHARP EDGES 		8-98201-144-0 01 1 1512- ● ●
211 BRACKET; AXLE HARNESS
L=95 		1-82699-085-0 02 1 1303-1511 ●
211 BRACKET; AXLE HARNESS
L=95 		1-82699-085-0 02 1 1512- ● ●
312 BRACKET; CLIP HARNESS
EXC. TAIWAN EQUIPMENT(WW5) (G) 		8-98233-397-0 01 1 1512- ●
312 BRACKET; CLIP HARNESS
(G) 		8-98233-397-0 01 1 1512- ●
312 BRACKET; CLIP HARNESS
MAP6U M/T(Y4B) (A) 		1-47476-932-0 01 1 1303- ●
312 BRACKET; CLIP HARNESS
(B) 		1-47477-694-0 02 1 1303-1511 ●
312 BRACKET; CLIP HARNESS
(B) 		1-47477-694-0 02 1 1512- ● ●
312 BRACKET; CLIP HARNESS
(C) L=120 H=35 		1-82698-088-0 01 1 1303-1511 ●
312 BRACKET; CLIP HARNESS
(C) L=120 H=35 		1-82698-088-0 01 1 1512- ● ●
312 BRACKET; CLIP HARNESS
(D) L=85 		8-97636-337-0 01 1 1303-1511 ●
312 BRACKET; CLIP HARNESS
TAIWAN EQUIPMENT(WW5) (D) L=85 		8-97636-337-0 01 1 1512- ●
312 BRACKET; CLIP HARNESS
(E) 		8-97636-868-1 02 1 1303-1511 ●
312 BRACKET; CLIP HARNESS
(E) 		8-97636-868-1 02 1 1512- ● ●
312 BRACKET; CLIP HARNESS
(F) 		8-98201-136-0 01 1 1303-1511 ●
312 BRACKET; CLIP HARNESS
(F) 		8-98201-136-0 01 1 1512- ● ●
312 BRACKET; CLIP HARNESS
(D) L=82.5 		8-98225-560-0 01 1 1303-1511 ●
312 BRACKET; CLIP HARNESS
(D) L=82.5 		8-98225-560-0 01 1 1512- ● ●
334 BRACKET 8-98212-895-0 01 1 1303-1511 ●
334 BRACKET 8-98212-895-0 01 1 1512- ● ●
335 BRACKET; CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (C) 		1-82698-167-0 01 1 1512- ●
335 BRACKET; CONNECTOR
(C) 		1-82698-167-0 01 1 1512- ●
335 BRACKET; CONNECTOR
WHEEL BASE 5900MM(59W) (A) 		1-82698-663-0 01 1 1303- ●
335 BRACKET; CONNECTOR
MAP6U M/T(Y4B) (B) 		1-82699-425-0 01 1 1303- ●
342 BRACKET; HARNESS CAB MTG
(B) 		1-82699-625-0 01 1 1303-1511 ●
342 BRACKET; HARNESS CAB MTG
(B) 		1-82699-625-0 01 1 1512- ● ●
342 BRACKET; HARNESS CAB MTG
(A) 		8-98240-938-0 01 1 1303-1511 ●
342 BRACKET; HARNESS CAB MTG
(A) 		8-98240-938-0 01 1 1512- ●
342 BRACKET; HARNESS CAB MTG
EXC. ENGINE REAR PTO(SV1) (A) 		8-98240-938-0 01 1 1512- ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1303-1511 ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
