4-50 — FRONT SUSPENSION (#115219) — 73 parça

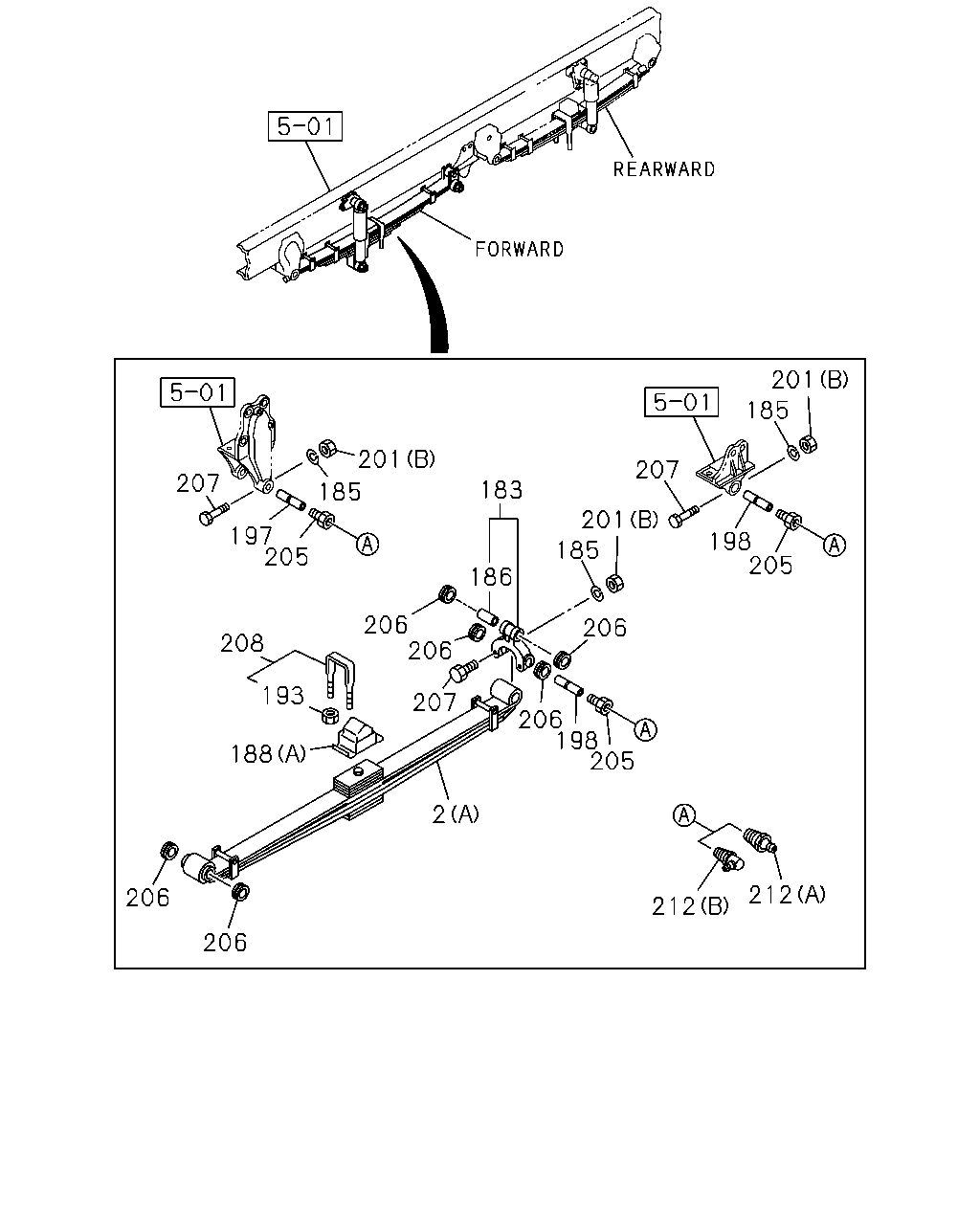

çizim 336449
212 212 205 198 206 206 185 198 205 185 201 207 201 183 186 2 206 206 188 193 208 205 197 185 201 207 206 206 207
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 		8-98118-964-0 02 1 1303-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) 		8-98202-920-0 02 1 1303-
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1303-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 1303-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1303-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-081-1 02 1 1303-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-096-2 02 1 1303-
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1303-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 1303-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 1303-
201 NUT; PIN LK
(A) M24 		0-91110-524-0 02 1 1303-
201 NUT; PIN LK
(B) M12 		0-91110-512-0 24 1 1303-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 1303-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1303-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 1303-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1303-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1303-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 1303-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 1303-

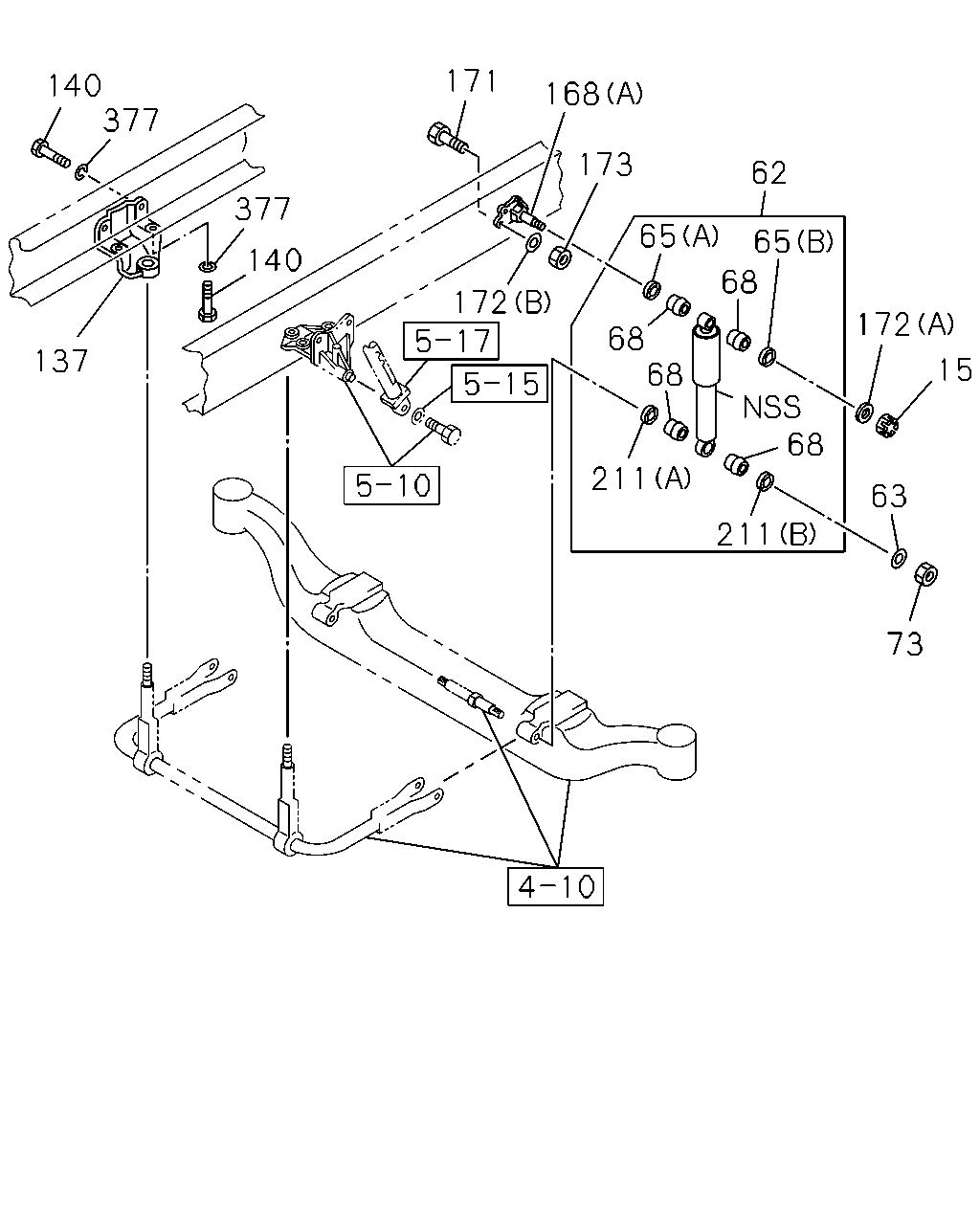

çizim 336452
140 377 377 137 140 171 173 62 65 172 68 211 73 63 68 172 68 211 168 65 68 15
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1303-
62 ABSORBER ASM; SHOCK,FRT 8-98140-084-0 02 1 1303-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 1303-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 1303-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 1303-
68 BUSHING; S/ABS 9-51631-026-0 16 1 1303-
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 04 1 1303-
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1303-
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1303-
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1303-
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1303-
171 BOLT; S/ABS BRKT
M14X40 		0-20951-440-0 08 1 1303-
172 WASHER; PL,S/ABS BRKT
(A) ID=21 		0-91610-520-0 04 1 1303-
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		8-98010-627-1 08 1 1303-
173 NUT; S/ABS
M14 		0-91110-514-0 08 1 1303-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1303-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1303-
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 04 1 1303-

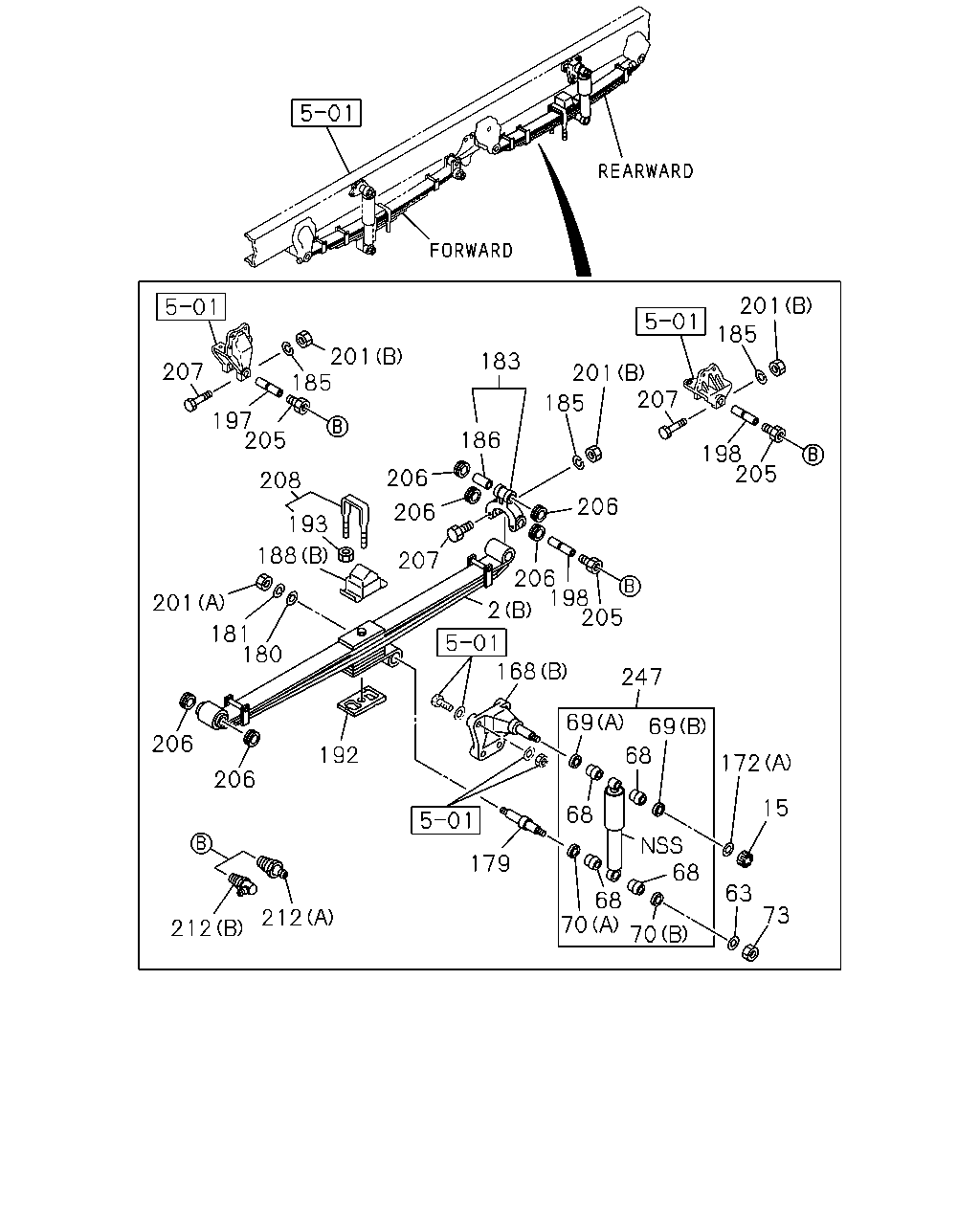

çizim 336888
207 201 185 197 208 205 206 193 188 201 181 180 206 206 212 192 212 179 247 69 68 68 68 68 70 70 172 15 63 73 168 206 198 205 2 69 183 186 185 201 206 198 207 185 201 205 206 207
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 		8-98118-964-0 02 1 1303-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) 		8-98202-920-0 02 1 1303-
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1303-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 1303-
68 BUSHING; S/ABS 9-51631-026-0 16 1 1303-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 1303-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 1303-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 1303-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 1303-
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 04 1 1303-
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1303-
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1303-
172 WASHER; PL,S/ABS BRKT
(A) ID=21 		0-91610-520-0 04 1 1303-
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		8-98010-627-1 08 1 1303-
179 PIN 1-51682-094-1 02 1 1303-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 1303-
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 02 1 1303-
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1303-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 1303-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1303-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-081-1 02 1 1303-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-096-2 02 1 1303-
192 PIECE; DIST 1-51177-281-1 02 1 1303-
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1303-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 1303-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 1303-
201 NUT; PIN LK
(A) M24 		0-91110-524-0 02 1 1303-
201 NUT; PIN LK
(B) M12 		0-91110-512-0 24 1 1303-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 1303-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1303-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 1303-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1303-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1303-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 1303-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 1303-
247 ABSORBER ASM; SHOCK,RWD FRT 8-98162-769-0 02 1 1303-
