4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#115213) — 45 parça

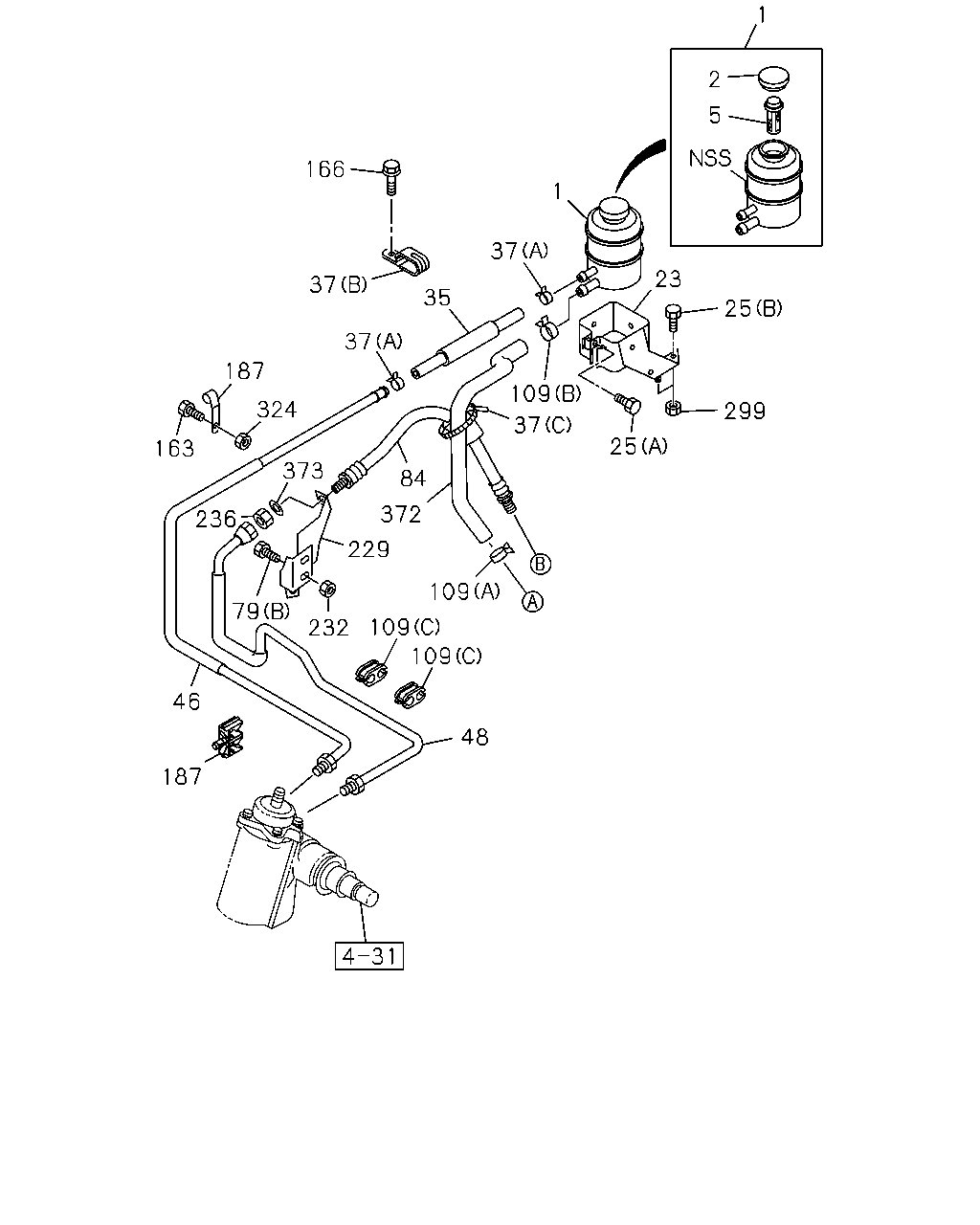

1 2 5 25 299 23 25 37 109 37 1 166 37 37 84 372 229 109 109 109 48 46 187 232 373 324 187 163 236 79 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1302-
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1302-
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1302-
23	06.672 BRACKET; OIL TANK,P/S	8-97289-416-0	01	1	1302-
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1302-
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
35	06.671 HOSE; RETURN,P/S TANK	8-97289-444-1	01	1	1302-
37	01.762 CLIP; HOSE,P/S 04.047 (B) WO/SCREW	1-09700-988-0	01	1	1302-
37	01.762 CLIP; HOSE,P/S 02.559 (C) L=250	5-09707-030-1	01	1	1302-
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1302-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97356-186-0	01	1	1302-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97356-184-0	01	1	1302-
79	06.672 BOLT; BRKT KD PREPARATORY PACK<6HF> 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	1302-
79	06.672 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
84	06.670 HOSE; FLEX,P/S	8-97358-341-0	01	1	1302-1309
84	06.670 HOSE; FLEX,P/S	8-97358-328-0	01	1	1310-
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	02	1	1302-
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1302-
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1302-
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1302-
166	06.672 BOLT; CLIP 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1302-
187	03.162 CLIP; P/S OIL PIPE 06.672 ID=11 L=40	8-94259-342-0	01	1	1302-
187	03.162 CLIP; P/S OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	01	1	1302-
229	06.606 BRACKET; HOSE,POWER STRG	8-97260-271-1	01	1	1302-
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1302-
236	06.672 NUT; FLEX HOSE,P/S PIPING 06.897 M16	8-94370-339-0	01	1	1302-
299	06.660 NUT; OIL TANK BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1302-
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1302-
372	06.673 HOSE; RUBBER 06.672	8-97315-641-1	01	1	1302-
373	06.673 WASHER; HOSE,P/S 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	1302-

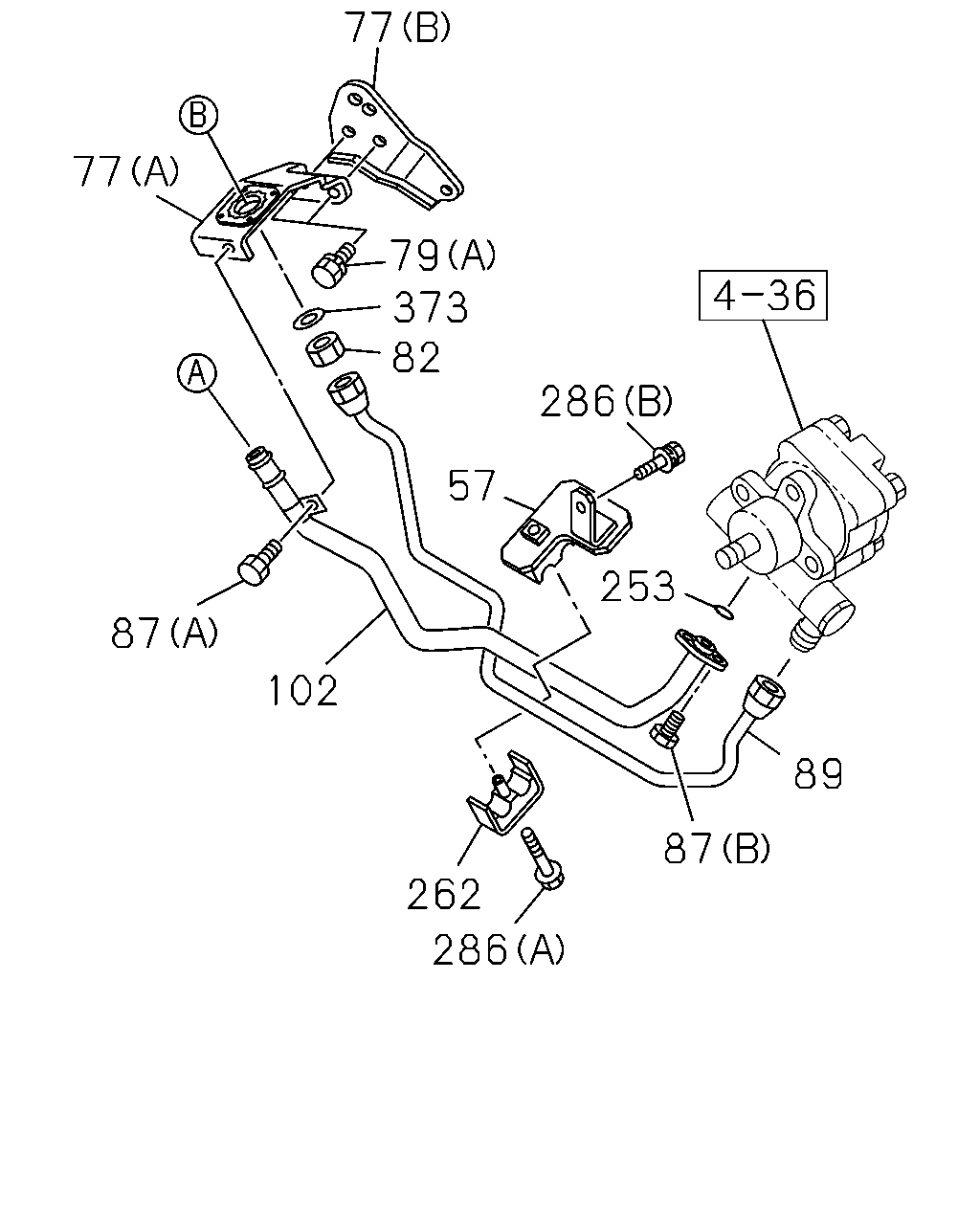

89 87 253 286 57 102 262 286 87 77 77 79 82 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	06.672 BRACKET; POWER STRG PIPE	8-97312-558-3	01	1	1302-
77	06.672 BRACKET; POWER STEERING HOSE KD PREPARATORY PACK<6HF> (A)	8-97208-424-0	01	1	1302-
77	06.672 BRACKET; POWER STEERING HOSE KD PREPARATORY PACK<6HF> (B)	8-97240-137-0	01	1	1302-
79	06.672 BOLT; BRKT KD PREPARATORY PACK<6HF> 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	1302-
79	06.672 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
82	06.672 NUT; FLEX HOSE,P/S 06.897 M16	8-94370-339-0	01	1	1302-
87	06.672 BOLT; POWER STRG PIPE 00.206 (A) M6X20	8-94279-112-0	01	1	1302-
87	06.672 BOLT; POWER STRG PIPE (B) M8X14 FLANGE	8-98219-171-0	02	1	1302-
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H	8-98218-675-0	01	1	1302-
102	06.671 PIPE; SUCTION,P/S	8-98218-669-0	01	1	1302-
253	06.673 GASKET; OIL PIPE 06.609 ID=11.0	9-09561-111-0	01	1	1302-
262	06.672 CLIP; P/S PIPE	8-97300-961-1	01	1	1302-
286	06.672 BOLT; CLIP,P/S HOSE 00.685 (A) M8X40 FLANGE	0-28650-840-0	01	1	1302-
286	06.672 BOLT; CLIP,P/S HOSE 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	1302-
373	06.673 WASHER; HOSE,P/S 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	1302-
