8-28 — CHASSIS ELECTRICAL (#115210) — 19 parça

361 45 189 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-97211-743-2	01	1	1302-
45	02.810 HORN; LOW NOTE DUAL HEAVY DUTY HORN(6KK)	8-97211-744-2	01	1	1302-
45	02.810 HORN; LOW NOTE EXC. DUAL HEAVY DUTY HORN(6KK)	8-98050-693-0	01	1	1302-
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-
189	02.812 BOLT; HORN EXC. DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1302-
361	02.559 BOLT; CONNECTOR 02.587 M6X19.5 W/LK&PL WASHER	8-97360-226-0	01	1	1302-

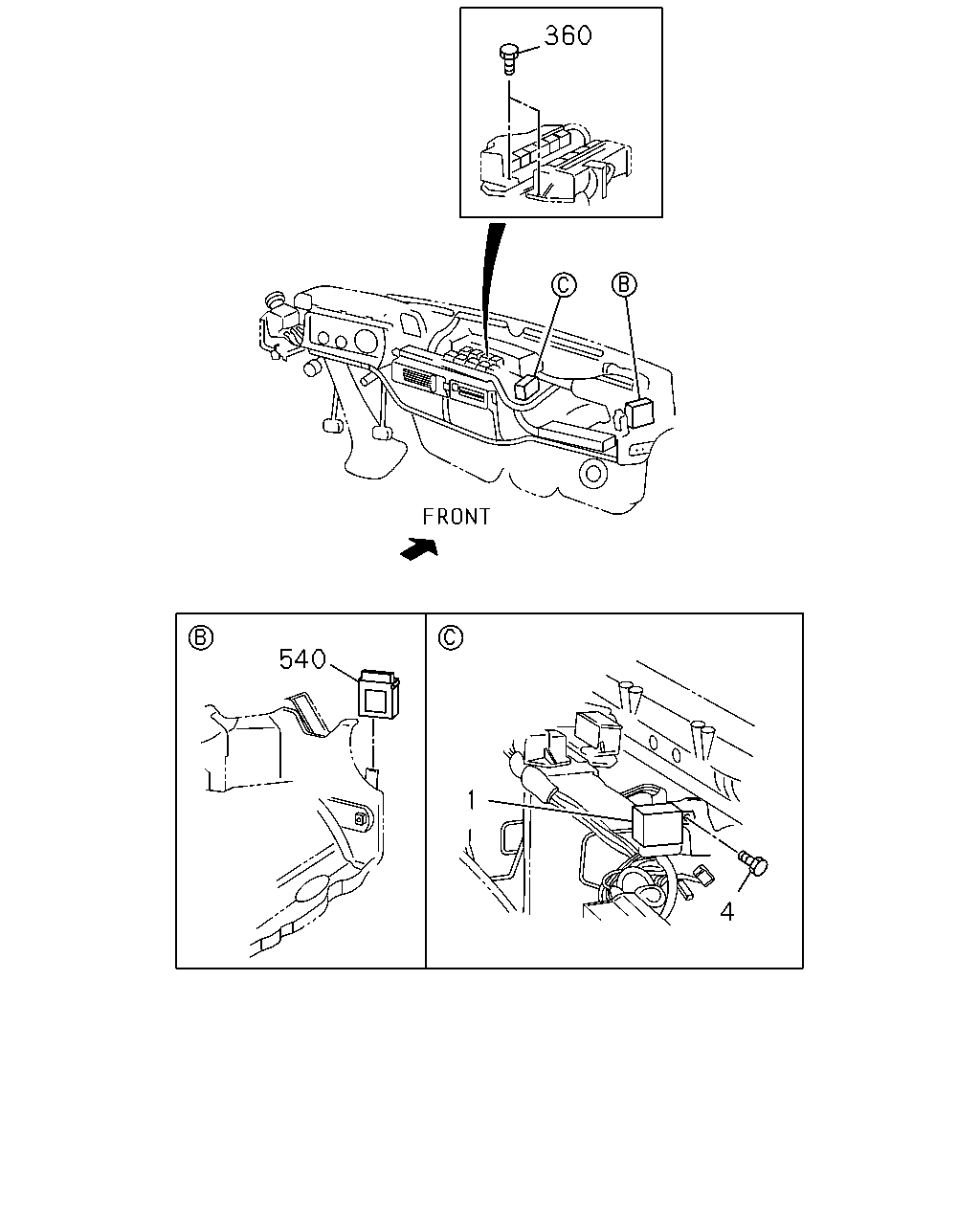

360 540 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.575 UNIT; FLASHER	8-97228-398-0	01	1	1302-
4	02.575 SCREW; FLASHER UNIT 02.587 M6X19.5 W/LK&PL WASHER	8-97360-226-0	01	1	1302-
360	02.483 BOLT; RELAY BOX 02.587 M6X19.5 W/LK&PL WASHER	8-97360-226-0	04	1	1302-
540	16.067 RELAY; WIPER INTERVAL	8-97363-984-0	01	1	1302-

485 11 770

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	02.485 RELAY; DIMMER 02.510 12V 20A	8-97173-037-1	01	1	1302-
485	04.720 RELAY; ABS 02.510 12V 20A	8-97173-037-1	01	1	1302-
770	02.510 RELAY; ENG BRK 12V 20A	8-97173-037-1	01	1	1302-

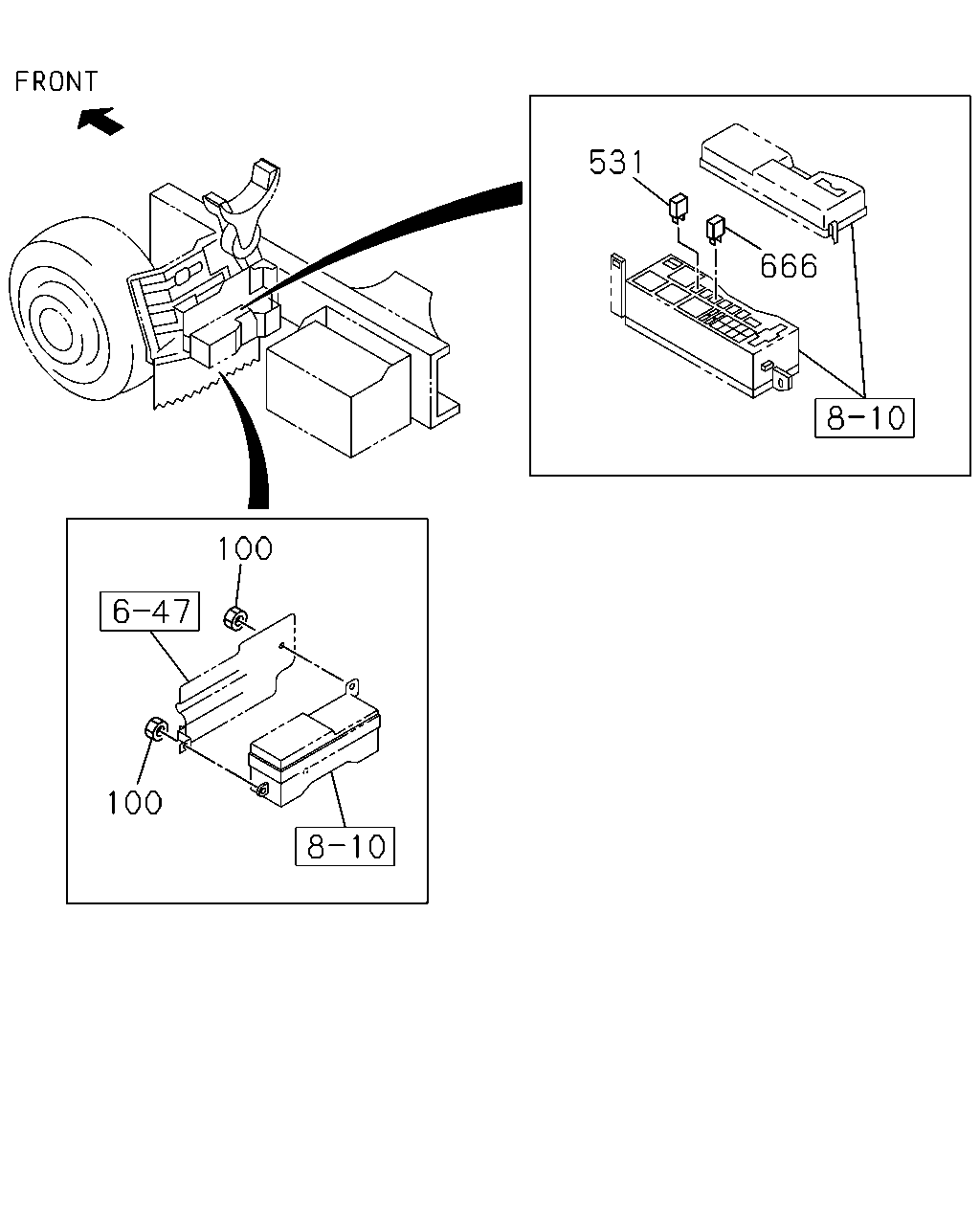

100 100 531 666

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	09.277 NUT; RELAY BOX COVER 01.062 M8 FLANGE	0-91180-108-0	03	1	1302-
531	02.769 RELAY; MAIN 02.510 12V 20A	8-97173-037-1	01	1	1302-
666	02.173 RELAY; STARTER 02.510 12V 20A	8-97173-037-1	01	1	1302-

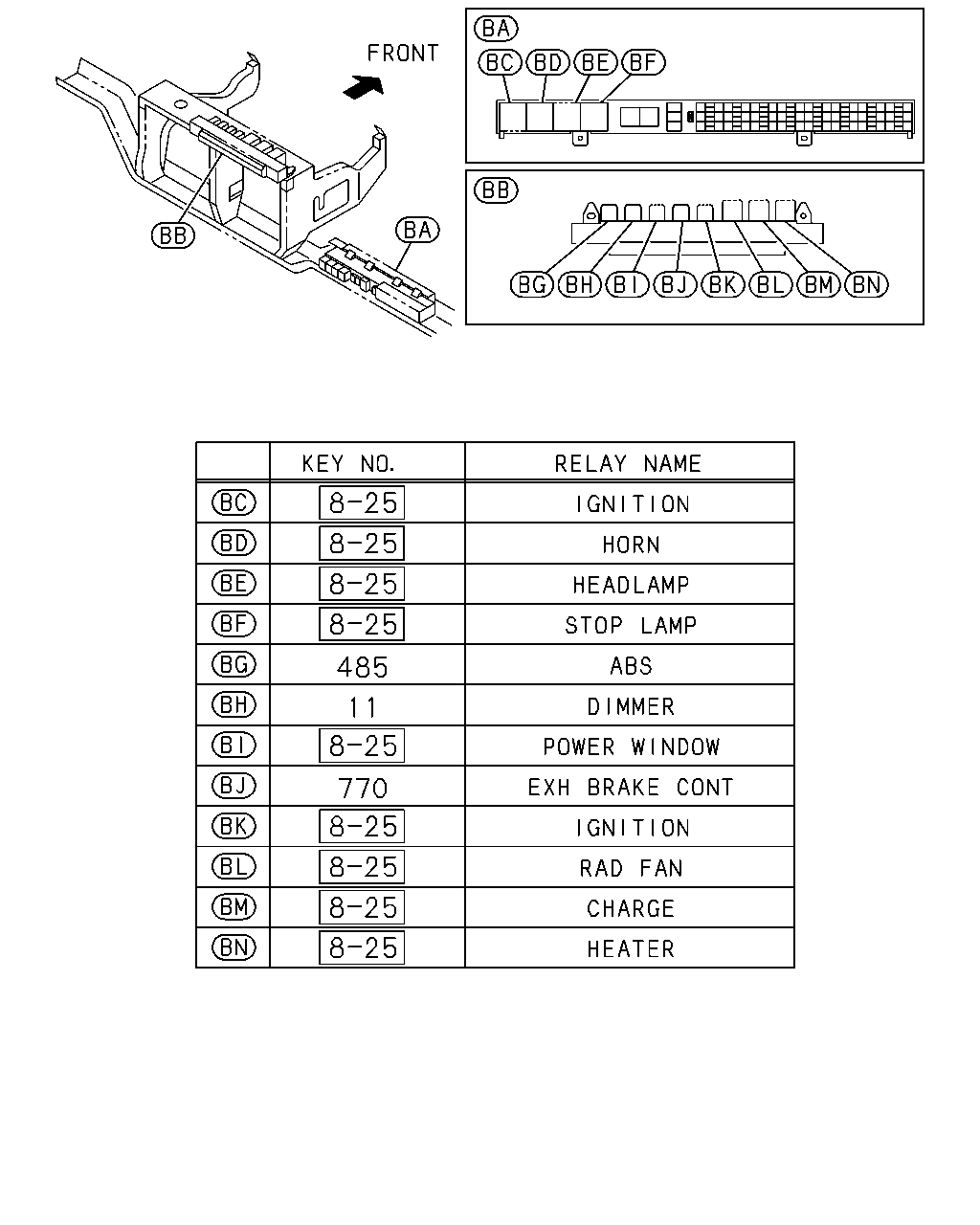

11 485 770

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	02.485 RELAY; DIMMER 02.510 12V 20A	8-97173-037-1	01	1	1302-
485	04.720 RELAY; ABS 02.510 12V 20A	8-97173-037-1	01	1	1302-
770	02.510 RELAY; ENG BRK 12V 20A	8-97173-037-1	01	1	1302-
