7-70 — SEPARATER AND BED (#115208) — 110 parça

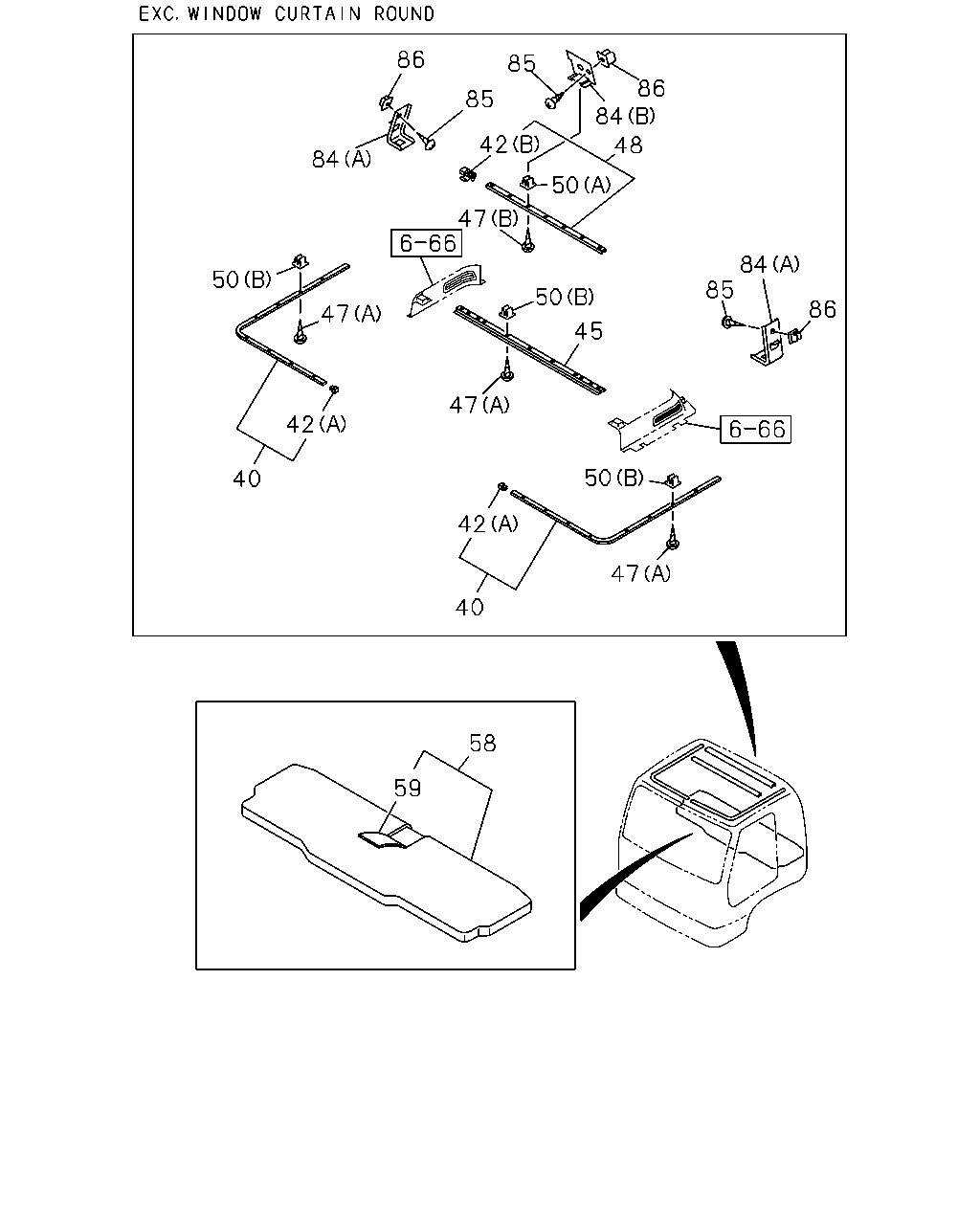

86 84 50 40 42 47 85 85 42 47 50 47 42 40 50 47 86 85 84 59 58 45 50 84 86 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE	1-73907-535-1	01	1	1303-1511	●
40	RAIL; CURTAIN,SIDE TAIWAN EQUIPMENT(WW5) EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1512-	●
40	RAIL; CURTAIN,SIDE	1-73907-536-1	01	1	1303-1511	●
40	RAIL; CURTAIN,SIDE TAIWAN EQUIPMENT(WW5) EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1512-	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1512-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1512-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,TAIWAN EQUIPMENT(WW5)	1-73996-378-1	02	1	1512-	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-378-1	02	1	1512-		●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	1303-1511	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1512-	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	1303-1511	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1512-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1512-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1512-	●	●
45	RAIL; CURTAIN,FRT	1-73907-545-2	01	1	1303-1511	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1512-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1512-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1303-1511	●
47	SCREW; CURTAIN RAIL TAIWAN EQUIPMENT(WW5) (A) M5X20	5-09981-059-0	27	1	1512-	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1303-1511	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1512-	●	●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,TAIWAN EQUIPMENT(WW5) (A) M5X20	5-09981-059-0	08	1	1512-	●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	08	1	1512-		●
47	SCREW; CURTAIN RAIL EXC. TAIWAN EQUIPMENT(WW5) (A) M5X20	5-09981-059-0	11	1	1512-	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	11	1	1512-		●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> EXC. TAIWAN EQUIPMENT(WW5) (A) M5X20	5-09981-059-0	16	1	1512-	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	16	1	1512-		●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	1303-1511	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1512-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1512-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1303-1511	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1512-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1303-1511	●
50	GROMMET; SCREW,CURTAIN RAIL TAIWAN EQUIPMENT(WW5) (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1512-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,TAIWAN EQUIPMENT(WW5) (A) D=8X8 L=13 M5	1-09983-159-0	08	1	1512-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5	1-09983-159-0	08	1	1512-		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. TAIWAN EQUIPMENT(WW5) (B) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	1512-	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	1512-		●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> EXC. TAIWAN EQUIPMENT(WW5) (B) D=8.6X7.7 L=7.5	8-94279-078-0	16	1	1512-	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5	8-94279-078-0	16	1	1512-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-979-3	01	1	1512-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-981-1	01	1	1512-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1303-1511	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1512-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1303-1511	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1512-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1303-1511	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1512-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1303-1511	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1512-	●	●

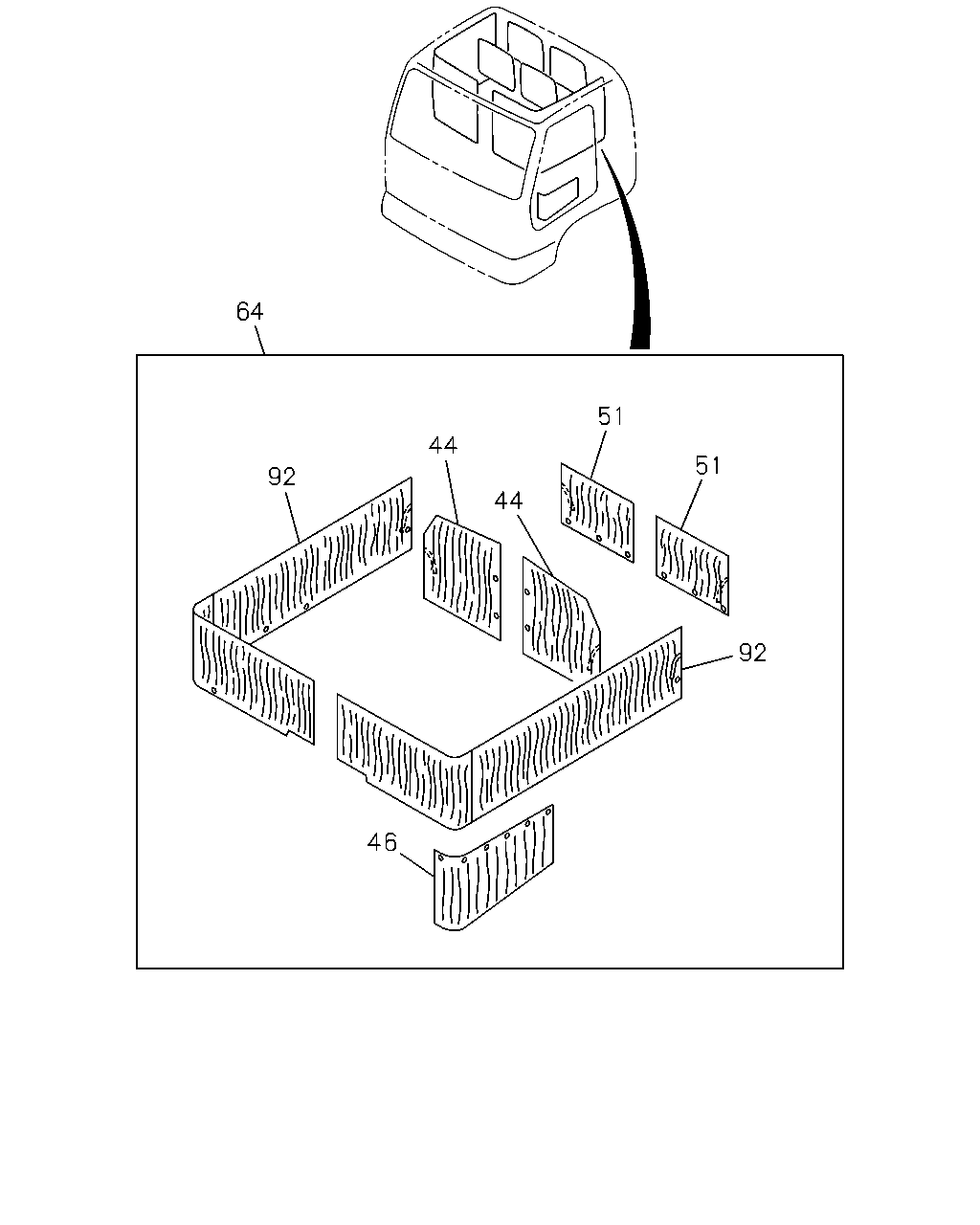

64 92 44 44 51 51 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-480-1	01	1	1512-	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-481-1	01	1	1512-	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-426-0	01	1	1512-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-1	01	1	1512-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-1	01	1	1512-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-479-1	01	1	1512-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-1	01	1	1512-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-1	01	1	1512-	●	●

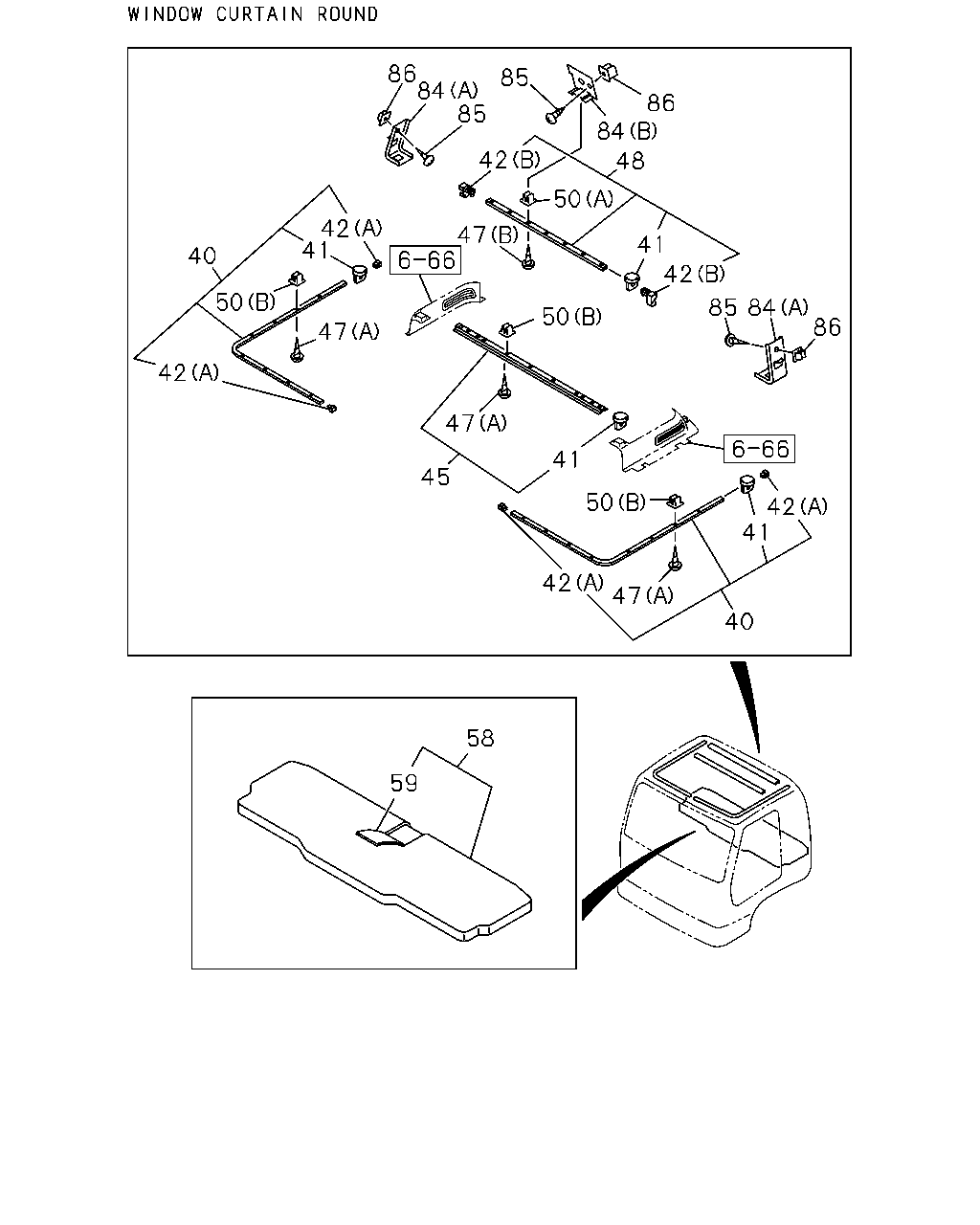

86 84 85 85 42 84 86 48 50 47 42 41 40 50 42 47 50 41 42 85 84 86 47 45 41 50 42 47 40 42 41 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE	1-73907-535-1	01	1	1303-1511	●
40	RAIL; CURTAIN,SIDE TAIWAN EQUIPMENT(WW5) EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1512-	●
40	RAIL; CURTAIN,SIDE	1-73907-536-1	01	1	1303-1511	●
40	RAIL; CURTAIN,SIDE TAIWAN EQUIPMENT(WW5) EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1512-	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1512-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1512-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,TAIWAN EQUIPMENT(WW5)	1-73996-378-1	02	1	1512-	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-378-1	02	1	1512-		●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	1512-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	1512-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	1303-1511	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1512-	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	1303-1511	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1512-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1512-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1512-	●	●
45	RAIL; CURTAIN,FRT	1-73907-545-2	01	1	1303-1511	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1512-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1512-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1303-1511	●
47	SCREW; CURTAIN RAIL TAIWAN EQUIPMENT(WW5) (A) M5X20	5-09981-059-0	27	1	1512-	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1303-1511	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1512-	●	●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,TAIWAN EQUIPMENT(WW5) (A) M5X20	5-09981-059-0	08	1	1512-	●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	08	1	1512-		●
47	SCREW; CURTAIN RAIL EXC. TAIWAN EQUIPMENT(WW5) (A) M5X20	5-09981-059-0	11	1	1512-	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	11	1	1512-		●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> EXC. TAIWAN EQUIPMENT(WW5) (A) M5X20	5-09981-059-0	16	1	1512-	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	16	1	1512-		●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	1303-1511	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1512-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1512-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1303-1511	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1512-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1303-1511	●
50	GROMMET; SCREW,CURTAIN RAIL TAIWAN EQUIPMENT(WW5) (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1512-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>,TAIWAN EQUIPMENT(WW5) (A) D=8X8 L=13 M5	1-09983-159-0	08	1	1512-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=13 M5	1-09983-159-0	08	1	1512-		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. TAIWAN EQUIPMENT(WW5) (B) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	1512-	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	1512-		●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> EXC. TAIWAN EQUIPMENT(WW5) (B) D=8.6X7.7 L=7.5	8-94279-078-0	16	1	1512-	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5	8-94279-078-0	16	1	1512-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-979-3	01	1	1512-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-981-1	01	1	1512-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1303-1511	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1512-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1303-1511	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1512-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1303-1511	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1512-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1303-1511	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1512-	●	●
