Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11501 - CYZ LHD EURO5
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

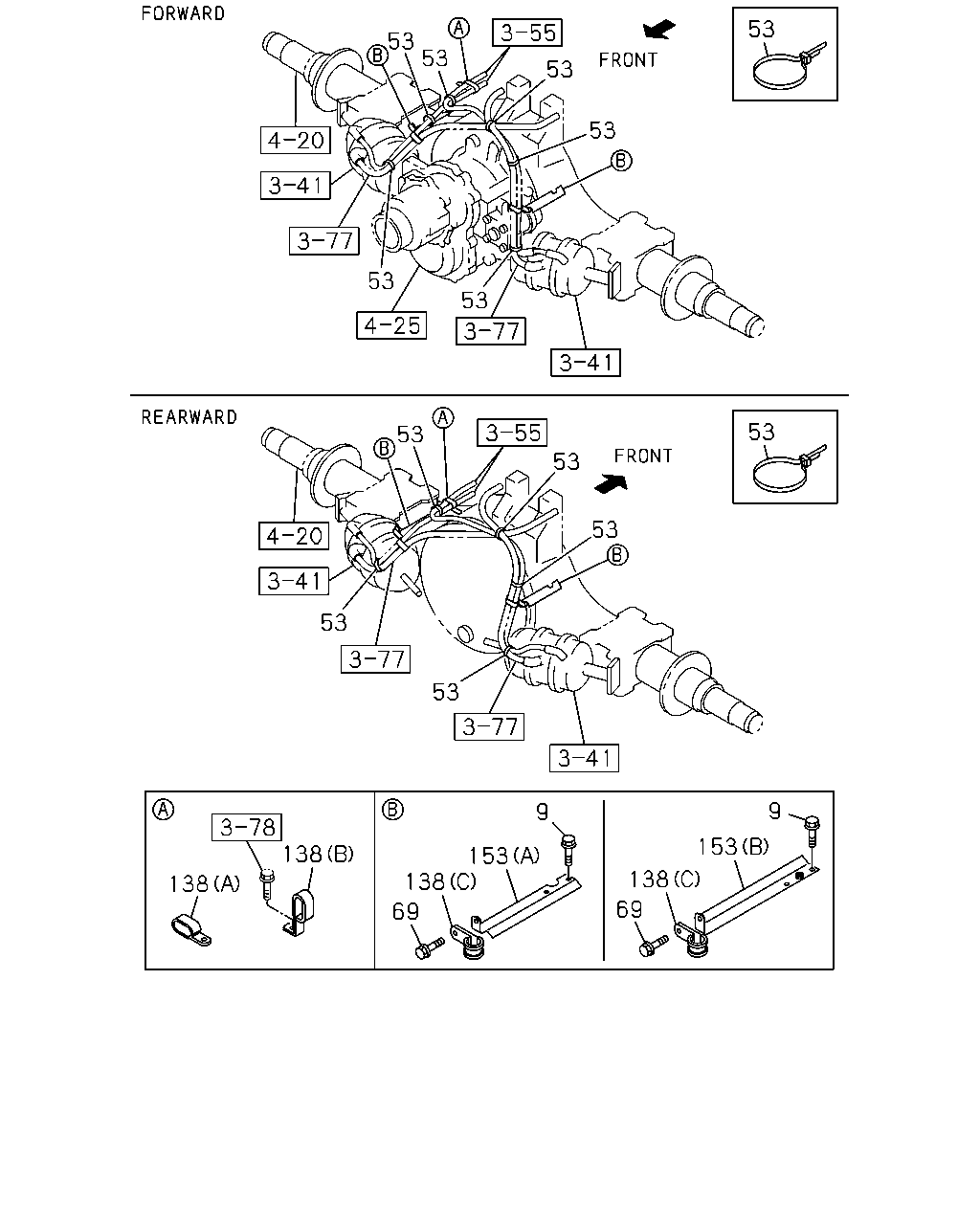

3-58 — FIXING PARTS; OIL PIPING
(#115203) — 20 parça
Tümü
A - CYZ6MF
B - CYZ6MC
53
53
53
53
53
53
53
53
53
53
53
53
53
9
153
138
69
153
138
69
138
138
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
08
1
1303-1511
●
9
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
08
1
1512-
●
●
53
CLIP; UNION
L=250
1-09707-126-0
16
1
1303-1511
●
53
CLIP; UNION
L=250
1-09707-126-0
16
1
1512-
●
●
69
BOLT; CLIP
M8X20 FLANGE
0-28050-820-0
04
1
1303-1511
●
69
BOLT; CLIP
M8X20 FLANGE
0-28050-820-0
04
1
1512-
●
●
138
CLIP; TUBE
(A) ID=11X2 L=20
0-95325-035-0
01
1
1303-1511
●
138
CLIP; TUBE
(A) ID=11X2 L=20
0-95325-035-0
01
1
1512-
●
●
138
CLIP; TUBE
(B) ID=11X2 H=35 L=20
1-09700-847-0
01
1
1303-1511
●
138
CLIP; TUBE
(B) ID=11X2 H=35 L=20
1-09700-847-0
01
1
1512-
●
●
138
CLIP; TUBE
(C) ID=35 L=33
1-09700-945-0
04
1
1303-1511
●
138
CLIP; TUBE
(C) ID=35 L=33
1-09700-945-0
04
1
1512-
●
●
153
BRACKET; NYLON TUBE
(B) FORWARD RH,REARWARD LH
1-42129-486-1
01
1
1303-1511
●
153
BRACKET; NYLON TUBE
(B) FORWARD RH,REARWARD LH
1-42129-486-1
01
1
1303-1511
●
153
BRACKET; NYLON TUBE
(B) FORWARD RH,REARWARD LH
1-42129-486-1
01
1
1512-
●
●
153
BRACKET; NYLON TUBE
(B) FORWARD RH,REARWARD LH
1-42129-486-1
01
1
1512-
●
●
153
BRACKET; NYLON TUBE
(A) FORWARD LH,REARWARD RH
1-42129-487-1
01
1
1303-1511
●
153
BRACKET; NYLON TUBE
(A) FORWARD LH,REARWARD RH
1-42129-487-1
01
1
1303-1511
●
153
BRACKET; NYLON TUBE
(A) FORWARD LH,REARWARD RH
1-42129-487-1
01
1
1512-
●
●
153
BRACKET; NYLON TUBE
(A) FORWARD LH,REARWARD RH
1-42129-487-1
01
1
1512-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
