0-11 — CYLINDER HEAD (#11520) — 27 parça

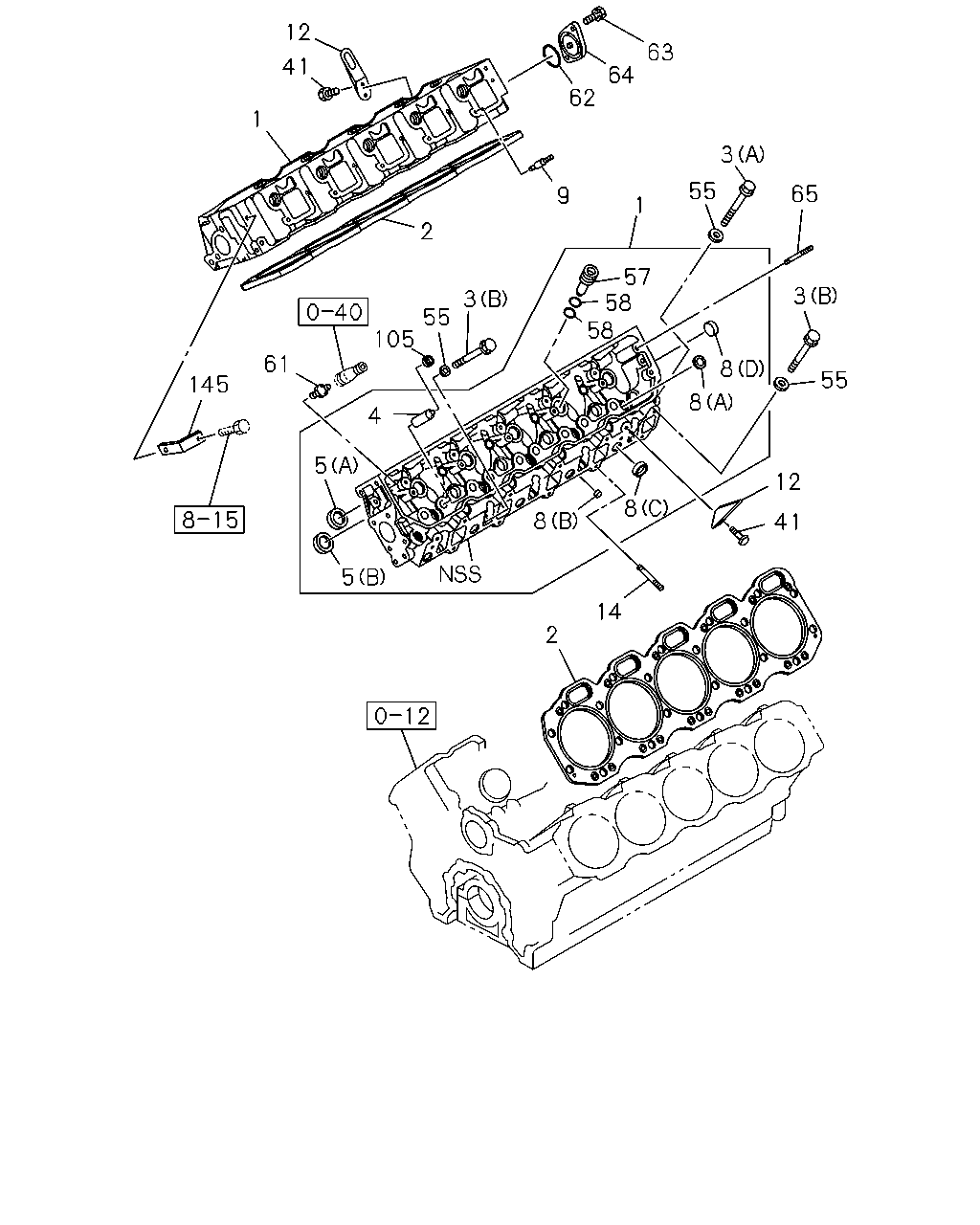

çizim 74773
12 63 41 64 62 1 3 55 65 9 1 2 57 58 58 3 3 55 105 61 8 55 145 8 4 5 12 8 8 41 5 14 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL
RH BANK 		1-11110-850-2 01 1 0105- ● ●
1 HEAD ASM; CYL
LH BANK 		1-11110-851-2 01 1 0105- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-261-1 02 1 0105- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M14X80 FLANGE 		1-09070-138-0 20 1 0105- ● ●
3 BOLT; CYL HD TO BLOCK
(A) M14X140 		1-09070-139-0 24 1 0105- ● ●
4 GUIDE; VLV 1-11721-004-0 20 1 0105- ● ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-071-0 10 1 0105-0108 ● ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-054-0 10 1 0109- ● ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-078-0 10 1 0105- ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=45 		1-09600-005-2 01 1 0105- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=12 		1-09600-010-2 20 1 0105- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=22 		1-09600-011-2 28 1 0105- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-2 10 1 0105- ● ●
9 STUD; INL MANIF
M10X13,M10X17 L=65 		1-09309-008-0 20 1 0105- ● ●
12 HANGER; ENG,RR 1-11777-164-0 02 1 0105- ● ●
14 STUD; EXH MANIF
M10X95 L=110 		1-09302-063-0 20 1 0105- ● ●
41 BOLT; ENG HANGER
M12X26 		1-09000-535-1 04 1 0105- ● ●
55 WASHER; PL,CYL HD TO BLOCK
ID=14.2 		1-09503-050-0 44 1 0105- ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-017-0 10 1 0105- ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-592-0 20 1 0105- ● ●
61 CONNECTOR; LEAK OFF PIPE 1-09669-015-0 02 1 0105- ● ●
62 GASKET; COVER,WATER JACKET
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-425-0 01 1 0105- ● ●
63 BOLT; CVR,WATER JACKET
M10X25 FLANGE 		0-28181-025-0 02 1 0105- ● ●
64 COVER; WATER JACKET 1-11119-013-1 01 1 0105- ● ●
65 STUD; ROCKER OIL FEED
M10X88 L=103 		1-09300-025-0 02 1 0105- ● ●
105 SEAL; OIL VLV STEM
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-12569-017-0 20 1 0105- ● ●
145 BRACKET 1-09709-072-0 01 1 0105- ● ●
