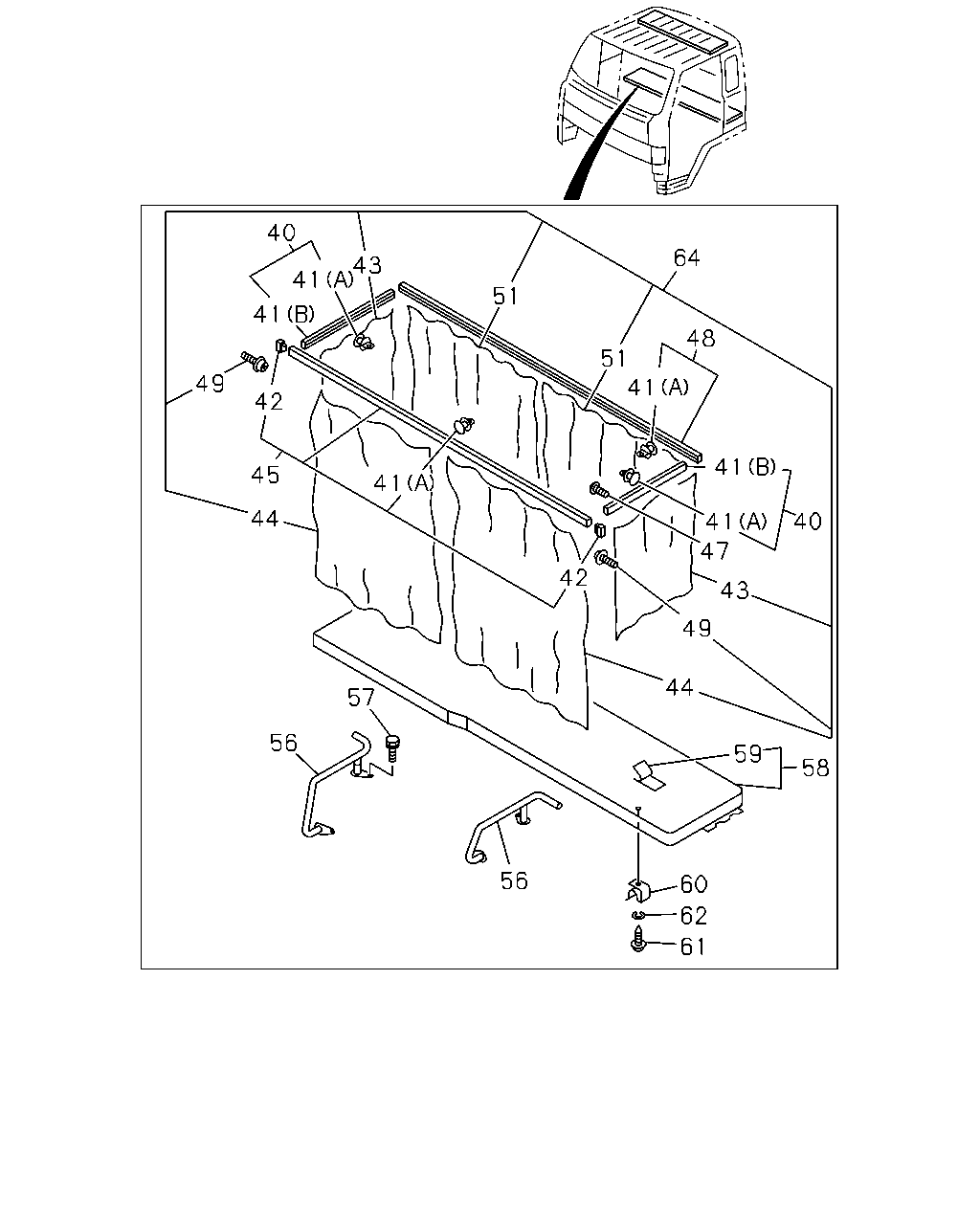

7-70 — SEPARATER AND BED (#1152) — 32 parça

40 64 43 41 51 41 48 51 49 41 42 41 45 41 44 40 41 47 42 43 49 44 57 56 59 58 56 60 62 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> DELUXE CAB(W14)	1-73998-863-0	02	1	9202-	●	●
40	RAIL; CURTAIN,SIDE DELUXE CAB(W14) EXC. CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-739-0	02	1	9202-	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> DELUXE CAB(W14) (A) GRAY MATT FINISH	1-73997-980-0	18	1	9202-	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> DELUXE CAB(W14) (B)	1-73998-740-0	12	1	9202-	●	●
42	STOPPER; CURTAIN RAIL DELUXE CAB(W14) DARK GRAY	1-73998-787-0	01	1	9202-	●	●
42	STOPPER; CURTAIN RAIL DELUXE CAB(W14) DARK GRAY	1-73998-786-0	01	1	9202-	●	●
43	CURTAIN ASM; QUARTER WINDOW CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73997-991-0	01	1	9202-	●	●
43	CURTAIN ASM; QUARTER WINDOW CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73997-990-0	01	1	9202-	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-880-0	01	1	9202-	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-879-0	01	1	9202-	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> DELUXE CAB(W14)	1-73998-862-0	01	1	9202-	●	●
45	RAIL; CURTAIN,FRT DELUXE CAB(W14) EXC. CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-738-0	01	1	9202-	●	●
47	SCREW; CURTAIN RAIL DELUXE CAB(W14) M4X16 TAPPING	1-09981-475-0	16	1	9202-9207	●	●
47	SCREW; CURTAIN RAIL DELUXE CAB(W14) M4X16 TAPPING	1-09981-477-0	16	1	9208-	●	●
47	SCREW; CURTAIN RAIL EXC. DELUXE CAB(W14) M4X16 TAPPING	1-09981-475-0	03	1	9202-9207	●	●
47	SCREW; CURTAIN RAIL EXC. DELUXE CAB(W14) M4X16 TAPPING	1-09981-477-0	03	1	9208-	●	●
48	RAIL; CURTAIN,BACK CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> DELUXE CAB(W14)	1-73998-864-0	01	1	9202-	●	●
48	RAIL; CURTAIN,BACK DELUXE CAB(W14) EXC. CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-740-0	01	1	9202-	●	●
49	HOOK; CURTAIN DELUXE CAB(W14) M4X14 HOOK MALE	1-09981-370-0	02	1	9202-9212	●	●
49	HOOK; CURTAIN DELUXE CAB(W14) M4X14 HOOK MALE	1-09981-370-0	02	1	9301-	●	●
49	HOOK; CURTAIN CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> M4X14 HOOK MALE	1-09981-370-0	02	1	9301-		●
51	CURTAIN; BACK CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73907-228-0	01	1	9202-		●
51	CURTAIN; BACK CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73907-227-0	01	1	9202-		●
56	STAND; BED PASSENGER SEAT MULTI<WX9>	1-75558-266-1	01	1	9202-	●	●
56	STAND; BED PASSENGER SEAT MULTI<WX9>	1-75558-265-1	01	1	9202-	●	●
57	BOLT; BED STAND PASSENGER SEAT MULTI<WX9>	1-09980-566-0	04	1	9202-	●	●
58	BED; MAT PASSENGER SEAT MULTI<WX9> DARK GRAY	1-75118-964-1	01	1	9202-	●	●
59	COVER ASM; TRIM,BED MAT PASSENGER SEAT MULTI<WX9>	1-75118-966-0	01	1	9202-	●	●
60	HOLDER PASSENGER SEAT MULTI<WX9>	1-75147-582-0	04	1	9202-	●	●
61	SCREW; ROD HOLDER FIX PASSENGER SEAT MULTI<WX9> M6X16	9-03490-616-0	14	1	9202-	●	●
62	WASHER; LK,ROD HOLDER PASSENGER SEAT MULTI<WX9> ID=8.2	9-09150-508-0	14	1	9202-	●	●
64	CURTAIN KIT CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-865-0	01	1	9202-	●	●
