1-40 — FUEL TANK (#115199) — 119 parça

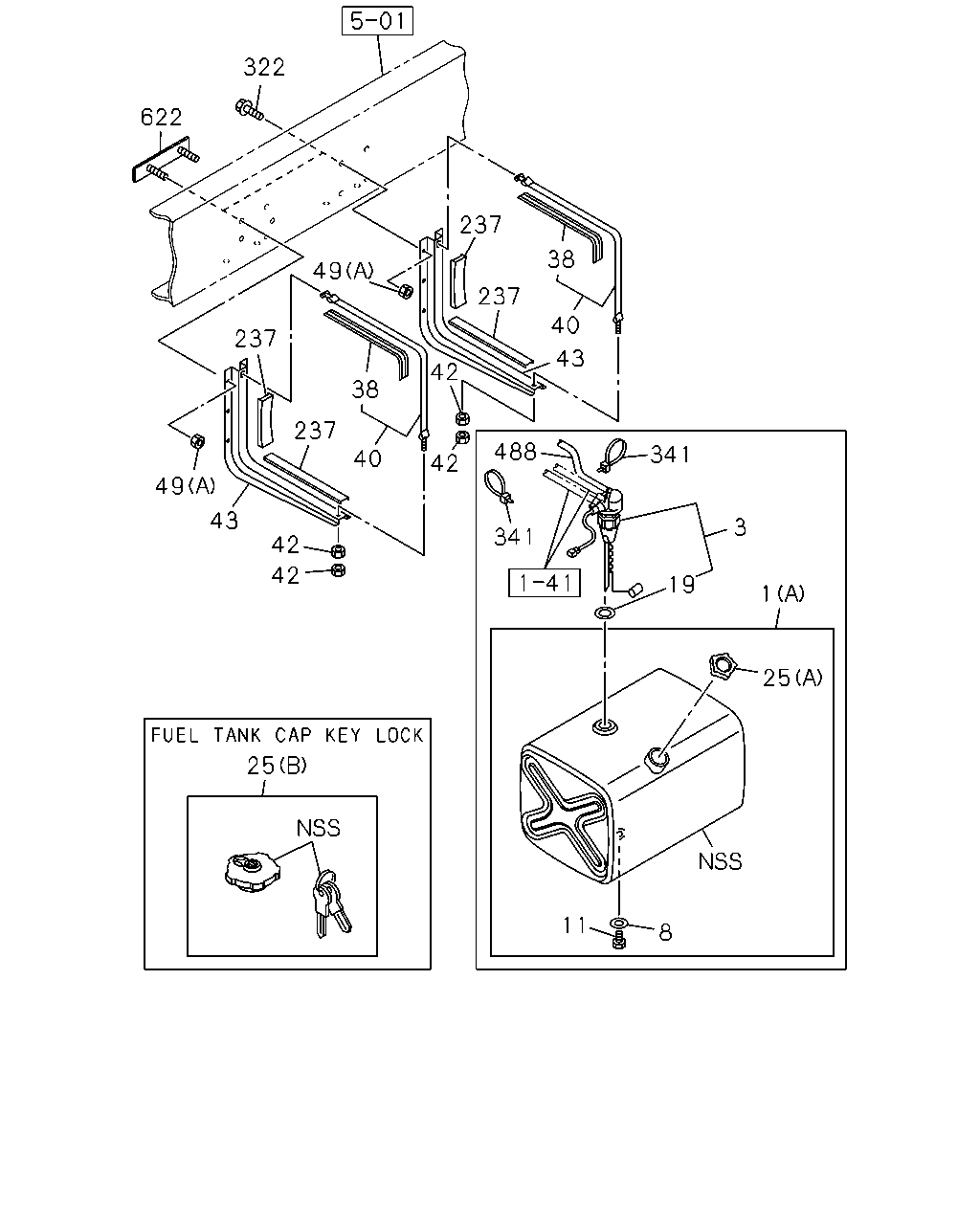

622 322 237 49 43 42 42 237 38 49 237 237 38 40 43 40 42 488 341 341 19 3 1 25 11 25 8 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	1512-	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 1050X680X625 400L	1-87411-788-3	01	1	1512-		●
1	TANK; FUEL FUEL TANK 400L<SDH> EXC. RUSSIA EQUIPMENT(B12) (A) 1050X680X625 400L	1-87411-788-3	01	1	1512-	●
1	TANK; FUEL (A) 1050X680X625 400L	1-87411-788-3	01	1	1303-1510		●
1	TANK; FUEL (A) 1050X680X625 400L	1-87412-050-4	01	1	1511-1511		●
1	TANK; FUEL RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87412-050-4	01	1	1512-		●
1	TANK; FUEL RUSSIA EQUIPMENT(B12) FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87412-050-4	01	1	1512-	●
3	UNIT; FUEL TANK,SUB FUEL TANK 200L AL<THF>	8-98217-750-0	01	1	1512-	●	●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1303-1511		●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1512-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1303-1511		●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1512-	●	●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1303-1511		●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1512-	●	●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1303-1511		●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1512-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (D)	1-22440-057-2	01	1	1512-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	1512-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	1303-1511		●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	1512-	●	●
25	CAP; FILLER,FUEL TANK (A)	8-98182-306-0	01	1	1303-1511		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98182-306-0	01	1	1512-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> L=960	1-22553-044-0	02	1	1512-	●	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1303-1511		●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	1512-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> L=1045	1-22550-262-0	02	1	1512-	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1303-1511		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	8-98202-448-0	02	1	1512-	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1303-1511		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1512-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF>	1-53461-543-0	02	1	1512-	●	●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	1303-1511		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	1512-	●	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	04	1	1512-	●	●
49	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	06	1	1512-		●
49	NUT; BRKT WHEEL BASE 5900MM(59W) (A) M12	0-91110-512-0	08	1	1303-1511		●
49	NUT; BRKT FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A) M12	0-91110-512-0	08	1	1512-		●
49	NUT; BRKT FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	08	1	1512-	●
49	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	04	1	1303-1511		●
49	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE	0-91180-210-0	04	1	1512-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=340	1-22553-043-2	02	1	1512-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=540	1-22553-064-1	02	1	1512-	●	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	1303-1511		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	1512-	●	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	1512-	●	●
322	BOLT; BRKT FIX SILENCER LAYOUT REAR VAR1<JAZ> FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	12	1	1512-		●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	12	1	1303-1305		●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	10	1	1306-1511		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	10	1	1512-		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	1512-	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	02	1	1303-1511		●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 400L<SDH> L=350	1-09707-183-0	02	1	1512-	●	●
488	HOSE; RUBBER	8-98134-936-0	01	1	1303-1511		●
488	HOSE; RUBBER FUEL TANK 400L<SDH>	8-98134-936-0	01	1	1512-	●	●
622	STUD; BRACKET	1-53461-534-0	01	1	1306-1511		●
622	STUD; BRACKET FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ>	1-53461-534-0	01	1	1512-		●
622	STUD; BRACKET FUEL TANK 400L<SDH>	1-53461-534-0	01	1	1512-	●

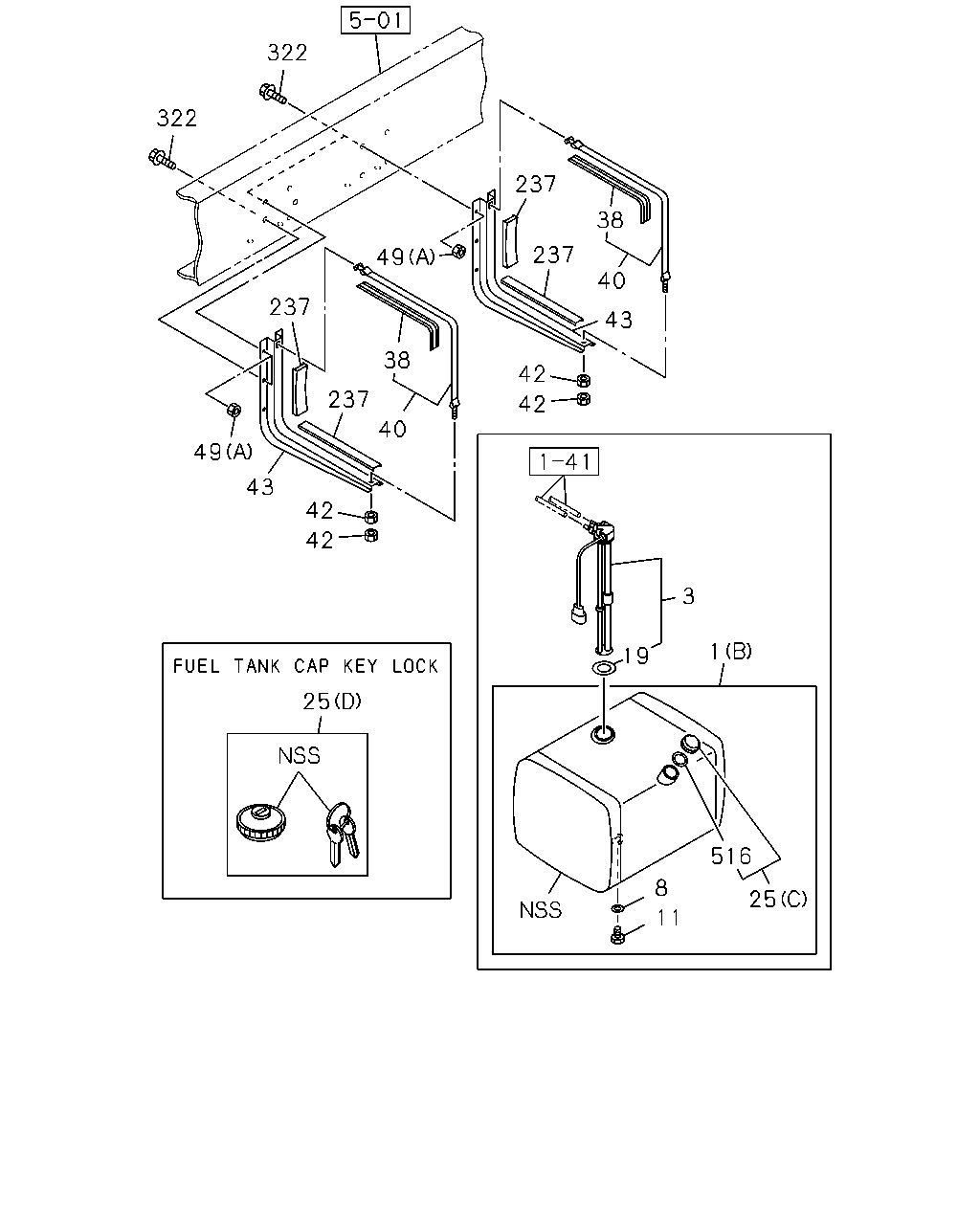

322 322 49 237 49 43 42 42 25 40 237 38 237 38 237 40 43 42 42 3 1 19 11 8 516 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	1512-	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) (A) 1050X680X625 400L	1-87411-788-3	01	1	1512-		●
1	TANK; FUEL FUEL TANK 400L<SDH> EXC. RUSSIA EQUIPMENT(B12) (A) 1050X680X625 400L	1-87411-788-3	01	1	1512-	●
1	TANK; FUEL (A) 1050X680X625 400L	1-87411-788-3	01	1	1303-1510		●
1	TANK; FUEL (A) 1050X680X625 400L	1-87412-050-4	01	1	1511-1511		●
1	TANK; FUEL RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87412-050-4	01	1	1512-		●
1	TANK; FUEL RUSSIA EQUIPMENT(B12) FUEL TANK 400L<SDH> (A) 1050X680X625 400L	1-87412-050-4	01	1	1512-	●
3	UNIT; FUEL TANK,SUB FUEL TANK 200L AL<THF>	8-98217-750-0	01	1	1512-	●	●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1303-1511		●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1512-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1303-1511		●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1512-	●	●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1303-1511		●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1512-	●	●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1303-1511		●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1512-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (D)	1-22440-057-2	01	1	1512-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	1512-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	1303-1511		●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	1512-	●	●
25	CAP; FILLER,FUEL TANK (A)	8-98182-306-0	01	1	1303-1511		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98182-306-0	01	1	1512-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> L=960	1-22553-044-0	02	1	1512-	●	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1303-1511		●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	1512-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> L=1045	1-22550-262-0	02	1	1512-	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1303-1511		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	8-98202-448-0	02	1	1512-	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1303-1511		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1512-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF>	1-53461-543-0	02	1	1512-	●	●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	1303-1511		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	1512-	●	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	04	1	1512-	●	●
49	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	06	1	1512-		●
49	NUT; BRKT WHEEL BASE 5900MM(59W) (A) M12	0-91110-512-0	08	1	1303-1511		●
49	NUT; BRKT FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A) M12	0-91110-512-0	08	1	1512-		●
49	NUT; BRKT FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	08	1	1512-	●
49	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	04	1	1303-1511		●
49	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE	0-91180-210-0	04	1	1512-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=340	1-22553-043-2	02	1	1512-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=540	1-22553-064-1	02	1	1512-	●	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	1303-1511		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	1512-	●	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	1512-	●	●
322	BOLT; BRKT FIX SILENCER LAYOUT REAR VAR1<JAZ> FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	12	1	1512-		●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	12	1	1303-1305		●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	10	1	1306-1511		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE	0-28051-240-0	10	1	1512-		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	1512-	●
516	GASKET; CAP FUEL TANK 200L AL<THF> ID=78	8-98259-383-0	01	1	1512-	●	●

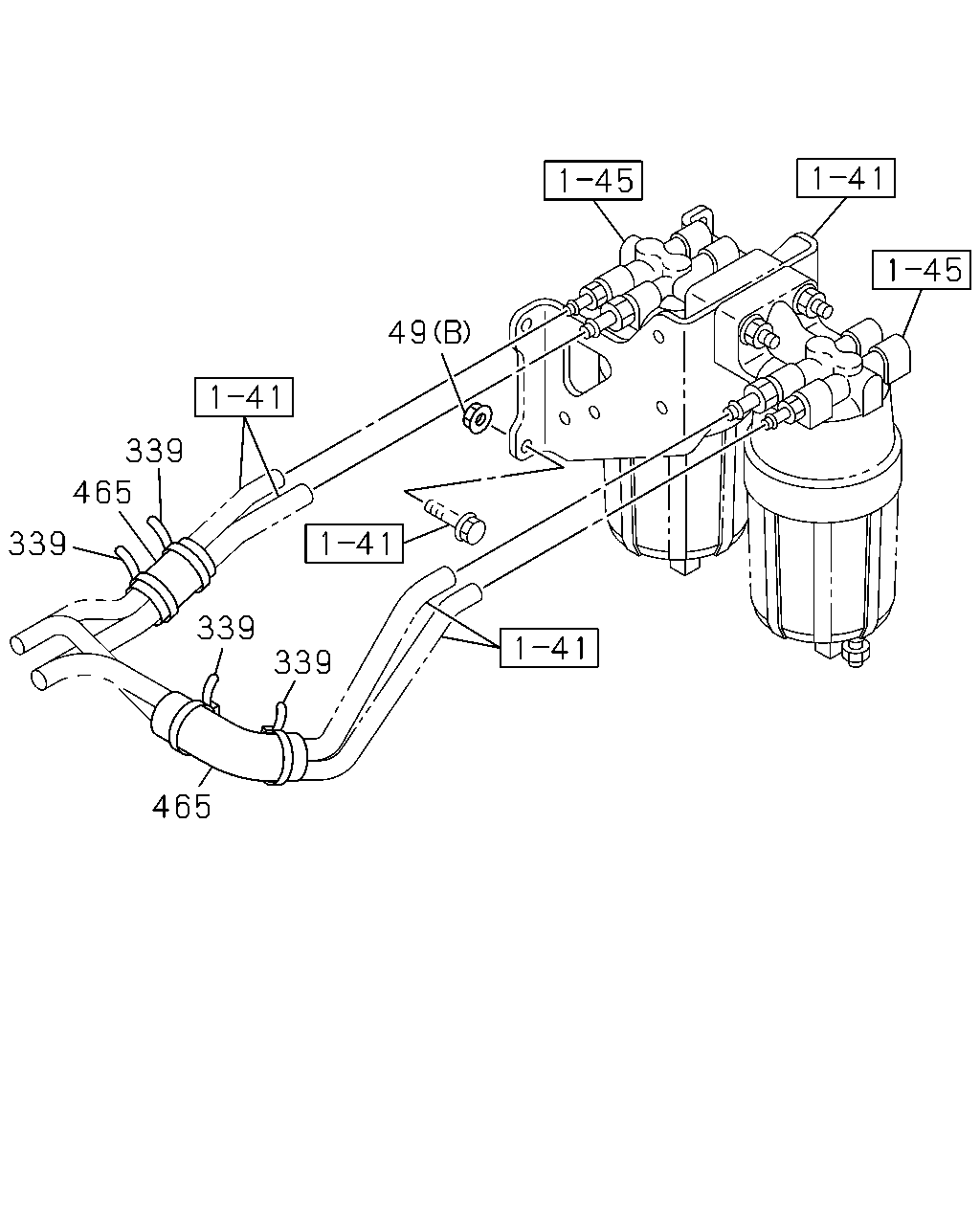

339 465 339 339 465 339 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	04	1	1512-	●	●
49	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	06	1	1512-		●
49	NUT; BRKT WHEEL BASE 5900MM(59W) (A) M12	0-91110-512-0	08	1	1303-1511		●
49	NUT; BRKT FUEL TANK 400L<SDH> EXC. SILENCER LAYOUT REAR VAR1<JAZ> (A) M12	0-91110-512-0	08	1	1512-		●
49	NUT; BRKT FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	08	1	1512-	●
49	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	04	1	1303-1511		●
49	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE	0-91180-210-0	04	1	1512-	●	●
339	CLIP; BAND,FUEL HOSE L=250	5-09707-030-1	04	1	1303-1511		●
339	CLIP; BAND,FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1512-	●	●
465	SLEEVE; RUBBER L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1303-1511		●
465	SLEEVE; RUBBER POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1512-	●	●
