Sayfa 0-61 - Isuzu EPC

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#115198) — 222 parça

60 109 57 108 11 1 110 17 81 22 9 167 2 9 13 64 66 180 120 68 17 155 162 69 65 63 167 158 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

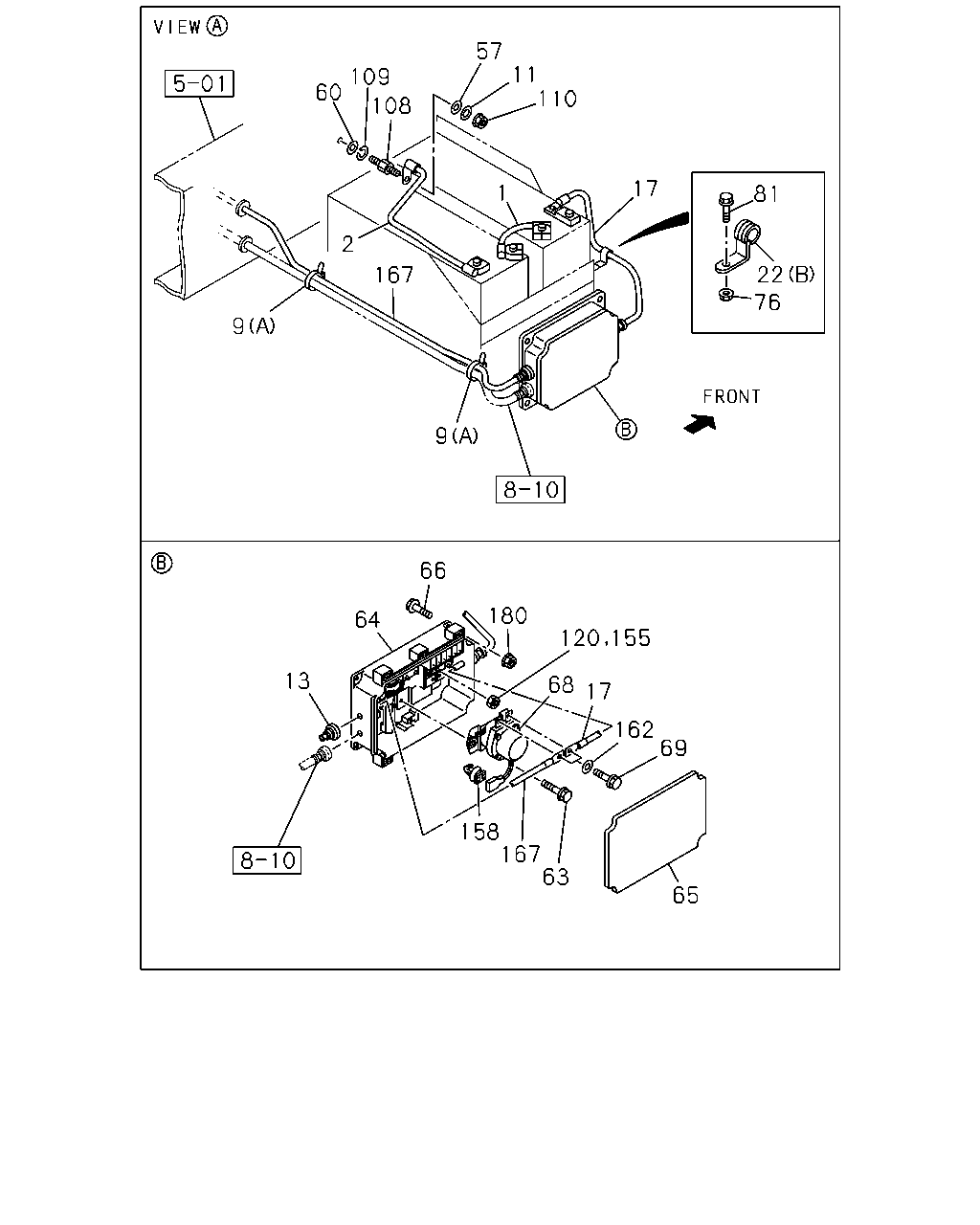

1	CABLE; BATTERY BATTERY 195G51 NX300-15<PU6>,BATTERY 145G51 N150<SJ8> L=450	1-82650-389-1	01	1	1512-	●	●
1	CABLE; BATTERY L=265	1-82650-388-1	01	1	1303-1511		●
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	1512-	●	●
2	CABLE; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> L=710	8-98219-867-0	01	1	1512-		●
2	CABLE; BATTERY L=710	8-98219-867-0	01	1	1512-	●
2	CABLE; BATTERY L=640	8-98223-230-0	01	1	1303-1511		●
2	CABLE; BATTERY BATTERY LAYOUT REAR VAR1<NCT> L=640	8-98223-230-0	01	1	1512-		●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	01	1	1512-		●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1512-	●
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-1511		●
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-	●	●
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1303-1511		●
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1512-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	1303-1511		●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	1512-	●	●
9	CLIP; BATTERY CABLE (C) ID=18 L=28 H=30	1-09701-110-0	02	1	1303-1511		●
9	CLIP; BATTERY CABLE (C) ID=18 L=28 H=30	1-09701-110-0	02	1	1512-	●	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	1303-1511		●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	02	1	1512-		●
9	CLIP; BATTERY CABLE (E) ID=21 L=24	8-94176-807-1	02	1	1303-1511		●
9	CLIP; BATTERY CABLE (E) ID=21 L=24	8-94176-807-1	02	1	1512-	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1303-1511		●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1512-	●	●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	1303-1511		●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	1512-	●	●
17	CABLE; BATTERY (+) TO RELAY L=480	8-98198-310-0	01	1	1303-1303		●
17	CABLE; BATTERY (+) TO RELAY L=480	8-98239-412-0	01	1	1303-1511		●
17	CABLE; BATTERY (+) TO RELAY L=480	8-98239-412-0	01	1	1512-	●	●
22	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-1511		●
22	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-	●	●
22	CLIP; BATTERY CABLE (B) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1303-1511		●
22	CLIP; BATTERY CABLE (B) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1512-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1303-1511		●
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1512-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1303-1511		●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1512-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-1511		●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1512-	●	●

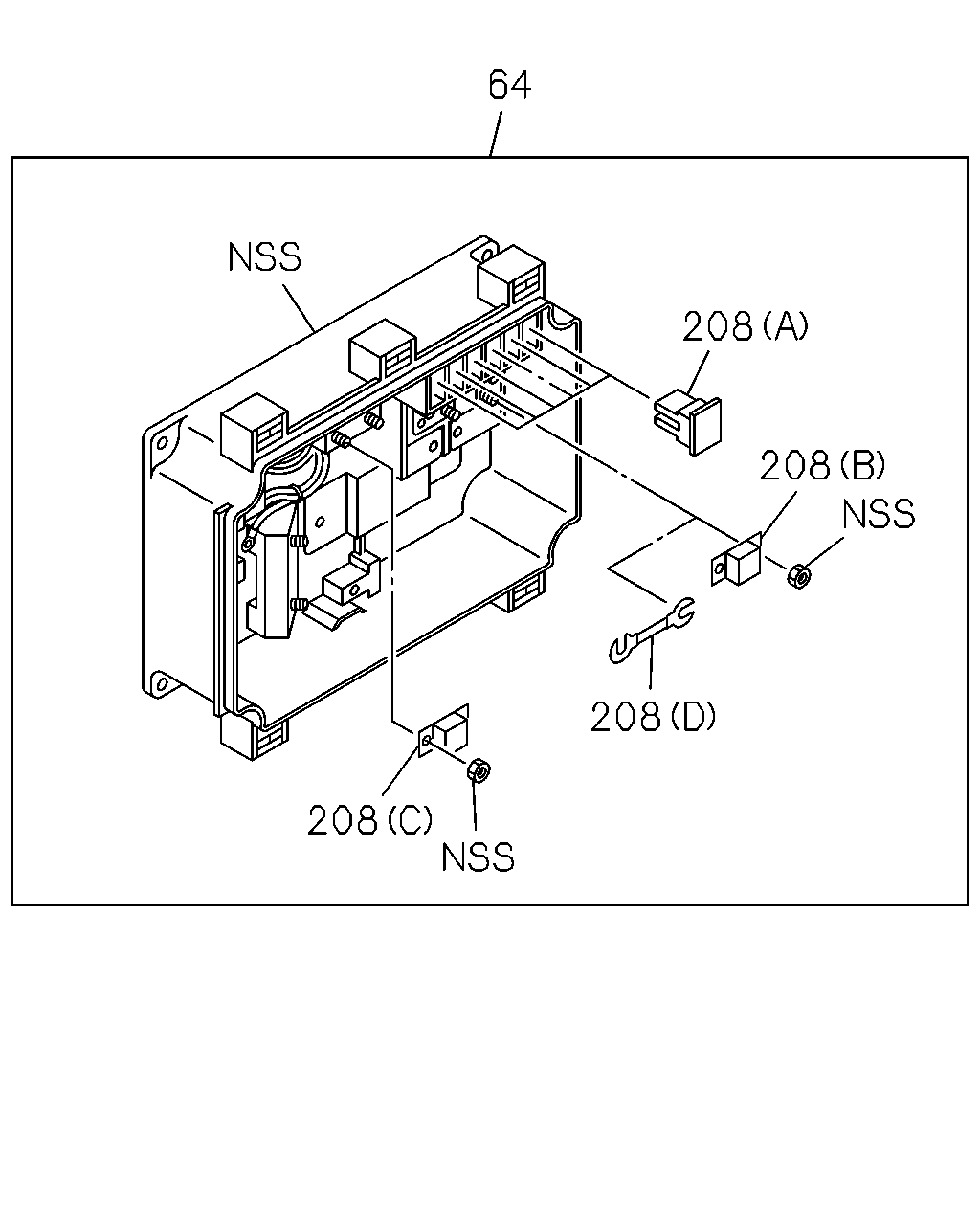

64	BOX; BATTERY RELAY GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU)	1-82510-651-0	01	1	1512-		●
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	1303-1511		●
64	BOX; BATTERY RELAY GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-60A 1.5KW(SC8)	1-82510-648-0	01	1	1512-	●	●
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	1303-1511		●
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	1512-	●	●
66	BOLT; COVER,BATTERY RELAY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-1511		●
66	BOLT; COVER,BATTERY RELAY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1512-	●	●
68	RELAY; BATTERY	1-82550-313-0	01	1	1303-1511		●
68	RELAY; BATTERY	1-82550-313-0	01	1	1512-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1303-1511		●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1512-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1511-1511		●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1512-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	04	1	1303-1510		●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	01	1	1511-1511		●
76	NUT; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1512-		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1303-1511		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1303-1511		●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1512-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1303-1511		●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1512-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1303-1511		●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1512-	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1303-1511		●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1303-1511		●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1303-1511		●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1512-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1303-1511		●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1512-	●	●

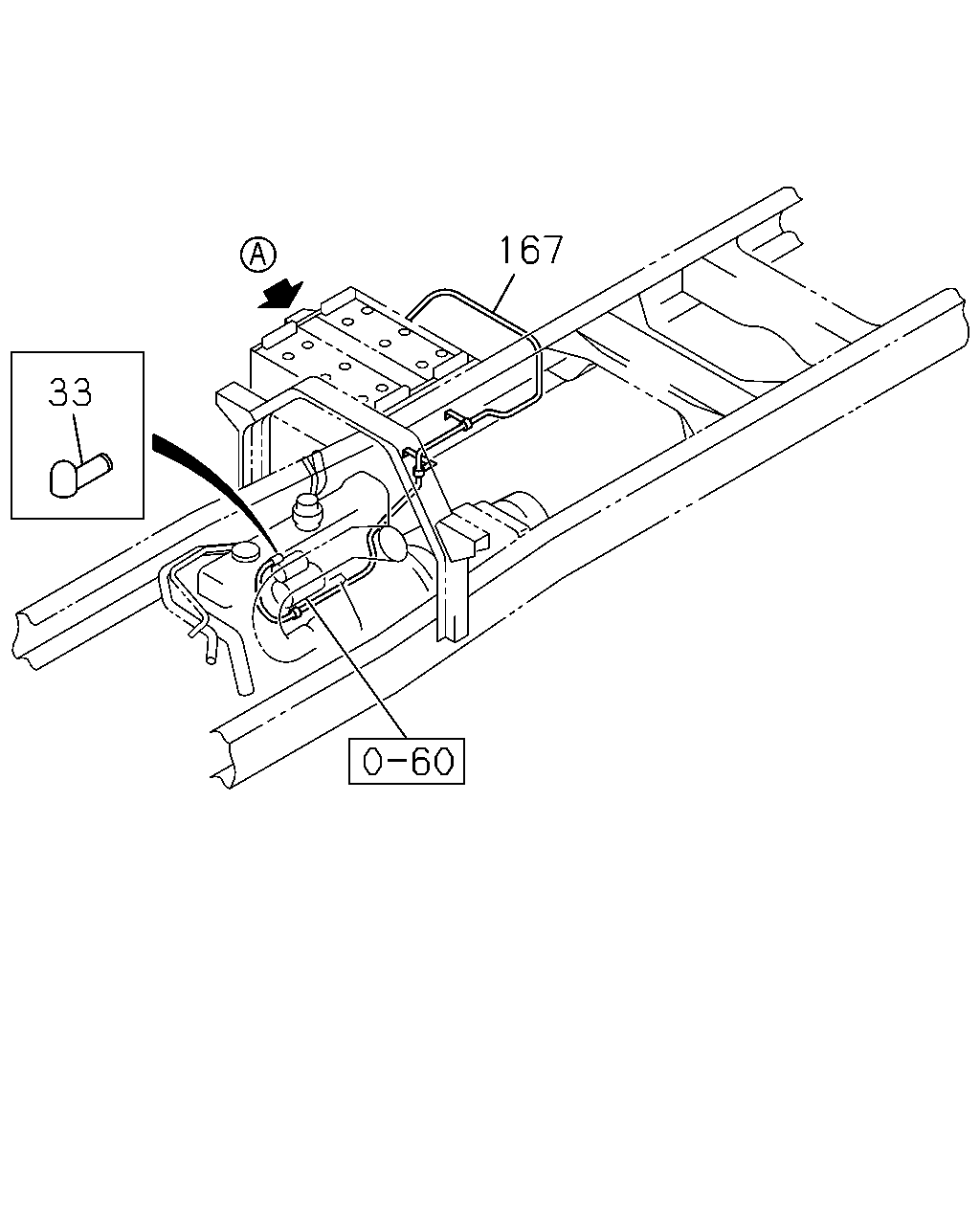

167	CABLE; BATTERY RELAY TO STARTER ENGINE REAR PTO(SV1)	8-98335-545-0	01	1	1512-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98335-544-0	01	1	1512-		●
167	CABLE; BATTERY RELAY TO STARTER EXC. ENGINE REAR PTO(SV1)	8-98335-544-0	01	1	1512-	●
167	CABLE; BATTERY RELAY TO STARTER	8-98223-228-0	01	1	1303-1511		●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT>	8-98223-228-0	01	1	1512-		●
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1303-1511		●
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1512-	●	●

9 9 22 18 99 99 9 99 9 22 9 9 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	01	1	1512-		●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1512-	●
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-1511		●
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-	●	●
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1303-1511		●
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1512-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	1303-1511		●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	1512-	●	●
9	CLIP; BATTERY CABLE (C) ID=18 L=28 H=30	1-09701-110-0	02	1	1303-1511		●
9	CLIP; BATTERY CABLE (C) ID=18 L=28 H=30	1-09701-110-0	02	1	1512-	●	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	1303-1511		●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	02	1	1512-		●
9	CLIP; BATTERY CABLE (E) ID=21 L=24	8-94176-807-1	02	1	1303-1511		●
9	CLIP; BATTERY CABLE (E) ID=21 L=24	8-94176-807-1	02	1	1512-	●	●
18	CLIP; BATTERY CABLE ID=21 L=24	8-94176-807-1	01	1	1303-1511		●
18	CLIP; BATTERY CABLE ID=21 L=24	8-94176-807-1	01	1	1512-	●	●
22	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-1511		●
22	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-	●	●
22	CLIP; BATTERY CABLE (B) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1303-1511		●
22	CLIP; BATTERY CABLE (B) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1512-	●	●
99	CLIP; BATTERY CABLE EXC. TAIWAN EQUIPMENT(WW5) (C) ID=18 H=23 L=28	1-09701-070-0	02	1	1512-		●
99	CLIP; BATTERY CABLE (C) ID=18 H=23 L=28	1-09701-070-0	02	1	1512-	●
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	02	1	1303-1511		●
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	02	1	1512-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 L=28 H=30	1-09701-110-0	02	1	1303-1511		●
99	CLIP; BATTERY CABLE TAIWAN EQUIPMENT(WW5) (A) ID=18 L=28 H=30	1-09701-110-0	02	1	1512-		●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1303-1511		●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1512-	●	●

23 23 23 23 23 23 23 23 61 23 78 23 78 14 21 75 10 24 81 100 10 24 24 69 66 63 108 110 12 28 76 101 120 155 180 57 11 162 60 109 77 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	BOLT; BATTERY CABLE CLIP TAIWAN EQUIPMENT(WW5) (A) M8X25 FLANGE	0-28650-825-0	04	1	1512-		●
10	BOLT; BATTERY CABLE CLIP (B) M8X35 FLANGE	0-28650-835-0	02	1	1304-1511		●
10	BOLT; BATTERY CABLE CLIP (B) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
10	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1303-1303		●
10	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	1304-1511		●
10	BOLT; BATTERY CABLE CLIP EXC. TAIWAN EQUIPMENT(WW5) (A) M8X25 FLANGE	0-28650-825-0	05	1	1512-		●
10	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1512-	●
10	BOLT; BATTERY CABLE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-1303		●
10	BOLT; BATTERY CABLE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1304-1511		●
10	BOLT; BATTERY CABLE CLIP TAIWAN EQUIPMENT(WW5) (B) M8X20 FLANGE	0-28650-820-0	01	1	1512-		●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1303-1511		●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1512-	●	●
12	NUT; BATTERY CABLE CLIP TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	07	1	1512-		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	08	1	1303-1303		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	07	1	1304-1511		●
12	NUT; BATTERY CABLE CLIP EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	08	1	1512-		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	08	1	1512-	●
14	BOLT; BRKT CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	01	1	1512-		●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	1512-	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1303		●
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	1303-1511		●
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	1512-	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28650-820-0	01	1	1303-1511		●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●

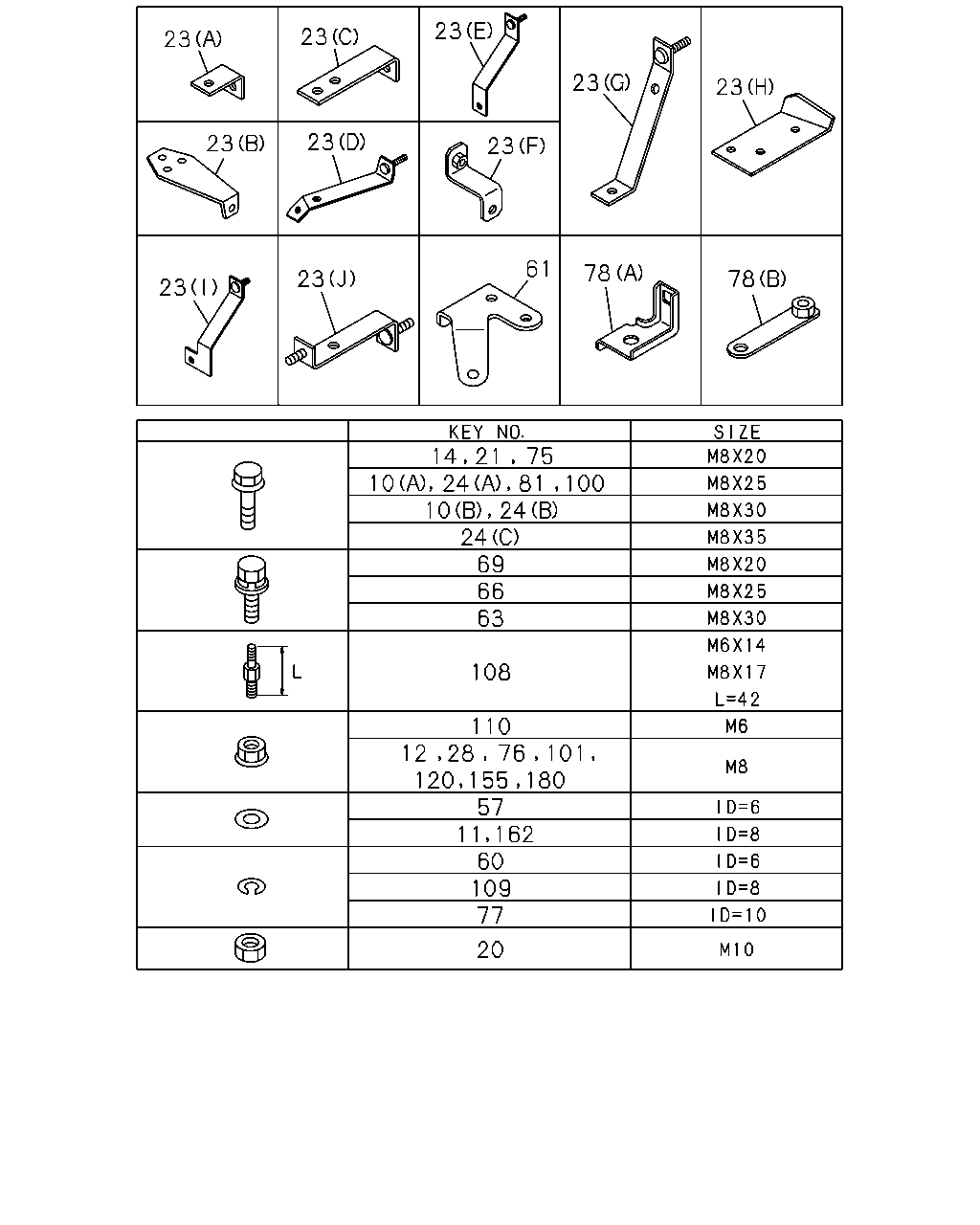

23	BRACKET; CABLE CLIP TO FRAME ENGINE REAR PTO(SV1) (I)	1-82698-628-0	01	1	1512-	●
23	BRACKET; CABLE CLIP TO FRAME EXC. FIRE TRUCK<RA9> (J)	1-82698-590-0	01	1	1512-		●
23	BRACKET; CABLE CLIP TO FRAME (J)	1-82698-590-0	01	1	1512-	●
23	BRACKET; CABLE CLIP TO FRAME EXC. TAIWAN EQUIPMENT(WW5) (A) L=40	1-47478-410-0	01	1	1512-		●
23	BRACKET; CABLE CLIP TO FRAME (A) L=40	1-47478-410-0	01	1	1512-	●
23	BRACKET; CABLE CLIP TO FRAME (F)	1-47478-113-0	01	1	1303-1511		●
23	BRACKET; CABLE CLIP TO FRAME FIRE TRUCK<RA9> (F)	1-47478-113-0	01	1	1512-		●
23	BRACKET; CABLE CLIP TO FRAME (A) L=40	1-47478-410-0	01	1	1303-1303		●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82698-557-0	01	1	1303-1511		●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82698-557-0	01	1	1512-	●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	1-82698-574-0	01	1	1303-1511		●
23	BRACKET; CABLE CLIP TO FRAME (D)	1-82698-574-0	01	1	1512-	●	●
23	BRACKET; CABLE CLIP TO FRAME (E)	1-82698-575-1	01	1	1303-1511		●
23	BRACKET; CABLE CLIP TO FRAME (E)	1-82698-575-1	01	1	1512-		●
23	BRACKET; CABLE CLIP TO FRAME EXC. ENGINE REAR PTO(SV1) (E)	1-82698-575-1	01	1	1512-	●
23	BRACKET; CABLE CLIP TO FRAME (G)	1-82698-629-0	01	1	1303-1511		●
23	BRACKET; CABLE CLIP TO FRAME FIRE TRUCK<RA9> (G)	1-82698-629-0	01	1	1512-		●
23	BRACKET; CABLE CLIP TO FRAME (H)	8-98062-598-0	01	1	1303-1511		●
23	BRACKET; CABLE CLIP TO FRAME (H)	8-98062-598-0	01	1	1512-	●	●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98171-604-0	01	1	1303-1511		●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98171-604-0	01	1	1512-	●	●
24	BOLT; BRKT TO FRAME EXC. TAIWAN EQUIPMENT(WW5) (B) M8X30 FLANGE	0-28650-830-0	02	1	1512-		●
24	BOLT; BRKT TO FRAME (B) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●
24	BOLT; BRKT TO FRAME EXC. TAIWAN EQUIPMENT(WW5) (C) M8X35 FLANGE	0-28650-835-0	02	1	1512-		●
24	BOLT; BRKT TO FRAME (C) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●
24	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1511		●
24	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
24	BOLT; BRKT TO FRAME (B) M8X30 FLANGE	0-28650-830-0	04	1	1303-1303		●
24	BOLT; BRKT TO FRAME (C) M8X35 FLANGE	0-28650-835-0	05	1	1303-1511		●
24	BOLT; BRKT TO FRAME FIRE TRUCK<RA9> (C) M8X35 FLANGE	0-28650-835-0	05	1	1512-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	05	1	1303-1511		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	05	1	1512-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1303-1511		●
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1512-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1303-1511		●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1512-	●	●
61	BRACKET; BATTERY CABLE	8-97632-262-1	01	1	1303-1511		●
61	BRACKET; BATTERY CABLE	8-97632-262-1	01	1	1512-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-1511		●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1512-	●	●
66	BOLT; COVER,BATTERY RELAY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-1511		●
66	BOLT; COVER,BATTERY RELAY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1512-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1303-1511		●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1512-	●	●
75	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	1303-1511		●
75	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	1512-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1511-1511		●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1512-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	04	1	1303-1510		●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	01	1	1511-1511		●
76	NUT; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1512-		●
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-610-0	01	1	1303-1511		●
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-610-0	01	1	1512-	●	●
78	BRACKET; CLIP BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (B)	1-47476-396-1	01	1	1512-		●
78	BRACKET; CLIP BATTERY (B)	1-47476-396-1	01	1	1512-	●
78	BRACKET; CLIP BATTERY (A)	8-97304-944-0	01	1	1303-1303		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1303-1511		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1303-1511		●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1512-	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1303-1511		●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1512-	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1303-1511		●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1512-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1303-1511		●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1512-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1303-1511		●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1512-	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1303-1511		●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1303-1511		●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1303-1511		●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1512-	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1303-1511		●
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1512-	●	●

33 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	CAP; INSULATOR	8-97181-965-0	01	1	1303-1511		●
33	CAP; INSULATOR	8-97181-965-0	01	1	1512-	●	●
167	CABLE; BATTERY RELAY TO STARTER ENGINE REAR PTO(SV1)	8-98335-545-0	01	1	1512-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98335-544-0	01	1	1512-		●
167	CABLE; BATTERY RELAY TO STARTER EXC. ENGINE REAR PTO(SV1)	8-98335-544-0	01	1	1512-	●
167	CABLE; BATTERY RELAY TO STARTER	8-98223-228-0	01	1	1303-1511		●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT>	8-98223-228-0	01	1	1512-		●

208 208 208 208 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	BOX; BATTERY RELAY GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU)	1-82510-651-0	01	1	1512-		●
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	1303-1511		●
64	BOX; BATTERY RELAY GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-60A 1.5KW(SC8)	1-82510-648-0	01	1	1512-	●	●
208	FUSE GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (D) 125A	9-82941-130-1	01	1	1512-		●
208	FUSE (C) 80A	1-82516-031-0	01	1	1303-1511		●
208	FUSE (C) 80A	1-82516-031-0	01	1	1512-	●	●
208	FUSE (B) 100A	1-82516-032-0	01	1	1303-1511		●
208	FUSE GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) 100A	1-82516-032-0	01	1	1512-	●	●
208	FUSE (A) 40A GREEN	8-94468-662-0	05	1	1303-1511		●
208	FUSE (A) 40A GREEN	8-94468-662-0	05	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
