◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#115191) — 424 parça

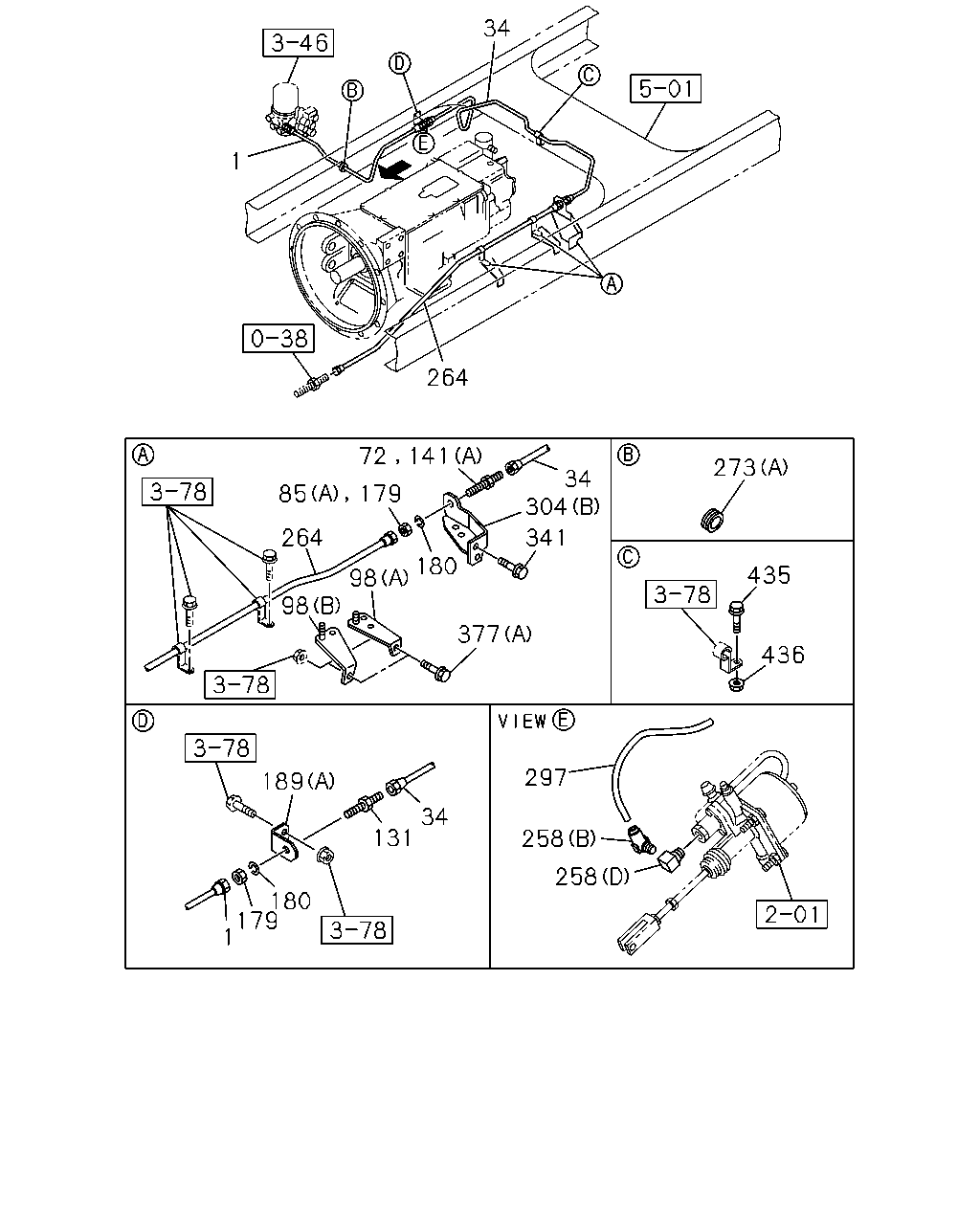

çizim 336349
1 34 264 72 141 34 304 341 377 180 98 98 264 85 179 273 435 436 297 258 258 1 179 180 131 34 189
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
EXC. BATTERY LAYOUT REAR VAR1<NCT> L=1350 		1-09363-925-0 01 1 1512- ●
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 1512- ●
1 HOSE; FLEX,AIR TANK
L=660 		1-09363-766-0 01 1 1303-1511 ●
1 HOSE; FLEX,AIR TANK
BATTERY LAYOUT REAR VAR1<NCT> L=660 		1-09363-766-0 01 1 1512- ●
34 PIPE; AIR
EXC. TAIWAN EQUIPMENT(WW5) L=1159 		8-98233-192-0 01 1 1512- ●
34 PIPE; AIR
L=1159 		8-98233-192-0 01 1 1512- ●
34 PIPE; AIR
L=1126 		1-49124-667-0 01 1 1303-1511 ●
34 PIPE; AIR
TAIWAN EQUIPMENT(WW5) L=1126 		1-49124-667-0 01 1 1512- ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1303-1303 ●
85 NUT; UNION
MJX16P M/T(Y3Z) (B) M12 		9-09840-280-0 01 1 1512- ● ●
85 NUT; UNION
(A) M22 		0-91111-522-0 01 1 1303-1511 ●
85 NUT; UNION
(A) M22 		0-91111-522-0 01 1 1512- ● ●
98 BRACKET; AIR PIPE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-47471-283-0 01 1 1512- ●
98 BRACKET; AIR PIPE
(B) 		1-47471-283-0 01 1 1512- ●
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 1303-1511 ●
98 BRACKET; AIR PIPE
TAIWAN EQUIPMENT(WW5) (B) 		1-47479-639-0 01 1 1512- ●
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 1303-1511 ●
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 1512- ● ●
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1303-1511 ●
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1512- ● ●
141 UNION; FLEX HOSE
MJX16P M/T(Y3Z) (B) M12 L=66.5 		0-92113-306-0 01 1 1512- ● ●
141 UNION; FLEX HOSE
(A) M22 		0-92123-315-0 01 1 1303-1511 ●
141 UNION; FLEX HOSE
(A) M22 		0-92123-315-0 01 1 1512- ● ●
179 NUT; UNION
M22 		0-91111-522-0 02 1 1303-1303 ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 1303-1511 ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 1512- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 1303-1303 ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1303-1511 ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1303-1511 ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1512- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1512- ●
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (B) 		8-97646-842-0 01 1 1512- ● ●
189 BRACKET; FLEX HOSE
(A) 		1-47479-473-0 01 1 1303-1511 ●
189 BRACKET; FLEX HOSE
(A) 		1-47479-473-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
MAP6U M/T(Y4B) (E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-1510 ●
258 CONNECTOR; NYLON TUBE
(E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1511-1511 ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303-1511 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MAP6U M/T(Y4B) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1512- ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1512- ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-1511 ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 3WAY 		1-09661-300-0 01 1 1303-1511 ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 3WAY 		1-09661-300-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1303-1511 ●
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
MAP6U M/T(Y4B) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1303-1510 ●
258 CONNECTOR; NYLON TUBE
(F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1511-1511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ● ●
264 HOSE; FLEX
EXC. TAIWAN EQUIPMENT(WW5) L=980 		1-09363-872-0 01 1 1512- ●
264 HOSE; FLEX
L=980 		1-09363-872-0 01 1 1512- ●
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 1303-1511 ●
264 HOSE; FLEX
TAIWAN EQUIPMENT(WW5) L=1000 		1-09363-794-0 01 1 1512- ●
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1303-1511 ●
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1512- ● ●
273 GROMMET
MAP6U M/T(Y4B) (B) 		1-09332-102-0 01 1 1303-1510 ●
273 GROMMET
(B) 		1-09332-102-0 01 1 1511-1511 ●
273 GROMMET
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (B) 		1-09332-102-0 01 1 1512- ● ●
273 GROMMET
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09332-102-0 01 1 1512- ● ●
297 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1512- ● ●
297 TUBE; NYLON
MJT7S M/T(Y3E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1512- ● ●
297 TUBE; NYLON
MAP6U M/T(Y4B) L=290 OD=12 		1-49222-245-0 01 1 1303- ●
304 BRACKET; UNION
EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-98207-960-0 01 1 1512- ●
304 BRACKET; UNION
(B) 		8-98207-960-0 01 1 1512- ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1303-1511 ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1512- ●
304 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) (A) 		1-47478-359-0 01 1 1512- ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1512- ●
304 BRACKET; UNION
MAP6U M/T(Y4B) (C) 		1-71117-210-0 01 1 1303-1510 ●
304 BRACKET; UNION
(C) 		1-71117-210-0 01 1 1511-1511 ●
304 BRACKET; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (A) 		1-71117-210-0 01 1 1512- ● ●
304 BRACKET; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-71117-210-0 01 1 1512- ● ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1303-1511 ●
304 BRACKET; UNION
TAIWAN EQUIPMENT(WW5) (B) 		8-98171-684-0 01 1 1512- ●
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1303-1511 ●
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1512- ● ●
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1512- ● ●
377 BOLT; BRKT FIX
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1303-1511 ●
377 BOLT; BRKT FIX
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1512- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1303-1511 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1512- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1303-1511 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●

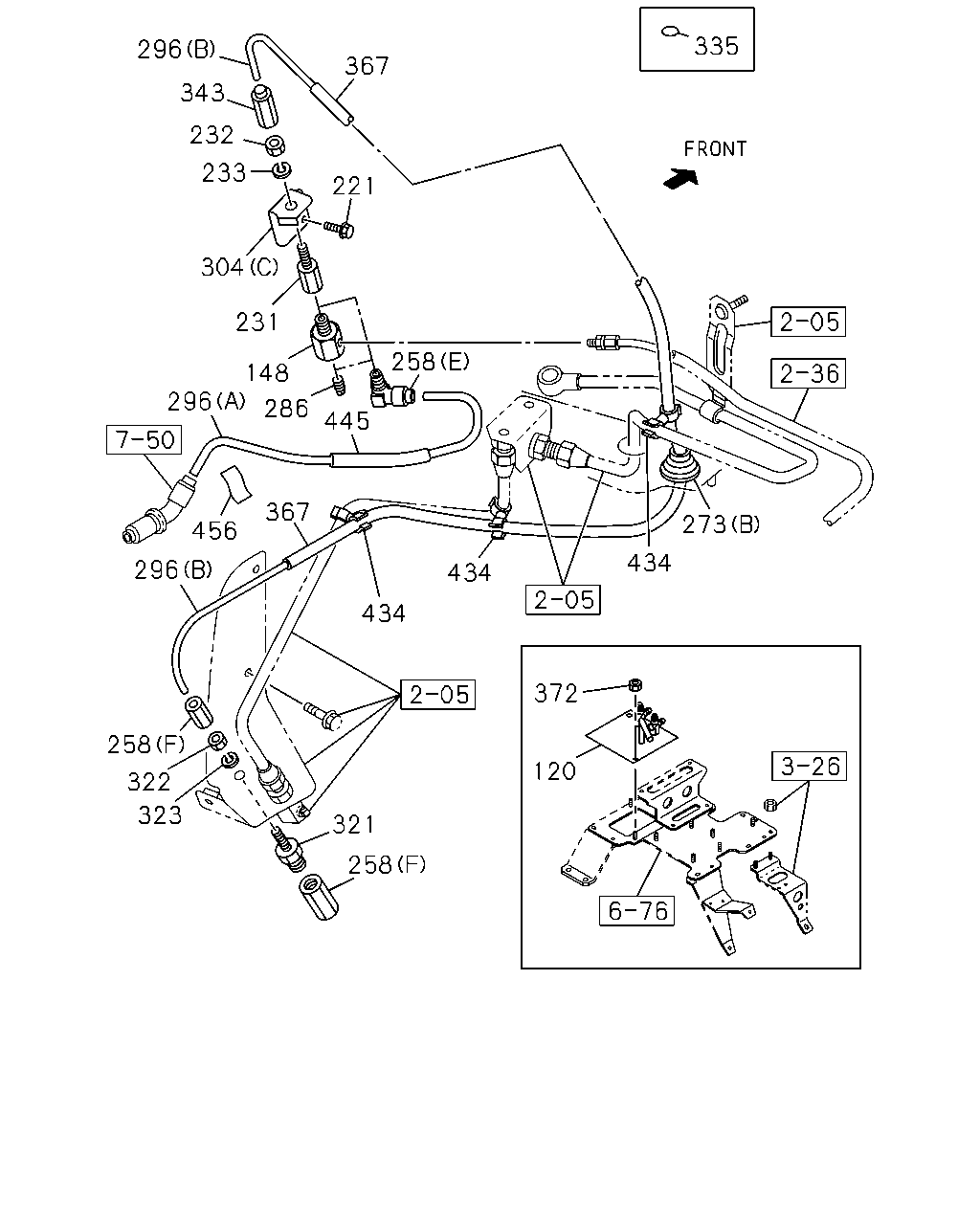

çizim 336351
296 232 343 233 221 367 304 231 148 296 286 258 445 367 456 296 258 322 323 258 321 434 434 434 273 335 372 120
BalonParca AdiParca NoAdetTipApplied Date A B
120 CONNECTOR; AIR PIPE
FULL TRAILER PIPING<Z25> 		1-47470-655-0 01 1 1512- ●
120 CONNECTOR; AIR PIPE 1-47470-418-2 01 1 1303-1511 ●
120 CONNECTOR; AIR PIPE
EXC. FULL TRAILER PIPING<Z25> 		1-47470-418-2 01 1 1512- ●
120 CONNECTOR; AIR PIPE 1-47470-418-2 01 1 1512- ●
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) 		8-94338-417-0 01 1 1512- ● ●
221 BOLT; BRKT
MAP6U M/T(Y4B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303-1510 ●
221 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1511-1511 ●
221 BOLT; BRKT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
221 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512- ● ●
231 UNION; AIR PIPE
MAP6U M/T(Y4B) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1303-1510 ●
231 UNION; AIR PIPE
PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1511-1511 ●
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1512- ● ●
231 UNION; AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1512- ● ●
232 NUT; UNION,AIR PIPE
MAP6U M/T(Y4B) M10 H=8 		1-09400-029-0 01 1 1303-1510 ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 1511-1511 ●
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) M10 H=8 		1-09400-029-0 01 1 1512- ● ●
232 NUT; UNION,AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 1512- ● ●
233 WASHER; LK,UNION,AIR PIPE
MAP6U M/T(Y4B) ID=10.2 		0-91510-510-0 01 1 1303-1510 ●
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 1511-1511 ●
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) ID=10.2 		0-91510-510-0 01 1 1512- ● ●
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
MAP6U M/T(Y4B) (E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-1510 ●
258 CONNECTOR; NYLON TUBE
(E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1511-1511 ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303-1511 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MAP6U M/T(Y4B) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1512- ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1512- ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-1511 ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 3WAY 		1-09661-300-0 01 1 1303-1511 ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 3WAY 		1-09661-300-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1303-1511 ●
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
MAP6U M/T(Y4B) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1303-1510 ●
258 CONNECTOR; NYLON TUBE
(F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1511-1511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ● ●
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1303-1511 ●
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1512- ● ●
273 GROMMET
MAP6U M/T(Y4B) (B) 		1-09332-102-0 01 1 1303-1510 ●
273 GROMMET
(B) 		1-09332-102-0 01 1 1511-1511 ●
273 GROMMET
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (B) 		1-09332-102-0 01 1 1512- ● ●
273 GROMMET
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09332-102-0 01 1 1512- ● ●
286 PLUG; AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) 		9-09204-510-0 01 1 1512- ● ●
296 TUBE; NYLON
MAP6U M/T(Y4B) (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-1510 ●
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1511-1511 ●
296 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1512- ● ●
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-1511 ●
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1512- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1303- ● ●
304 BRACKET; UNION
EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-98207-960-0 01 1 1512- ●
304 BRACKET; UNION
(B) 		8-98207-960-0 01 1 1512- ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1303-1511 ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1512- ●
304 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) (A) 		1-47478-359-0 01 1 1512- ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1512- ●
304 BRACKET; UNION
MAP6U M/T(Y4B) (C) 		1-71117-210-0 01 1 1303-1510 ●
304 BRACKET; UNION
(C) 		1-71117-210-0 01 1 1511-1511 ●
304 BRACKET; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (A) 		1-71117-210-0 01 1 1512- ● ●
304 BRACKET; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-71117-210-0 01 1 1512- ● ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1303-1511 ●
304 BRACKET; UNION
TAIWAN EQUIPMENT(WW5) (B) 		8-98171-684-0 01 1 1512- ●
321 JOINT; FLEX HOSE
MAP6U M/T(Y4B) M12 L=66.5 		0-92113-306-0 01 1 1303-1510 ●
321 JOINT; FLEX HOSE
M12 L=66.5 		0-92113-306-0 01 1 1511-1511 ●
321 JOINT; FLEX HOSE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) M12 L=66.5 		0-92113-306-0 01 1 1512- ● ●
321 JOINT; FLEX HOSE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		0-92113-306-0 01 1 1512- ● ●
322 NUT; JOINT,FLEX HOSE
MAP6U M/T(Y4B) M12 		9-09840-280-0 01 1 1303-1510 ●
322 NUT; JOINT,FLEX HOSE
M12 		9-09840-280-0 01 1 1511-1511 ●
322 NUT; JOINT,FLEX HOSE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) M12 		9-09840-280-0 01 1 1512- ● ●
322 NUT; JOINT,FLEX HOSE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 1512- ● ●
323 WASHER; LK,JOINT
MAP6U M/T(Y4B) ID=12.2 		0-91510-512-0 01 1 1303-1510 ●
323 WASHER; LK,JOINT
ID=12.2 		0-91510-512-0 01 1 1511-1511 ●
323 WASHER; LK,JOINT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) ID=12.2 		0-91510-512-0 01 1 1512- ● ●
323 WASHER; LK,JOINT
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		0-91510-512-0 01 1 1512- ● ●
335 SEAL; UNION
MJT7S M/T(Y3E),MAP6U M/T(Y4B) RIGID SEAT W/ARM REST(SGC) OD=30 BLACK 		1-76798-035-0 01 1 1512- ● ●
343 UNION; NYLON TUBE
MAP6U M/T(Y4B) 		1-09660-796-1 01 1 1303-1510 ●
343 UNION; NYLON TUBE 1-09660-796-1 01 1 1511-1511 ●
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) 		1-09660-796-1 01 1 1512- ● ●
343 UNION; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 1512- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1303- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1303- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1303- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1303- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1303- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1303- ● ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
434 CLIP
MAP6U M/T(Y4B) ID=8.3 & 8.3 		8-94426-175-0 03 1 1303-1510 ●
434 CLIP
ID=8.3 & 8.3 		8-94426-175-0 03 1 1511-1511 ●
434 CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) ID=8.3 & 8.3 		8-94426-175-0 03 1 1512- ● ●
434 CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3 		8-94426-175-0 03 1 1512- ● ●
445 GUARD
L=520 ID=7.4 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1303-1511 ●
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=520 ID=7.4 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1512- ● ●
456 SEAL; NYLON TUBE
100X40 		1-72498-022-1 01 1 1303-1511 ●
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-1 01 1 1512- ● ●

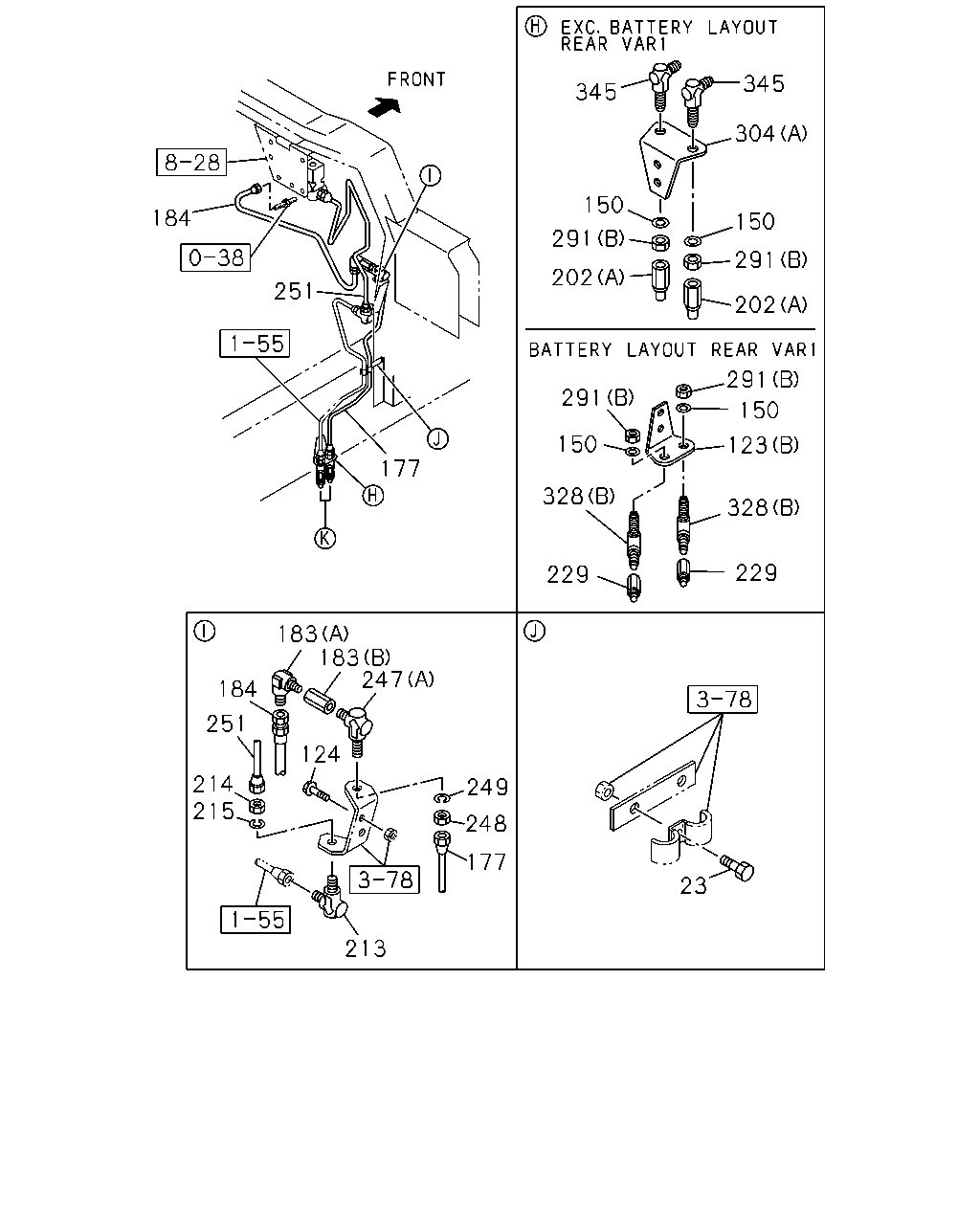

çizim 336353
184 251 177 183 183 247 184 251 214 215 213 177 249 248 124 23 229 229 328 328 150 291 291 123 150 202 202 291 150 291 150 345 345 304
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1303-1511 ●
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 1512- ●
123 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-98164-194-0 01 1 1512- ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1303-1511 ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1512- ● ●
124 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 1512- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1303-1511 ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1512- ● ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1512- ● ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1303-1511 ●
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 1512- ●
177 PIPE; AIR,UNION TO UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) L=660 SERVICED BY L=700 		1-47428-811-0 01 1 1512- ●
177 PIPE; AIR,UNION TO UNION
L=660 SERVICED BY L=700 		1-47428-811-0 01 1 1512- ●
177 PIPE; AIR,UNION TO UNION
BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) L=581 SERVICED BY L=600 		1-47428-809-0 01 1 1512- ●
177 PIPE; AIR,UNION TO UNION
L=714 SERVICED BY L=800 		1-47428-812-0 01 1 1303-1511 ●
177 PIPE; AIR,UNION TO UNION
TAIWAN EQUIPMENT(WW5) L=714 SERVICED BY L=800 		1-47428-812-0 01 1 1512- ●
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1303-1511 ●
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1512- ●
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1512- ●
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1303-1511 ●
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1512- ●
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1512- ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 1512- ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1303-1511 ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1512- ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 1512- ●
202 ADAPTER
MJX16P M/T(Y3Z) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1512- ● ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1303-1511 ●
202 ADAPTER
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ●
202 ADAPTER
BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ●
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1303-1511 ●
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) M12 ELBOW 		0-92125-206-0 01 1 1512- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1303-1511 ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1512- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1303-1511 ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1512- ● ●
229 ADAPTER; NYLON TUBE
BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		0-92113-306-0 01 1 1512- ●
247 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 1303-1511 ●
247 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 1512- ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		0-92125-206-0 01 1 1512- ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1303-1511 ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1512- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1303-1511 ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1512- ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1303-1511 ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1512- ● ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1303-1511 ●
291 NUT; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1512- ●
291 NUT; UNION
BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) (B) M12 		9-09840-280-0 02 1 1512- ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1512- ●
304 BRACKET; UNION
EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-98207-960-0 01 1 1512- ●
304 BRACKET; UNION
(B) 		8-98207-960-0 01 1 1512- ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1303-1511 ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1512- ●
304 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) (A) 		1-47478-359-0 01 1 1512- ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1512- ●
304 BRACKET; UNION
MAP6U M/T(Y4B) (C) 		1-71117-210-0 01 1 1303-1510 ●
304 BRACKET; UNION
(C) 		1-71117-210-0 01 1 1511-1511 ●
304 BRACKET; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (A) 		1-71117-210-0 01 1 1512- ● ●
304 BRACKET; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-71117-210-0 01 1 1512- ● ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1303-1511 ●
304 BRACKET; UNION
TAIWAN EQUIPMENT(WW5) (B) 		8-98171-684-0 01 1 1512- ●
328 UNION; AIR PIPE
MIXER TRUCK<RA2> (A) M12 2WAY 		1-09654-059-2 01 1 1512- ●
328 UNION; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (B) M12 ELBOW 		0-92125-206-0 02 1 1512- ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1303-1511 ●
345 UNION; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> M12 ELBOW 		0-92125-206-0 02 1 1512- ●
345 UNION; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) M12 ELBOW 		0-92125-206-0 02 1 1512- ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1512- ●

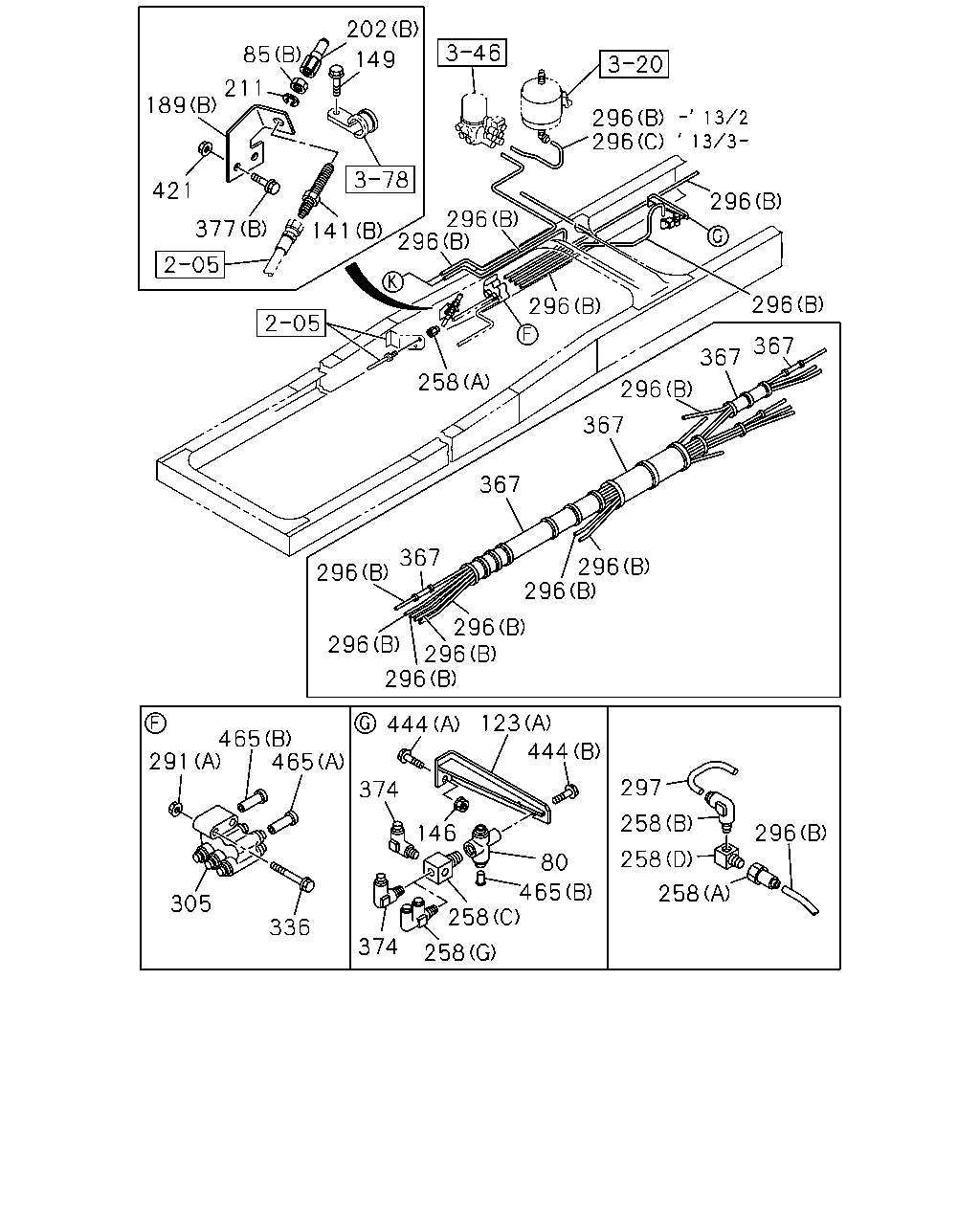

çizim 337271
202 85 211 189 421 149 141 377 296 296 296 296 258 296 296 296 367 367 296 367 367 367 296 296 296 296 296 296 296 465 291 465 305 336 444 123 444 374 146 80 465 258 258 374 297 258 258 258 296
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1303-1511 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1512- ● ●
85 NUT; UNION
MJX16P M/T(Y3Z) (B) M12 		9-09840-280-0 01 1 1512- ● ●
85 NUT; UNION
(A) M22 		0-91111-522-0 01 1 1303-1511 ●
85 NUT; UNION
(A) M22 		0-91111-522-0 01 1 1512- ● ●
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 1512- ●
123 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-98164-194-0 01 1 1512- ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1303-1511 ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1512- ● ●
141 UNION; FLEX HOSE
MJX16P M/T(Y3Z) (B) M12 L=66.5 		0-92113-306-0 01 1 1512- ● ●
141 UNION; FLEX HOSE
(A) M22 		0-92123-315-0 01 1 1303-1511 ●
141 UNION; FLEX HOSE
(A) M22 		0-92123-315-0 01 1 1512- ● ●
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ●
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (B) 		8-97646-842-0 01 1 1512- ● ●
189 BRACKET; FLEX HOSE
(A) 		1-47479-473-0 01 1 1303-1511 ●
189 BRACKET; FLEX HOSE
(A) 		1-47479-473-0 01 1 1512- ● ●
202 ADAPTER
MJX16P M/T(Y3Z) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1512- ● ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1303-1511 ●
202 ADAPTER
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ●
202 ADAPTER
BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ●
211 WASHER; LK,UNION
MJX16P M/T(Y3Z) ID=12.2 		0-91510-512-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
MAP6U M/T(Y4B) (E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-1510 ●
258 CONNECTOR; NYLON TUBE
(E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1511-1511 ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303-1511 ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MAP6U M/T(Y4B) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1512- ●
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1512- ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-1511 ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 3WAY 		1-09661-300-0 01 1 1303-1511 ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 3WAY 		1-09661-300-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1303-1511 ●
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
MAP6U M/T(Y4B) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1303-1510 ●
258 CONNECTOR; NYLON TUBE
(F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1511-1511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ● ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ● ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1303-1511 ●
291 NUT; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1512- ●
291 NUT; UNION
BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) (B) M12 		9-09840-280-0 02 1 1512- ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1512- ●
296 TUBE; NYLON
MAP6U M/T(Y4B) (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-1510 ●
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1511-1511 ●
296 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1512- ● ●
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-1511 ●
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1512- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1303- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1303- ● ●
297 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1512- ● ●
297 TUBE; NYLON
MJT7S M/T(Y3E) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1512- ● ●
297 TUBE; NYLON
MAP6U M/T(Y4B) L=290 OD=12 		1-49222-245-0 01 1 1303- ●
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1303-1511 ●
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1512- ● ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 1303-1511 ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 1512- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1303- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1303- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1303- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1303- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1303- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1303- ● ●
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1303-1511 ●
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1512- ● ●
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1512- ● ●
377 BOLT; BRKT FIX
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1303-1511 ●
377 BOLT; BRKT FIX
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1512- ● ●
421 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1511 ●
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1512- ● ●
444 BOLT; UNION
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1303-1511 ●
444 BOLT; UNION
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1512- ● ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1303-1511 ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1303-1511 ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1512- ● ●
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1512- ● ●
465 PLUG
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1303-1511 ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1303-1511 ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1512- ● ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1512- ● ●
465 PLUG
MJT7S M/T(Y3E),MAP6U M/T(Y4B) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1512- ●
465 PLUG
MJT7S M/T(Y3E) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1512- ●

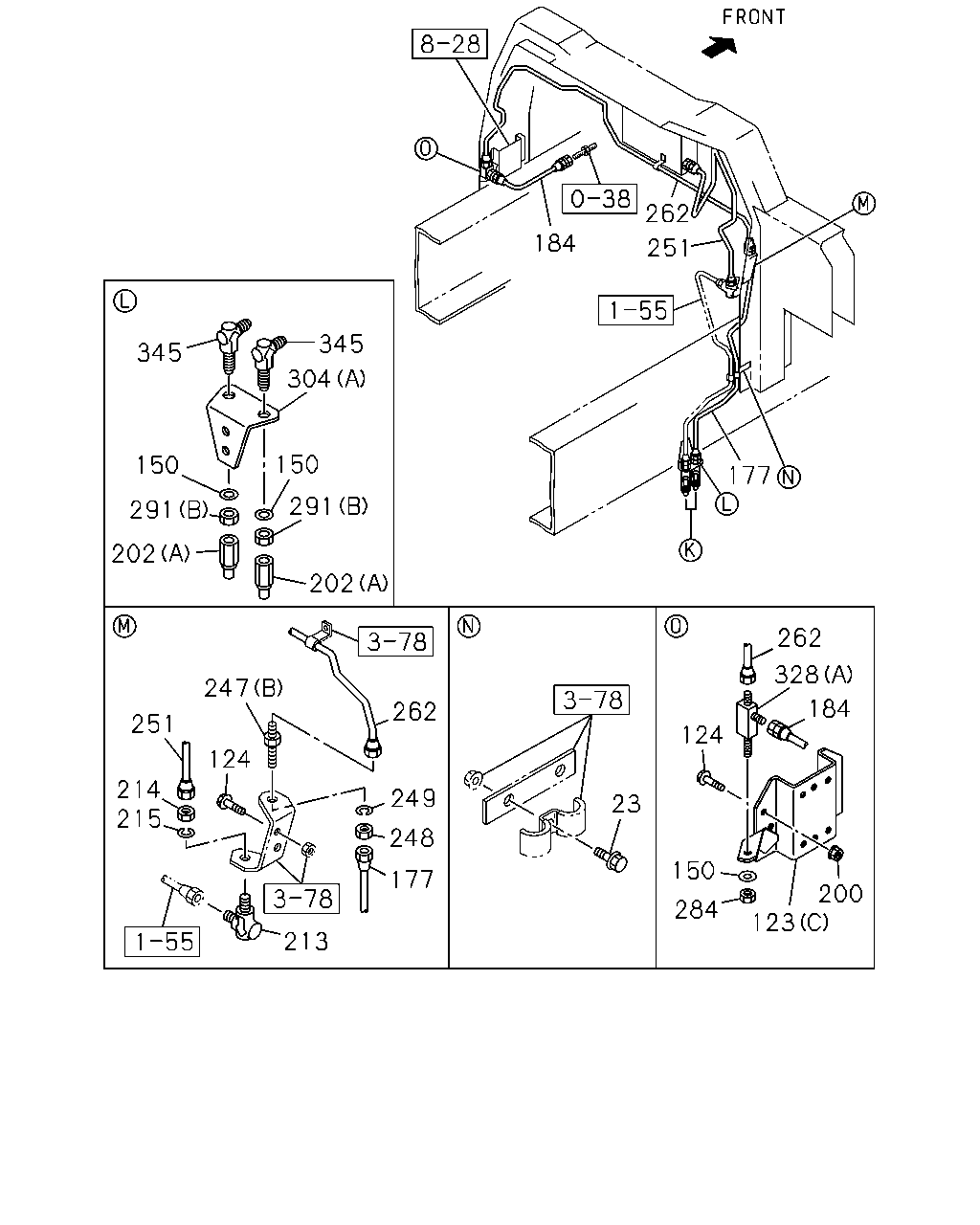

çizim 513055
345 345 304 150 291 202 150 291 202 247 251 214 215 213 177 249 248 262 124 23 124 150 284 123 184 328 200 262 177 251 262 184
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1303-1511 ●
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 1512- ●
123 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-98164-194-0 01 1 1512- ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1303-1511 ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1512- ● ●
124 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 1512- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1303-1511 ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1512- ● ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1512- ● ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1303-1511 ●
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 1512- ●
177 PIPE; AIR,UNION TO UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) L=660 SERVICED BY L=700 		1-47428-811-0 01 1 1512- ●
177 PIPE; AIR,UNION TO UNION
L=660 SERVICED BY L=700 		1-47428-811-0 01 1 1512- ●
177 PIPE; AIR,UNION TO UNION
BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) L=581 SERVICED BY L=600 		1-47428-809-0 01 1 1512- ●
177 PIPE; AIR,UNION TO UNION
L=714 SERVICED BY L=800 		1-47428-812-0 01 1 1303-1511 ●
177 PIPE; AIR,UNION TO UNION
TAIWAN EQUIPMENT(WW5) L=714 SERVICED BY L=800 		1-47428-812-0 01 1 1512- ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 1512- ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1303-1511 ●
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1512- ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 1512- ●
200 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 04 1 1512- ●
202 ADAPTER
MJX16P M/T(Y3Z) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1512- ● ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1303-1511 ●
202 ADAPTER
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ●
202 ADAPTER
BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1512- ●
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1303-1511 ●
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) M12 ELBOW 		0-92125-206-0 01 1 1512- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1303-1511 ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1512- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1303-1511 ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1512- ● ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		0-92113-306-0 01 1 1512- ●
247 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 1303-1511 ●
247 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 1512- ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		0-92125-206-0 01 1 1512- ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1303-1511 ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1512- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1303-1511 ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1512- ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1303-1511 ●
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1512- ● ●
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		8-98130-033-0 01 1 1512- ●
284 NUT; UNION
MIXER TRUCK<RA2> M12 		9-09840-280-0 01 1 1512- ●
284 NUT; UNION
BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) M12 		9-09840-280-0 02 1 1512- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1303-1511 ●
291 NUT; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M12 		9-09840-280-0 02 1 1512- ●
291 NUT; UNION
BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) (B) M12 		9-09840-280-0 02 1 1512- ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1512- ●
304 BRACKET; UNION
EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-98207-960-0 01 1 1512- ●
304 BRACKET; UNION
(B) 		8-98207-960-0 01 1 1512- ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1303-1511 ●
304 BRACKET; UNION
EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		1-47478-359-0 01 1 1512- ●
304 BRACKET; UNION
BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) (A) 		1-47478-359-0 01 1 1512- ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1512- ●
304 BRACKET; UNION
MAP6U M/T(Y4B) (C) 		1-71117-210-0 01 1 1303-1510 ●
304 BRACKET; UNION
(C) 		1-71117-210-0 01 1 1511-1511 ●
304 BRACKET; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (A) 		1-71117-210-0 01 1 1512- ● ●
304 BRACKET; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-71117-210-0 01 1 1512- ● ●
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1303-1511 ●
304 BRACKET; UNION
TAIWAN EQUIPMENT(WW5) (B) 		8-98171-684-0 01 1 1512- ●
328 UNION; AIR PIPE
MIXER TRUCK<RA2> (A) M12 2WAY 		1-09654-059-2 01 1 1512- ●
328 UNION; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (B) M12 ELBOW 		0-92125-206-0 02 1 1512- ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1303-1511 ●
345 UNION; AIR PIPE
EXC. BATTERY LAYOUT REAR VAR1<NCT> M12 ELBOW 		0-92125-206-0 02 1 1512- ●
345 UNION; AIR PIPE
BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) M12 ELBOW 		0-92125-206-0 02 1 1512- ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
