Sayfa 8-03 - Isuzu EPC

8-03 — LAMP; REAR AND REAR SIDE (#115190) — 235 parça

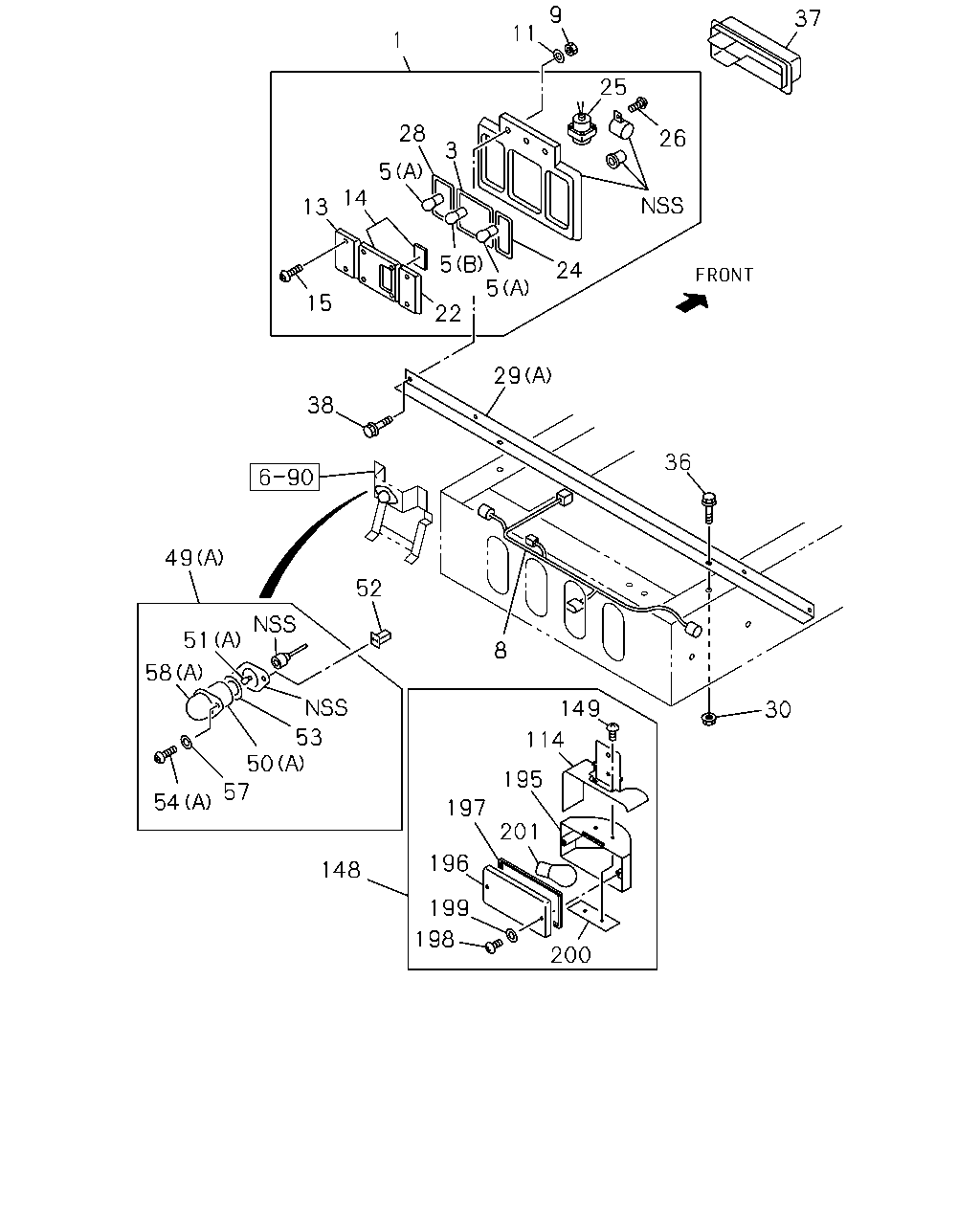

1 28 5 14 13 15 38 49 58 54 51 57 53 52 8 148 198 196 197 199 201 195 149 114 30 22 5 24 5 3 11 9 26 25 37 29 36 200 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; RR COMB	1-82230-208-0	01	1	1303-1511	●
1	LAMP ASM; RR COMB	1-82230-208-0	01	1	1512-	●	●
1	LAMP ASM; RR COMB	1-82230-209-0	01	1	1303-1511	●
1	LAMP ASM; RR COMB	1-82230-209-0	01	1	1512-	●	●
3	GASKET; RR COMB LAMP	8-94257-505-0	02	1	1303-1511	●
3	GASKET; RR COMB LAMP	8-94257-505-0	02	1	1512-	●	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	04	1	1303-1511	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	04	1	1512-	●	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	02	1	1303-1511	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	02	1	1512-	●	●
8	HARNESS; RR COMB LAMP WHEEL BASE 5500MM(55W) EXC. FULL TRAILER PIPING<Z25>	8-98144-644-2	01	1	1512-	●
8	HARNESS; RR COMB LAMP WHEEL BASE 5200MM(52W)	8-98144-644-2	01	1	1512-		●
8	HARNESS; RR COMB LAMP WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25>	8-98139-511-3	01	1	1512-	●
8	HARNESS; RR COMB LAMP WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25>	8-98139-512-2	01	1	1512-	●
8	HARNESS; RR COMB LAMP	8-98144-645-1	01	1	1303-1304	●
8	HARNESS; RR COMB LAMP WHEEL BASE 5900MM(59W)	8-98144-645-1	01	1	1305-1511	●
8	HARNESS; RR COMB LAMP WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. FULL TRAILER PIPING<Z25>	8-98144-645-1	01	1	1512-	●
9	NUT; LAMP,RR COMB M6	0-91110-506-0	04	1	1303-1511	●
9	NUT; LAMP,RR COMB M6	0-91110-506-0	04	1	1512-	●	●
11	WASHER; PL,LAMP,RR COMB ID=6.4 OD=18	0-91610-706-0	04	1	1303-1511	●
11	WASHER; PL,LAMP,RR COMB ID=6.4 OD=18	0-91610-706-0	04	1	1512-	●	●
13	LENS; TURN SIGNAL	8-94174-638-0	01	1	1303-1511	●
13	LENS; TURN SIGNAL	8-94174-638-0	01	1	1512-	●	●
13	LENS; TURN SIGNAL	8-94174-639-0	01	1	1303-1511	●
13	LENS; TURN SIGNAL	8-94174-639-0	01	1	1512-	●	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1303-1511	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1512-	●	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1303-1511	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1512-	●	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	1303-1511	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	1512-	●	●
22	LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	02	1	1303-1511	●
22	LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	02	1	1512-	●	●
24	GASKET; BACK,LAMP	8-94257-506-0	02	1	1303-1511	●
24	GASKET; BACK,LAMP	8-94257-506-0	02	1	1512-	●	●
25	HORN ASM; BACK	8-94257-518-0	01	1	1303-1511	●
25	HORN ASM; BACK	8-94257-518-0	01	1	1512-	●	●
26	SCREW; BACK HORN M4X12 TAPPING	9-07076-412-0	02	1	1303-1511	●
26	SCREW; BACK HORN M4X12 TAPPING	9-07076-412-0	02	1	1512-	●	●
26	SCREW; BACK HORN M4X14 TAPPING	9-07076-414-0	01	1	1303-1511	●
26	SCREW; BACK HORN M4X14 TAPPING	9-07076-414-0	01	1	1512-	●	●
28	GASKET; TURN,LAMP	8-94257-507-0	02	1	1303-1511	●
28	GASKET; TURN,LAMP	8-94257-507-0	02	1	1512-	●	●
29	BRACKET; LAMP,RR COMB LIGHTING SYSTEM ECE<SLC> (B)	8-98153-159-0	01	1	1512-	●	●
29	BRACKET; LAMP,RR COMB (A)	1-53487-021-1	01	1	1303-1511	●
29	BRACKET; LAMP,RR COMB EXC. LIGHTING SYSTEM ECE<SLC> (A)	1-53487-021-1	01	1	1512-	●	●
30	NUT; BRKT,RR COMB M10 FLANGE	0-91180-210-0	02	1	1303-1511	●
30	NUT; BRKT,RR COMB M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
36	BOLT; BRKT,RR COMB LIGHTING SYSTEM ECE<SLC> M10X90 FLANGE	0-28051-090-0	02	1	1512-	●	●
36	BOLT; BRKT,RR COMB WHEEL BASE 5500MM(55W) EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) M10X40 FLANGE	0-28651-040-0	02	1	1512-	●
36	BOLT; BRKT,RR COMB WHEEL BASE 5200MM(52W) EXC. RUSSIA EQUIPMENT(B12) M10X40 FLANGE	0-28651-040-0	02	1	1512-		●
36	BOLT; BRKT,RR COMB M10X45 FLANGE	0-28051-045-0	02	1	1303-1511	●
36	BOLT; BRKT,RR COMB TAIWAN EQUIPMENT(WW5) M10X45 FLANGE	0-28051-045-0	02	1	1512-	●
36	BOLT; BRKT,RR COMB WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) M10X45 FLANGE	0-28051-045-0	02	1	1512-	●
37	COVER; RR COMB LAMP	1-82239-007-0	01	1	1303-1511	●
37	COVER; RR COMB LAMP	1-82239-007-0	01	1	1512-	●	●
37	COVER; RR COMB LAMP	1-82239-008-0	01	1	1303-1511	●
37	COVER; RR COMB LAMP	1-82239-008-0	01	1	1512-	●	●
38	BOLT; LAMP,RR COMB LIGHTING SYSTEM ECE<SLC> M6X70 FLANGE	0-28050-670-0	04	1	1512-	●	●
38	BOLT; LAMP,RR COMB M6X30 W/LK&PL WASHER	0-50640-630-0	04	1	1303-1511	●
38	BOLT; LAMP,RR COMB EXC. LIGHTING SYSTEM ECE<SLC> M6X30 W/LK&PL WASHER	0-50640-630-0	04	1	1512-	●	●
49	LAMP; LICENSE PLATE EXC. TAIWAN EQUIPMENT(WW5) (B) 24V 5W	8-98329-430-0	02	1	1512-	●
49	LAMP; LICENSE PLATE (B) 24V 5W	8-98329-430-0	02	1	1512-		●
49	LAMP; LICENSE PLATE (A) 24V 10W	1-82120-024-1	01	1	1303-1511	●
49	LAMP; LICENSE PLATE TAIWAN EQUIPMENT(WW5) (A) 24V 10W	1-82120-024-1	01	1	1512-	●
50	LENS; LICENSE PLATE LAMP EXC. TAIWAN EQUIPMENT(WW5) (B)	8-97108-212-0	02	1	1512-	●
50	LENS; LICENSE PLATE LAMP (B)	8-97108-212-0	02	1	1512-		●
50	LENS; LICENSE PLATE LAMP (A)	1-82235-006-0	01	1	1303-1511	●
50	LENS; LICENSE PLATE LAMP TAIWAN EQUIPMENT(WW5) (A)	1-82235-006-0	01	1	1512-	●
51	BULB; LICENSE PLATE LAMP EXC. TAIWAN EQUIPMENT(WW5) (B) 24V 5W	1-82194-039-0	02	1	1512-	●
51	BULB; LICENSE PLATE LAMP (B) 24V 5W	1-82194-039-0	02	1	1512-		●
51	BULB; LICENSE PLATE LAMP (A) 24V 10W	1-82194-037-0	01	1	1303-1511	●
51	BULB; LICENSE PLATE LAMP TAIWAN EQUIPMENT(WW5) (A) 24V 10W	1-82194-037-0	01	1	1512-	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	1303-1511	●
52	GROMMET; SCREW,LICENSE PLATE LAMP TAIWAN EQUIPMENT(WW5) D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	1512-	●
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	1303-1511	●
53	GASKET; LICENSE LAMP TAIWAN EQUIPMENT(WW5)	1-82126-005-0	01	1	1512-	●
54	SCREW; LICENSE PLATE LAMP EXC. TAIWAN EQUIPMENT(WW5) (B) M4X8	8-94419-312-0	02	1	1512-	●
54	SCREW; LICENSE PLATE LAMP (B) M4X8	8-94419-312-0	02	1	1512-		●
54	SCREW; LICENSE PLATE LAMP (A) M5X20	1-82129-007-0	02	1	1303-1511	●
54	SCREW; LICENSE PLATE LAMP TAIWAN EQUIPMENT(WW5) (A) M5X20	1-82129-007-0	02	1	1512-	●
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	1303-1511	●
57	WASHER; PL,LICENSE PLATE LAMP TAIWAN EQUIPMENT(WW5)	1-82129-008-0	02	1	1512-	●
58	COVER; LICENSE PLATE LAMP EXC. TAIWAN EQUIPMENT(WW5) (B)	8-97076-590-1	02	1	1512-	●
58	COVER; LICENSE PLATE LAMP (B)	8-97076-590-1	02	1	1512-		●
58	COVER; LICENSE PLATE LAMP (A)	1-82129-005-0	01	1	1303-1511	●
58	COVER; LICENSE PLATE LAMP TAIWAN EQUIPMENT(WW5) (A)	1-82129-005-0	01	1	1512-	●
114	BRACKET; RR FOG LAMP	8-97108-583-0	01	1	1303-1511	●
114	BRACKET; RR FOG LAMP RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-97108-583-0	01	1	1512-	●
114	BRACKET; RR FOG LAMP RUSSIA EQUIPMENT(B12)	8-97108-583-0	01	1	1512-		●
148	LAMP ASM; RR FOG	1-82110-477-0	01	1	1303-1511	●
148	LAMP ASM; RR FOG RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	1-82110-477-0	01	1	1512-	●
148	LAMP ASM; RR FOG RUSSIA EQUIPMENT(B12)	1-82110-477-0	01	1	1512-		●
149	SCREW; BRKT TO LAMP BODY	8-94336-372-0	02	1	1303-1511	●
149	SCREW; BRKT TO LAMP BODY RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-94336-372-0	02	1	1512-	●
149	SCREW; BRKT TO LAMP BODY RUSSIA EQUIPMENT(B12)	8-94336-372-0	02	1	1512-		●
195	LAMP UNIT; RR FOG	8-94336-322-0	01	1	1303-1511	●
195	LAMP UNIT; RR FOG RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-94336-322-0	01	1	1512-	●
195	LAMP UNIT; RR FOG RUSSIA EQUIPMENT(B12)	8-94336-322-0	01	1	1512-		●
196	LENS; RR FOG LAMP	8-94336-325-0	01	1	1303-1511	●
196	LENS; RR FOG LAMP RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-94336-325-0	01	1	1512-	●
196	LENS; RR FOG LAMP RUSSIA EQUIPMENT(B12)	8-94336-325-0	01	1	1512-		●
197	GASKET; RR FOG LAMP	8-94336-324-0	01	1	1303-1511	●
197	GASKET; RR FOG LAMP RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-94336-324-0	01	1	1512-	●
197	GASKET; RR FOG LAMP RUSSIA EQUIPMENT(B12)	8-94336-324-0	01	1	1512-		●
198	SCREW; LENS TO BODY	0-71190-416-0	02	1	1303-1511	●
198	SCREW; LENS TO BODY RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	0-71190-416-0	02	1	1512-	●
198	SCREW; LENS TO BODY RUSSIA EQUIPMENT(B12)	0-71190-416-0	02	1	1512-		●
199	WASHER; LENS,RR FOG LAMP	8-94336-326-0	02	1	1303-1511	●
199	WASHER; LENS,RR FOG LAMP RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-94336-326-0	02	1	1512-	●
199	WASHER; LENS,RR FOG LAMP RUSSIA EQUIPMENT(B12)	8-94336-326-0	02	1	1512-		●
200	PLATE; SET,RR FOG LAMP	8-94336-323-0	01	1	1303-1511	●
200	PLATE; SET,RR FOG LAMP RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-94336-323-0	01	1	1512-	●
200	PLATE; SET,RR FOG LAMP RUSSIA EQUIPMENT(B12)	8-94336-323-0	01	1	1512-		●
201	BULB; RR FOG LAMP 24V 21W	1-82194-036-0	01	1	1303-1511	●
201	BULB; RR FOG LAMP RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) 24V 21W	1-82194-036-0	01	1	1512-	●
201	BULB; RR FOG LAMP RUSSIA EQUIPMENT(B12) 24V 21W	1-82194-036-0	01	1	1512-		●

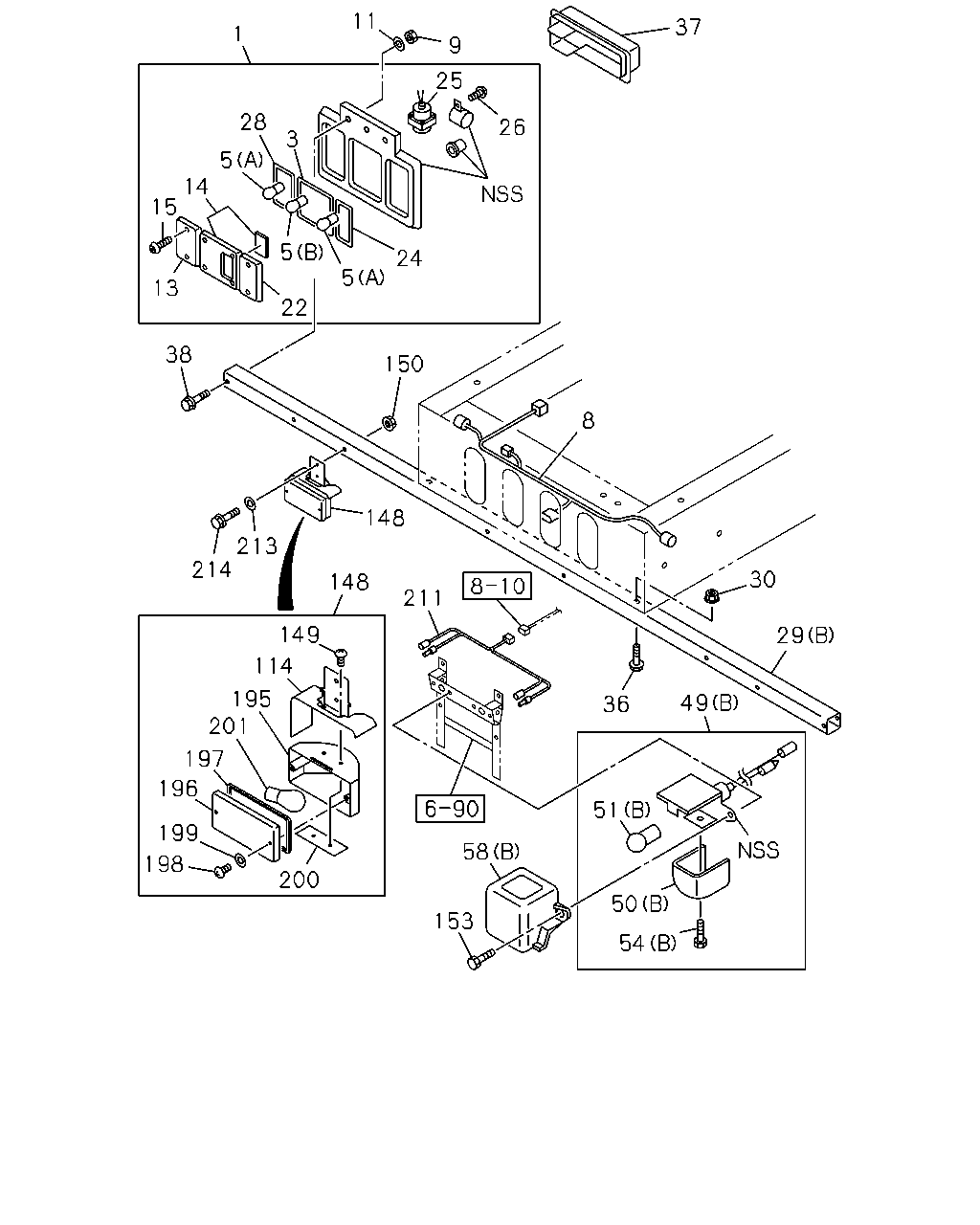

1 11 9 37 26 25 28 5 14 15 13 5 3 24 5 22 38 150 8 30 29 49 36 211 148 148 213 214 149 114 195 201 197 196 199 198 200 58 51 50 54 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; RR COMB	1-82230-208-0	01	1	1303-1511	●
1	LAMP ASM; RR COMB	1-82230-208-0	01	1	1512-	●	●
1	LAMP ASM; RR COMB	1-82230-209-0	01	1	1303-1511	●
1	LAMP ASM; RR COMB	1-82230-209-0	01	1	1512-	●	●
3	GASKET; RR COMB LAMP	8-94257-505-0	02	1	1303-1511	●
3	GASKET; RR COMB LAMP	8-94257-505-0	02	1	1512-	●	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	04	1	1303-1511	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	04	1	1512-	●	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	02	1	1303-1511	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	02	1	1512-	●	●
8	HARNESS; RR COMB LAMP WHEEL BASE 5500MM(55W) EXC. FULL TRAILER PIPING<Z25>	8-98144-644-2	01	1	1512-	●
8	HARNESS; RR COMB LAMP WHEEL BASE 5200MM(52W)	8-98144-644-2	01	1	1512-		●
8	HARNESS; RR COMB LAMP WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25>	8-98139-511-3	01	1	1512-	●
8	HARNESS; RR COMB LAMP WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25>	8-98139-512-2	01	1	1512-	●
8	HARNESS; RR COMB LAMP	8-98144-645-1	01	1	1303-1304	●
8	HARNESS; RR COMB LAMP WHEEL BASE 5900MM(59W)	8-98144-645-1	01	1	1305-1511	●
8	HARNESS; RR COMB LAMP WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. FULL TRAILER PIPING<Z25>	8-98144-645-1	01	1	1512-	●
9	NUT; LAMP,RR COMB M6	0-91110-506-0	04	1	1303-1511	●
9	NUT; LAMP,RR COMB M6	0-91110-506-0	04	1	1512-	●	●
11	WASHER; PL,LAMP,RR COMB ID=6.4 OD=18	0-91610-706-0	04	1	1303-1511	●
11	WASHER; PL,LAMP,RR COMB ID=6.4 OD=18	0-91610-706-0	04	1	1512-	●	●
13	LENS; TURN SIGNAL	8-94174-638-0	01	1	1303-1511	●
13	LENS; TURN SIGNAL	8-94174-638-0	01	1	1512-	●	●
13	LENS; TURN SIGNAL	8-94174-639-0	01	1	1303-1511	●
13	LENS; TURN SIGNAL	8-94174-639-0	01	1	1512-	●	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1303-1511	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1512-	●	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1303-1511	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1512-	●	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	1303-1511	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	1512-	●	●
22	LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	02	1	1303-1511	●
22	LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	02	1	1512-	●	●
24	GASKET; BACK,LAMP	8-94257-506-0	02	1	1303-1511	●
24	GASKET; BACK,LAMP	8-94257-506-0	02	1	1512-	●	●
25	HORN ASM; BACK	8-94257-518-0	01	1	1303-1511	●
25	HORN ASM; BACK	8-94257-518-0	01	1	1512-	●	●
26	SCREW; BACK HORN M4X12 TAPPING	9-07076-412-0	02	1	1303-1511	●
26	SCREW; BACK HORN M4X12 TAPPING	9-07076-412-0	02	1	1512-	●	●
26	SCREW; BACK HORN M4X14 TAPPING	9-07076-414-0	01	1	1303-1511	●
26	SCREW; BACK HORN M4X14 TAPPING	9-07076-414-0	01	1	1512-	●	●
28	GASKET; TURN,LAMP	8-94257-507-0	02	1	1303-1511	●
28	GASKET; TURN,LAMP	8-94257-507-0	02	1	1512-	●	●
29	BRACKET; LAMP,RR COMB LIGHTING SYSTEM ECE<SLC> (B)	8-98153-159-0	01	1	1512-	●	●
29	BRACKET; LAMP,RR COMB (A)	1-53487-021-1	01	1	1303-1511	●
29	BRACKET; LAMP,RR COMB EXC. LIGHTING SYSTEM ECE<SLC> (A)	1-53487-021-1	01	1	1512-	●	●
30	NUT; BRKT,RR COMB M10 FLANGE	0-91180-210-0	02	1	1303-1511	●
30	NUT; BRKT,RR COMB M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
36	BOLT; BRKT,RR COMB LIGHTING SYSTEM ECE<SLC> M10X90 FLANGE	0-28051-090-0	02	1	1512-	●	●
36	BOLT; BRKT,RR COMB WHEEL BASE 5500MM(55W) EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) M10X40 FLANGE	0-28651-040-0	02	1	1512-	●
36	BOLT; BRKT,RR COMB WHEEL BASE 5200MM(52W) EXC. RUSSIA EQUIPMENT(B12) M10X40 FLANGE	0-28651-040-0	02	1	1512-		●
36	BOLT; BRKT,RR COMB M10X45 FLANGE	0-28051-045-0	02	1	1303-1511	●
36	BOLT; BRKT,RR COMB TAIWAN EQUIPMENT(WW5) M10X45 FLANGE	0-28051-045-0	02	1	1512-	●
36	BOLT; BRKT,RR COMB WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) EXC. RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) M10X45 FLANGE	0-28051-045-0	02	1	1512-	●
37	COVER; RR COMB LAMP	1-82239-007-0	01	1	1303-1511	●
37	COVER; RR COMB LAMP	1-82239-007-0	01	1	1512-	●	●
37	COVER; RR COMB LAMP	1-82239-008-0	01	1	1303-1511	●
37	COVER; RR COMB LAMP	1-82239-008-0	01	1	1512-	●	●
38	BOLT; LAMP,RR COMB LIGHTING SYSTEM ECE<SLC> M6X70 FLANGE	0-28050-670-0	04	1	1512-	●	●
38	BOLT; LAMP,RR COMB M6X30 W/LK&PL WASHER	0-50640-630-0	04	1	1303-1511	●
38	BOLT; LAMP,RR COMB EXC. LIGHTING SYSTEM ECE<SLC> M6X30 W/LK&PL WASHER	0-50640-630-0	04	1	1512-	●	●
49	LAMP; LICENSE PLATE EXC. TAIWAN EQUIPMENT(WW5) (B) 24V 5W	8-98329-430-0	02	1	1512-	●
49	LAMP; LICENSE PLATE (B) 24V 5W	8-98329-430-0	02	1	1512-		●
49	LAMP; LICENSE PLATE (A) 24V 10W	1-82120-024-1	01	1	1303-1511	●
49	LAMP; LICENSE PLATE TAIWAN EQUIPMENT(WW5) (A) 24V 10W	1-82120-024-1	01	1	1512-	●
50	LENS; LICENSE PLATE LAMP EXC. TAIWAN EQUIPMENT(WW5) (B)	8-97108-212-0	02	1	1512-	●
50	LENS; LICENSE PLATE LAMP (B)	8-97108-212-0	02	1	1512-		●
50	LENS; LICENSE PLATE LAMP (A)	1-82235-006-0	01	1	1303-1511	●
50	LENS; LICENSE PLATE LAMP TAIWAN EQUIPMENT(WW5) (A)	1-82235-006-0	01	1	1512-	●
51	BULB; LICENSE PLATE LAMP EXC. TAIWAN EQUIPMENT(WW5) (B) 24V 5W	1-82194-039-0	02	1	1512-	●
51	BULB; LICENSE PLATE LAMP (B) 24V 5W	1-82194-039-0	02	1	1512-		●
51	BULB; LICENSE PLATE LAMP (A) 24V 10W	1-82194-037-0	01	1	1303-1511	●
51	BULB; LICENSE PLATE LAMP TAIWAN EQUIPMENT(WW5) (A) 24V 10W	1-82194-037-0	01	1	1512-	●
54	SCREW; LICENSE PLATE LAMP EXC. TAIWAN EQUIPMENT(WW5) (B) M4X8	8-94419-312-0	02	1	1512-	●
54	SCREW; LICENSE PLATE LAMP (B) M4X8	8-94419-312-0	02	1	1512-		●
54	SCREW; LICENSE PLATE LAMP (A) M5X20	1-82129-007-0	02	1	1303-1511	●
54	SCREW; LICENSE PLATE LAMP TAIWAN EQUIPMENT(WW5) (A) M5X20	1-82129-007-0	02	1	1512-	●
58	COVER; LICENSE PLATE LAMP EXC. TAIWAN EQUIPMENT(WW5) (B)	8-97076-590-1	02	1	1512-	●
58	COVER; LICENSE PLATE LAMP (B)	8-97076-590-1	02	1	1512-		●
58	COVER; LICENSE PLATE LAMP (A)	1-82129-005-0	01	1	1303-1511	●
58	COVER; LICENSE PLATE LAMP TAIWAN EQUIPMENT(WW5) (A)	1-82129-005-0	01	1	1512-	●
114	BRACKET; RR FOG LAMP	8-97108-583-0	01	1	1303-1511	●
114	BRACKET; RR FOG LAMP RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-97108-583-0	01	1	1512-	●
114	BRACKET; RR FOG LAMP RUSSIA EQUIPMENT(B12)	8-97108-583-0	01	1	1512-		●
148	LAMP ASM; RR FOG	1-82110-477-0	01	1	1303-1511	●
148	LAMP ASM; RR FOG RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	1-82110-477-0	01	1	1512-	●
148	LAMP ASM; RR FOG RUSSIA EQUIPMENT(B12)	1-82110-477-0	01	1	1512-		●
149	SCREW; BRKT TO LAMP BODY	8-94336-372-0	02	1	1303-1511	●
149	SCREW; BRKT TO LAMP BODY RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-94336-372-0	02	1	1512-	●
149	SCREW; BRKT TO LAMP BODY RUSSIA EQUIPMENT(B12)	8-94336-372-0	02	1	1512-		●
150	NUT; RR FOG LAMP RUSSIA EQUIPMENT(B12) M6	0-91110-506-0	01	1	1512-	●	●
153	BOLT; LICENSE PLATE LAMP EXC. TAIWAN EQUIPMENT(WW5) M5X20	9-93490-520-0	04	1	1512-	●
153	BOLT; LICENSE PLATE LAMP M5X20	9-93490-520-0	04	1	1512-		●
195	LAMP UNIT; RR FOG	8-94336-322-0	01	1	1303-1511	●
195	LAMP UNIT; RR FOG RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-94336-322-0	01	1	1512-	●
195	LAMP UNIT; RR FOG RUSSIA EQUIPMENT(B12)	8-94336-322-0	01	1	1512-		●
196	LENS; RR FOG LAMP	8-94336-325-0	01	1	1303-1511	●
196	LENS; RR FOG LAMP RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-94336-325-0	01	1	1512-	●
196	LENS; RR FOG LAMP RUSSIA EQUIPMENT(B12)	8-94336-325-0	01	1	1512-		●
197	GASKET; RR FOG LAMP	8-94336-324-0	01	1	1303-1511	●
197	GASKET; RR FOG LAMP RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-94336-324-0	01	1	1512-	●
197	GASKET; RR FOG LAMP RUSSIA EQUIPMENT(B12)	8-94336-324-0	01	1	1512-		●
198	SCREW; LENS TO BODY	0-71190-416-0	02	1	1303-1511	●
198	SCREW; LENS TO BODY RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	0-71190-416-0	02	1	1512-	●
198	SCREW; LENS TO BODY RUSSIA EQUIPMENT(B12)	0-71190-416-0	02	1	1512-		●
199	WASHER; LENS,RR FOG LAMP	8-94336-326-0	02	1	1303-1511	●
199	WASHER; LENS,RR FOG LAMP RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-94336-326-0	02	1	1512-	●
199	WASHER; LENS,RR FOG LAMP RUSSIA EQUIPMENT(B12)	8-94336-326-0	02	1	1512-		●
200	PLATE; SET,RR FOG LAMP	8-94336-323-0	01	1	1303-1511	●
200	PLATE; SET,RR FOG LAMP RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5)	8-94336-323-0	01	1	1512-	●
200	PLATE; SET,RR FOG LAMP RUSSIA EQUIPMENT(B12)	8-94336-323-0	01	1	1512-		●
201	BULB; RR FOG LAMP 24V 21W	1-82194-036-0	01	1	1303-1511	●
201	BULB; RR FOG LAMP RUSSIA EQUIPMENT(B12),TAIWAN EQUIPMENT(WW5) 24V 21W	1-82194-036-0	01	1	1512-	●
201	BULB; RR FOG LAMP RUSSIA EQUIPMENT(B12) 24V 21W	1-82194-036-0	01	1	1512-		●
211	HARNESS; EXT EXC. TAIWAN EQUIPMENT(WW5)	8-98131-066-0	01	1	1512-	●
211	HARNESS; EXT	8-98131-066-0	01	1	1512-		●
213	WASHER; PL,RR FOG LAMP RUSSIA EQUIPMENT(B12) ID=6.4 OD=18	0-91610-706-0	01	1	1512-	●	●
214	BOLT; RR FOG LAMP RUSSIA EQUIPMENT(B12) M6X70 FLANGE	0-28050-670-0	01	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
