Isuzu WW
▶
TRUCKS
▶
EXR
▶
10864 - EXR LHD FUEL TANK 200L+200L
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

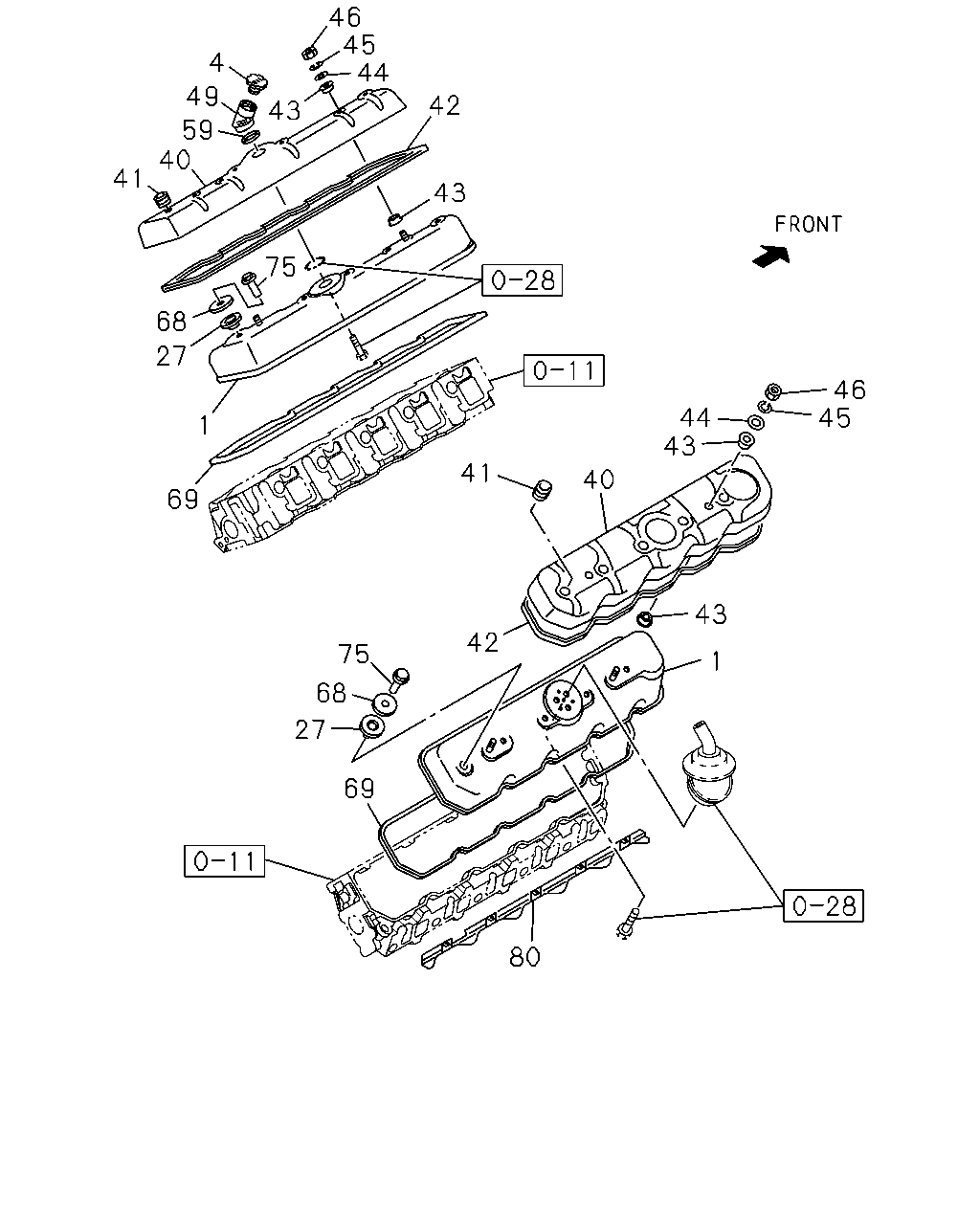

0-10 — CYLINDER HEAD COVER
(#11519) — 17 parça
Tümü
A - 10PE1S
B - 10PE1N
46
45
44
4
49
42
43
59
40
41
43
75
68
27
46
45
44
43
1
41
40
69
43
42
75
1
68
27
69
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
RH BANK
1-11171-340-2
01
1
0105-
●
●
1
COVER; CYL HD
LH BANK
1-11171-404-1
01
1
0105-
●
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
0105-
●
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09639-031-0
10
1
0105-
●
●
40
COVER
1-19381-341-0
02
1
0105-
●
●
41
GROMMET; HD COVER,OUTER
1-19389-004-0
10
1
0105-
●
●
42
SEAL; RUBBER,HD COVER,OUTER
L=1820
1-19387-007-0
02
1
0105-
●
●
43
RUBBER; MTG,HD COVER,OUTER
1-09337-027-0
08
1
0105-
●
●
44
WASHER; PL,HD COVER,OUTER
ID=8.4 OD=18
9-09160-608-0
04
1
0105-
●
●
45
WASHER; LK,HD COVER,OUTER
ID=8.2
9-09150-508-0
04
1
0105-
●
●
46
NUT; HD COVER,OUTER
M8
9-09110-408-0
04
1
0105-
●
●
49
FILLER; OIL,HD COVER
1-11741-177-1
01
1
0105-
●
●
59
GROMMET; OIL FILLER
1-09333-132-0
01
1
0105-
●
●
68
WASHER; CAP NUT,HD COVER
1-11179-048-0
10
1
0105-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-105-0
02
1
0105-
●
●
75
NUT; CAP,HD COVER
1-11175-008-0
10
1
0105-
●
●
80
PROTECTOR; HEAT,SEAL RUBBER
1-14181-183-1
02
1
0105-
●
●
