Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-60 - HEATER UNIT; FRONT
▶

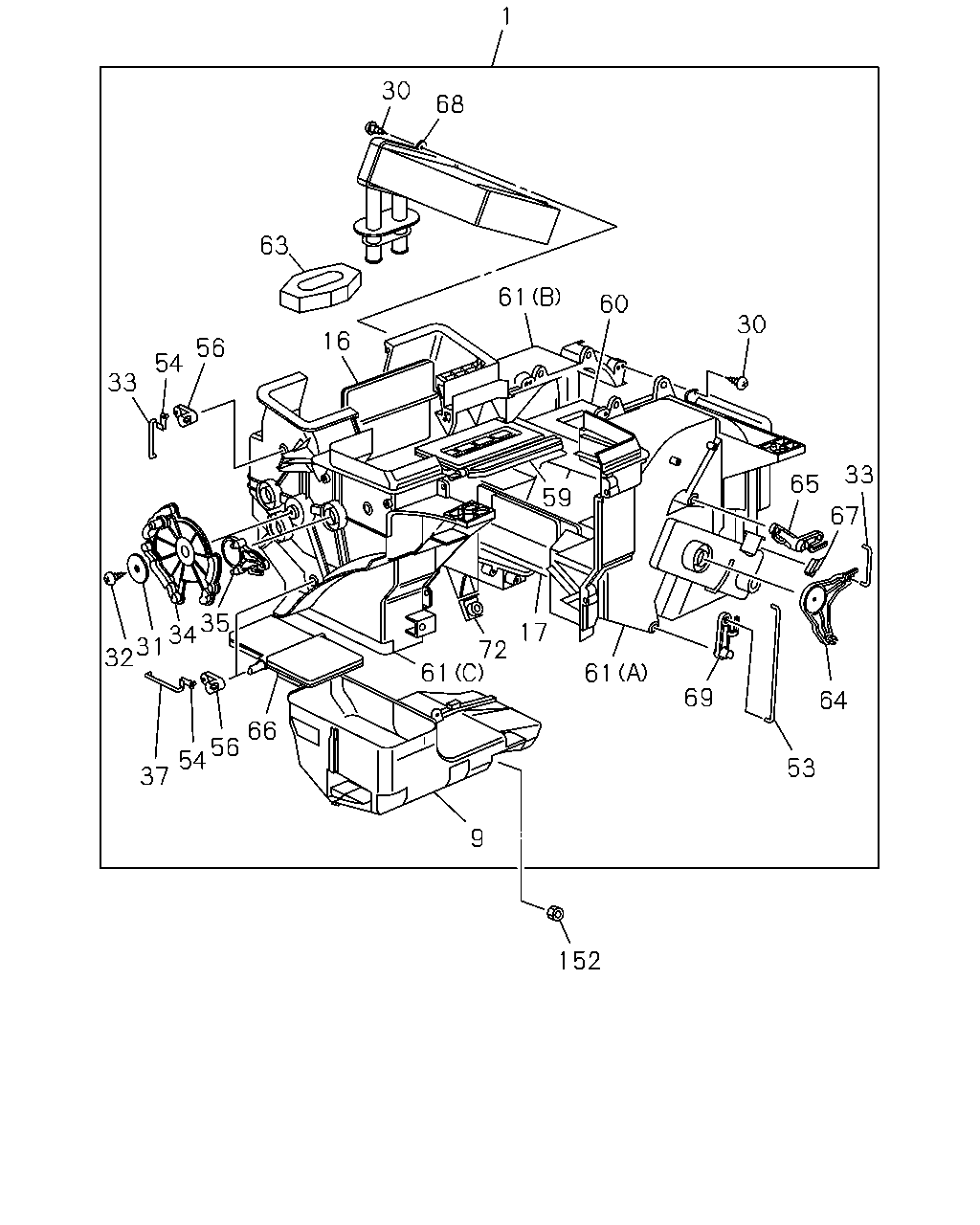

8-60 — HEATER UNIT; FRONT
(#115185) — 32 parça
152
9
61
72
17
61
69
64
53
67
33
65
30
60
61
59
1
68
30
63
16
56
54
33
35
34
31
32
66
56
54
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
08.845 HEATER UNIT
8-97174-733-6
01
1
1302-1408
1
08.845 HEATER UNIT
8-98238-500-0
01
1
1409-
9
08.854 DUCT; HTR UNIT
8-97101-638-0
01
1
1302-
16
09.786 SHUTTER; HTR UNIT,CENTER UPR
8-97101-642-0
01
1
1302-
17
09.786 SHUTTER; HTR UNIT,CENTER
8-97101-640-0
01
1
1302-
30
08.845 SCREW; HTR UNIT
08.852 M4X16
8-94324-850-0
11
1
1302-
31
08.852 WASHER; HTR UNIT
8-94129-950-0
01
1
1302-
32
08.852 SCREW; HTR UNIT
10.240 M5X20
9-09829-324-1
01
1
1302-1408
32
08.852 SCREW; HTR UNIT
08.846 M5X16
8-94248-820-0
01
1
1409-
33
09.786 ROD; SHUTTER LEVER
08.866
8-97087-566-0
02
1
1302-
34
09.786 LEVER; SHUTTER,HTR UNIT
8-97101-669-0
01
1
1302-
35
08.852 LEVER; SHUTTER,HTR UNIT
8-97101-673-0
03
1
1302-
37
08.852 ROD; LEVER
8-97101-677-2
02
1
1302-
53
08.866 ROD; SHUTTER LEVER
8-97087-567-1
01
1
1302-
54
08.854 CLIP; SHUTTER LEVER
1-83574-136-0
03
1
1302-
56
09.786 LEVER; SHUTTER,HTR UNIT
8-97096-142-0
03
1
1302-
59
08.845 SHUTTER; HTR UNIT,SIDE
8-97101-641-0
01
1
1302-
60
08.854 DOOR; MIX,HTR UNIT
8-97087-556-1
01
1
1302-
61
08.854 CASE; HTR UNIT
(A)
8-97101-634-4
01
1
1302-
61
08.854 CASE; HTR UNIT
(B)
8-97101-635-4
01
1
1302-
61
08.854 CASE; HTR UNIT
(C)
8-97101-636-4
01
1
1302-
63
08.856 LINING; HTR UNIT
8-97131-580-0
01
1
1302-1408
63
08.856 LINING; HTR UNIT
8-97131-323-0
01
1
1409-
64
09.786 LEVER; MIX,DOOR
8-97101-670-1
01
1
1302-
65
09.786 LEVER; MIX,DOOR
8-97200-276-0
01
1
1302-
66
09.786 SHUTTER; HTR UNIT,CENTER LWR
8-97101-643-0
01
1
1302-
67
08.854 CLIP; HTR UNIT
09.787
8-94337-654-0
02
1
1302-
68
08.854 CORE; HTR UNIT
8-97240-941-0
01
1
1302-1408
68
08.854 CORE; HTR UNIT
8-98238-504-0
01
1
1409-
69
08.852 LEVER; SHUTTER,HTR UNIT
8-97101-671-0
01
1
1302-
72
08.845 NUT; CASE,HTR UNIT
8-97085-613-0
01
1
1302-
152
08.854 NUT; HTR UNIT
8-97107-811-0
01
1
1302-
