Sayfa 1-41 - Isuzu EPC

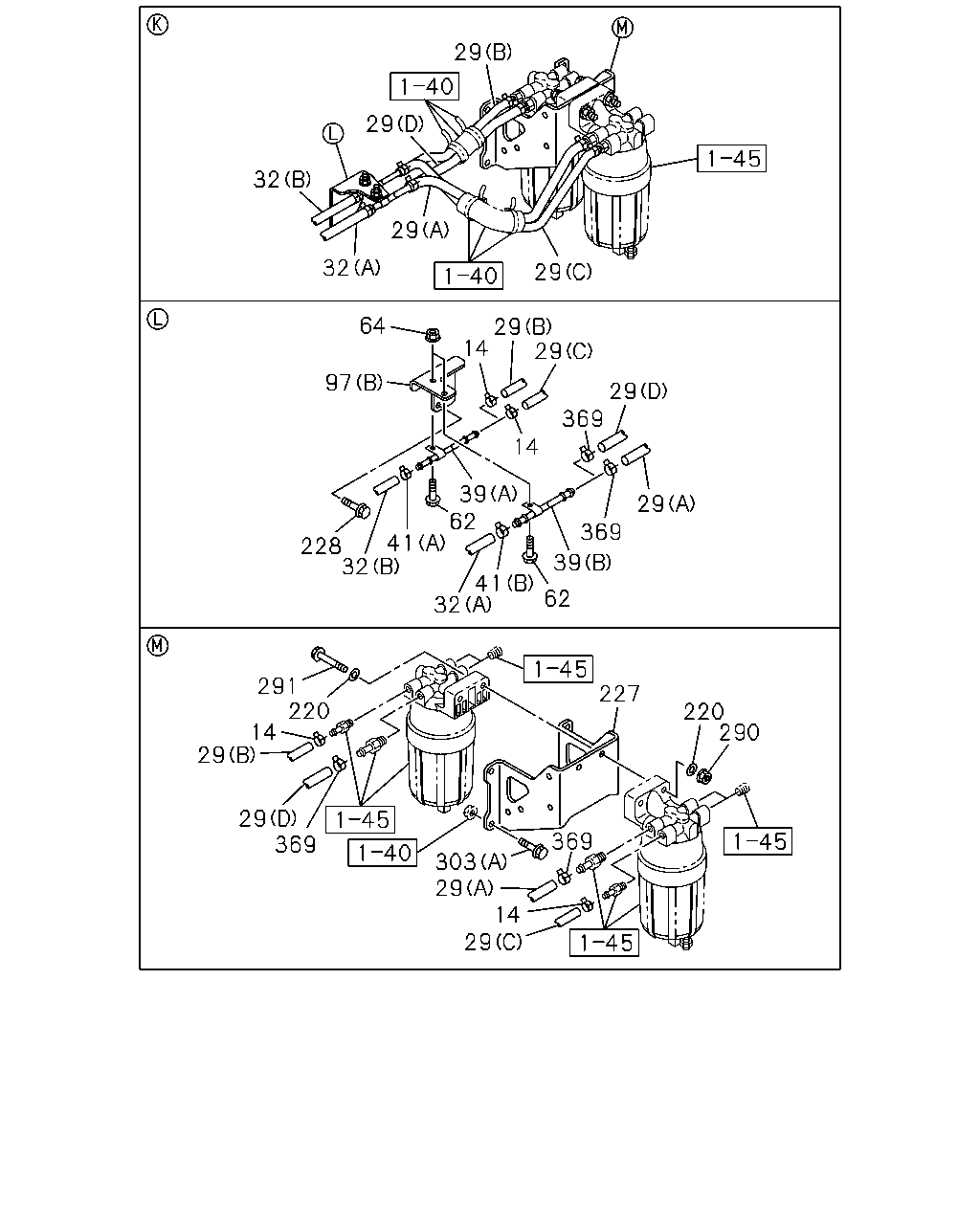

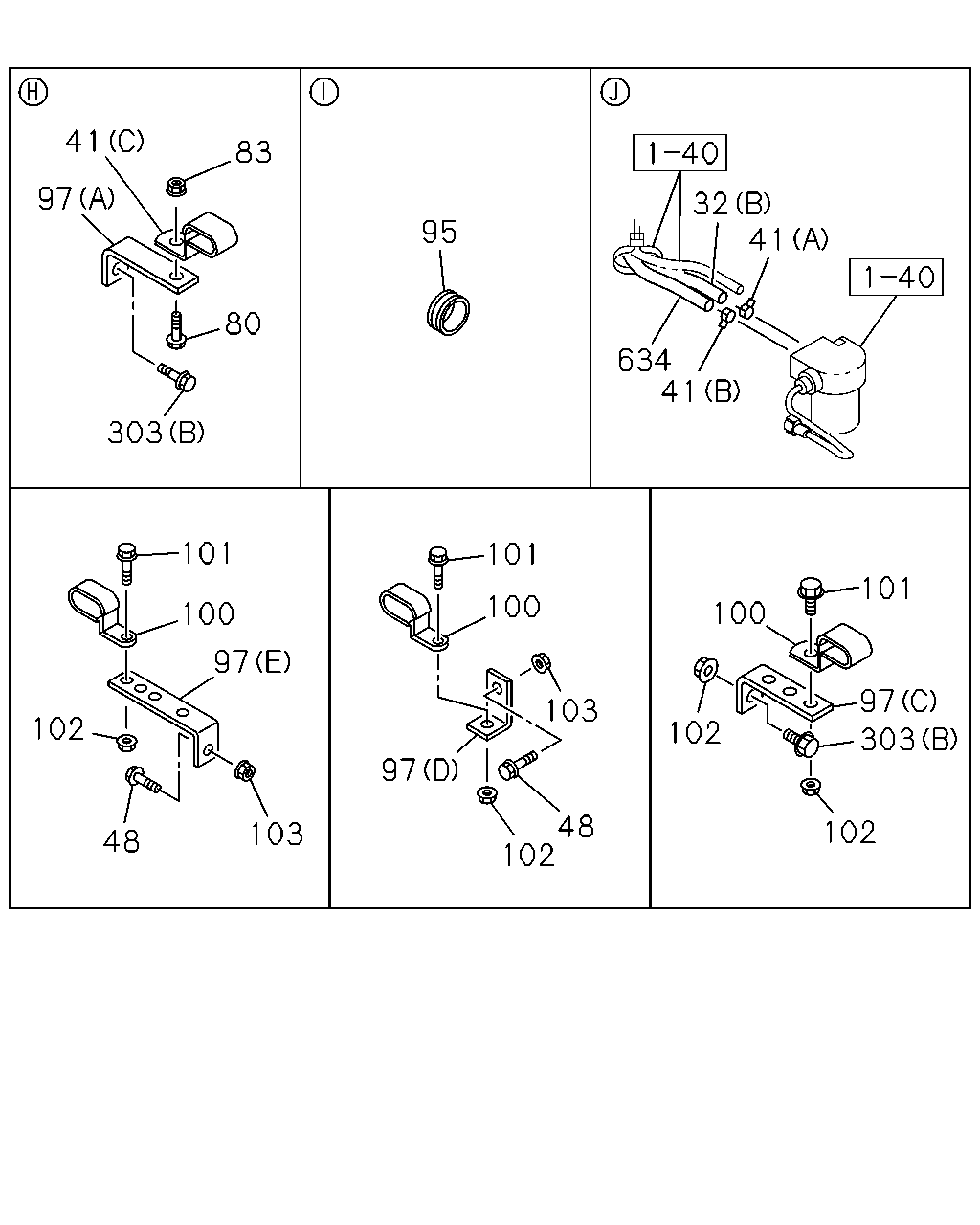

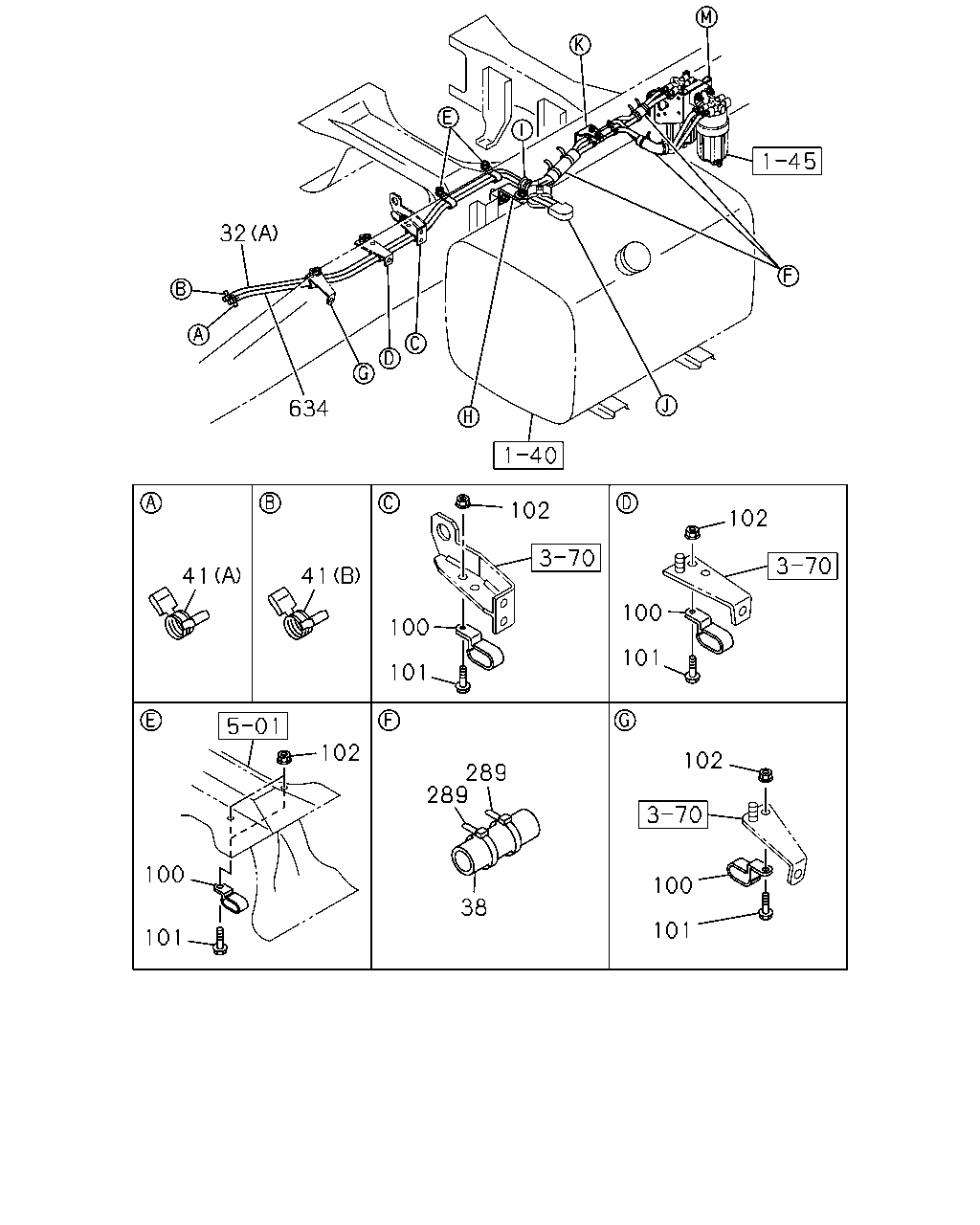

1-41 — FUEL PIPING; CHASSIS (#115181) — 311 parça

41 83 97 80 303 101 100 97 102 48 103 101 100 103 97 102 48 102 97 101 100 303 102 634 41 32 41 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) L=350 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●	●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1512-1512		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. TAIWAN EQUIPMENT(WW5) (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> (A) L=2750 SERVICED BY L=3000	0-01262-300-0	01	1	1512-1512		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. TAIWAN EQUIPMENT(WW5) (A) L=2750 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=580 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=580 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●
32	PIPE; DELIVERY,FUEL TANK BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3050 SERVICED BY L=5050	0-01262-505-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1512-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1512-	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) (B) L=540 SERVICED BY L=3000	0-01260-300-0	01	1	1303-1511		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) (B) L=540 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1303-1511		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1512-1512		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5200MM(52W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1512-1512	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1303-1511		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1303-1511		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1303-1511		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1512-	●	●
48	BOLT; BRKT BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> M8X25 FLANGE	0-28650-825-0	01	1	1512-1512		●
48	BOLT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) M8X25 FLANGE	0-28650-825-0	01	1	1512-		●
48	BOLT; BRKT BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	02	1	1512-1512		●
48	BOLT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) M8X35 FLANGE	0-28650-835-0	02	1	1512-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1303-1511		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1512-1512	●	●
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	01	1	1512-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1303-1511		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
95	BUSHING; PIPE,FUEL TANK EXC. TAIWAN EQUIPMENT(WW5) ID=39 OD=45 T=23	8-98288-452-0	01	1	1512-		●
95	BUSHING; PIPE,FUEL TANK ID=39 OD=45 T=23	8-98288-452-0	01	1	1512-	●
95	BUSHING; PIPE,FUEL TANK ID=32 OD=40 T=23	1-09332-112-0	01	1	1303-1511		●
95	BUSHING; PIPE,FUEL TANK ID=32 OD=40 T=23	1-09332-112-0	01	1	1512-1512	●	●
95	BUSHING; PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> ID=32 OD=40 T=23	1-09332-112-0	01	1	1512-	●	●
95	BUSHING; PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) ID=32 OD=40 T=23	1-09332-112-0	01	1	1512-		●
97	BRACKET; CLIP FUEL TANK 200L AL<THF> (C) L=120 H=35	1-82698-088-0	01	1	1512-1512	●	●
97	BRACKET; CLIP FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) L=120 H=35	1-82698-088-0	01	1	1512-	●	●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> (D) L=55	1-47475-304-0	01	1	1512-1512		●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (D) L=55	1-47475-304-0	01	1	1512-		●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> (E)	8-98172-059-0	02	1	1512-1512		●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (E)	8-98172-059-0	02	1	1512-		●
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1303-1511		●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A) L=68	1-47475-525-0	01	1	1512-	●	●
97	BRACKET; CLIP (B)	8-98186-869-0	01	1	1303-1511		●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B)	8-98186-869-0	01	1	1512-1512	●	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-869-0	01	1	1512-	●	●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	1512-1512		●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	1512-		●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1303-1511		●
100	CLIP; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1512-1512		●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1512-1512		●
100	CLIP; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1512-1512	●
100	CLIP; FUEL PIPE EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1512-		●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1512-		●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1512-	●
101	BOLT; CLIP,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> M8X25 FLANGE	0-28650-825-0	02	1	1512-1512	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
101	BOLT; CLIP,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	03	1	1512-1512		●
101	BOLT; CLIP,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	03	1	1512-1512	●
101	BOLT; CLIP,FUEL PIPE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	03	1	1512-		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	03	1	1512-	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	06	1	1512-1512		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) M8X20 FLANGE	0-28650-820-0	06	1	1512-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W) M8X20 FLANGE	0-28650-820-0	05	1	1303-1511		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	05	1	1512-1512		●
101	BOLT; CLIP,FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) M8X20 FLANGE	0-28650-820-0	05	1	1512-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	08	1	1512-1512		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	08	1	1512-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	05	1	1303-1511		●
102	NUT; CLIP,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	05	1	1512-1512		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	05	1	1512-1512		●
102	NUT; CLIP,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	05	1	1512-1512	●
102	NUT; CLIP,FUEL PIPE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	05	1	1512-		●
102	NUT; CLIP,FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	05	1	1512-		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	05	1	1512-	●
103	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	01	1	1512-1512		●
103	NUT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	01	1	1512-		●
303	BOLT; BRKT (A) M10X40 FLANGE	0-28051-040-0	04	1	1303-1511		●
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (A) M10X40 FLANGE	0-28051-040-0	04	1	1512-	●	●
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1303-1511		●
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1512-1512	●	●
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●	●
303	BOLT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (B) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●	●
634	HOSE; RUBBER RETURN POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●	●
634	HOSE; RUBBER RETURN L=2700 SERVICED BY L=3000	0-01260-300-0	01	1	1511-1511		●
634	HOSE; RUBBER RETURN BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> L=2700 SERVICED BY L=3000	0-01260-300-0	01	1	1512-1512		●
634	HOSE; RUBBER RETURN BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. TAIWAN EQUIPMENT(WW5) L=2700 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5900MM(59W) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1303-1511		●
634	HOSE; RUBBER RETURN WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●

29 29 32 32 29 29 64 29 29 14 14 97 29 369 29 369 39 62 228 32 41 32 41 62 39 291 220 14 29 29 369 303 29 14 29 369 227 220 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; HOSE ID=14	1-09704-102-0	04	1	1303-1511		●
14	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=14	1-09704-102-0	04	1	1512-	●	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> (B) L=260 OD=14.5	8-98188-441-0	01	1	1512-1512		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (B) L=260 OD=14.5	8-98188-441-0	01	1	1512-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> (C) L=370 OD=14.5	8-98188-446-0	01	1	1512-1512		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (C) L=370 OD=14.5	8-98188-446-0	01	1	1512-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> (D) L=270 OD=19	8-98188-457-0	01	1	1512-1512		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (D) L=270 OD=19	8-98188-457-0	01	1	1512-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> (A) L=330 OD=19	8-98188-461-0	01	1	1512-1512		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (A) L=330 OD=19	8-98188-461-0	01	1	1512-		●
29	HOSE; FUEL WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=310 OD=14.5	8-98188-443-0	01	1	1512-		●
29	HOSE; FUEL WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=400 OD=14.5	8-98188-447-0	01	1	1512-		●
29	HOSE; FUEL WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> (D) L=310 OD=19	8-98188-459-0	01	1	1512-		●
29	HOSE; FUEL WHEEL BASE 5900MM(59W) (B) L=350 OD=14.5	8-98188-445-0	01	1	1303-1511		●
29	HOSE; FUEL WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=350 OD=14.5	8-98188-445-0	01	1	1512-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B) L=350 OD=14.5	8-98188-445-0	01	1	1512-	●
29	HOSE; FUEL WHEEL BASE 5900MM(59W) (D) L=350 OD=19	8-98188-464-0	01	1	1303-1511		●
29	HOSE; FUEL WHEEL BASE 5900MM(59W) (A) L=390 OD=19	8-98188-465-0	01	1	1303-1511		●
29	HOSE; FUEL WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> (A) L=390 OD=19	8-98188-465-0	01	1	1512-		●
29	HOSE; FUEL WHEEL BASE 5900MM(59W) (C) L=430 OD=14.5	8-98188-469-0	01	1	1303-1511		●
29	HOSE; FUEL WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=430 OD=14.5	8-98188-469-0	01	1	1512-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (C) L=430 OD=14.5	8-98188-469-0	01	1	1512-	●
29	HOSE; FUEL WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> (D) L=350 OD=19	8-98188-464-0	01	1	1512-		●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> (D) L=350 OD=19	8-98188-464-0	01	1	1512-	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350 OD=19	8-98188-464-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) L=350 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●	●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1512-1512		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. TAIWAN EQUIPMENT(WW5) (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> (A) L=2750 SERVICED BY L=3000	0-01262-300-0	01	1	1512-1512		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. TAIWAN EQUIPMENT(WW5) (A) L=2750 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=580 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=580 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●
32	PIPE; DELIVERY,FUEL TANK BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3050 SERVICED BY L=5050	0-01262-505-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1512-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1512-	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) (B) L=540 SERVICED BY L=3000	0-01260-300-0	01	1	1303-1511		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) (B) L=540 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1303-1511		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1512-1512		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5200MM(52W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1512-	●
39	PIPE; FUEL (A)	8-98186-862-1	01	1	1303-1511		●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A)	8-98186-862-1	01	1	1512-1512	●	●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-862-1	01	1	1512-	●	●
39	PIPE; FUEL (B)	8-98186-864-1	01	1	1303-1511		●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B)	8-98186-864-1	01	1	1512-1512	●	●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-864-1	01	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1512-1512	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1303-1511		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1303-1511		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1303-1511		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1512-	●	●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	1303-1511		●
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> M8X20 FLANGE	0-28650-820-0	02	1	1512-1512	●	●
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	02	1	1512-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-1511		●
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	02	1	1512-1512	●	●
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
97	BRACKET; CLIP FUEL TANK 200L AL<THF> (C) L=120 H=35	1-82698-088-0	01	1	1512-1512	●	●
97	BRACKET; CLIP FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) L=120 H=35	1-82698-088-0	01	1	1512-	●	●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> (D) L=55	1-47475-304-0	01	1	1512-1512		●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (D) L=55	1-47475-304-0	01	1	1512-		●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> (E)	8-98172-059-0	02	1	1512-1512		●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) (E)	8-98172-059-0	02	1	1512-		●
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1303-1511		●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A) L=68	1-47475-525-0	01	1	1512-	●	●
97	BRACKET; CLIP (B)	8-98186-869-0	01	1	1303-1511		●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B)	8-98186-869-0	01	1	1512-1512	●	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-869-0	01	1	1512-	●	●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1512-	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	04	1	1303-1511		●
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1512-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98184-813-0	01	1	1303-1511		●
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0>	8-98184-813-0	01	1	1512-	●	●
228	BOLT; BRKT,SEDIMENTER M8X35 FLANGE	0-28650-835-0	02	1	1303-1511		●
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1303-1511		●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1512-	●	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1512-	●	●
291	BOLT; FILER TO BRKT M10X90 FLANGE	0-28051-090-0	02	1	1303-1511		●
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1512-	●	●
303	BOLT; BRKT (A) M10X40 FLANGE	0-28051-040-0	04	1	1303-1511		●
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (A) M10X40 FLANGE	0-28051-040-0	04	1	1512-	●	●
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1303-1511		●
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1512-1512	●	●
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●	●
303	BOLT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (B) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●	●
369	CLAMP; HOSE,FUEL ID=19	8-94238-569-0	04	1	1303-1511		●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> ID=19	8-94238-569-0	04	1	1512-	●	●

32 634 41 41 101 100 100 102 101 102 100 101 38 289 289 102 100 101 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) L=350 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●	●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1512-1512		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. TAIWAN EQUIPMENT(WW5) (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> (A) L=2750 SERVICED BY L=3000	0-01262-300-0	01	1	1512-1512		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. TAIWAN EQUIPMENT(WW5) (A) L=2750 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=580 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=580 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●
32	PIPE; DELIVERY,FUEL TANK BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3050 SERVICED BY L=5050	0-01262-505-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1512-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1512-	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) (B) L=540 SERVICED BY L=3000	0-01260-300-0	01	1	1303-1511		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) (B) L=540 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1303-1511		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1512-1512		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1512-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5200MM(52W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=1900 SERVICED BY L=3000	0-01262-300-0	01	1	1512-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1511-1511		●
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1512-1512		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1512-1512		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1512-1512	●
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. TAIWAN EQUIPMENT(WW5) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1512-		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1512-		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1512-	●
38	SLEEVE; RUBBER,RUBBER HOSE BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1512-		●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 5900MM(59W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1303-1511		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1512-1512	●	●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1512-1512		●
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1512-1512		●
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1512-1512	●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 200L AL<THF> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1512-	●	●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) EXC. FUEL TANK 200L AL<THF> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1512-		●
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1512-		●
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1512-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1512-1512	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1303-1511		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1303-1511		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1512-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1303-1511		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1512-	●	●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	1512-1512		●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	1512-		●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1303-1511		●
100	CLIP; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1512-1512		●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1512-1512		●
100	CLIP; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1512-1512	●
100	CLIP; FUEL PIPE EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1512-		●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1512-		●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1512-	●
101	BOLT; CLIP,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> M8X25 FLANGE	0-28650-825-0	02	1	1512-1512	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1512-	●	●
101	BOLT; CLIP,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	03	1	1512-1512		●
101	BOLT; CLIP,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	03	1	1512-1512	●
101	BOLT; CLIP,FUEL PIPE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	03	1	1512-		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	03	1	1512-	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	06	1	1512-1512		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) M8X20 FLANGE	0-28650-820-0	06	1	1512-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W) M8X20 FLANGE	0-28650-820-0	05	1	1303-1511		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	05	1	1512-1512		●
101	BOLT; CLIP,FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) M8X20 FLANGE	0-28650-820-0	05	1	1512-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	08	1	1512-1512		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) BATTERY LAYOUT REAR VAR1<NCT> EXC. TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	08	1	1512-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	05	1	1303-1511		●
102	NUT; CLIP,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	05	1	1512-1512		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	05	1	1512-1512		●
102	NUT; CLIP,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	05	1	1512-1512	●
102	NUT; CLIP,FUEL PIPE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	05	1	1512-		●
102	NUT; CLIP,FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> TAIWAN EQUIPMENT(WW5) M8 FLANGE	0-91180-108-0	05	1	1512-		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	05	1	1512-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	1511-1511		●
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> L=250	5-09707-030-1	04	1	1512-1512		●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> L=250	5-09707-030-1	04	1	1512-1512		●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1512-1512	●
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. TAIWAN EQUIPMENT(WW5) L=250	5-09707-030-1	04	1	1512-		●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> L=250	5-09707-030-1	04	1	1512-		●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1512-	●
289	CLIP; BAND,HOSE BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	06	1	1512-		●
289	CLIP; BAND,HOSE WHEEL BASE 5900MM(59W) L=250	5-09707-030-1	02	1	1303-1511		●
289	CLIP; BAND,HOSE FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	02	1	1512-1512	●	●
289	CLIP; BAND,HOSE WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) L=250	5-09707-030-1	02	1	1512-1512		●
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) L=250	5-09707-030-1	02	1	1512-1512		●
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=250	5-09707-030-1	02	1	1512-1512	●
289	CLIP; BAND,HOSE FUEL TANK 200L AL<THF> L=250	5-09707-030-1	02	1	1512-	●	●
289	CLIP; BAND,HOSE WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) EXC. FUEL TANK 200L AL<THF> L=250	5-09707-030-1	02	1	1512-		●
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) L=250	5-09707-030-1	02	1	1512-		●
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=250	5-09707-030-1	02	1	1512-	●
634	HOSE; RUBBER RETURN POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●	●
634	HOSE; RUBBER RETURN L=2700 SERVICED BY L=3000	0-01260-300-0	01	1	1511-1511		●
634	HOSE; RUBBER RETURN BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> L=2700 SERVICED BY L=3000	0-01260-300-0	01	1	1512-1512		●
634	HOSE; RUBBER RETURN BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. TAIWAN EQUIPMENT(WW5) L=2700 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5900MM(59W) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1303-1511		●
634	HOSE; RUBBER RETURN WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT>,TAIWAN EQUIPMENT(WW5) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN BATTERY LAYOUT REAR VAR1<NCT> TAIWAN EQUIPMENT(WW5) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-		●
634	HOSE; RUBBER RETURN POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
