0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#115179) — 94 parça

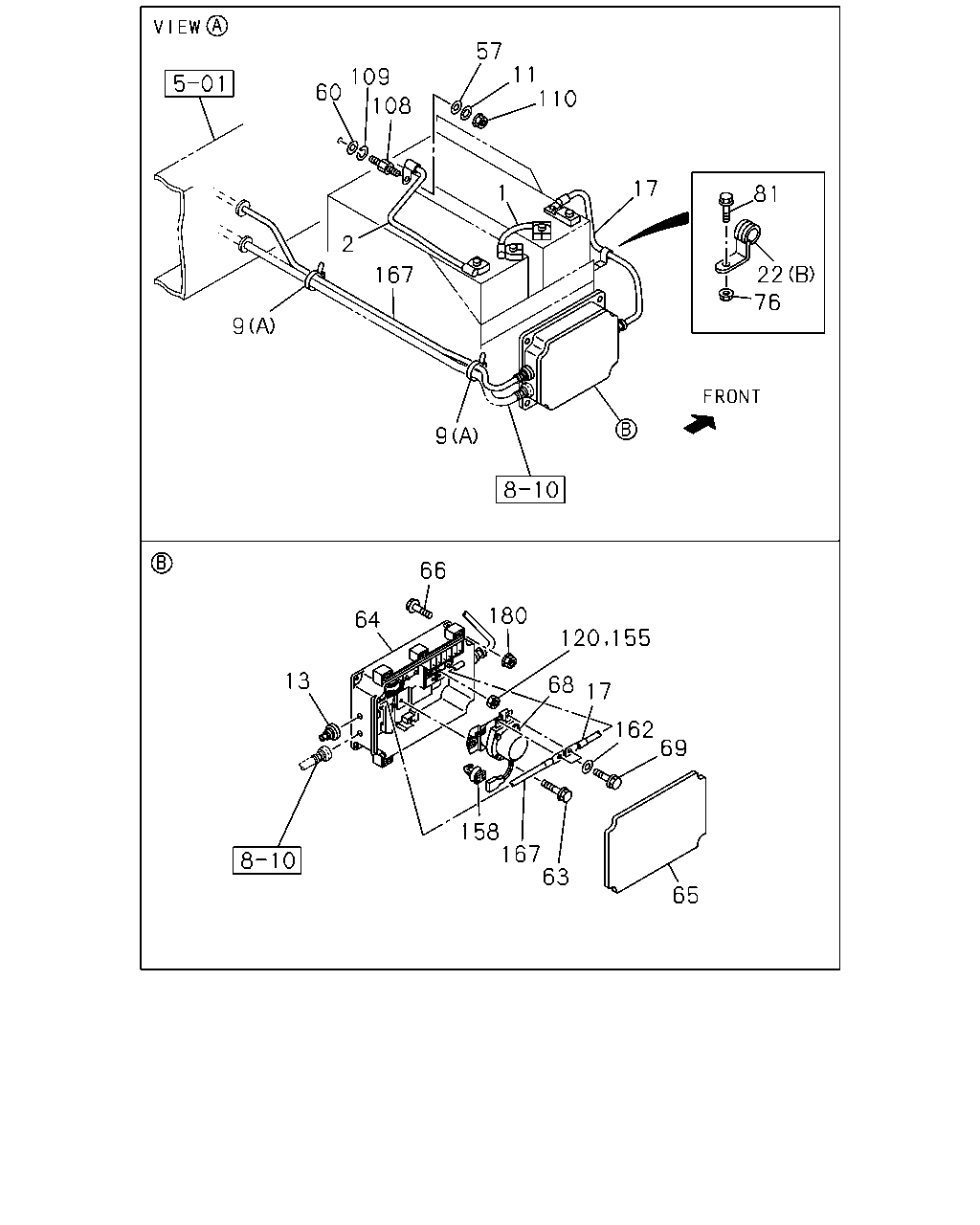

60 109 57 108 11 110 17 81 22 76 9 167 1 2 9 66 180 120 155 68 17 162 69 65 63 167 158 13 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=265	1-82650-388-1	01	1	1303-
2	CABLE; BATTERY L=640	8-98223-230-0	01	1	1303-
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1303-
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	1303-
9	CLIP; BATTERY CABLE (C) ID=18 L=28 H=30	1-09701-110-0	02	1	1303-
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1303-
9	CLIP; BATTERY CABLE (E) ID=21 L=24	8-94176-807-1	02	1	1303-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1303-
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	1303-
17	CABLE; BATTERY (+) TO RELAY L=480	8-98198-310-0	01	1	1303-1303
17	CABLE; BATTERY (+) TO RELAY L=480	8-98239-412-0	01	1	1303-
22	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-
22	CLIP; BATTERY CABLE (A) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1303-
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1303-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1303-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-
64	BOX; BATTERY RELAY	1-82510-650-0	01	1	1303-
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	1303-
66	BOLT; COVER,BATTERY RELAY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-
68	RELAY; BATTERY	1-82550-313-0	01	1	1303-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1303-
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	04	1	1303-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1303-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1303-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1303-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1303-
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1303-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1303-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1303-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1303-
167	CABLE; BATTERY RELAY TO STARTER	8-98236-540-0	01	1	1303-
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1303-

9 9 18 22 99 25 99 9 9 22 25 9 99 9 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1303-
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	1303-
9	CLIP; BATTERY CABLE (C) ID=18 L=28 H=30	1-09701-110-0	02	1	1303-
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	1303-
9	CLIP; BATTERY CABLE (E) ID=21 L=24	8-94176-807-1	02	1	1303-
18	CLIP; BATTERY CABLE ID=21 L=24	8-94176-807-1	01	1	1303-
22	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-
22	CLIP; BATTERY CABLE (A) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1303-
25	CLIP; BATTERY CABLE TO BRKT (A) ID=20 H=23 L=27	1-09700-861-0	02	1	1303-
25	CLIP; BATTERY CABLE TO BRKT (B) ID=18 H=23 L=28	1-09701-070-0	02	1	1303-
99	CLIP; BATTERY CABLE (B) ID=18 L=54	1-09701-068-0	01	1	1303-
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	03	1	1303-
99	CLIP; BATTERY CABLE (C) ID=18 L=25 H=50	1-09701-096-0	01	1	1303-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1303-

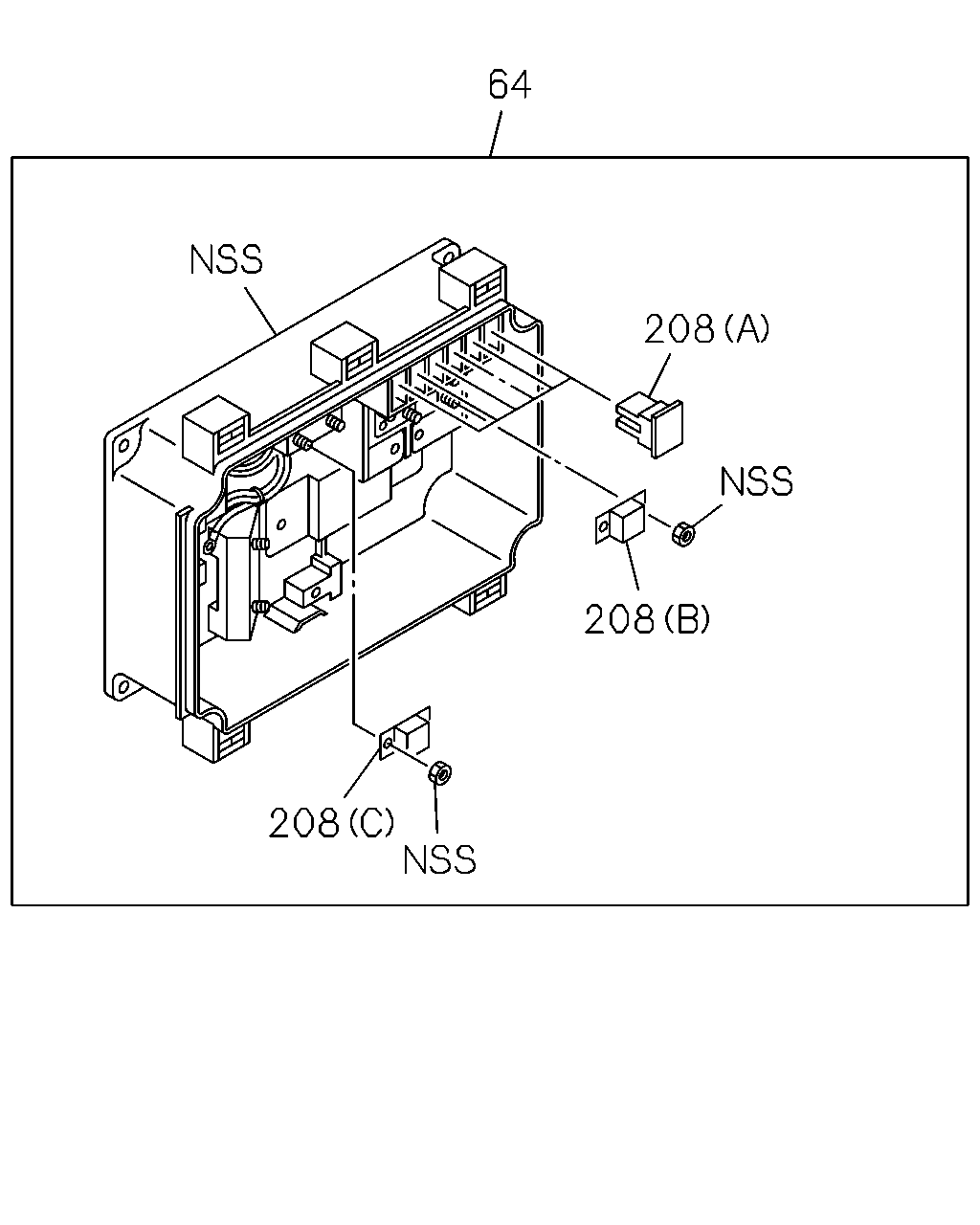

64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BOX; BATTERY RELAY	1-82510-650-0	01	1	1303-
208	FUSE (C) 80A	1-82516-031-0	01	1	1303-
208	FUSE (B) 100A	1-82516-032-0	01	1	1303-
208	FUSE (A) 40A GREEN	8-94468-662-0	06	1	1303-

23 23 23 23 23 23 23 61 78 14 21 75 10 24 26 81 100 10 24 69 63 66 108 110 12 27 28 76 101 120 155 180 57 11 162 60 109 77 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1303-
10	BOLT; BATTERY CABLE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1303-
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	08	1	1303-
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-1303
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	1303-
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28650-820-0	01	1	1303-
23	BRACKET; CABLE CLIP TO FRAME (A) L=40	1-47478-410-0	01	1	1303-
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82698-557-0	01	1	1303-
23	BRACKET; CABLE CLIP TO FRAME (D)	1-82698-574-0	01	1	1303-
23	BRACKET; CABLE CLIP TO FRAME (E)	1-82698-575-1	01	1	1303-
23	BRACKET; CABLE CLIP TO FRAME (B)	1-82698-589-0	01	1	1303-
23	BRACKET; CABLE CLIP TO FRAME (F)	8-98062-598-0	01	1	1303-
23	BRACKET; CABLE CLIP TO FRAME (G)	8-98171-604-0	01	1	1303-
24	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-
24	BOLT; BRKT TO FRAME (B) M8X30 FLANGE	0-28650-830-0	04	1	1303-
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28650-825-0	04	1	1303-
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	04	1	1303-
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1303-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1303-
61	BRACKET; BATTERY CABLE	8-97632-262-1	01	1	1303-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-
66	BOLT; COVER,BATTERY RELAY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1303-
75	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	1303-
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	04	1	1303-
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-610-0	01	1	1303-
78	BRACKET; CLIP BATTERY	8-97304-944-0	01	1	1303-1303
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1303-
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1303-
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1303-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1303-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1303-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1303-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1303-
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1303-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1303-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1303-
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1303-

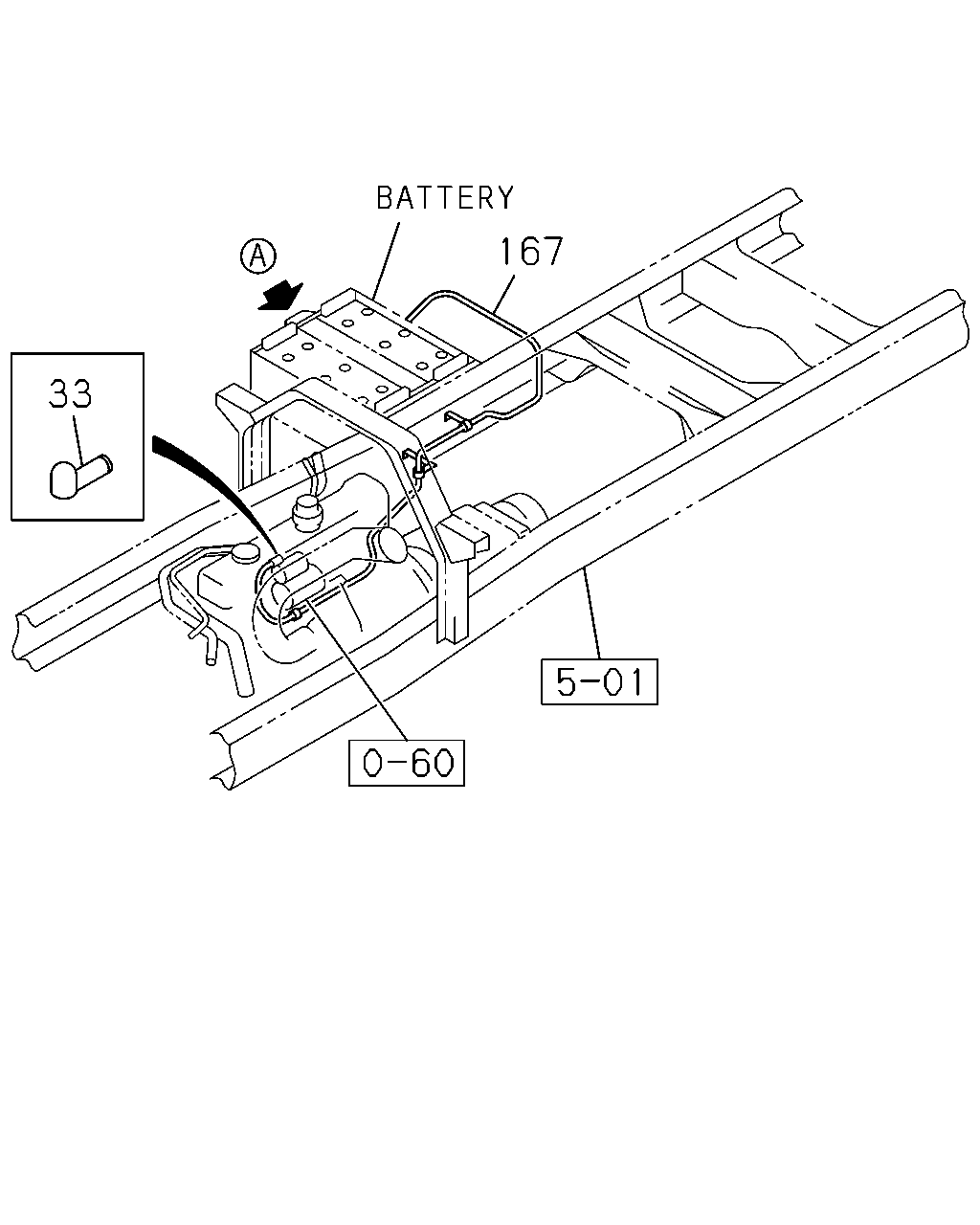

167 33

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	33	CAP; INSULATOR	8-97181-965-0	01	1	1303-
	167	CABLE; BATTERY RELAY TO STARTER	8-98236-540-0	01	1	1303-
