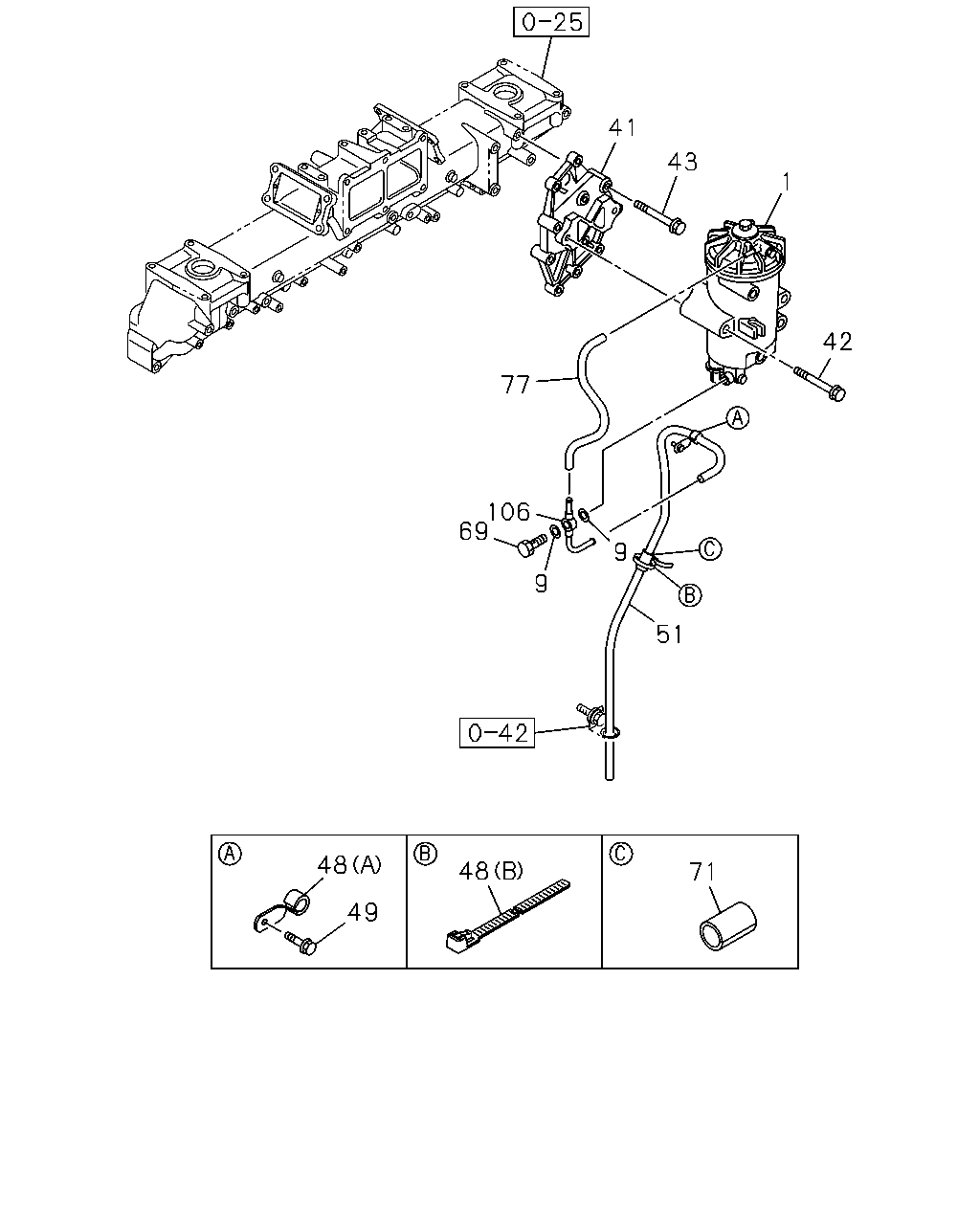

0-41 — FUEL FILTER AND BRACKET (#115176) — 27 parça

41 1 43 77 106 69 9 51 9 42 71 48 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER ASM; FUEL	8-98167-975-1	01	1	1303-1402
1	FILTER ASM; FUEL	8-98258-016-0	01	1	1403-
9	GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	1303-
41	BRACKET; FUEL FILTER	8-97628-208-0	01	1	1303-
42	BOLT; FUEL FILTER M12X100 FLANGE	0-28151-200-0	02	1	1303-
43	BOLT; BRKT M10X60 FLANGE	0-28151-060-0	04	1	1303-
48	CLIP; VINYL PIPE (A) ID=11 L=40	8-94123-171-1	01	1	1303-
48	CLIP; VINYL PIPE (B) L=250	8-98216-430-0	01	1	1303-
49	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1303-
51	PIPE; VINYL L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	1303-
69	BOLT; EYE,FUEL FILTER M10X21 FLANGE	8-97372-239-0	01	1	1303-
71	SLEEVE; RUBBER,PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	1303-
77	HOSE; FUEL FILTER	8-98118-453-0	01	1	1303-
106	PIPE; FUEL	8-97631-785-0	01	1	1303-

1 22 24 21 23 26 14 61 144 32 146 2 24 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER ASM; FUEL	8-98167-975-1	01	1	1303-1402
1	FILTER ASM; FUEL	8-98258-016-0	01	1	1403-
2	ELEMENT KIT; FUEL FILTER	8-98116-662-0	01	1	1303-
14	SPRING; ELEMENT SUPPORT,FUEL FILTER	8-98116-657-0	01	1	1303-
21	COVER; UPR,FUEL FILTER	8-98116-653-0	01	1	1303-
22	BOLT; CENTER TUBE,COVER	8-98117-014-0	01	1	1303-
23	PLUG; COVER	8-98116-652-0	01	1	1303-
24	GASKET; CENTER TUBE BOLT	8-98116-655-0	01	1	1303-
26	GASKET; COVER TO BODY	8-98116-661-0	01	1	1303-
32	BOLT; DRAIN,FUEL FILTER	8-98116-652-0	01	1	1303-
61	SEAT; SPR ELEMENT	8-98116-658-0	01	1	1303-
144	PLUG; BODY	8-98153-286-0	01	1	1303-
146	PLUG KIT; BODY	8-98195-093-0	01	1	1303-
