9-01 — TOOLS (#11517) — 191 parça

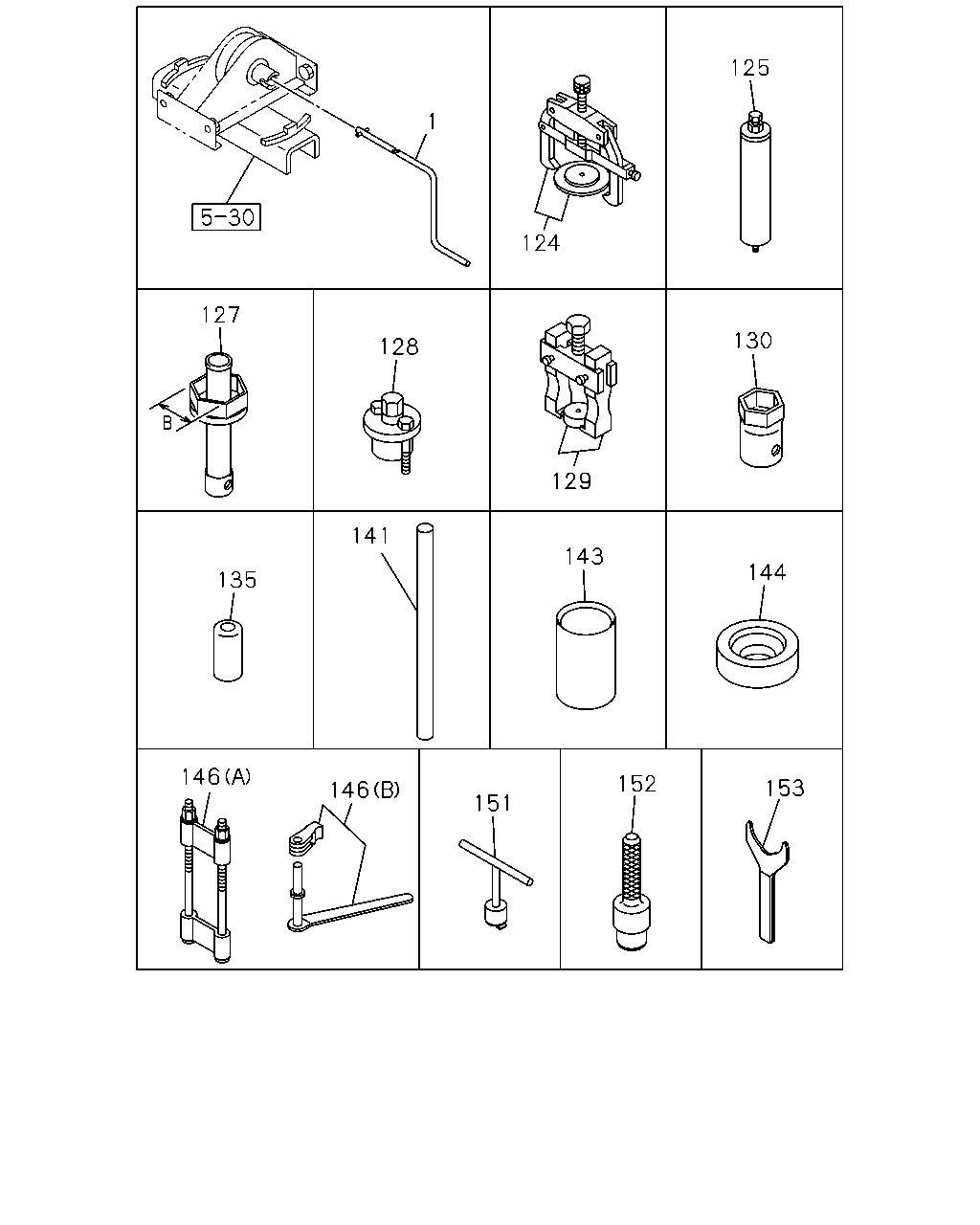

125 1 124 127 130 128 129 141 143 144 135 146 152 153 146 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0106-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0106-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0106-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	0106-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0106-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0106-
130	WRENCH; BOX B=63	9-85111-368-0	01	1	0106-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0106-
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	0106-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0106-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0106-
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	0106-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	0106-
151	REMOVER; OIL BRK,FRT RETURN SPR	1-85237-002-0	01	1	0106-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0106-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0106-

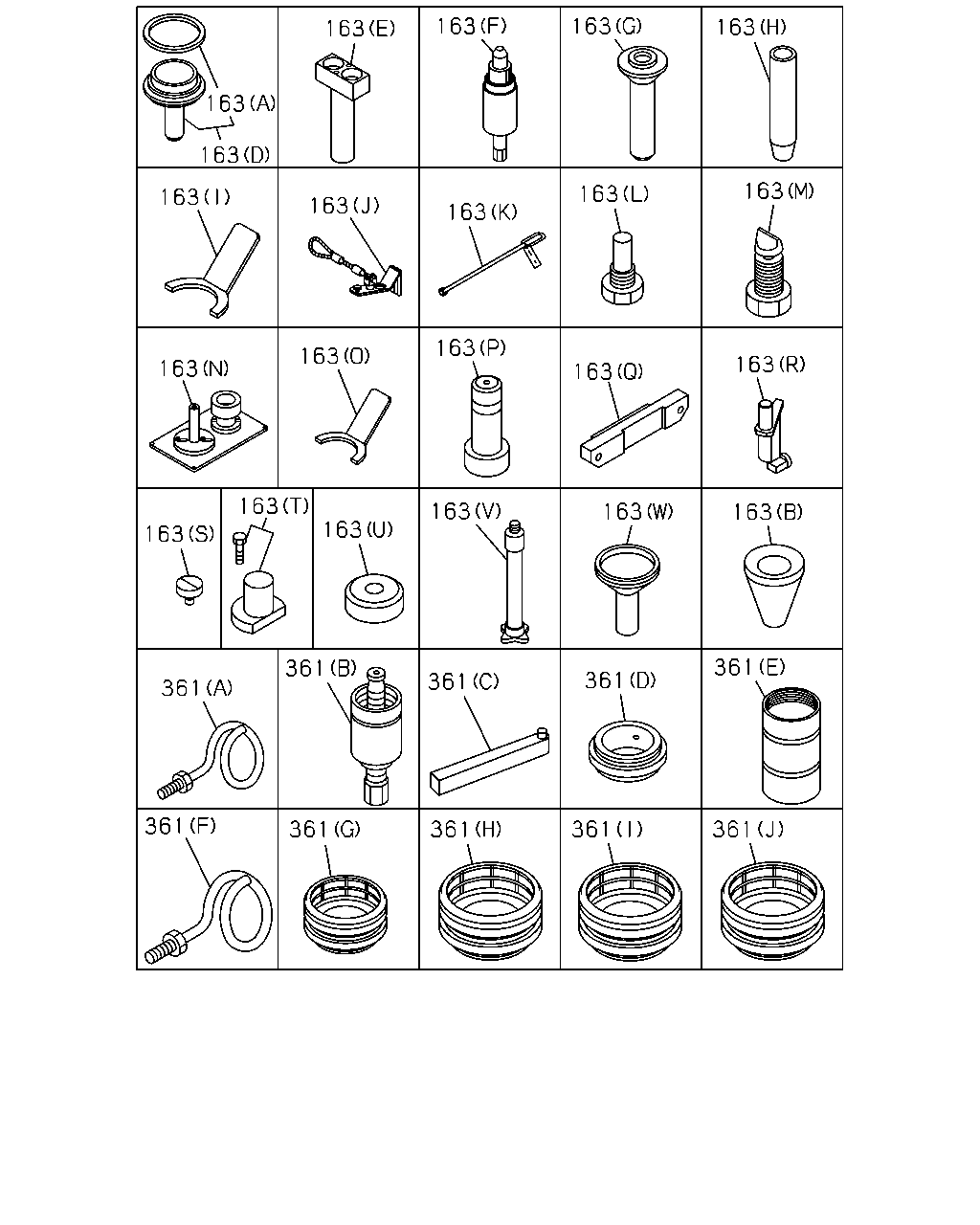

163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 361 361 361 361 361 361 361 361 361 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
163	TOOL; SETTING MJD7 M/T<X9J> (C) OD=150	1-85221-167-0	01	1	0106-0108
163	TOOL; SETTING (C) OD=150	1-85221-167-0	01	1	0109-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-85221-193-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85221-194-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-85221-229-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-85221-230-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (H)	1-85221-231-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (J)	1-85221-233-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (K)	1-85221-234-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (L)	1-85221-235-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (M)	1-85221-236-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (N)	1-85221-237-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT	1-85221-238-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (P)	1-85221-239-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (Q)	1-85221-240-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (R)	1-85221-241-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-242-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (T)	1-85221-243-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (U)	1-85221-244-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (V)	1-85221-245-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (W)	1-85221-246-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-85221-247-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85221-248-0	01	1	0106-0108
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (A) M10	1-85210-091-0	01	1	0106-0108
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85219-015-0	01	1	0106-0108
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-85219-017-0	01	1	0106-0108
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (D) TOP BRG	1-85219-018-0	01	1	0106-0108
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85219-019-0	01	1	0106-0108
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (F) M12	1-85219-020-0	01	1	0106-0108
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (G) COUNTER BRG RR	1-85219-021-0	01	1	0106-0108
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (H) TOP BRG	1-85219-022-0	01	1	0106-0108
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (I) COUNTER BRG FRT	1-85219-023-0	01	1	0106-0108
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (J) TOP BRG,MAIN SHAFT SIDE	1-85219-024-0	01	1	0106-0108

40 39 38 37 115 36 189 193 237 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	WRENCH; 24	9-85111-377-0	01	1	0106-
37	WRENCH; 27	9-85111-375-0	01	1	0106-
38	WRENCH; 32	9-85111-358-0	01	1	0106-
39	WRENCH; 36	9-85111-374-0	01	1	0106-
40	WRENCH; 41	9-85111-356-0	01	1	0106-
115	PLIER TOOL B KIT<SL1>	5-85171-001-0	01	1	0106-0212
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0301-
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	0106-
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-1	01	1	0106-
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-3	01	1	0106-
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-0	01	1	0106-

119 75 75 75 120 121 123 121 166 165 163 167 408 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
75	TOOL; SETTING,OIL SEAL (D)	1-85220-049-0	01	1	0106-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (C)	1-85221-096-0	01	1	0106-0108
75	TOOL; SETTING,OIL SEAL (C)	1-85221-096-0	01	1	0109-
75	TOOL; SETTING,OIL SEAL MJD7 M/T<X9J> (A)	1-85221-168-0	01	1	0106-0108
75	TOOL; SETTING,OIL SEAL (A)	1-85221-168-0	01	1	0109-
75	TOOL; SETTING,OIL SEAL MJD7 M/T<X9J> (B)	1-85221-169-0	01	1	0106-0108
75	TOOL; SETTING,OIL SEAL (B)	1-85221-169-0	01	1	0109-
119	PULLER ASM; TOP GEAR BRG ISUZU M/T<X9A> L=235	9-85210-190-0	01	1	0106-0108
119	PULLER ASM; TOP GEAR BRG L=235	9-85210-190-0	01	1	0109-
120	PULLER ASM; MAIN REAR BRG ISUZU M/T<X9A> L=285	9-85210-184-0	01	1	0106-0108
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	0109-
121	PULLER ASM; COUNTER REAR MJD7 M/T<X9J> (B)	1-85210-069-0	01	1	0106-0108
121	PULLER ASM; COUNTER REAR (B)	1-85210-069-0	01	1	0109-
121	PULLER ASM; COUNTER REAR MJD7 M/T<X9J> (A) OD=146	1-85210-074-0	01	1	0106-0108
121	PULLER ASM; COUNTER REAR (A) OD=146	1-85210-074-0	01	1	0109-
123	PULLER; SPEEDOMETER BUSHING ISUZU M/T<X9A>	9-85210-091-0	01	1	0106-0108
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	0109-
163	TOOL; SETTING MJD7 M/T<X9J> (C) OD=150	1-85221-167-0	01	1	0106-0108
163	TOOL; SETTING (C) OD=150	1-85221-167-0	01	1	0109-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-85221-193-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85221-194-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-85221-229-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-85221-230-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (H)	1-85221-231-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (J)	1-85221-233-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (K)	1-85221-234-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (L)	1-85221-235-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (M)	1-85221-236-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (N)	1-85221-237-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT	1-85221-238-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (P)	1-85221-239-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (Q)	1-85221-240-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (R)	1-85221-241-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-242-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (T)	1-85221-243-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (U)	1-85221-244-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (V)	1-85221-245-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (W)	1-85221-246-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-85221-247-0	01	1	0106-0108
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85221-248-0	01	1	0106-0108
165	SETTING TOOL; PTO MJD7 M/T<X9J>	1-85221-177-0	01	1	0106-0108
165	SETTING TOOL; PTO	1-85221-177-0	01	1	0109-
166	ALIGNER; CLU RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5	1-85253-015-0	01	1	0106-0108
166	ALIGNER; CLU RELEASE LEVER EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=17.5	1-85253-010-0	01	1	0106-0108
166	ALIGNER; CLU RELEASE LEVER L=550 H=17.5	1-85253-010-0	01	1	0109-
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	0106-
408	TOOL; SETTING,SHIFT ASSISTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-85221-268-0	01	1	0106-0108
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-268-0	01	1	0109-
408	TOOL; SETTING,SHIFT ASSISTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-85221-269-0	01	1	0106-0108
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-269-0	01	1	0109-

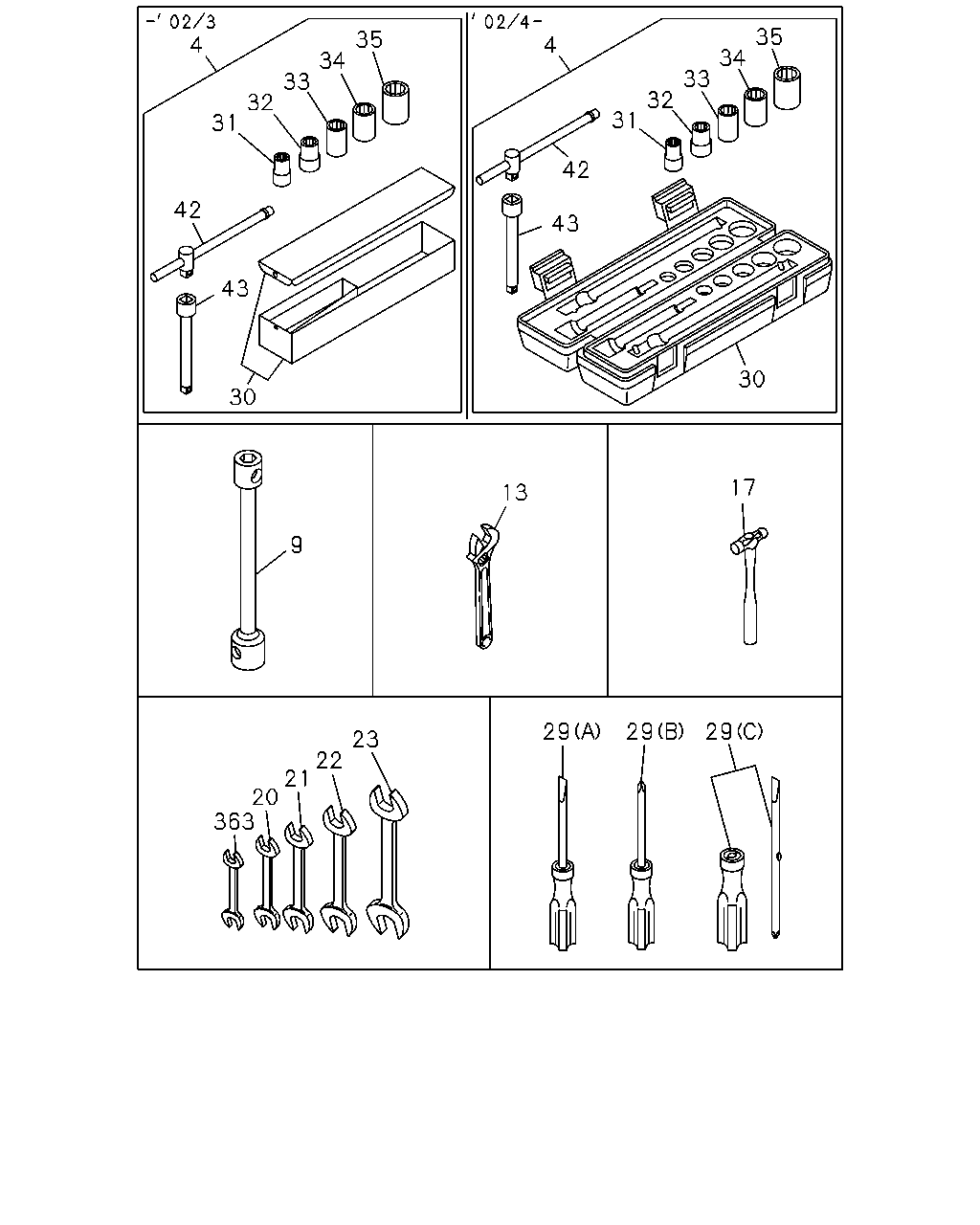

4 35 34 33 32 35 34 33 32 4 31 31 42 42 43 43 30 30 17 13 9 29 29 29 23 22 21 20 363

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	9-85110-012-0	01	1	0106-0203
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	0204-
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	0106-
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0106-
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0106-
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0106-0607
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0106-0607
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0106-0607
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0106-0607
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	0106-
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0106-
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	0106-
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	9-85581-260-0	01	1	0106-0203
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	0204-
31	WRENCH; 12 TOOL B KIT<SL1>	9-09590-012-0	01	1	0106-0203
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	0204-
32	WRENCH; 14 TOOL B KIT<SL1>	9-09590-014-0	01	1	0106-0203
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	0204-
33	WRENCH; 17 TOOL B KIT<SL1>	9-09590-017-0	01	1	0106-0203
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	0204-
34	WRENCH; 19 TOOL B KIT<SL1>	9-09590-019-0	01	1	0106-0203
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	0204-
35	WRENCH; 22 TOOL B KIT<SL1>	9-09590-022-0	01	1	0106-0203
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	0204-
42	HANDLE; SLIDING TOOL B KIT<SL1>	9-09590-512-0	01	1	0106-0203
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	0204-
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	9-09590-812-0	01	1	0106-0203
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	1-85000-501-0	01	1	0204-
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	9-99592-108-0	01	1	0106-0607
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	0608-

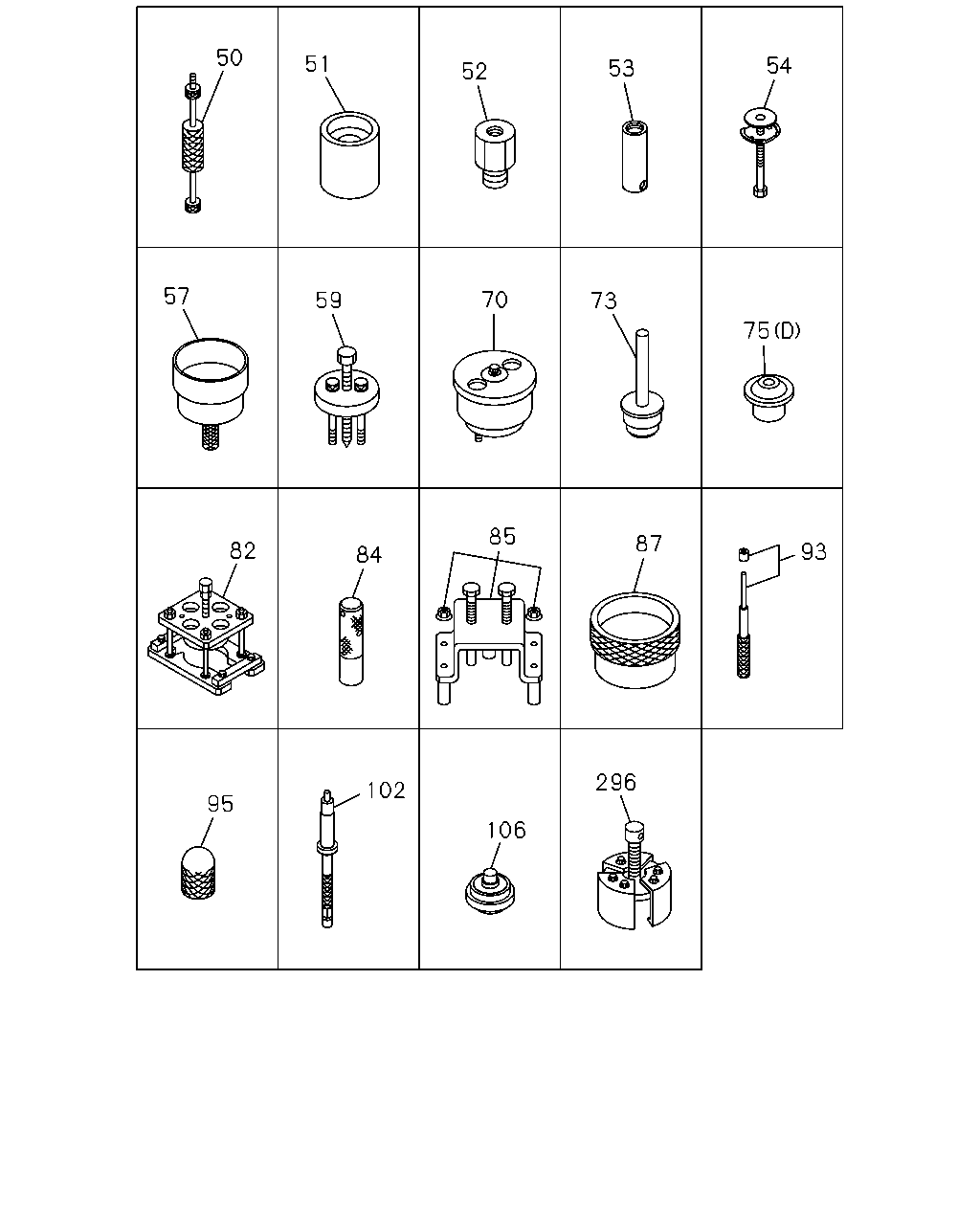

50 51 54 53 52 57 70 59 73 75 85 87 82 93 84 296 102 95 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	REPLACER; NOZZLE HOLDER L=300	1-85230-013-0	01	1	0106-
51	PULLER ASM; WATER PUMP	1-85220-047-0	01	1	0106-
52	REMOVER; WATER PUMP	1-85210-062-0	01	1	0106-
53	PULLER; TAPER BUSHING	1-85210-063-0	01	1	0106-
54	PULLER; THERMOSTAT SEAL	1-85210-067-0	01	1	0106-
57	TOOL; SETTING CRANK GEAR OD=162	1-85220-045-0	01	1	0106-
59	PULLER ASM; TIMING GEAR	1-85210-065-0	01	1	0106-
70	TOOL; SETTING,OIL SEAL	1-85220-043-0	01	1	0106-
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	01	1	0106-
75	TOOL; SETTING,OIL SEAL (D)	1-85220-049-0	01	1	0106-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (C)	1-85221-096-0	01	1	0106-0108
75	TOOL; SETTING,OIL SEAL (C)	1-85221-096-0	01	1	0109-
75	TOOL; SETTING,OIL SEAL MJD7 M/T<X9J> (A)	1-85221-168-0	01	1	0106-0108
75	TOOL; SETTING,OIL SEAL (A)	1-85221-168-0	01	1	0109-
75	TOOL; SETTING,OIL SEAL MJD7 M/T<X9J> (B)	1-85221-169-0	01	1	0106-0108
75	TOOL; SETTING,OIL SEAL (B)	1-85221-169-0	01	1	0109-
82	PULLER ASM; CR/SHF GEAR	1-85210-064-0	01	1	0106-
84	REPLACER; VALVE SEAL EXHAUST	1-85221-184-0	01	1	0106-
84	REPLACER; VALVE SEAL INLET	1-85221-187-0	01	1	0106-
85	REPLACER ASM; VALVE SPR	1-85235-013-0	01	1	0106-
87	TOOL; PISTON	1-85220-046-0	01	1	0106-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	0106-
95	SETTING TOOL; BRIDGE GUIDE	9-85221-324-0	01	1	0106-
102	ADAPTER; COMP GAGE	1-85317-019-0	01	1	0106-
106	TOOL; SETTING PILOT BRG	1-85221-057-0	01	1	0106-
296	REPLACER; SLINGER	1-85210-027-0	01	1	0106-

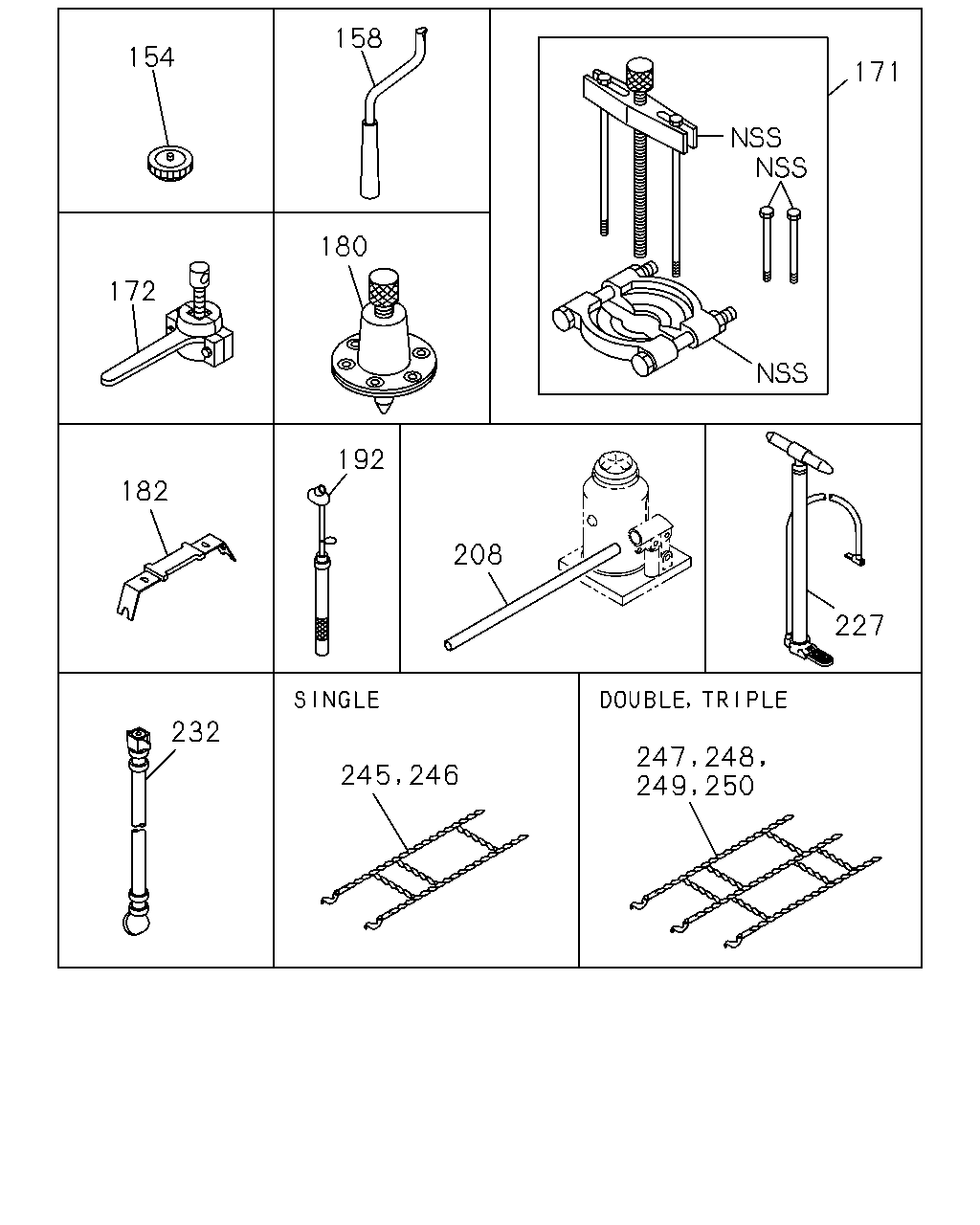

158 154 171 180 172 192 182 208 227 232 245 246 247 248 250 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0106-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0106-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0106-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0106-
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	0106-
182	REMOVER ASM	1-85239-008-0	01	1	0106-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0106-
208	HANDLE; JACK TOOL B KIT<SL1> L=600	1-85515-009-0	01	1	0106-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0106-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	0106-
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0106-
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0106-
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0106-
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	0106-
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	0106-
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	0106-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0106-
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0106-
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
