8-21 — METER ASM (#115166) — 53 parça

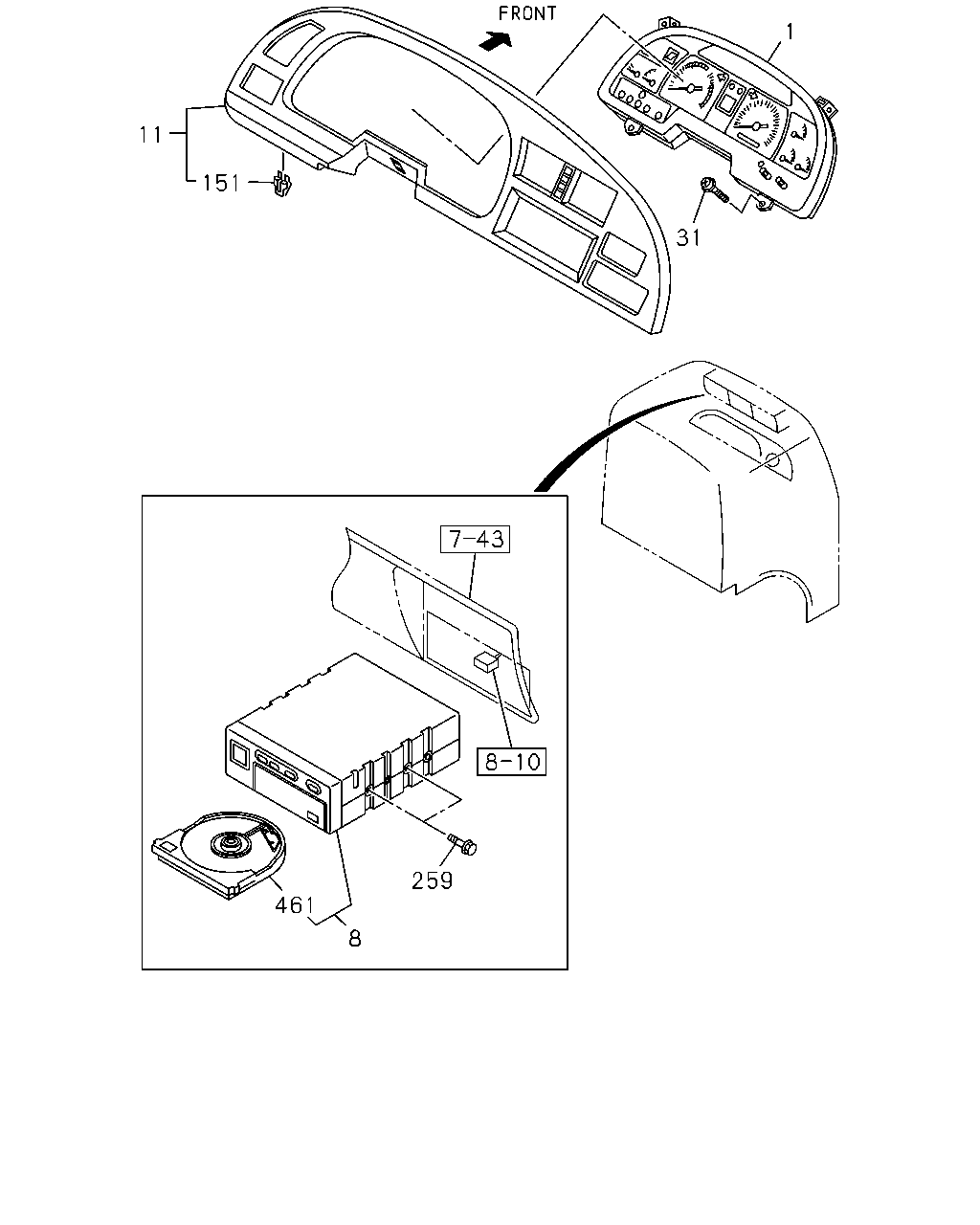

çizim 336802
11 151 31 1 259 461 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
MJT7S M/T(Y3E),MAP6U M/T(Y4B) RUSSIA EQUIPMENT(B12) 		8-98224-533-1 01 1 1512- ●
1 METER COMPL; CLUSTER
MJT7S M/T(Y3E) RUSSIA EQUIPMENT(B12) 		8-98224-533-1 01 1 1512- ●
1 METER COMPL; CLUSTER
MJX16P M/T(Y3Z) RUSSIA EQUIPMENT(B12) 		8-98219-430-1 01 1 1512- ● ●
1 METER COMPL; CLUSTER
MJT7S M/T(Y3E),MAP6U M/T(Y4B) EXC. RUSSIA EQUIPMENT(B12),FIRE TRUCK<RA9> 		8-98191-891-0 01 1 1512- ●
1 METER COMPL; CLUSTER
MJT7S M/T(Y3E) EXC. RUSSIA EQUIPMENT(B12) 		8-98191-891-0 01 1 1512- ●
1 METER COMPL; CLUSTER
MJX16P M/T(Y3Z) EXC. RUSSIA EQUIPMENT(B12),FIRE TRUCK<RA9> 		8-98332-307-0 01 1 1512- ●
1 METER COMPL; CLUSTER
MJX16P M/T(Y3Z) EXC. RUSSIA EQUIPMENT(B12) 		8-98332-307-0 01 1 1512- ●
1 METER COMPL; CLUSTER 8-97638-826-1 01 1 1303-1511 ●
1 METER COMPL; CLUSTER
FIRE TRUCK<RA9> 		8-97638-826-1 01 1 1512- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-840-3 01 1 1303-1511 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-840-3 01 1 1512- ● ●
11 CLUSTER ASM; METER 1-72418-022-7 01 1 1303-1511 ●
11 CLUSTER ASM; METER 1-72418-022-7 01 1 1512- ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 04 1 1303-1511 ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 04 1 1512- ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 1303-1511 ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 1512- ● ●
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X8 W/LK WASHER 		0-36220-508-0 04 1 1303-1511 ●
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X8 W/LK WASHER 		0-36220-508-0 04 1 1512- ● ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1303-1511 ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1512- ● ●

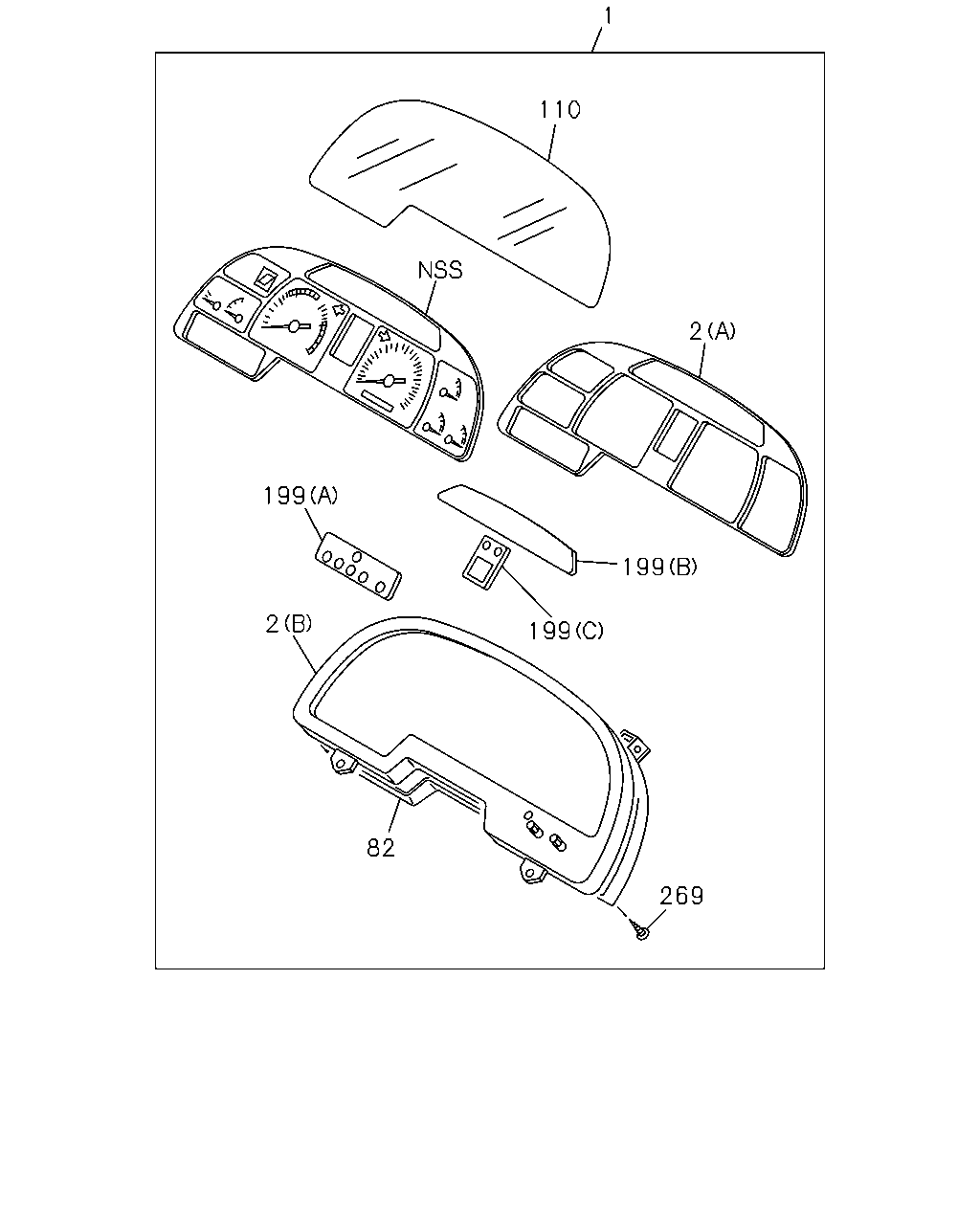

çizim 336826
1 110 2 199 199 199 2 82 269
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
MJT7S M/T(Y3E),MAP6U M/T(Y4B) RUSSIA EQUIPMENT(B12) 		8-98224-533-1 01 1 1512- ●
1 METER COMPL; CLUSTER
MJT7S M/T(Y3E) RUSSIA EQUIPMENT(B12) 		8-98224-533-1 01 1 1512- ●
1 METER COMPL; CLUSTER
MJX16P M/T(Y3Z) RUSSIA EQUIPMENT(B12) 		8-98219-430-1 01 1 1512- ● ●
1 METER COMPL; CLUSTER
MJT7S M/T(Y3E),MAP6U M/T(Y4B) EXC. RUSSIA EQUIPMENT(B12),FIRE TRUCK<RA9> 		8-98191-891-0 01 1 1512- ●
1 METER COMPL; CLUSTER
MJT7S M/T(Y3E) EXC. RUSSIA EQUIPMENT(B12) 		8-98191-891-0 01 1 1512- ●
1 METER COMPL; CLUSTER
MJX16P M/T(Y3Z) EXC. RUSSIA EQUIPMENT(B12),FIRE TRUCK<RA9> 		8-98332-307-0 01 1 1512- ●
1 METER COMPL; CLUSTER
MJX16P M/T(Y3Z) EXC. RUSSIA EQUIPMENT(B12) 		8-98332-307-0 01 1 1512- ●
1 METER COMPL; CLUSTER 8-97638-826-1 01 1 1303-1511 ●
1 METER COMPL; CLUSTER
FIRE TRUCK<RA9> 		8-97638-826-1 01 1 1512- ●
2 PANEL; CLUSTER
(A) 		1-83119-885-0 01 1 1303-1511 ●
2 PANEL; CLUSTER
(A) 		1-83119-885-0 01 1 1512- ● ●
2 PANEL; CLUSTER
(B) 		1-83119-887-0 01 1 1303-1511 ●
2 PANEL; CLUSTER
(B) 		1-83119-887-0 01 1 1512- ● ●
82 CASE ASM; CLUSTER METER 1-83119-892-0 01 1 1303-1511 ●
82 CASE ASM; CLUSTER METER 1-83119-892-0 01 1 1512- ● ●
110 GLASS; CLUSTER METER 1-83119-886-0 01 1 1303-1511 ●
110 GLASS; CLUSTER METER 1-83119-886-0 01 1 1512- ● ●
199 LENS; WARNING LAMP
RUSSIA EQUIPMENT(B12) (B) 		8-98224-892-0 01 1 1512- ● ●
199 LENS; WARNING LAMP
MJX16P M/T(Y3Z) EXC. RUSSIA EQUIPMENT(B12),FIRE TRUCK<RA9> (A) 		8-98224-893-0 01 1 1512- ●
199 LENS; WARNING LAMP
RUSSIA EQUIPMENT(B12) (A) 		8-98224-893-0 01 1 1512- ●
199 LENS; WARNING LAMP
MJT7S M/T(Y3E) RUSSIA EQUIPMENT(B12) (A) 		8-98224-893-0 01 1 1512- ●
199 LENS; WARNING LAMP
MJX16P M/T(Y3Z) (A) 		8-98224-893-0 01 1 1512- ●
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 1303-1511 ●
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 1512- ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-928-1 01 1 1303-1511 ●
199 LENS; WARNING LAMP
FIRE TRUCK<RA9> (A) 		1-83119-928-1 01 1 1512- ●
199 LENS; WARNING LAMP
MJT7S M/T(Y3E),MAP6U M/T(Y4B) EXC. RUSSIA EQUIPMENT(B12),FIRE TRUCK<RA9> (A) 		1-83119-928-1 01 1 1512- ●
199 LENS; WARNING LAMP
MJT7S M/T(Y3E) EXC. RUSSIA EQUIPMENT(B12) (A) 		1-83119-928-1 01 1 1512- ●
199 LENS; WARNING LAMP
(B) 		8-98162-668-0 01 1 1303-1511 ●
199 LENS; WARNING LAMP
EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98162-668-0 01 1 1512- ● ●
269 SCREW; METER CLUSTER 1-83119-893-0 09 1 1303-1511 ●
269 SCREW; METER CLUSTER 1-83119-893-0 09 1 1512- ● ●
