◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51429 - NKR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#115158) — 130 parça
çizim 336714
16 264 16 16 16 48 48 48
BalonParca AdiParca NoAdetTipApplied Date
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 11 1 1302-1405
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 10 1 1406-
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=100 		8-94327-067-1 04 1 1302-
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1302-
16 02.559 CLIP; HARNESS
(I) L=135 		1-09987-143-1 01 1 1302-
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 03 1 1302-
16 02.559 CLIP; HARNESS
(J) L=250 		5-09707-030-1 01 1 1302-
16 02.559 CLIP; HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1302-1403
16 02.559 CLIP; HARNESS
(K) ID=20 		8-94241-972-0 01 1 1302-
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 02 1 1302-
16 02.559 CLIP; HARNESS
01.166 (F) ID=22 & 22 		8-94464-837-0 01 1 1302-
16 02.559 CLIP; HARNESS
02.694 (G) ID=6 & 10-13 		8-97069-515-0 02 1 1302-
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 02 1 1302-
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 02 1 1309-
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 03 1 1302-1308
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 01 1 1309-
48 02.559 CLIP; FRAME HARNESS
(I) ID=31 L=30 		1-09700-969-0 02 1 1302-
48 02.559 CLIP; FRAME HARNESS
(A) ID=24 H=40 L=24 		1-09701-243-1 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
(H) ID=32 L=35 		1-09701-244-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
17.505 (C) ID=29 L=35 		1-09701-301-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
(B) L=170.3 		1-09987-182-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
02.557 (F) ID=10 		5-09700-318-0 03 1 1302-
48 02.559 CLIP; FRAME HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 06 1 1302-
48 02.559 CLIP; FRAME HARNESS
02.589 (J) ID=27 		5-09700-323-0 03 1 1302-
48 02.559 CLIP; FRAME HARNESS
(L) L=250 		5-09707-030-1 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
02.525 (M) T=4.5 & 9 		5-09709-023-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1302-
264 02.559 CLIP; HARNESS,HEADLAMP
02.694 ID=6 & 10-13 		8-97069-515-0 01 1 1302-

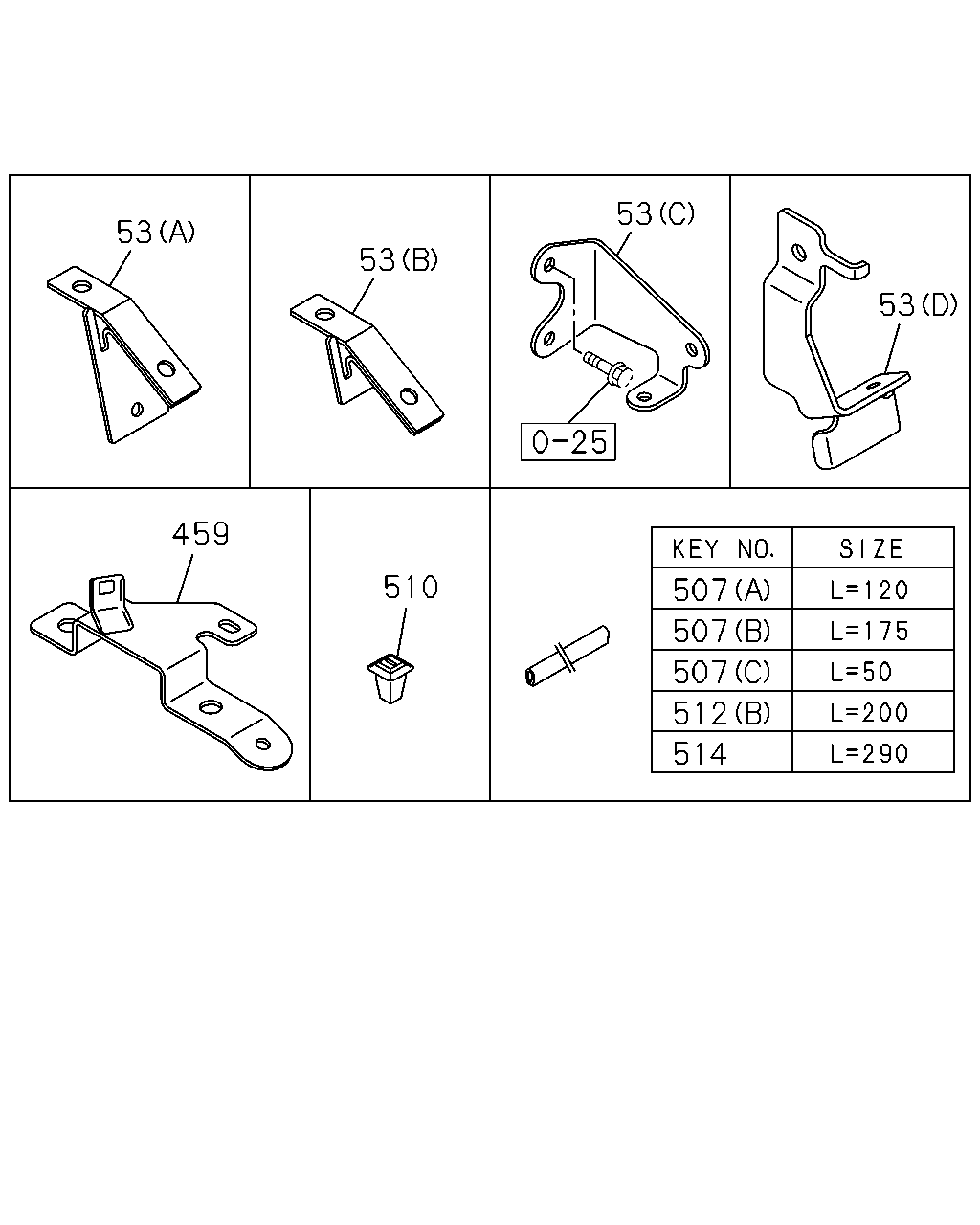

çizim 336749
53 53 53 53 510 459 507 514 512 507 507
BalonParca AdiParca NoAdetTipApplied Date
53 02.483 BRACKET; HARNESS
KD PREPARATORY PACK<6HF> (C) 		8-98214-354-0 01 1 1302-
53 02.483 BRACKET; HARNESS
02.559 (A) 		8-97362-859-0 01 1 1302-
53 02.483 BRACKET; HARNESS
02.559 (B) 		8-98019-633-0 01 1 1302-
53 02.483 BRACKET; HARNESS
(D) 		8-98214-284-0 01 1 1302-
459 02.483 BRACKET; SUPPORT,HARNESS 8-98214-283-0 01 1 1302-1404
459 02.483 BRACKET; SUPPORT,HARNESS 8-98272-663-1 01 1 1405-
507 02.559 FINISHER
(A) L=120 SERVICED BY L=500 		1-79937-746-0 03 1 1302-
507 02.559 FINISHER
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1302-
507 02.559 FINISHER
03.885 (C) L=50 		8-94270-377-1 01 1 1302-
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 1302-
512 02.559 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) 		8-97072-950-0 02 1 1302-
512 02.559 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) 		8-97072-950-0 02 1 1302-
512 02.559 PROTECTOR; HARNESS
04.785 (B) L=200 		8-97096-423-0 02 1 1302-1308
512 02.559 PROTECTOR; HARNESS
04.785 (B) L=200 		8-97096-423-0 01 1 1309-1405
512 02.559 PROTECTOR; HARNESS
04.785 (B) L=200 		8-97096-423-0 01 1 1309-1405
512 02.559 PROTECTOR; HARNESS
04.785 (B) L=200 		8-97096-423-0 01 1 1406-
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 02 1 1302-

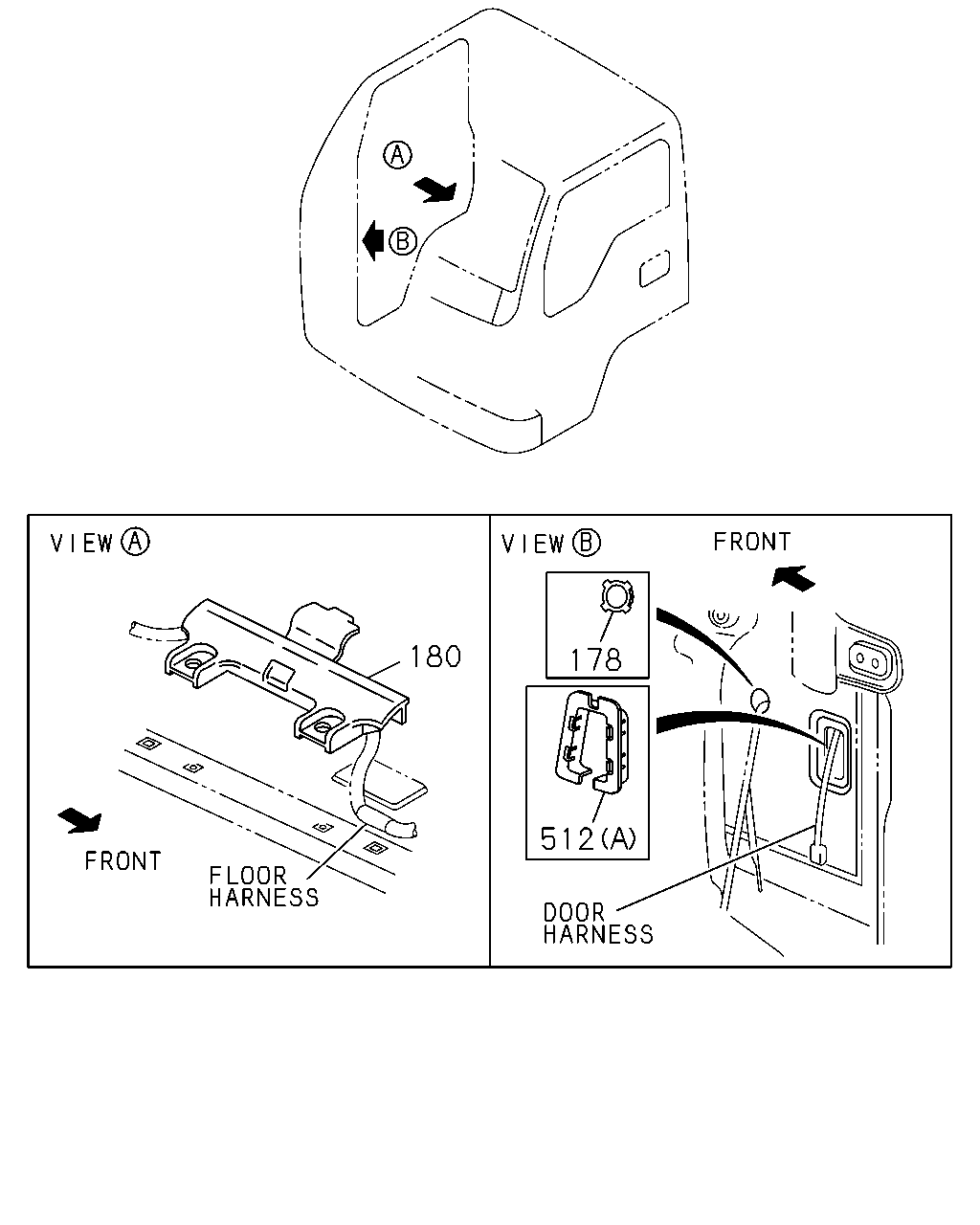

çizim 336777
180 178 512
BalonParca AdiParca NoAdetTipApplied Date
178 02.559 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 1302-
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 1302-
512 02.559 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) 		8-97072-950-0 02 1 1302-
512 02.559 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) 		8-97072-950-0 02 1 1302-
512 02.559 PROTECTOR; HARNESS
04.785 (B) L=200 		8-97096-423-0 02 1 1302-1308
512 02.559 PROTECTOR; HARNESS
04.785 (B) L=200 		8-97096-423-0 01 1 1309-1405
512 02.559 PROTECTOR; HARNESS
04.785 (B) L=200 		8-97096-423-0 01 1 1309-1405
512 02.559 PROTECTOR; HARNESS
04.785 (B) L=200 		8-97096-423-0 01 1 1406-
çizim 336788
8 481 480 481 480 8 242 516 529 377 377 386 55 511 8 24 24 515 524 552 519
BalonParca AdiParca NoAdetTipApplied Date
8 02.559 BOLT; BRKT,CONNECTOR
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 1302-
8 02.559 BOLT; BRKT,CONNECTOR
16.090 (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
8 02.559 BOLT; BRKT,CONNECTOR
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1302-
24 02.559 NUT; HARNESS
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1302-1409
24 02.559 NUT; HARNESS
(A) M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1410-
24 02.559 NUT; HARNESS
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1302-
55 02.559 WASHER; PL,CLIP
16.549 ID=6.5 OD=18 T=1.6 		8-98049-851-0 01 1 1302-
242 02.483 BOLT; BRKT,HARNESS
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1302-
377 02.559 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 1302-
377 02.559 BOLT; CAB EARTH
02.343 (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 1302-
386 02.559 BOLT; GRAND HARNESS
02.343 M8X24 W/PL WASHER 		8-98141-256-1 01 1 1302-
480 02.483 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1302-
480 02.483 BOLT; BRKT
01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 1302-
481 13.090 BOLT; CABLE HARNESS
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1302-1308
481 13.090 BOLT; CABLE HARNESS
REAR WIDE TREAD(V4T) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1309-
481 13.090 BOLT; CABLE HARNESS
04.665 (B) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1302-1308
481 13.090 BOLT; CABLE HARNESS
REAR WIDE TREAD(V4T) 04.665 (B) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1309-
511 02.559 SCREW; HARNESS COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 1302-
515 02.559 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1302-
516 02.559 BOLT; HARNESS
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1302-
519 02.559 NUT; EARTH CABLE
04.439 M12 		0-91111-512-0 01 1 1302-
524 02.559 NUT; HARNESS
KD PREPARATORY PACK<6HF> 01.540 M8 FLANGE 		0-91180-208-0 01 1 1302-
529 02.559 BOLT; RELAY BOX
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1302-
552 02.483 NUT; BRKT,HARNESS
03.162 M10 FLANGE 		0-91180-110-0 02 1 1302-
çizim 336833
22 16 483 16 48 16 16 16 48 16 483 16 483
BalonParca AdiParca NoAdetTipApplied Date
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 11 1 1302-1405
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 10 1 1406-
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=100 		8-94327-067-1 04 1 1302-
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1302-
16 02.559 CLIP; HARNESS
(I) L=135 		1-09987-143-1 01 1 1302-
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 03 1 1302-
16 02.559 CLIP; HARNESS
(J) L=250 		5-09707-030-1 01 1 1302-
16 02.559 CLIP; HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1302-1403
16 02.559 CLIP; HARNESS
(K) ID=20 		8-94241-972-0 01 1 1302-
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 02 1 1302-
16 02.559 CLIP; HARNESS
01.166 (F) ID=22 & 22 		8-94464-837-0 01 1 1302-
16 02.559 CLIP; HARNESS
02.694 (G) ID=6 & 10-13 		8-97069-515-0 02 1 1302-
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 02 1 1302-
22 02.559 CLIP; ENG HARNESS
04.594 L=100 		5-09707-036-1 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 02 1 1309-
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 03 1 1302-1308
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 01 1 1309-
48 02.559 CLIP; FRAME HARNESS
(I) ID=31 L=30 		1-09700-969-0 02 1 1302-
48 02.559 CLIP; FRAME HARNESS
(A) ID=24 H=40 L=24 		1-09701-243-1 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
(H) ID=32 L=35 		1-09701-244-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
17.505 (C) ID=29 L=35 		1-09701-301-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
(B) L=170.3 		1-09987-182-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
02.557 (F) ID=10 		5-09700-318-0 03 1 1302-
48 02.559 CLIP; FRAME HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 06 1 1302-
48 02.559 CLIP; FRAME HARNESS
02.589 (J) ID=27 		5-09700-323-0 03 1 1302-
48 02.559 CLIP; FRAME HARNESS
(L) L=250 		5-09707-030-1 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
02.525 (M) T=4.5 & 9 		5-09709-023-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1302-
483 02.559 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> 04.342 (A) L=197 		1-83574-032-0 01 1 1302-
483 02.559 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> 03.162 (B) L=140 		5-09707-031-1 01 1 1302-
483 02.559 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> (C) ID=17 & 10 		8-97287-302-0 02 1 1302-
çizim 336850
48 48 48 48 48 48 48 48
BalonParca AdiParca NoAdetTipApplied Date
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 02 1 1309-
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 03 1 1302-1308
48 02.559 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 01 1 1309-
48 02.559 CLIP; FRAME HARNESS
(I) ID=31 L=30 		1-09700-969-0 02 1 1302-
48 02.559 CLIP; FRAME HARNESS
(A) ID=24 H=40 L=24 		1-09701-243-1 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
(H) ID=32 L=35 		1-09701-244-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
17.505 (C) ID=29 L=35 		1-09701-301-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
(B) L=170.3 		1-09987-182-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
02.557 (F) ID=10 		5-09700-318-0 03 1 1302-
48 02.559 CLIP; FRAME HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 06 1 1302-
48 02.559 CLIP; FRAME HARNESS
02.589 (J) ID=27 		5-09700-323-0 03 1 1302-
48 02.559 CLIP; FRAME HARNESS
(L) L=250 		5-09707-030-1 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
02.525 (M) T=4.5 & 9 		5-09709-023-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
(K) ID=9 		8-97063-874-0 01 1 1302-
48 02.559 CLIP; FRAME HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1302-

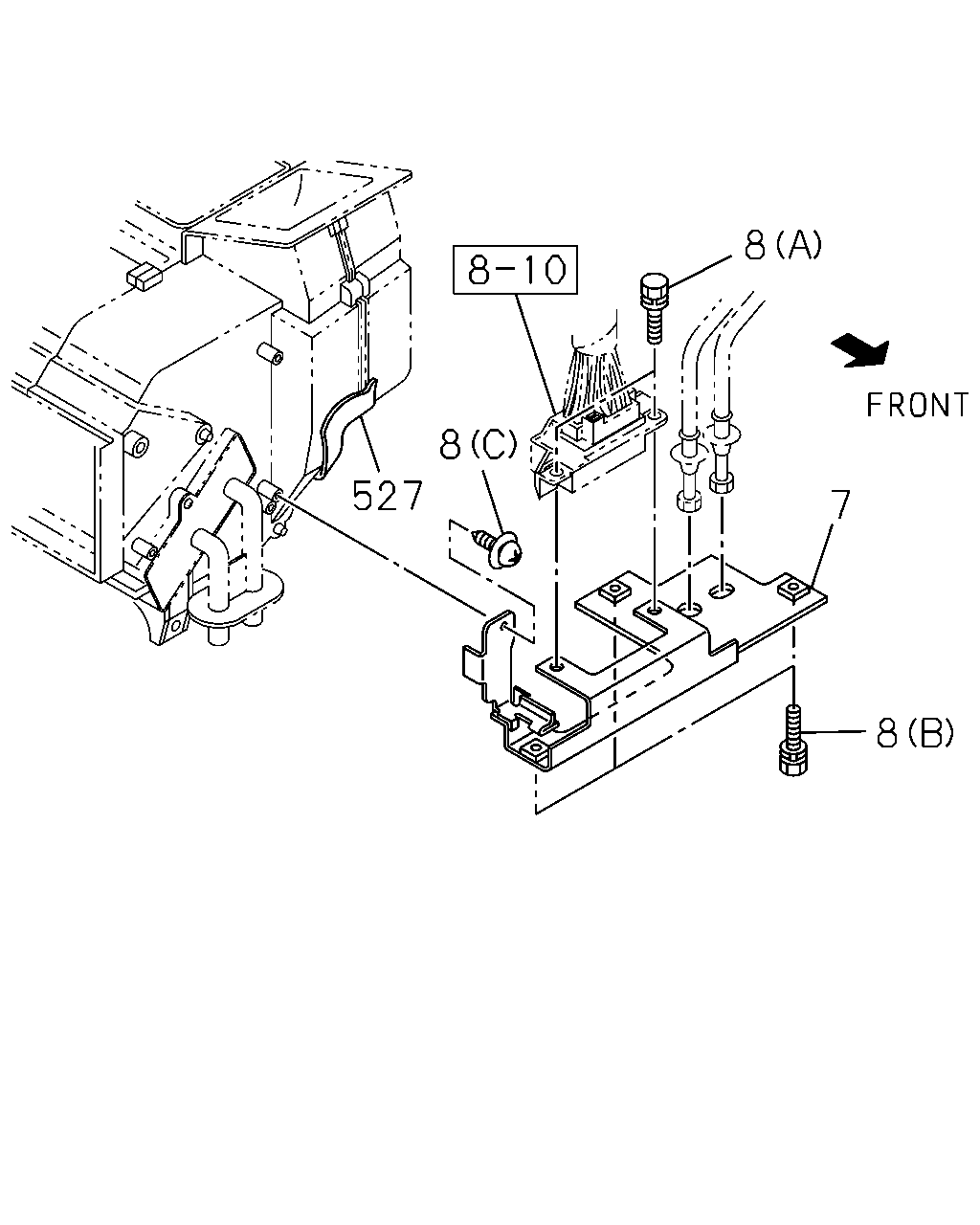

çizim 337078
8 8 7 527 8
BalonParca AdiParca NoAdetTipApplied Date
7 02.559 BRACKET; CONNECTOR 8-97102-247-2 01 1 1302-
8 02.559 BOLT; BRKT,CONNECTOR
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 1302-
8 02.559 BOLT; BRKT,CONNECTOR
16.090 (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
8 02.559 BOLT; BRKT,CONNECTOR
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1302-
527 02.559 TAPE; SOFT,CONNECTOR
100X100 		8-94232-622-0 01 1 1302-
