3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#115150) — 38 parça

11 164 13 260 263 262 261 261 11 26 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	04.686 VALVE; BRK CONT 04.730	8-97070-721-0	01	1	1302-
13	04.686 BOLT; VLV TO BRKT 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1302-
26	04.730 BRACKET; PROPORTIONING VLV	8-98029-821-0	01	1	1302-
104	04.730 BOLT; BRKT TO BODY 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1302-
164	04.730 SCREW; BLEEDER 04.685	8-97093-663-0	01	1	1302-
260	04.685 SHACKLE; LSPV 04.710	8-97173-366-0	01	1	1302-
261	04.685 BUSHING; LSPV 04.710	8-97145-631-0	02	1	1302-
262	04.685 COLLAR; LSPV 04.710	8-97139-186-0	01	1	1302-
263	04.685 CAP; BLEEDER	8-97093-662-0	01	1	1302-

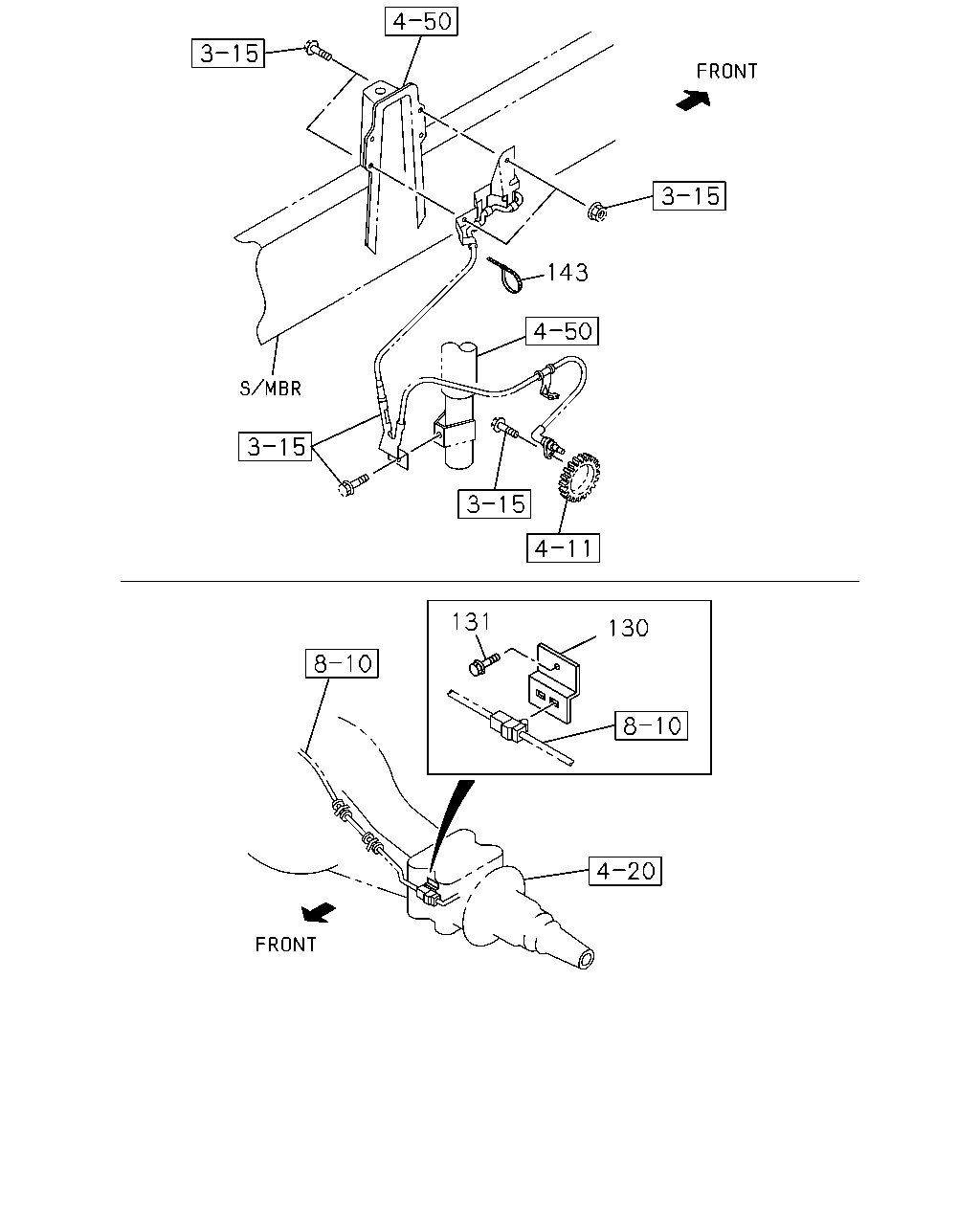

143 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	04.686 BRACKET; SPEED SENSOR	8-97080-060-2	02	1	1302-1308
130	04.686 BRACKET; SPEED SENSOR REAR WIDE TREAD(V4T)	8-97080-060-2	02	1	1309-
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1302-1308
131	04.710 BOLT; BRKT REAR WIDE TREAD(V4T) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1309-
143	04.710 CLIP; SPEED SENSOR 03.162 L=140	5-09707-031-1	01	1	1302-

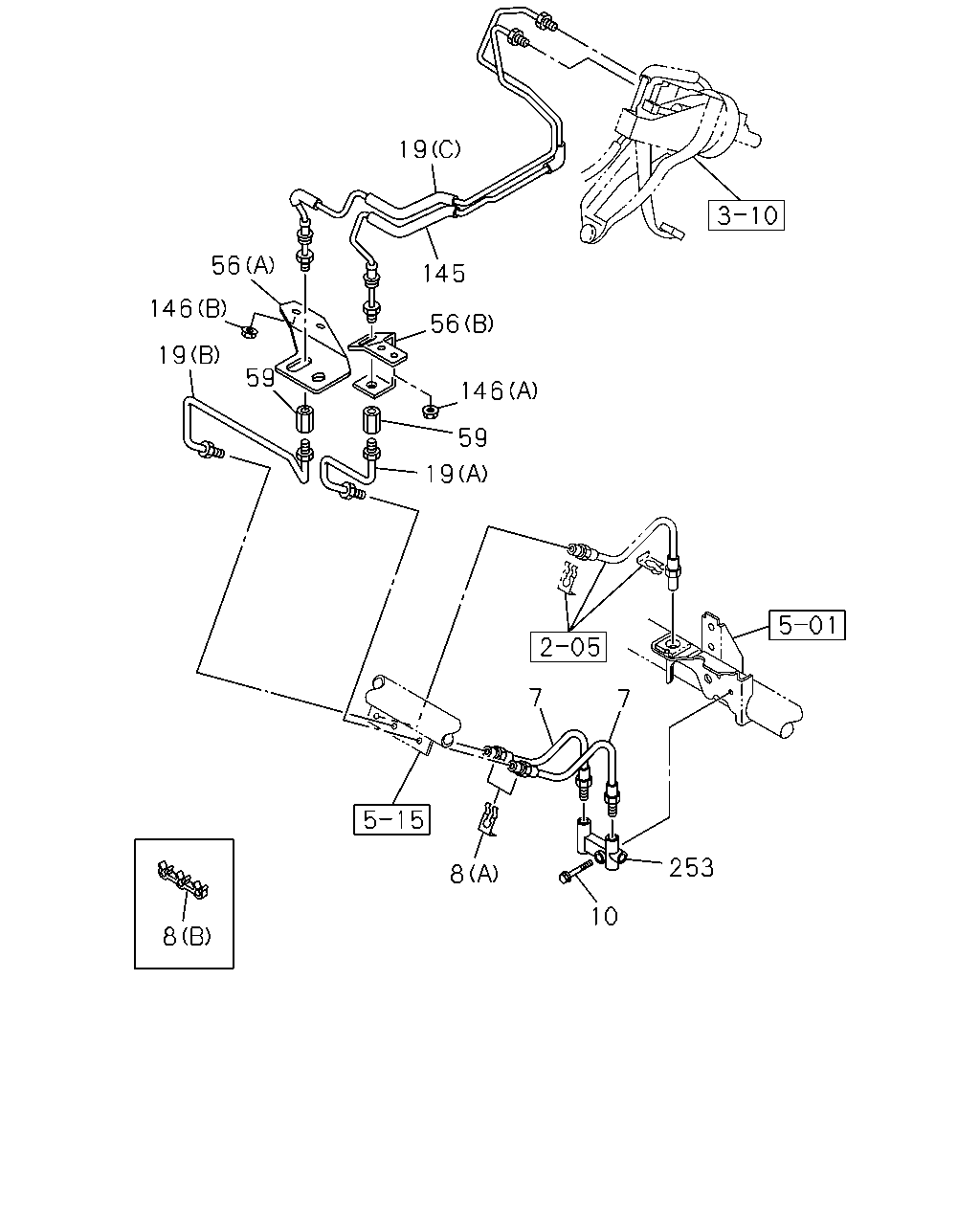

19 56 146 19 145 56 146 59 19 7 7 253 10 8 59 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	1302-1308
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	1309-
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1302-1308
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1309-
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1302-1308
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1309-
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1302-
19	04.685 PIPE; BRK,M/CYL TO UNION (A) REAR	8-97070-296-2	01	1	1302-
19	04.685 PIPE; BRK,M/CYL TO UNION (B) FRONT	5-47411-763-0	01	1	1302-
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-97314-591-0	01	1	1302-
56	04.686 BRACKET; UNION,BRK (A)	8-97102-365-0	01	1	1302-
56	04.686 BRACKET; UNION,BRK (B)	8-97102-366-2	01	1	1302-
59	04.686 UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	1302-
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97314-584-0	01	1	1302-
146	04.685 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1302-
146	04.685 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1302-
253	04.840 JOINT 04.686	8-97139-922-1	01	1	1302-

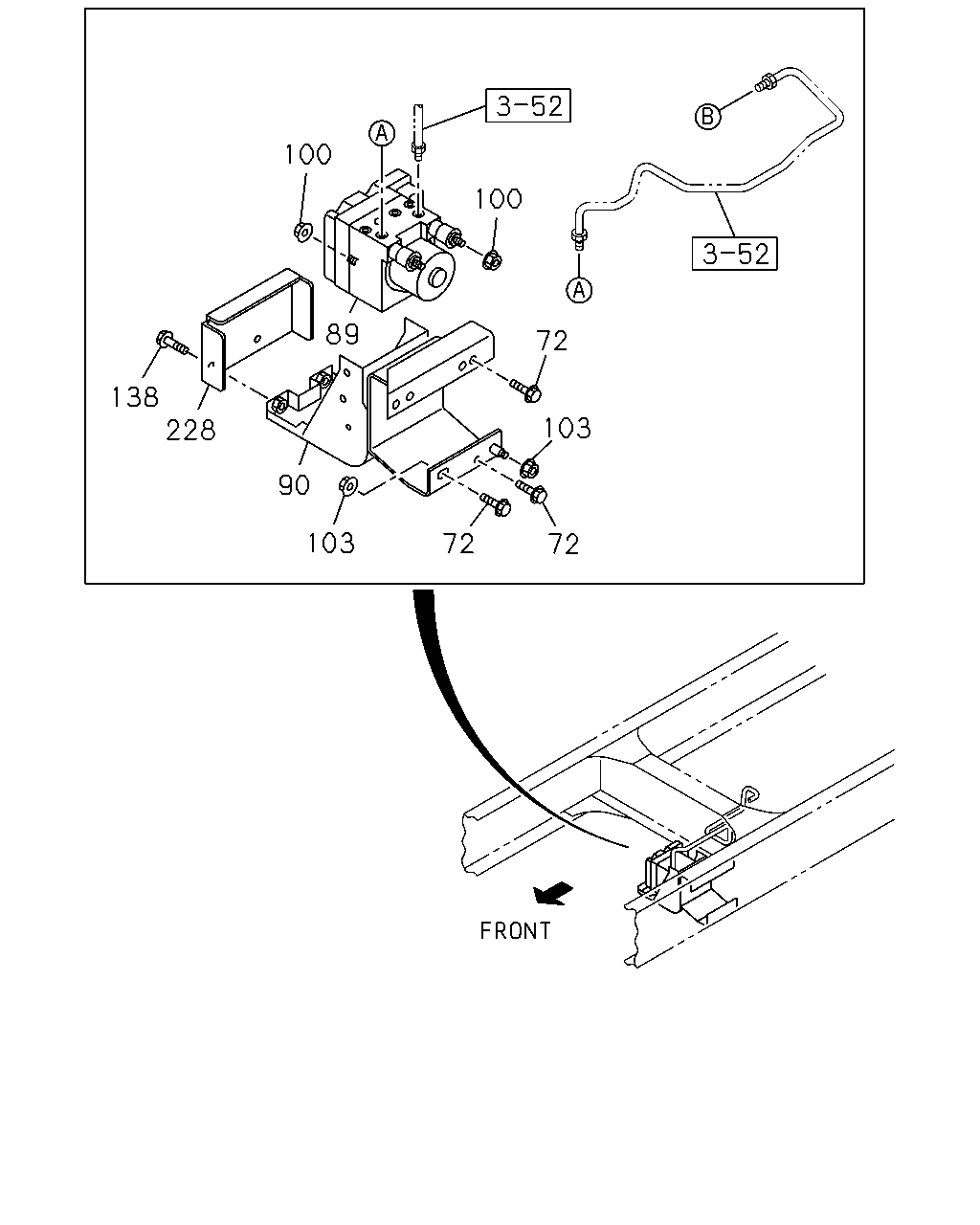

100 100 72 103 72 72 103 90 228 138 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	04.686 BOLT; BRKT TO BODY 00.029 M10X25 FLANGE	0-28651-025-0	02	1	1302-
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98155-358-1	02	1	1302-
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-98164-369-0	01	1	1302-
100	04.730 NUT; HYDRAULIC UNIT 01.062 M8 FLANGE	0-91180-108-0	03	1	1302-
103	04.730 NUT; HYDRAULIC UNIT BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1302-
138	04.720 BOLT; COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1302-
228	04.730 COVER; ABS	8-97359-760-0	01	1	1302-
