5-01 — FRAME AND OTHER PARTS
(#115147) — 43 parça
◀

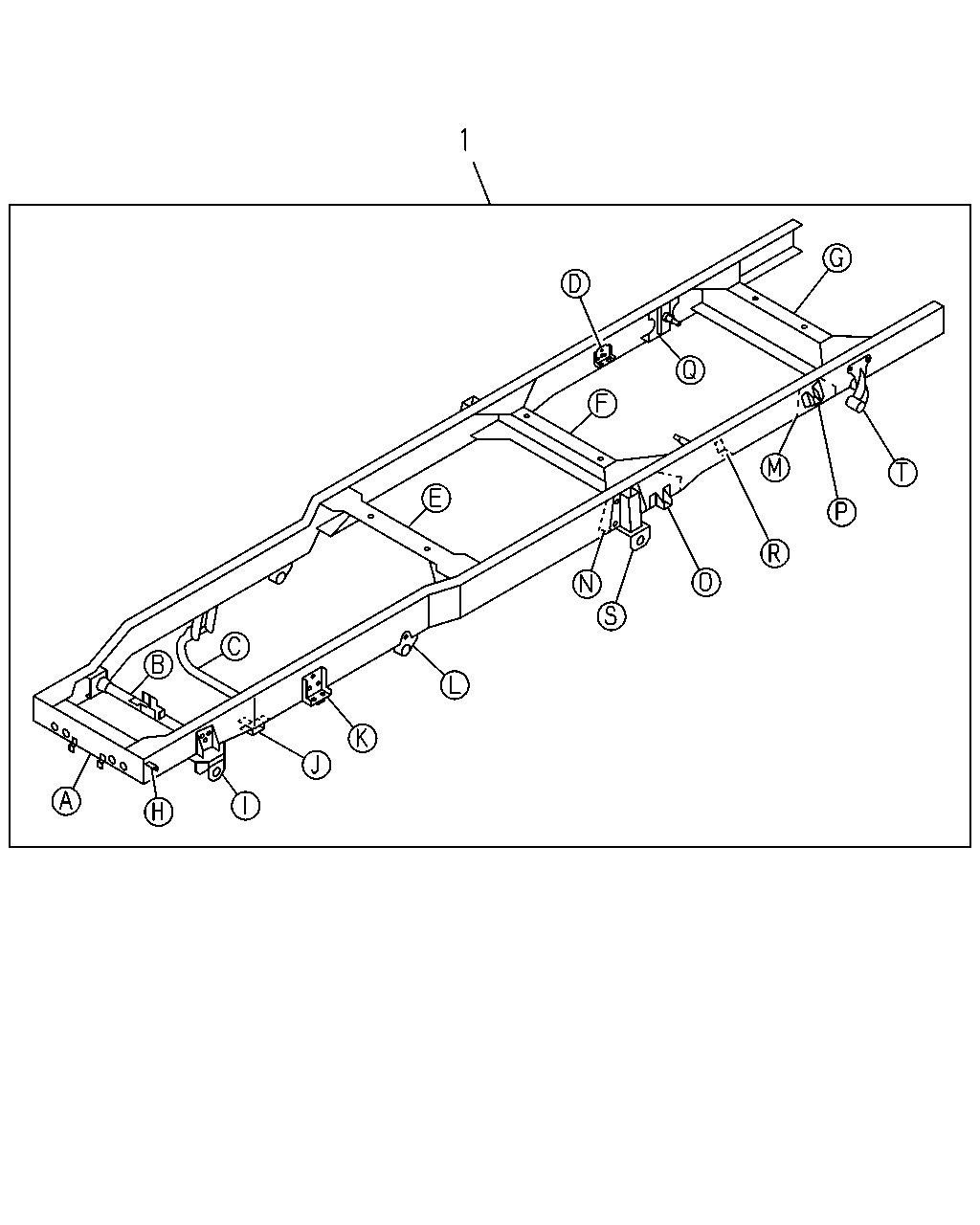

[501A] FRAME ASM (1 parça)
[501A] CROSS MEMBER AND BRACKET(NO.1) (12 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (14 parça)
[501A] RIVET,BOLT,NUT (11 parça)
[501A] CROSS MEMBER AND BRACKET(NO.3) (5 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.003 FRAME ASM
8-98214-651-1
01
1
1302-
217
20
17
2
17
34
42
75
75
345
198
198
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.010 MEMBER; CROSS,1ST
8-97034-332-2
01
1
1302-
17
07.039 GUSSET; 1ST C/MBR
8-97088-205-1
02
1
1302-
20
07.012 MEMBER; CROSS,2ND
8-97078-581-1
01
1
1302-
34
07.012 MEMBER; CROSS,3RD
8-97115-578-0
01
1
1302-
42
07.011 MEMBER; CROSS,ENG MTG
8-97165-923-1
01
1
1302-
75
07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER
8-97062-499-0
02
1
1302-
75
07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER
8-97062-500-0
02
1
1302-
139
07.012 MEMBER; CROSS,6TH
8-97062-498-1
01
1
1302-
198
07.039 GUSSET; 6TH C/MBR
RH-LOWER,LH-UPPER
8-97062-499-0
02
1
1302-
198
07.039 GUSSET; 6TH C/MBR
RH-UPPER,LH-LOWER
8-97062-500-0
02
1
1302-
217
07.535 BRACKET; HELPER RUBBER,RR SPRING
8-94258-963-0
02
1
1302-
345
07.012 MEMBER; CROSS,5TH
8-97062-497-3
01
1
1302-
147
103
173
63
24
39
103
147
140
140
173
51
358
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
07.105 BRACKET; FRT SPR,FRT
8-94366-816-1
01
1
1302-
24
07.105 BRACKET; FRT SPR,FRT
8-97065-788-1
01
1
1302-
39
07.112 BRACKET; FRT SPR,RR
8-94258-091-0
02
1
1302-
51
07.011 BRACKET; ENG SUPPORT,OUTER
00.029
8-94258-086-1
02
1
1302-
63
01.270 BRACKET; RAD MTG
8-94257-950-1
01
1
1302-
103
07.420 STOPPER; SUB SPR
(A)
8-97223-748-0
02
1
1302-
103
07.420 STOPPER; SUB SPR
(B)
8-97223-750-0
02
1
1302-
140
07.112 BRACKET; S/ABS,RR
07.395 (A)
8-94101-303-0
01
1
1302-
140
07.112 BRACKET; S/ABS,RR
(B)
8-97012-285-0
01
1
1302-
147
07.535 RUBBER; SUB SPRING
8-97254-387-0
04
1
1302-
173
07.112 STIFFENER; RR SPRING
(A)
8-94372-324-1
02
1
1302-
173
07.112 STIFFENER; RR SPRING
(B)
8-94403-508-2
01
1
1302-
173
07.112 STIFFENER; RR SPRING
(B)
8-97213-460-4
01
1
1302-
358
07.039 BRACKET; CAB EARTH
8-97210-488-0
01
1
1302-
376
376
376
376
376
376
376
376
376
176
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
118
07.529 NUT; STOPPER
M8 LOCK NUT
0-91370-008-0
04
1
1302-
176
04.085 BOLT; C/MBR,ENG MTG
03.890 M10X30 FLANGE
0-28051-030-0
08
1
1302-
376
07.039 RIVET; FRAME
07.011 (A) D8X22 TAPER END
9-06750-822-0
AR
1
1302-
376
07.039 RIVET; FRAME
07.395 (B) D8X28 TAPER END
9-06750-828-0
AR
1
1302-
376
07.039 RIVET; FRAME
(C) D10X24 TAPER END
9-06751-024-0
AR
1
1302-
376
07.039 RIVET; FRAME
(D) D10X26 TAPER END
9-06751-026-0
AR
1
1302-
376
07.039 RIVET; FRAME
(E) D10X28 TAPER END
9-06751-028-0
AR
1
1302-
376
07.039 RIVET; FRAME
(F) D10X30 TAPER END
9-06751-030-0
AR
1
1302-
376
07.039 RIVET; FRAME
(G) D10X36 TAPER END
9-06751-036-0
AR
1
1302-
376
07.039 RIVET; FRAME
07.105 (H) D12X30 TAPER END
9-06751-230-0
AR
1
1302-
376
07.039 RIVET; FRAME
07.535 (I) D12X34 TAPER END
9-06751-234-0
AR
1
1302-
215
105
215
101
142
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
07.112 BRACKET; RR SPR,FRT
8-97034-156-1
02
1
1302-
105
07.112 BRACKET; RR SPR,RR
8-94459-511-1
01
1
1302-
105
07.112 BRACKET; RR SPR,RR
8-94459-512-1
01
1
1302-
142
04.845 BRACKET; FLEX HOSE,BRAKE
8-97035-308-0
01
1
1302-
215
07.524 BUSHING; BRKT,RR SPRING
8-97184-699-1
04
1
1302-
