◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#115146) — 316 parça

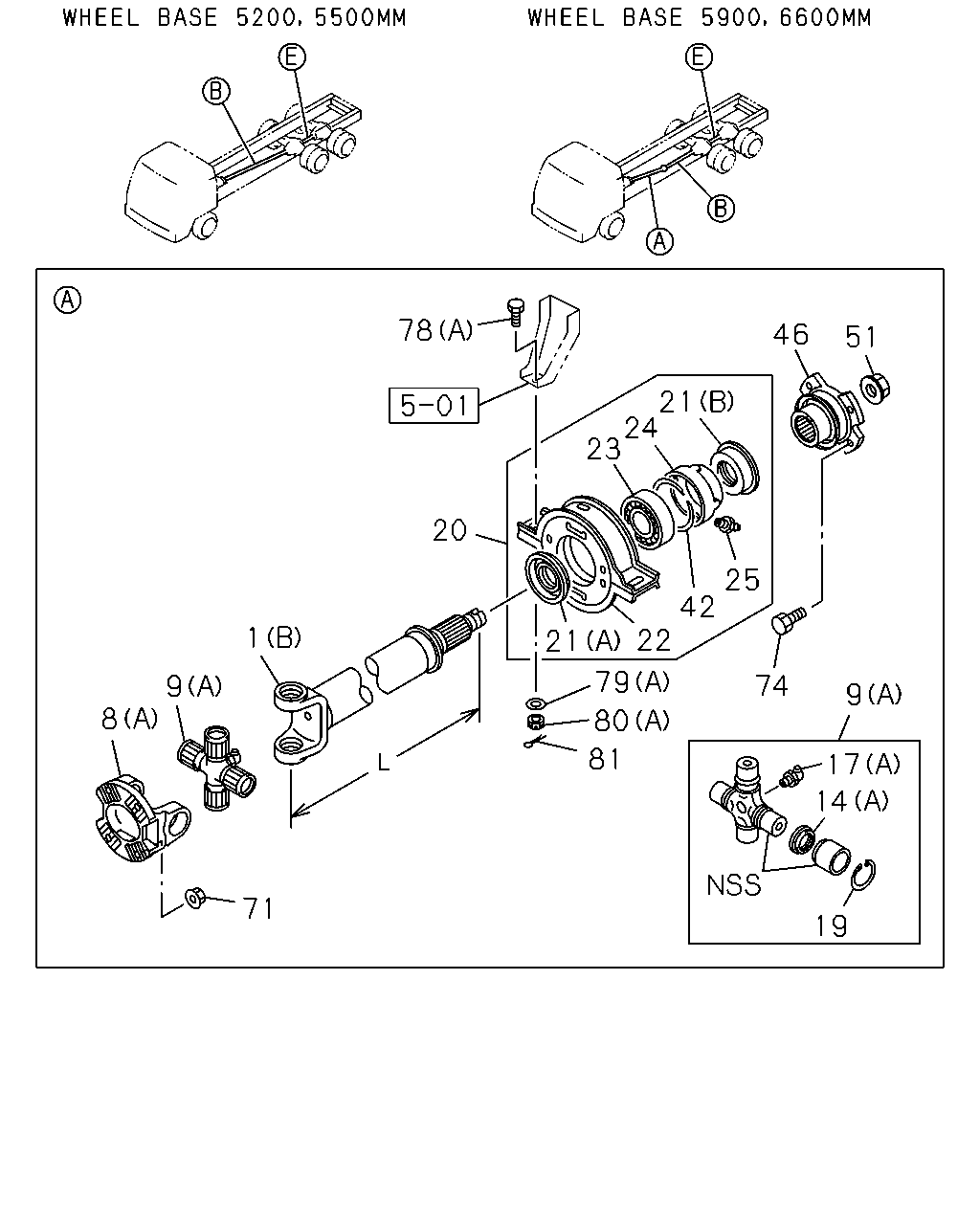

çizim 336399
78 20 1 9 8 71 23 24 21 46 51 25 42 22 21 79 80 81 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P115 PROP SHAFT(C5X) ENGINE REAR PTO(SV1) (A) L=1210 		1-37125-381-0 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) EXC. ENGINE REAR PTO(SV1) (A) L=1280 		1-37125-341-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1545 		8-98145-468-0 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=1615 		1-37125-302-0 01 1 1512- ●
1 SHAFT; PROP
MJT7S M/T(Y3E) P115 PROP SHAFT(C5X) (B) L=844 		1-37153-533-0 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1674 		1-37153-505-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1880 		1-37124-767-1 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=1675 		8-98145-462-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1415 		8-98145-467-0 01 1 1512- ●
1 SHAFT; PROP
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) P115 PROP SHAFT(C5X) (A) L=1070 		8-98094-187-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=995 		1-37124-762-1 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=975 		1-37125-338-0 01 1 1512- ●
1 SHAFT; PROP
(A) L=1100 		1-37125-394-0 01 1 1303-1511 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) TAIWAN EQUIPMENT(WW5) (A) L=1100 		1-37125-394-0 01 1 1512- ●
1 SHAFT; PROP
(B) L=932 		8-98225-308-0 01 1 1303-1511 ●
1 SHAFT; PROP
MAP6U M/T(Y4B) P115 PROP SHAFT(C5X) (B) L=932 		8-98225-308-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=845 		8-98334-762-0 01 1 1512- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1512- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1512- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 01 1 1303-1511 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1512- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 02 1 1303-1511 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1512- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1512- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1512- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1303-1511 ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 1512- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1303-1511 ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1512- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1303-1511 ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1512- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1303-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 04 1 1512- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1303-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 08 1 1512- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1303-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 04 1 1512- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1303-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 08 1 1512- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1303-1511 ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-1 01 1 1512- ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1303-1511 ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (A) OD=114 		1-09625-222-1 01 1 1512- ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1303-1511 ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (B) OD=106 		1-09625-622-0 01 1 1512- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1303-1511 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 1512- ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1303-1511 ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 1512- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1303-1511 ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 1512- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1303-1511 ●
25 NIPPLE; GREASE,CENTER BRG
P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 1512- ● ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1303-1511 ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-1 01 1 1512- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1303-1511 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 1512- ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1303-1511 ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 1512- ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1303-1511 ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1512- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1303-1511 ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1512- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1512- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
(A) M16X45 		1-09042-030-0 02 1 1303-1511 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16X45 		1-09042-030-0 02 1 1512- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P130 PROP SHAFT(BEE) (B) ID=15 		0-91614-614-0 02 1 1512- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
(A) ID=17 		1-09503-241-1 02 1 1303-1511 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P115 PROP SHAFT(C5X) (A) ID=17 		1-09503-241-1 02 1 1512- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1512- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
(A) M16 SLOTTED 		8-98049-689-0 02 1 1303-1511 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16 SLOTTED 		8-98049-689-0 02 1 1512- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1303-1511 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P115 PROP SHAFT(C5X) OD=3.7 L=25 		0-81124-025-0 02 1 1512- ● ●

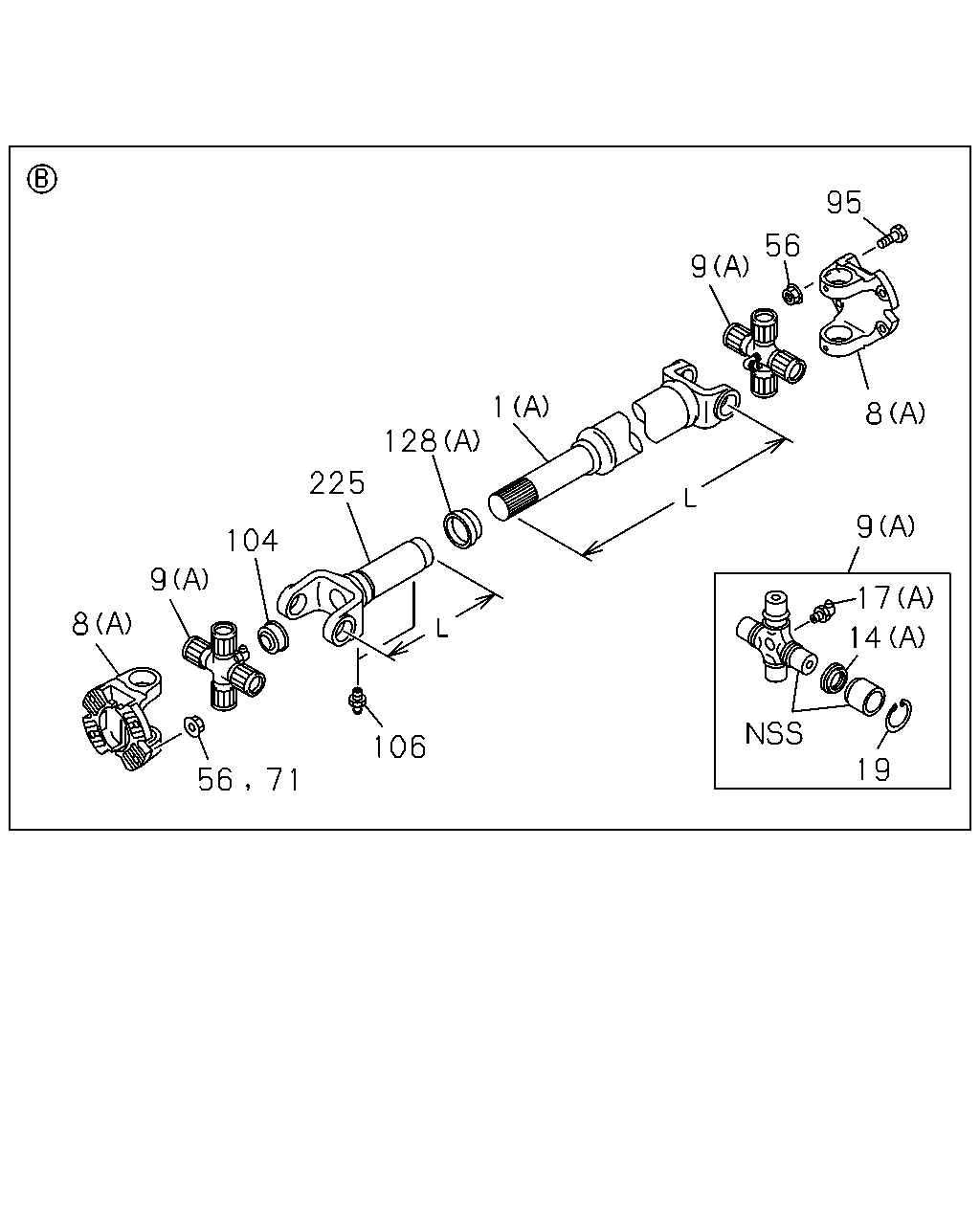

çizim 336404
95 56 9 8 9 17 14 19 1 128 225 104 106 9 8 56 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P115 PROP SHAFT(C5X) ENGINE REAR PTO(SV1) (A) L=1210 		1-37125-381-0 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) EXC. ENGINE REAR PTO(SV1) (A) L=1280 		1-37125-341-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1545 		8-98145-468-0 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=1615 		1-37125-302-0 01 1 1512- ●
1 SHAFT; PROP
MJT7S M/T(Y3E) P115 PROP SHAFT(C5X) (B) L=844 		1-37153-533-0 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1674 		1-37153-505-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1880 		1-37124-767-1 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=1675 		8-98145-462-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1415 		8-98145-467-0 01 1 1512- ●
1 SHAFT; PROP
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) P115 PROP SHAFT(C5X) (A) L=1070 		8-98094-187-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=995 		1-37124-762-1 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=975 		1-37125-338-0 01 1 1512- ●
1 SHAFT; PROP
(A) L=1100 		1-37125-394-0 01 1 1303-1511 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) TAIWAN EQUIPMENT(WW5) (A) L=1100 		1-37125-394-0 01 1 1512- ●
1 SHAFT; PROP
(B) L=932 		8-98225-308-0 01 1 1303-1511 ●
1 SHAFT; PROP
MAP6U M/T(Y4B) P115 PROP SHAFT(C5X) (B) L=932 		8-98225-308-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=845 		8-98334-762-0 01 1 1512- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1512- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1512- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 01 1 1303-1511 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1512- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 02 1 1303-1511 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1512- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1512- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1512- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1303-1511 ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 1512- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1303-1511 ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1512- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1303-1511 ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1512- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1303-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 04 1 1512- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1303-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 08 1 1512- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1303-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 04 1 1512- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1303-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 08 1 1512- ● ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1303-1511 ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1303-1511 ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1512- ● ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1512- ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1303-1511 ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1512- ● ● ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1303-1511 ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1512- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1303-1511 ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1303-1511 ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1512- ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) 		1-09600-049-0 01 1 1512- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1303-1511 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1512- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1303-1511 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1512- ● ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 1303-1511 ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 1512- ● ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1303-1511 ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1512- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 1303-1511 ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT(C5X) L=339 		1-37241-140-0 01 1 1512- ● ● ● ●

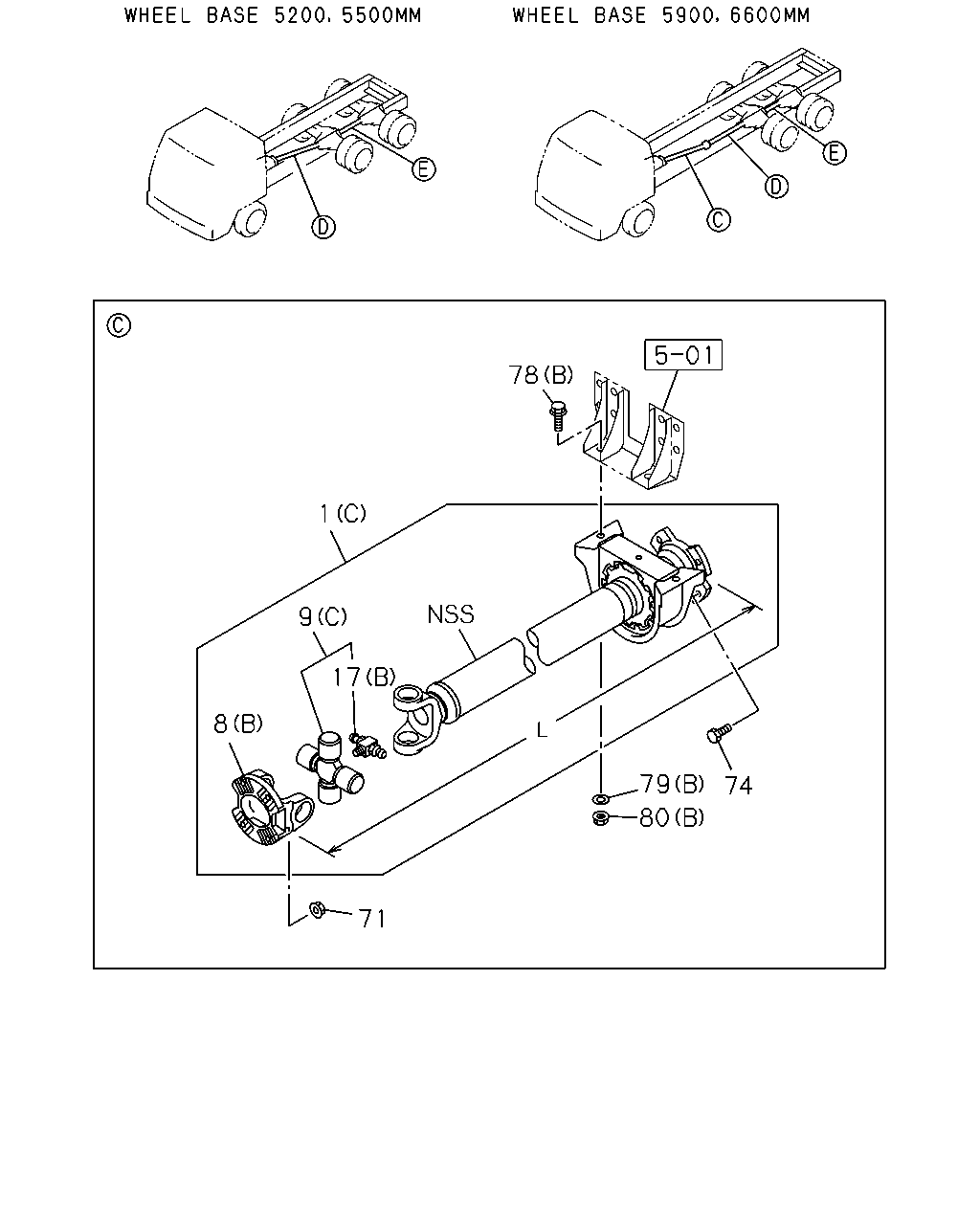

çizim 336405
78 1 9 8 71 17 80 79 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P115 PROP SHAFT(C5X) ENGINE REAR PTO(SV1) (A) L=1210 		1-37125-381-0 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) EXC. ENGINE REAR PTO(SV1) (A) L=1280 		1-37125-341-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1545 		8-98145-468-0 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=1615 		1-37125-302-0 01 1 1512- ●
1 SHAFT; PROP
MJT7S M/T(Y3E) P115 PROP SHAFT(C5X) (B) L=844 		1-37153-533-0 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1674 		1-37153-505-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1880 		1-37124-767-1 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=1675 		8-98145-462-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1415 		8-98145-467-0 01 1 1512- ●
1 SHAFT; PROP
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) P115 PROP SHAFT(C5X) (A) L=1070 		8-98094-187-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=995 		1-37124-762-1 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=975 		1-37125-338-0 01 1 1512- ●
1 SHAFT; PROP
(A) L=1100 		1-37125-394-0 01 1 1303-1511 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) TAIWAN EQUIPMENT(WW5) (A) L=1100 		1-37125-394-0 01 1 1512- ●
1 SHAFT; PROP
(B) L=932 		8-98225-308-0 01 1 1303-1511 ●
1 SHAFT; PROP
MAP6U M/T(Y4B) P115 PROP SHAFT(C5X) (B) L=932 		8-98225-308-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=845 		8-98334-762-0 01 1 1512- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1512- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1512- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 01 1 1303-1511 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1512- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 02 1 1303-1511 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1512- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1512- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1512- ● ● ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1303-1511 ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1512- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1303-1511 ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1512- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1512- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
(A) M16X45 		1-09042-030-0 02 1 1303-1511 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16X45 		1-09042-030-0 02 1 1512- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P130 PROP SHAFT(BEE) (B) ID=15 		0-91614-614-0 02 1 1512- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
(A) ID=17 		1-09503-241-1 02 1 1303-1511 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P115 PROP SHAFT(C5X) (A) ID=17 		1-09503-241-1 02 1 1512- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1512- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
(A) M16 SLOTTED 		8-98049-689-0 02 1 1303-1511 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16 SLOTTED 		8-98049-689-0 02 1 1512- ● ●

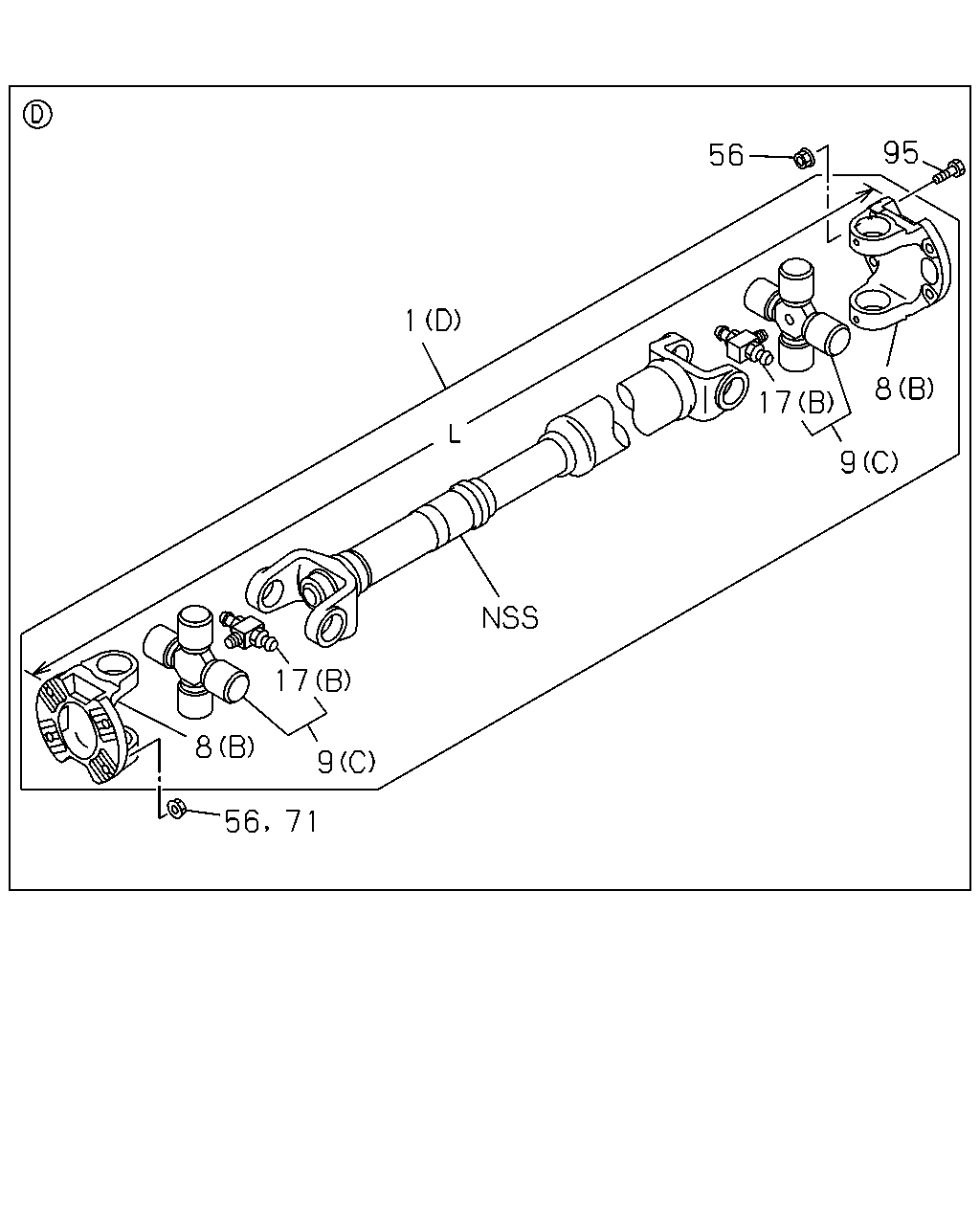

çizim 512850
1 56 95 8 17 9 17 9 8 56 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P115 PROP SHAFT(C5X) ENGINE REAR PTO(SV1) (A) L=1210 		1-37125-381-0 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) EXC. ENGINE REAR PTO(SV1) (A) L=1280 		1-37125-341-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1545 		8-98145-468-0 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=1615 		1-37125-302-0 01 1 1512- ●
1 SHAFT; PROP
MJT7S M/T(Y3E) P115 PROP SHAFT(C5X) (B) L=844 		1-37153-533-0 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1674 		1-37153-505-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1880 		1-37124-767-1 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=1675 		8-98145-462-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=1415 		8-98145-467-0 01 1 1512- ●
1 SHAFT; PROP
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) P115 PROP SHAFT(C5X) (A) L=1070 		8-98094-187-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=995 		1-37124-762-1 01 1 1512- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=975 		1-37125-338-0 01 1 1512- ●
1 SHAFT; PROP
(A) L=1100 		1-37125-394-0 01 1 1303-1511 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) TAIWAN EQUIPMENT(WW5) (A) L=1100 		1-37125-394-0 01 1 1512- ●
1 SHAFT; PROP
(B) L=932 		8-98225-308-0 01 1 1303-1511 ●
1 SHAFT; PROP
MAP6U M/T(Y4B) P115 PROP SHAFT(C5X) (B) L=932 		8-98225-308-0 01 1 1512- ●
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (C) L=845 		8-98334-762-0 01 1 1512- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1512- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1512- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 01 1 1303-1511 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1512- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-084-0 02 1 1303-1511 ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1512- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1512- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1512- ● ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1303-1511 ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1303-1511 ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1512- ● ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1512- ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1303-1511 ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1512- ● ● ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1303-1511 ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1512- ● ● ● ●
çizim 513076
96 57 9 11 10 4 169 170 128 58 106 104 57 15 96 9 15 14 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 SHAFT; PROP
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILE EQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) L=418 		1-37171-129-3 01 1 1512- ●
4 SHAFT; PROP
L=418 		1-37171-129-3 01 1 1512- ● ● ●
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1303-1511 ●
4 SHAFT; PROP
TAIWAN EQUIPMENT(WW5) L=348 		1-37171-127-2 01 1 1512- ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1512- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1303-1511 ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1512- ● ●
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 1303-1511 ●
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 1512- ● ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1303-1511 ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1512- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1303-1511 ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 1512- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1303-1511 ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1512- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1303-1511 ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1512- ● ● ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1303-1511 ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1303-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1512- ● ● ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1303-1511 ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1512- ● ● ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1303-1511 ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1512- ● ● ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1303-1511 ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1512- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1303-1511 ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1303-1511 ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1512- ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) 		1-09600-049-0 01 1 1512- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1303-1511 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1512- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1303-1511 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1512- ● ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 1303-1511 ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 1512- ● ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1303-1511 ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1512- ● ● ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1303-1511 ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1512- ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1303-1511 ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1512- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
