3-10 — BRAKE PEDAL AND CONTROL (#115143) — 75 parça

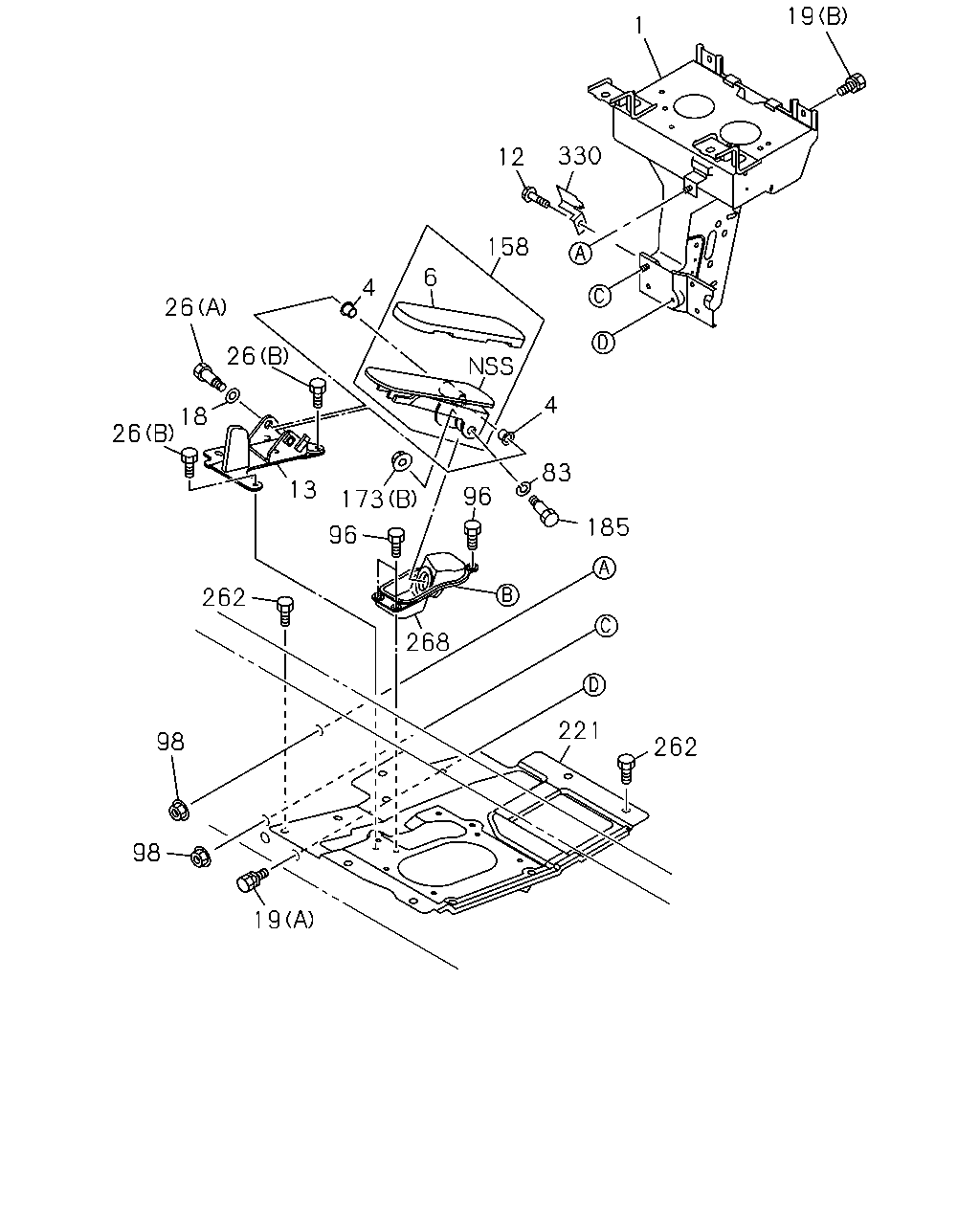

çizim 336278
19 1 12 158 6 4 26 26 18 26 13 262 98 98 19 221 262 185 83 96 268 96 173 4 330
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 1-73908-480-0 01 1 1303-1511 ●
1 BRACKET ASM; PEDAL 1-73908-480-0 01 1 1512- ● ●
4 BUSHING; BRK PEDAL 1-73908-201-1 02 1 1303-1511 ●
4 BUSHING; BRK PEDAL 1-73908-201-1 02 1 1512- ● ●
6 COVER; BRK PEDAL 1-48119-333-0 01 1 1303-1511 ●
6 COVER; BRK PEDAL 1-48119-333-0 01 1 1512- ● ●
12 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1303-1511 ●
12 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1512- ● ●
13 BRACKET; BRK PEDAL 1-73908-069-6 01 1 1303-1511 ●
13 BRACKET; BRK PEDAL 1-73908-069-6 01 1 1512- ● ●
18 WASHER; PL
ID=12.5 		9-09164-512-0 01 1 1303-1511 ●
18 WASHER; PL
ID=12.5 		9-09164-512-0 01 1 1512- ● ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 1303-1511 ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 1512- ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303-1511 ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1512- ● ●
26 BOLT; PEDAL
(A) M8X16 		1-09980-614-0 01 1 1303-1511 ●
26 BOLT; PEDAL
(A) M8X16 		1-09980-614-0 01 1 1512- ● ●
26 BOLT; PEDAL
(B) M6X25 		8-94279-204-0 02 1 1303-1511 ●
26 BOLT; PEDAL
(B) M6X25 		8-94279-204-0 02 1 1512- ● ●
83 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 01 1 1303-1511 ●
83 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 01 1 1512- ● ●
96 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1303-1511 ●
96 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1512- ● ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 1303-1511 ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 1512- ● ●
158 PEDAL ASM; BRK 1-73908-068-5 01 1 1303-1511 ●
158 PEDAL ASM; BRK 1-73908-068-5 01 1 1512- ● ●
173 NUT; JOINT LOCK
(A) M12 		0-91110-512-0 01 1 1303-1511 ●
173 NUT; JOINT LOCK
(A) M12 		0-91110-512-0 01 1 1512- ● ●
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91180-110-0 01 1 1303-1511 ●
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91180-110-0 01 1 1512- ● ●
185 BOLT; BRKT 1-73996-282-1 01 1 1303-1511 ●
185 BOLT; BRKT 1-73996-282-1 01 1 1512- ● ●
221 PLATE ASM; SIDE 1-73996-280-4 01 1 1303-1511 ●
221 PLATE ASM; SIDE 1-73996-280-4 01 1 1512- ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 08 1 1303-1511 ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 08 1 1512- ● ●
268 COVER; ROD 1-73908-192-1 01 1 1303-1511 ●
268 COVER; ROD 1-73908-192-1 01 1 1512- ● ●
330 BRACKET; CONNECTOR 8-97616-605-0 01 1 1303-1511 ●
330 BRACKET; CONNECTOR 8-97616-605-0 01 1 1512- ● ●
çizim 336290
183 173 191 20 20 20 34 172 266 16 7 7 7 16 7
BalonParca AdiParca NoAdetTipApplied Date A B
7 CONNECTOR; BRK VALVE
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), CHILEEQUIPMENT(KE1),PHILIPPINE EQUIPMENT(WE3) (D) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-776-1 01 1 1512- ●
7 CONNECTOR; BRK VALVE
(D) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-776-1 01 1 1512- ●
7 CONNECTOR; BRK VALVE
(A) PT3/8X2 & PT1/4 3WAY 		1-09656-708-0 01 1 1303-1511 ●
7 CONNECTOR; BRK VALVE
(A) PT3/8X2 & PT1/4 3WAY 		1-09656-708-0 01 1 1512- ● ●
7 CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1303-1511 ●
7 CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1512- ● ●
7 CONNECTOR; BRK VALVE
(D) DIN8 & R3/8 & RC1/4 3WAY 		8-97620-116-0 01 1 1303-1511 ●
7 CONNECTOR; BRK VALVE
TAIWAN EQUIPMENT(WW5) (D) DIN8 & R3/8 & RC1/4 3WAY 		8-97620-116-0 01 1 1512- ●
7 CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1303-1305 ●
7 CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1303-1305 ●
7 CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1303-1305 ●
7 CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1306-1511 ●
7 CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1306-1511 ●
7 CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1512- ● ●
7 CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1512- ● ●
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 02 1 1303-1511 ●
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 02 1 1512- ● ●
20 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1303-1511 ●
20 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1512- ● ●
34 BRACKET ASM; BRK VLV 1-79738-808-3 01 1 1303-1511 ●
34 BRACKET ASM; BRK VLV 1-79738-808-3 01 1 1512- ● ●
172 JOINT; JAW,BRK PEDAL 1-73908-167-1 01 1 1303-1511 ●
172 JOINT; JAW,BRK PEDAL 1-73908-167-1 01 1 1512- ● ●
173 NUT; JOINT LOCK
(A) M12 		0-91110-512-0 01 1 1303-1511 ●
173 NUT; JOINT LOCK
(A) M12 		0-91110-512-0 01 1 1512- ● ●
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91180-110-0 01 1 1303-1511 ●
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91180-110-0 01 1 1512- ● ●
183 BOLT; BRK VLV
M10X25 W/LK WASHER 		1-09980-503-0 03 1 1303-1511 ●
183 BOLT; BRK VLV
M10X25 W/LK WASHER 		1-09980-503-0 03 1 1512- ● ●
191 JOINT; BALL,PUSH ROD
M10X16.5 		1-47355-001-0 01 1 1303-1511 ●
191 JOINT; BALL,PUSH ROD
M10X16.5 		1-47355-001-0 01 1 1512- ● ●
266 JOINT ROD 1-73908-166-3 01 1 1303-1511 ●
266 JOINT ROD 1-73908-166-3 01 1 1512- ● ●
