Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
3 - Brakes, Brake System
▶
3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.)
▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.)
(#115142) — 19 parça
◀

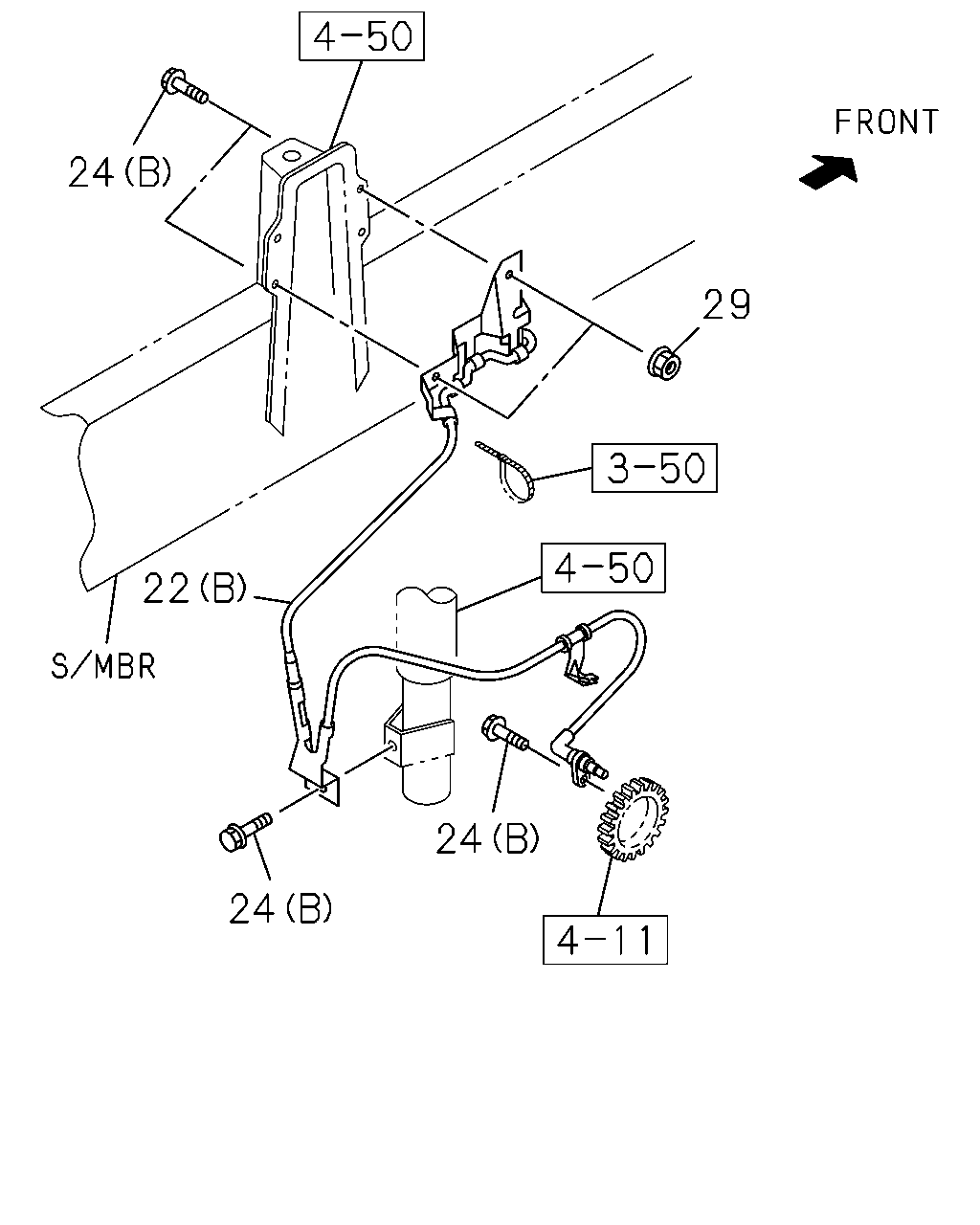

[315A] FRONT (9 parça)

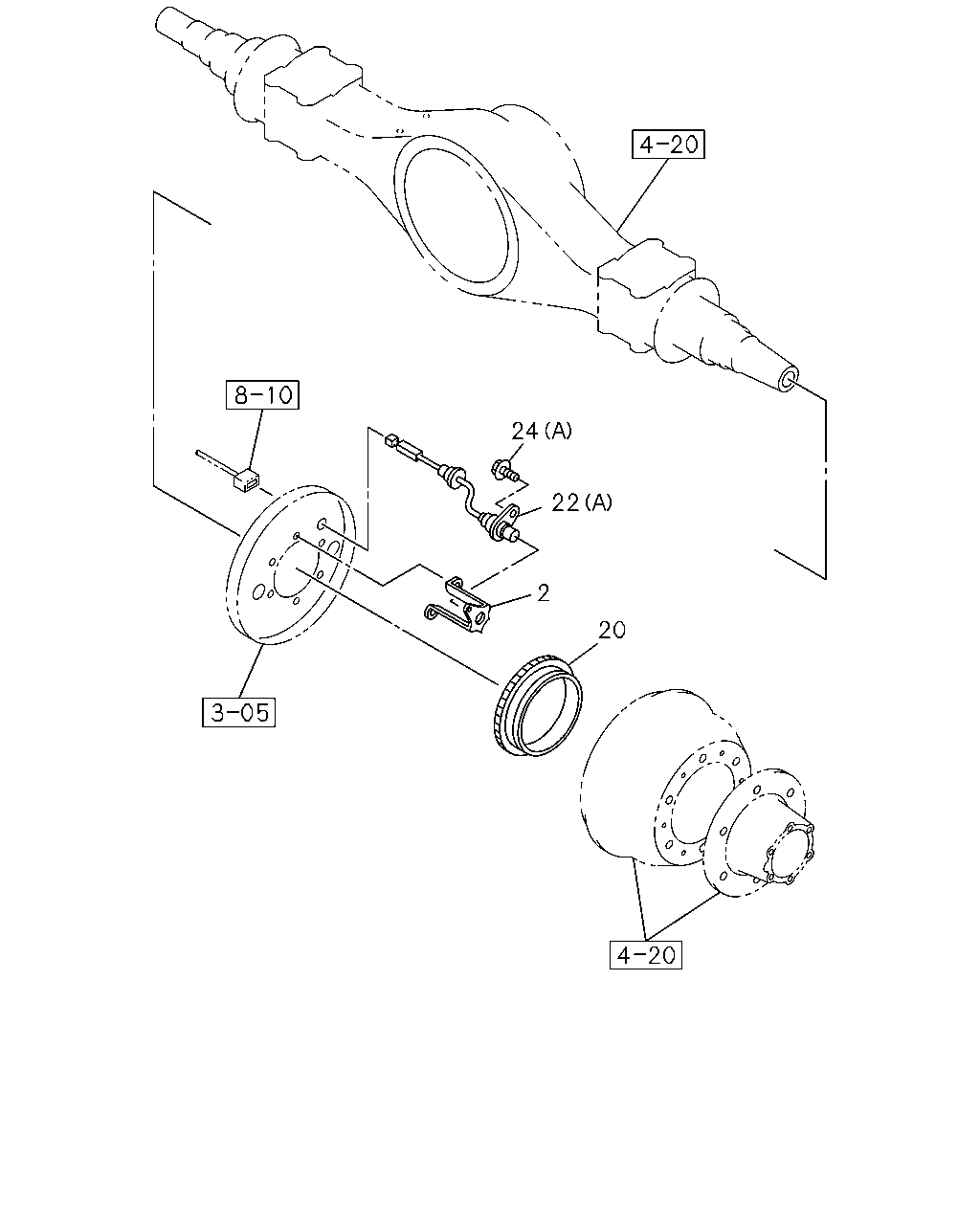

[315A] REAR (10 parça)
▶
24
29
24
24
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
04.710 SENSOR; SPEED
(A)
8-97388-899-1
02
1
1302-1401
22
04.710 SENSOR; SPEED
(A)
8-98219-351-0
02
1
1402-
22
04.710 SENSOR; SPEED
(B)
8-98158-379-0
01
1
1302-
22
04.710 SENSOR; SPEED
(B)
8-98158-380-0
01
1
1302-
24
04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE
0-28050-610-0
02
1
1302-1401
24
04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE
0-28050-616-0
02
1
1402-
24
04.730 BOLT; SENSOR
02.343 (B) M8X12 FLANGE
0-28050-812-0
04
1
1302-
24
04.730 BOLT; SENSOR
01.531 (B) M8X20 FLANGE
0-28650-820-0
02
1
1302-
29
04.730 NUT
01.062 M8 FLANGE
0-91180-108-0
04
1
1302-
24
22
2
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
04.730 BRACKET; SENSOR
8-98000-019-2
02
1
1302-
20
04.710 ROTOR; SENSOR
8-97234-459-3
02
1
1302-
22
04.710 SENSOR; SPEED
(A)
8-97388-899-1
02
1
1302-1401
22
04.710 SENSOR; SPEED
(A)
8-98219-351-0
02
1
1402-
22
04.710 SENSOR; SPEED
(B)
8-98158-379-0
01
1
1302-
22
04.710 SENSOR; SPEED
(B)
8-98158-380-0
01
1
1302-
24
04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE
0-28050-610-0
02
1
1302-1401
24
04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE
0-28050-616-0
02
1
1402-
24
04.730 BOLT; SENSOR
02.343 (B) M8X12 FLANGE
0-28050-812-0
04
1
1302-
24
04.730 BOLT; SENSOR
01.531 (B) M8X20 FLANGE
0-28650-820-0
02
1
1302-
