◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07B - CLUTCH BOOSTER; MINIPACK ▶
2-07B — CLUTCH BOOSTER; MINIPACK (#115136) — 52 parça

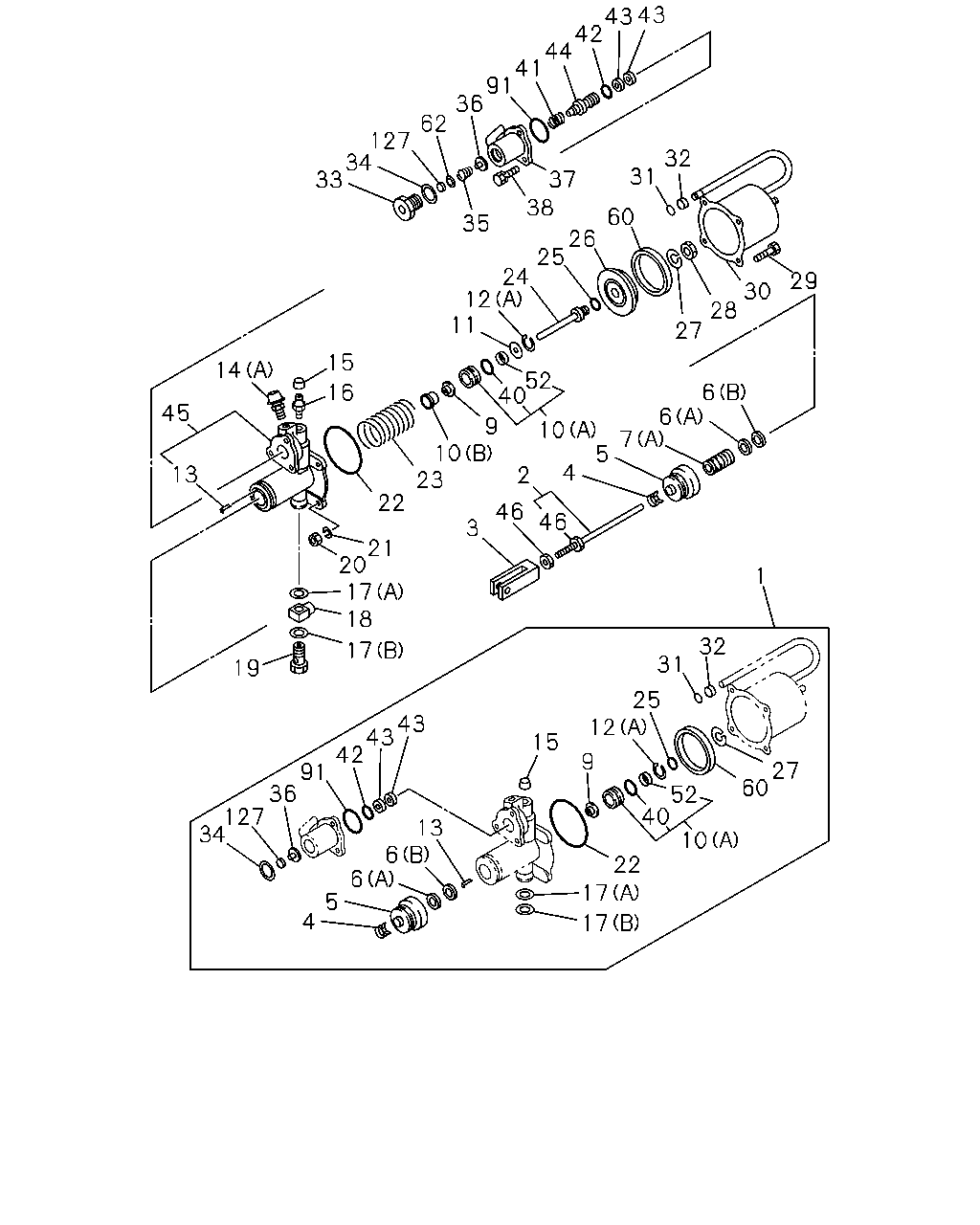

çizim 337067
43 43 42 44 41 91 36 62 127 34 33 35 38 37 32 31 60 26 25 24 12 11 15 14 16 45 13 19 17 17 18 20 22 23 10 21 3 2 46 46 4 5 7 6 6 27 28 30 29 52 40 9 10 1 27 60 10 52 40 12 31 32 25 22 17 17 9 15 13 6 6 5 4 43 43 42 91 36 127 34
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-551-0 01 1 1303-
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 1303-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 1303-
4 CLAMP; BOOSTER 1-31829-168-0 01 1 1303-
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 1303-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1303-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1303-
7 PISTON; CLU BOOSTER
(A) 		1-31821-048-0 01 1 1303-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1303-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1303-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1303-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1303-
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1303-
13 PIN; SPR 1-31829-109-0 01 1 1303-
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 1303-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1303-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1303-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1303-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1303-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1303-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1303-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 1303-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 1303-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 1303-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1303-
24 ROD; PUSH,CLU BOOSTER 1-31829-334-0 01 1 1303-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1303-
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 1303-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1303-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1303-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 1303-
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 1303-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 1303-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 1303-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1303-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1303-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1303-
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1303-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-092-0 01 1 1303-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1303-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1303-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 1303-
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 1303-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 1303-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 1303-
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 1303-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1303-
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1303-
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 1303-
62 RETAINER; POPPET 1-31829-489-0 01 1 1303-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1303-
127 FILTER; POPPET 1-31829-495-0 01 1 1303-
