7-50 — FRONT SEAT (#115135) — 65 parça

1 71 17 99 18 2 19 228 24 12 13 72 69 627 67 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.720 BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-365-3	01	1	1302-1309
1	16.720 BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-365-3	01	1	1310-
1	16.720 BACK ASM; SEAT MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-476-3	01	1	1302-1309
1	16.720 BACK ASM; SEAT MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY	8-97400-476-3	01	1	1310-
2	16.724 COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-366-2	01	1	1302-1309
2	16.724 COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-366-2	01	1	1310-
2	16.724 COVER; TRIM,FRT SEAT,BACK MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-477-2	01	1	1302-1309
2	16.724 COVER; TRIM,FRT SEAT,BACK MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY	8-97400-477-2	01	1	1310-
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-367-1	01	1	1302-1309
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-367-1	01	1	1310-
12	16.670 CUSHION; SEAT,FRT MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-478-1	01	1	1302-1309
12	16.670 CUSHION; SEAT,FRT MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY	8-97400-478-1	01	1	1310-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-368-1	01	1	1302-1309
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-368-1	01	1	1310-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-479-1	01	1	1302-1309
13	16.717 COVER; TRIM,FRT SEAT,CUSHION MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY	8-97400-479-1	01	1	1310-
17	16.682 BOLT; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> M8X20	8-97255-906-0	02	1	1302-1309
17	16.682 BOLT; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> M8X20	8-97255-906-0	02	1	1310-
18	16.682 COVER; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-095-0	01	1	1302-1309
18	16.682 COVER; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-095-0	01	1	1310-
19	16.686 SCREW; COVER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	1302-1309
19	16.686 SCREW; COVER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	1310-
24	16.682 KNOB; RECLINING,FRT,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> GRAY	8-97415-446-0	01	1	1302-1309
24	16.682 KNOB; RECLINING,FRT,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> GRAY	8-97415-446-0	01	1	1310-
63	16.682 ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA>	8-97854-670-3	01	1	1302-1309
63	16.682 ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ>	8-97854-670-3	01	1	1310-
67	16.682 BOLT; FRT SEAT TO BODY 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1302-
69	16.682 NUT; FRT SEAT M8	1-09984-109-0	01	1	1302-
71	16.682 BOLT; ADJ TO SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 00.724 M8X35 W/LK WASHER	0-50540-835-0	02	1	1302-1309
71	16.682 BOLT; ADJ TO SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> 00.724 M8X35 W/LK WASHER	0-50540-835-0	02	1	1310-
72	16.682 SPACER; SEAT ADJ VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA>	8-97854-671-0	02	1	1302-1309
72	16.682 SPACER; SEAT ADJ VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ>	8-97854-671-0	02	1	1310-
99	16.716 BUSHING; SEAT BACK VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA>	8-97854-087-0	01	1	1302-1309
99	16.716 BUSHING; SEAT BACK VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ>	8-97854-087-0	01	1	1310-
228	16.714 SCREW; KNOB VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> INSPECTION ENGINE COVER<8GA> 11.377 M4X6	8-97042-273-0	01	1	1302-1309
228	16.714 SCREW; KNOB VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MANUAL TILT CAB<RWZ> 11.377 M4X6	8-97042-273-0	01	1	1310-
627	16.682 WASHER; FRT SEAT 06.514 ID=8.4 OD=22	8-94127-883-1	01	1	1302-

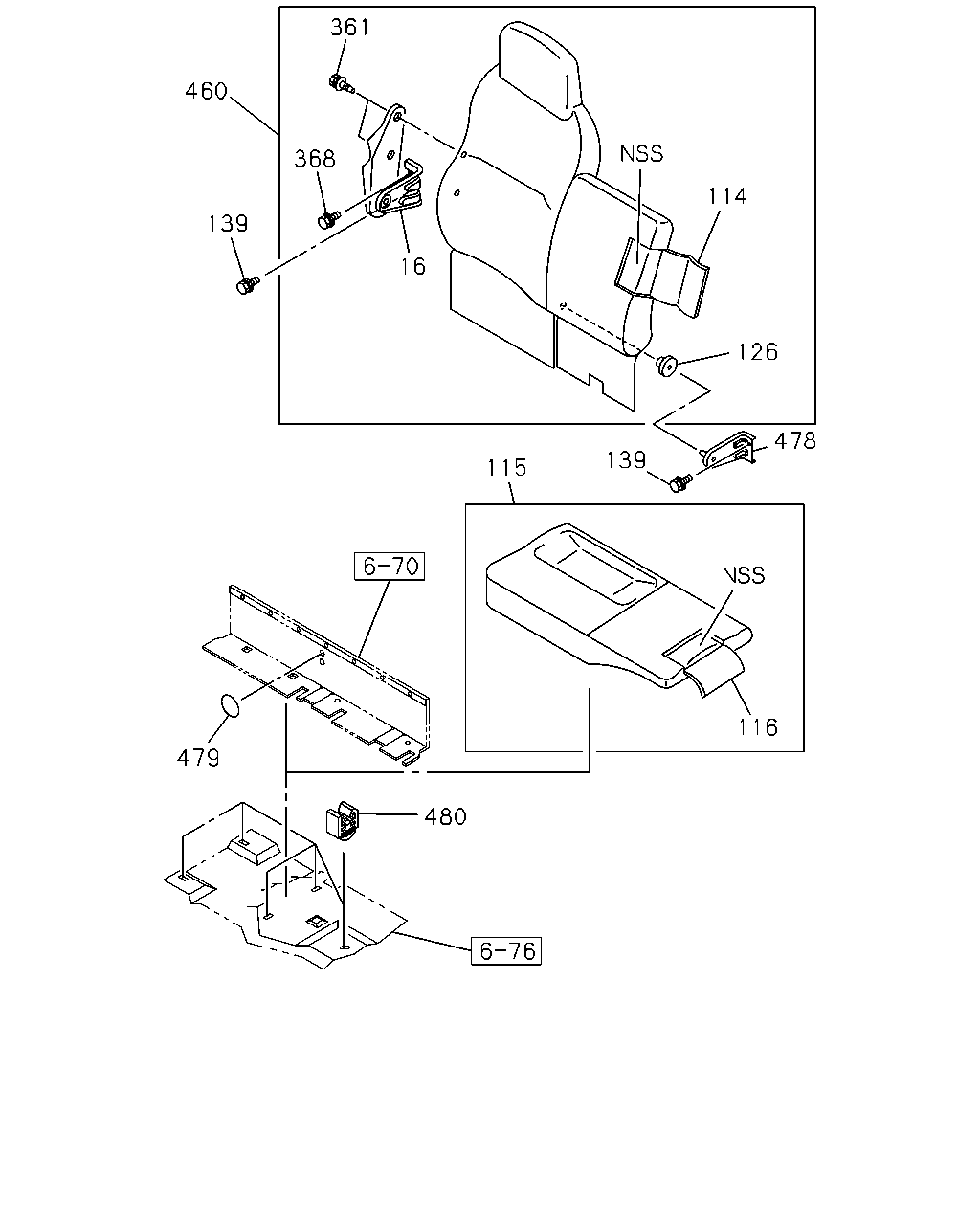

460 361 368 139 16 114 126 115 139 478 479 480 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> BLACK W/KNOB	8-97859-274-3	01	1	1302-1309
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> BLACK W/KNOB	8-97859-274-3	01	1	1310-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-373-2	01	1	1302-1309
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97400-373-2	01	1	1310-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-497-2	01	1	1302-1309
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97400-497-2	01	1	1310-
115	16.720 CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-362-3	01	1	1302-1309
115	16.720 CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97400-362-3	01	1	1310-
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-469-3	01	1	1302-1309
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97400-469-3	01	1	1310-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-355-1	01	1	1302-1309
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97400-355-1	01	1	1310-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-503-1	01	1	1302-1309
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> DARK GRAY	8-97400-503-1	01	1	1310-
126	16.686 BUSHING; HINGE,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA>	8-98069-558-0	01	1	1302-1309
126	16.686 BUSHING; HINGE,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-98069-558-0	01	1	1310-
139	16.679 BOLT; PASSENGER SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	03	1	1302-
361	16.682 BOLT; ADJ,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> M8X18	8-94279-109-1	02	1	1302-1309
361	16.682 BOLT; ADJ,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X18	8-94279-109-1	02	1	1310-
368	16.682 BOLT; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1302-1309
368	16.682 BOLT; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1310-
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-361-3	01	1	1302-1309
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97400-361-3	01	1	1310-
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97400-465-3	01	1	1302-1309
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97400-465-3	01	1	1310-
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-97868-187-0	01	1	1302-
479	16.716 PLUG; HINGE 16.165 OD=25 BLACK	1-76798-019-0	02	1	1302-
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	1302-
