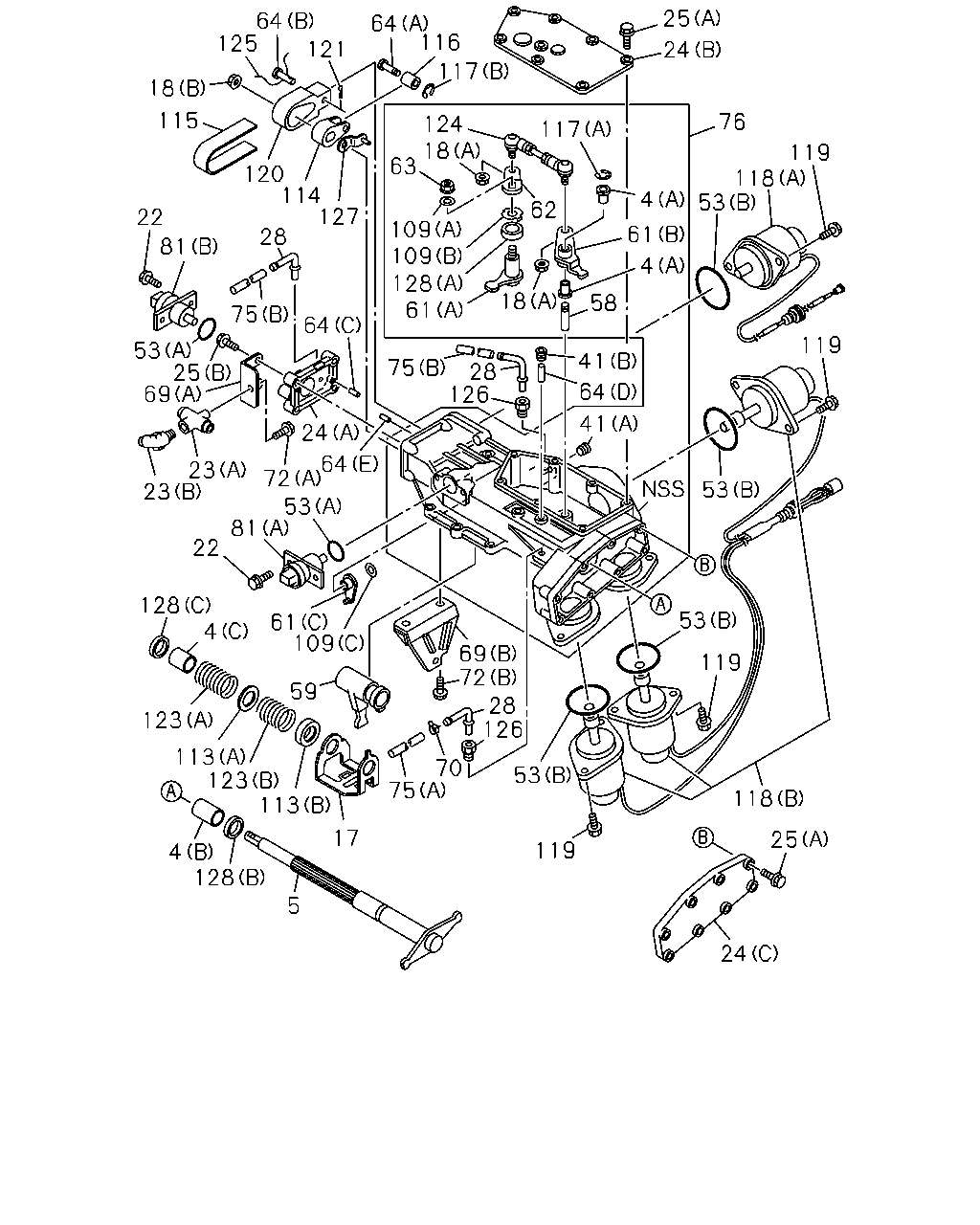

2-31 — AIR CONTROL TRANSMISSION (A.C.T.) (#115133) — 72 parça

24 25 118 119 53 75 17 5 128 4 123 113 123 113 126 69 72 28 70 59 61 109 4 128 81 22 72 64 53 24 23 23 69 53 75 25 64 28 81 22 115 120 18 114 121 127 125 64 64 24 25 116 124 117 117 18 63 109 128 109 62 4 4 61 18 61 58 118 53 76 126 28 75 41 119 64 119 41 53 53 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BUSHING; SHIFT UNIT (A) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-09330-144-0	02	1	-
4	BUSHING; SHIFT UNIT (C), ID=20 OD=23 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-33549-016-0	01	1	-
4	BUSHING; SHIFT UNIT (B), ID=28 OD=32 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-33549-104-0	01	1	-
5	ROD; SHIFT UNIT ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-98046-922-0	01	1	-
17	YOKE; SHIFT UNIT ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-33529-126-0	01	1	-
18	NUT; ROD (A), M6 FLANGE ASM PART: A = 8-98186-519-0, B = 8-98254-321-0	0-91180-106-0	02	1	-
18	NUT; ROD (B), M10 FLANGE ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	0-91180-110-0	01	1	-
18	NUT; ROD (A), M8 FLANGE ASM PART: C = 8-98302-719-0	1-09440-062-1	02	1	-
22	BOLT; SW M6X12 FLANGE ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	0-28050-612-0	04	1	-
23	CONNECTOR; SHIFT UNIT (B), DIN12 & R3/8 ELBOW ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-09660-959-0	01	1	-
23	CONNECTOR; SHIFT UNIT (A), DIN8 & RC3/8 3WAY ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-09661-129-0	01	1	-
24	COVER; SHIFT UNIT (C) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-34141-023-1	01	1	-
24	COVER; SHIFT UNIT (B) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-34141-028-0	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-98047-742-0	01	1	-
25	BOLT; COVER (A), M8X16 FLANGE ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	0-28050-816-0	15	1	-
25	BOLT; COVER (B), M6X25 FLANGE ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	0-28650-625-0	04	1	-
28	PIPE; SHIFT UNIT ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-97358-318-0	03	1	-
41	PLUG; SHIFT UNIT (B), PT3/8 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-09605-056-0	01	1	-
41	PLUG; SHIFT UNIT (A) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-94403-163-0	02	1	-
53	GASKET (A), ID=26.8 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-09623-058-0	02	1	-
53	GASKET (B) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	9-09561-360-0	04	1	-
58	SHAFT; GEAR SHIFT UNIT ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-33659-240-0	01	1	-
59	LEVER; INNER,GEAR SHIFT UNIT ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-33521-188-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (A) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-33522-194-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0	1-33671-943-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-98186-070-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: C = 8-98302-719-0	8-98302-746-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT ASM PART: A = 8-98186-519-0, B = 8-98254-321-0	1-33671-942-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT ASM PART: C = 8-98302-719-0	8-98302-744-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT M10 FLANGE ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	0-91180-110-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	0-82353-827-0	01	1	-
64	PIN; GEAR SHIFT UNIT (A) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-31424-011-0	01	1	-
64	PIN; GEAR SHIFT UNIT (D), OD=6 L=40 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-98036-471-1	01	1	-
64	PIN; GEAR SHIFT UNIT (E), OD=3 L=6.36 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-98046-977-0	02	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=5 L=10 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	9-08150-510-0	02	1	-
69	BRACKET; SHIFT UNIT (B) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-82569-396-2	01	1	-
69	BRACKET; SHIFT UNIT (A) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-82698-527-0	01	1	-
70	CLIP; SHIFT UNIT ID=7.8 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-94246-958-0	01	1	-
72	BOLT; BRKT (A), M8X16 FLANGE ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	0-28050-816-0	01	1	-
72	BOLT; BRKT (B), M12X30 FLANGE ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	0-28151-230-0	02	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-98067-939-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-98070-399-0	01	1	-
76	CASE; SHIFT UNIT ASM PART: A = 8-98186-519-0, B = 8-98254-321-0	8-98147-533-0	01	1	-
76	CASE; SHIFT UNIT ASM PART: C = 8-98302-719-0	8-98302-738-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-98107-824-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-98123-907-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	0-91610-612-0	01	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	0-91614-610-0	01	1	-
109	WASHER; PL (B), OD=40 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-09532-008-0	01	1	-
113	SEAT; SPRING (B) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-33537-024-0	01	1	-
113	SEAT; SPRING (A) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-33549-404-0	01	1	-
114	CAM; GEAR SHIFT UNIT ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-98046-921-0	01	1	-
115	GUIDE; PLATE,CAM ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-33549-401-0	01	1	-
116	ROLLER; SHAFT ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-33529-121-0	01	1	-
117	RING; SNAP (B), ID=4 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	0-91805-504-0	01	1	-
117	RING; SNAP (A), ID=10 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	0-91805-510-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-98162-694-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: A = 8-98186-519-0	8-98162-741-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: B = 8-98254-321-0, C = 8-98302-719-0	8-98254-315-0	01	1	-
119	BOLT; SOLENOID M10X25 FLANGE ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	0-28751-025-0	08	1	-
120	PLATE; CAM ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-33529-125-0	01	1	-
121	PIN; SPRIT L=27.7 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-09747-005-0	01	1	-
123	SPRING; SELECT (B) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-09580-593-0	01	1	-
123	SPRING; SELECT (A) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-09580-594-0	01	1	-
124	ROD ASM; LINK ASM PART: A = 8-98186-519-0, B = 8-98254-321-0	1-33671-944-1	01	1	-
124	ROD ASM; LINK ASM PART: C = 8-98302-719-0	8-98302-741-0	01	1	-
125	WIRE L=200 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	9-08351-020-0	01	1	-
126	PLUG; BREATHER ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-33149-023-0	02	1	-
127	PLATE; PIN,CAM TO SHIFT SENSOR ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	8-98046-924-0	01	1	-
128	SEAL; OIL,SHIFT UNIT (A), OD=30 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-09625-386-0	01	1	-
128	SEAL; OIL,SHIFT UNIT (C) ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-09625-612-1	01	1	-
128	SEAL; OIL,SHIFT UNIT (B), OD=41 ASM PART: A = 8-98186-519-0, B = 8-98254-321-0, C = 8-98302-719-0	1-09625-647-0	01	1	-
