Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11534 - CYJ RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#115131) — 79 parça
◀

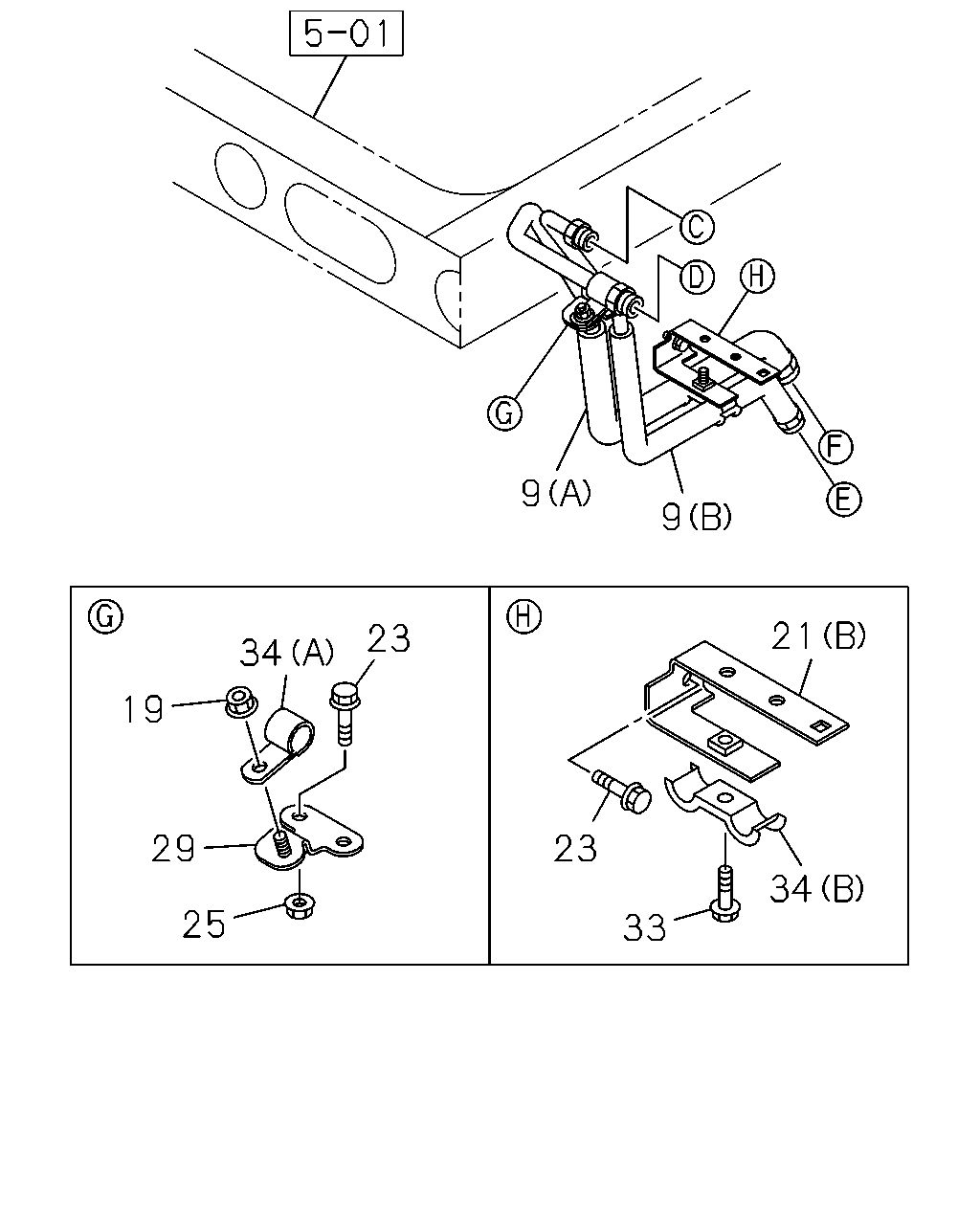

[852A] FRAME SIDE NO.1 (14 parça)
[852A] FRAME SIDE NO.2 (26 parça)
[852A] CAB SIDE NO.1 (17 parça)
[852A] CAB SIDE NO.2 (22 parça)
▶
34
33
23
21
9
9
19
34
29
23
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
PIPE; COOLER,HOSE TO HOSE
(A)
8-98226-522-0
01
1
1303-
9
PIPE; COOLER,HOSE TO HOSE
(B)
8-98226-523-0
01
1
1303-
19
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
02
1
1305-
19
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
03
1
1303-1304
19
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
01
1
1305-
21
BRACKET; COOLER HOSE
(A)
8-98227-084-0
01
1
1303-
21
BRACKET; COOLER HOSE
(B)
8-98227-085-1
01
1
1303-
23
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
1303-
23
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
01
1
1303-
25
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1303-
29
BRACKET; COOLER PIPE
8-97638-928-0
01
1
1303-
33
BOLT; CLIP
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1303-
34
CLIP; COOLER PIPE
(B) ID=20 & 20
1-83574-195-1
01
1
1303-
34
CLIP; COOLER PIPE
(A) ID=17 L=28
8-94427-862-0
01
1
1303-

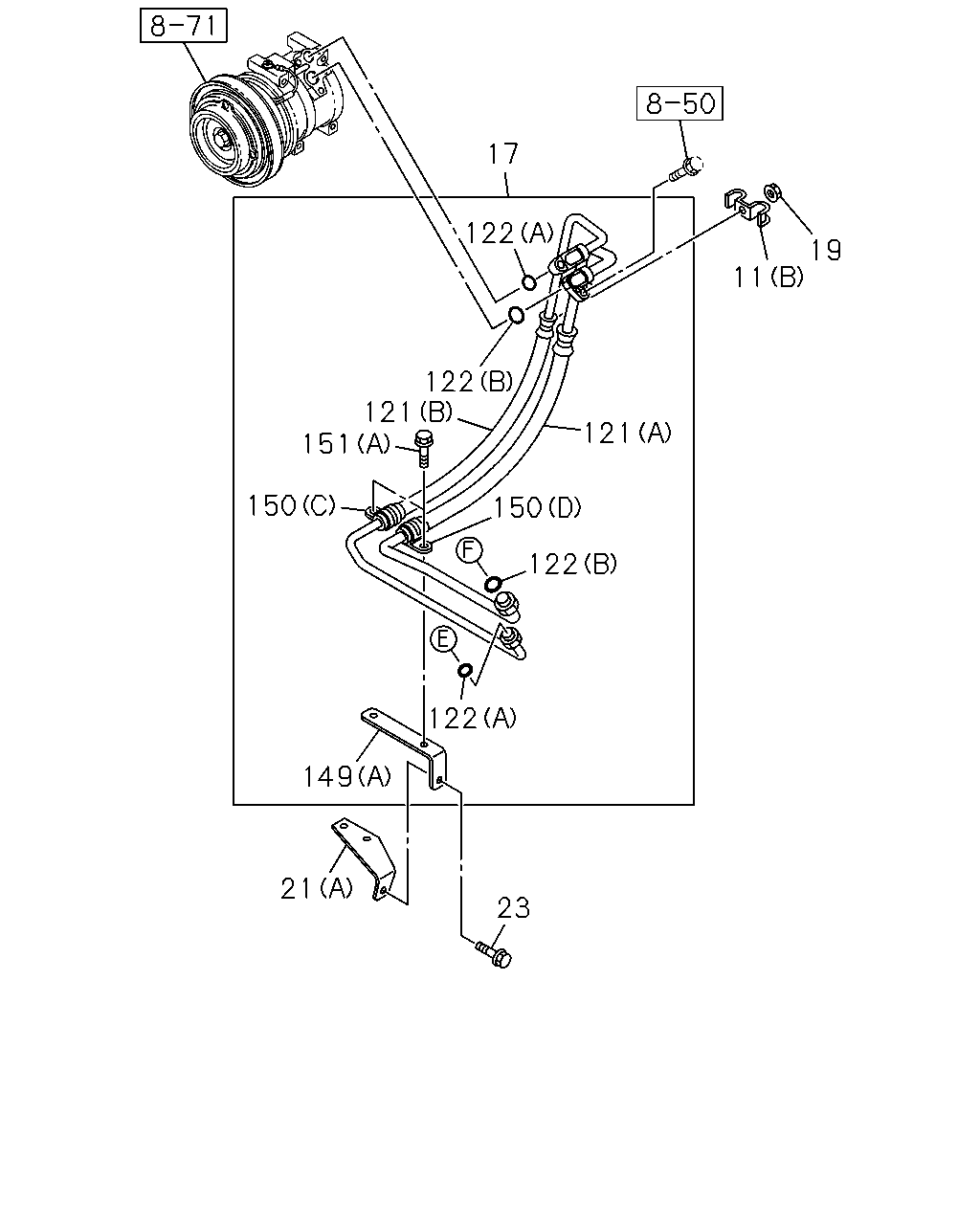

17
122
11
19
121
150
122
122
23
21
149
150
151
121
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
CLIP; COOLER PIPE
(B) ID=12 & 14.5
1-83574-257-0
01
1
1303-
17
HOSE; FLEX,CMPR TO PIPE
8-98226-521-1
01
1
1303-
19
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
02
1
1305-
19
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
03
1
1303-1304
19
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
01
1
1305-
21
BRACKET; COOLER HOSE
(A)
8-98227-084-0
01
1
1303-
21
BRACKET; COOLER HOSE
(B)
8-98227-085-1
01
1
1303-
23
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
1303-
23
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
01
1
1303-
121
HOSE; COOLER
(C)
1-83577-054-0
01
1
1303-
121
HOSE; COOLER
(D)
8-98165-880-0
01
1
1303-
121
HOSE; COOLER
(E)
8-98165-881-0
01
1
1303-
121
HOSE; COOLER
(A)
8-98232-122-0
01
1
1303-
121
HOSE; COOLER
(B)
8-98232-123-0
01
1
1303-
122
GASKET
(C) ID=11.7
1-83539-317-0
02
1
1303-
122
GASKET
(D) ID=14.5
1-83539-324-0
02
1
1303-
122
GASKET
(A) ID=11.7
8-97095-907-0
02
1
1303-
122
GASKET
(B) ID=14.5
8-97095-908-0
02
1
1303-
149
BRACKET; COOLER HOSE
(B)
8-98165-879-0
01
1
1303-
149
BRACKET; COOLER HOSE
(A)
8-98232-121-0
01
1
1303-
150
CLIP; HOSE
(C)
1-83574-249-0
01
1
1303-
150
CLIP; HOSE
(A)
1-83574-262-0
01
1
1303-
150
CLIP; HOSE
(B)
1-83574-263-0
01
1
1303-
150
CLIP; HOSE
(D)
1-83574-264-0
01
1
1303-
151
BOLT; CLIP FIX,COOLER HOSE
(B)
1-83539-336-0
02
1
1303-
151
BOLT; CLIP FIX,COOLER HOSE
(A)
1-83578-098-0
02

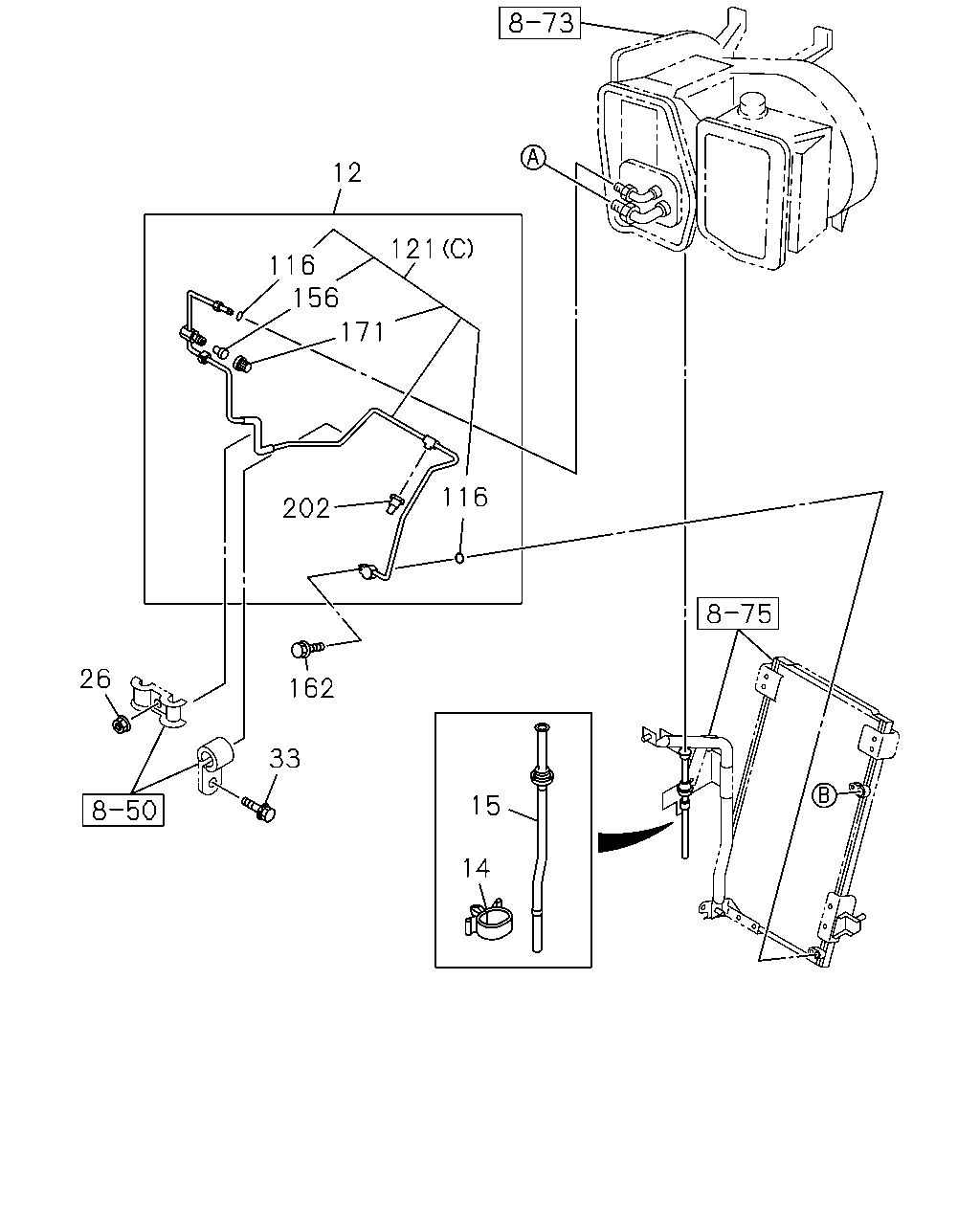

1
1303-
12
116
171
116
202
162
26
33
15
14
121
156
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
1-83567-877-1
01
1
1303-
14
CLIP; BAND,EVAP DRAIN HOSE
ID=20
8-94410-200-0
01
1
1303-
15
HOSE; DRAIN
1-83572-635-0
01
1
1303-
26
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
01
1
1303-
33
BOLT; CLIP
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1303-
116
GASKET; PIPE
ID=7.4
8-97095-906-0
02
1
1303-
121
HOSE; COOLER
(C)
1-83577-054-0
01
1
1303-
121
HOSE; COOLER
(D)
8-98165-880-0
01
1
1303-
121
HOSE; COOLER
(E)
8-98165-881-0
01
1
1303-
121
HOSE; COOLER
(A)
8-98232-122-0
01
1
1303-
121
HOSE; COOLER
(B)
8-98232-123-0
01
1
1303-
156
VALVE; PIPE
8-97095-909-0
01
1
1303-
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
02
1
1303-1303
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
02
1
1303-1303
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
02
1
1304-
171
CAP; PIPE
CAP MARK H
8-97095-911-0
01
1
1303-
202
SWITCH; PRESSURE
1-83564-392-1
01
1
1303-

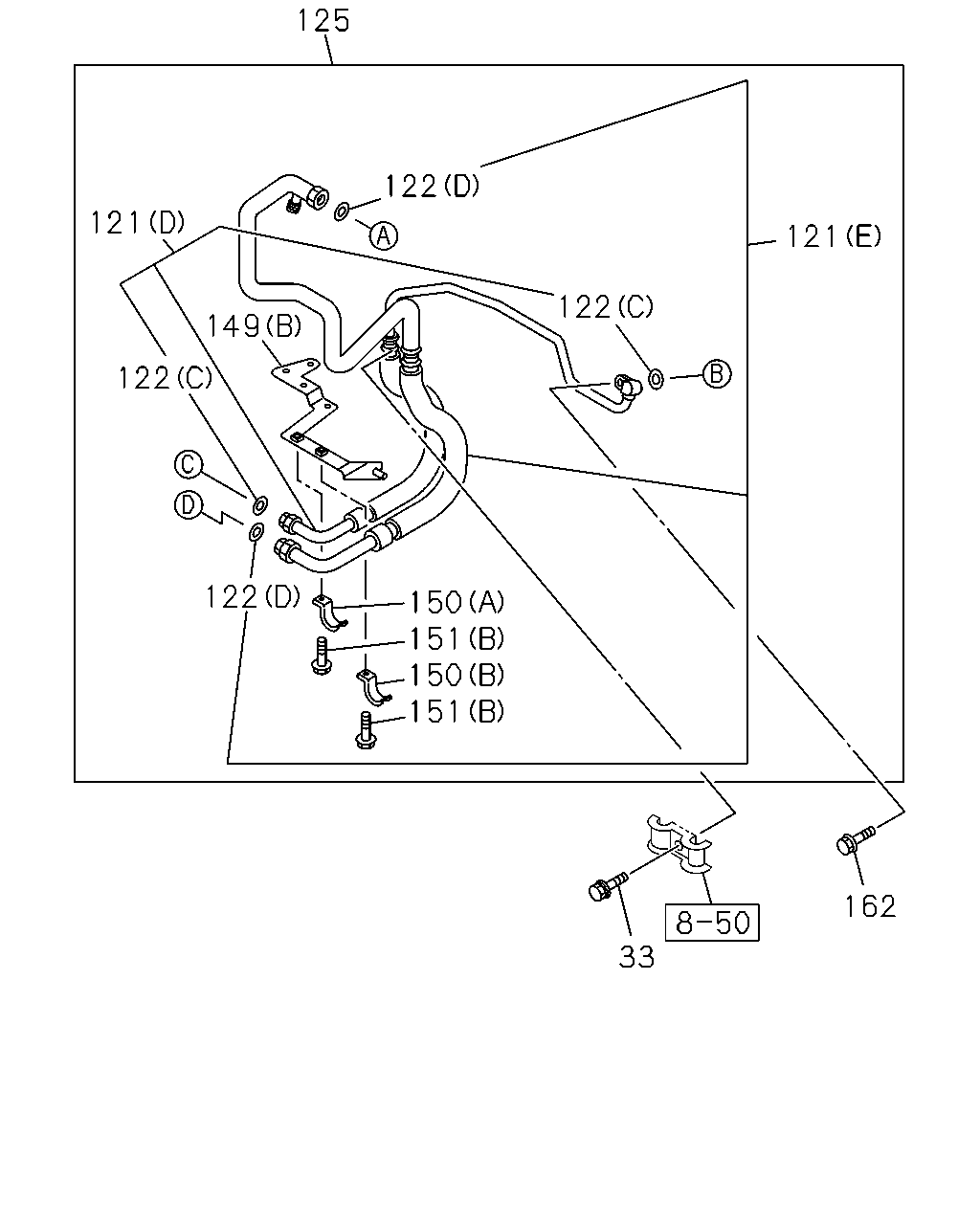

33
162
121
122
150
151
151
150
122
149
122
121
122
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
BOLT; CLIP
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1303-
121
HOSE; COOLER
(C)
1-83577-054-0
01
1
1303-
121
HOSE; COOLER
(D)
8-98165-880-0
01
1
1303-
121
HOSE; COOLER
(E)
8-98165-881-0
01
1
1303-
121
HOSE; COOLER
(A)
8-98232-122-0
01
1
1303-
121
HOSE; COOLER
(B)
8-98232-123-0
01
1
1303-
122
GASKET
(C) ID=11.7
1-83539-317-0
02
1
1303-
122
GASKET
(D) ID=14.5
1-83539-324-0
02
1
1303-
122
GASKET
(A) ID=11.7
8-97095-907-0
02
1
1303-
122
GASKET
(B) ID=14.5
8-97095-908-0
02
1
1303-
125
HOSE; FLEX,UNIT TO CMPR
8-98119-508-1
01
1
1303-
149
BRACKET; COOLER HOSE
(B)
8-98165-879-0
01
1
1303-
149
BRACKET; COOLER HOSE
(A)
8-98232-121-0
01
1
1303-
150
CLIP; HOSE
(C)
1-83574-249-0
01
1
1303-
150
CLIP; HOSE
(A)
1-83574-262-0
01
1
1303-
150
CLIP; HOSE
(B)
1-83574-263-0
01
1
1303-
150
CLIP; HOSE
(D)
1-83574-264-0
01
1
1303-
151
BOLT; CLIP FIX,COOLER HOSE
(B)
1-83539-336-0
02
1
1303-
151
BOLT; CLIP FIX,COOLER HOSE
(A)
1-83578-098-0
02
1
1303-
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
02
1
1303-1303
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
02
1
1303-1303
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
02
1
1304-
