◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11501 - CYZ LHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#115130) — 26 parça

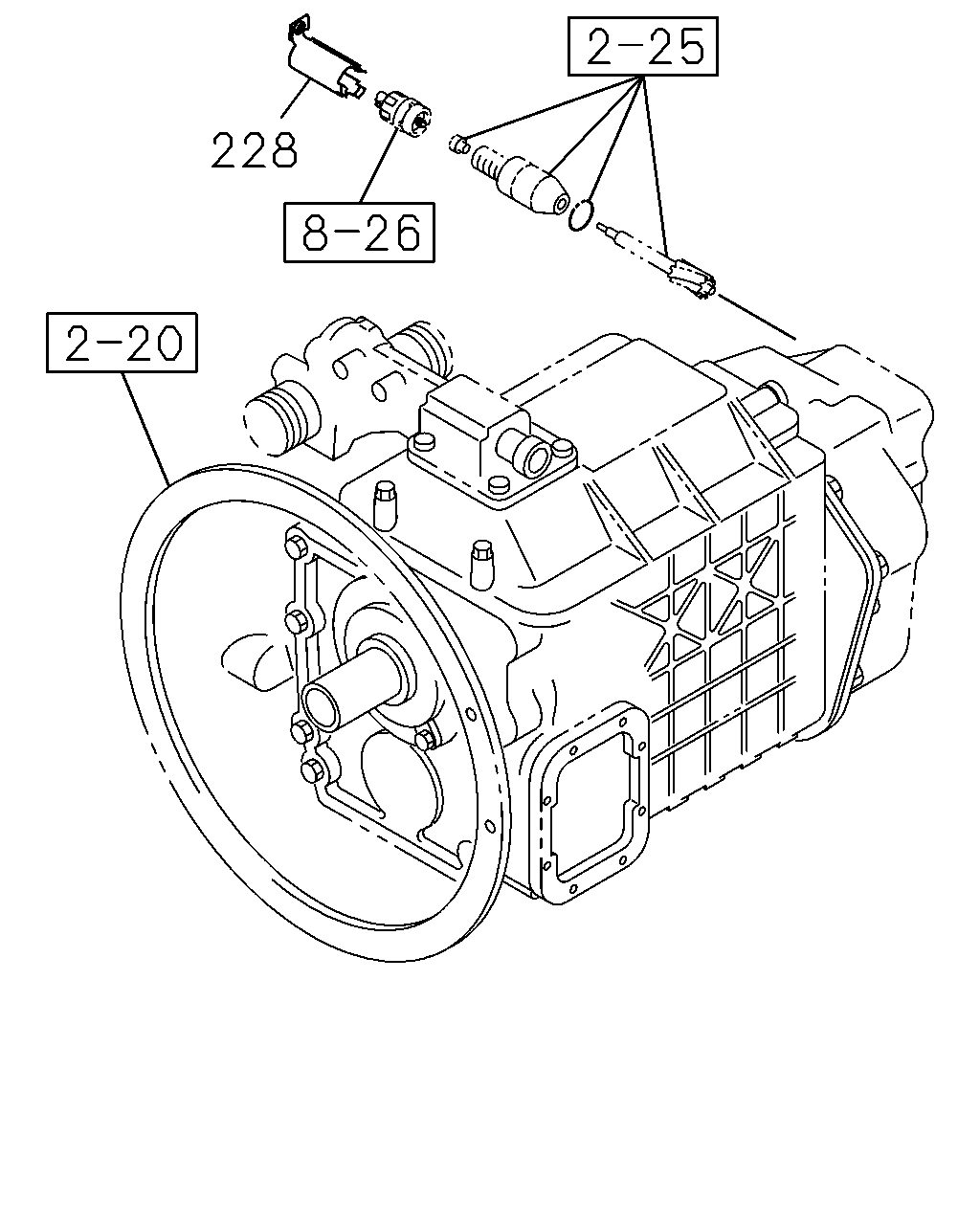

çizim 337002
228
BalonParca AdiParca NoAdetTipApplied Date A B
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 1303-1511 ●
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 1512- ● ●
çizim 337042
129 150 6 62 6 150 151
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1303-1511 ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1303-1511 ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1512- ● ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1512- ● ●
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 1303-1506 ●
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507-1511 ●
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1512- ● ●
129 COLLAR 1-83129-471-0 02 1 1303-1511 ●
129 COLLAR 1-83129-471-0 02 1 1512- ● ●
150 SENSOR; SPEED,ABS
REAR AXLE RT260<C2B> (B) 		8-98148-100-0 01 1 1512- ● ●
150 SENSOR; SPEED,ABS
REAR AXLE RT260<C2B> (B) 		8-98148-101-0 01 1 1512- ● ●
150 SENSOR; SPEED,ABS
FRT BRK AIR D410 WEDGE-160-24/24<B7R> (A) 		1-83127-961-1 02 1 1512- ● ●
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 02 1 1303-1511 ●
150 SENSOR; SPEED,ABS
FRT BRK AIR D410 WEDGE-160-24<B7Q> (A) 		1-83127-853-3 02 1 1512- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98224-161-0 01 1 1303-1511 ●
150 SENSOR; SPEED,ABS
REAR AXLE RT210<C2A> (B) 		8-98224-161-0 01 1 1512- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98224-162-0 01 1 1303-1511 ●
150 SENSOR; SPEED,ABS
REAR AXLE RT210<C2A> (B) 		8-98224-162-0 01 1 1512- ● ●
151 BRACKET; SPD SENSOR 1-83129-405-0 01 1 1303-1504 ●
151 BRACKET; SPD SENSOR 8-98299-398-0 01 1 1505-1511 ●
151 BRACKET; SPD SENSOR 8-98299-398-0 01 1 1512- ● ●
151 BRACKET; SPD SENSOR 1-83129-406-0 01 1 1303-1504 ●
151 BRACKET; SPD SENSOR 8-98299-399-0 01 1 1505-1511 ●
151 BRACKET; SPD SENSOR 8-98299-399-0 01 1 1512- ● ●
