Isuzu WW
▶
TRUCKS
▶
EXR
▶
10863 - EXR RHD FUEL TANK 200L+200L
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-74 - EVAPORATOR
▶

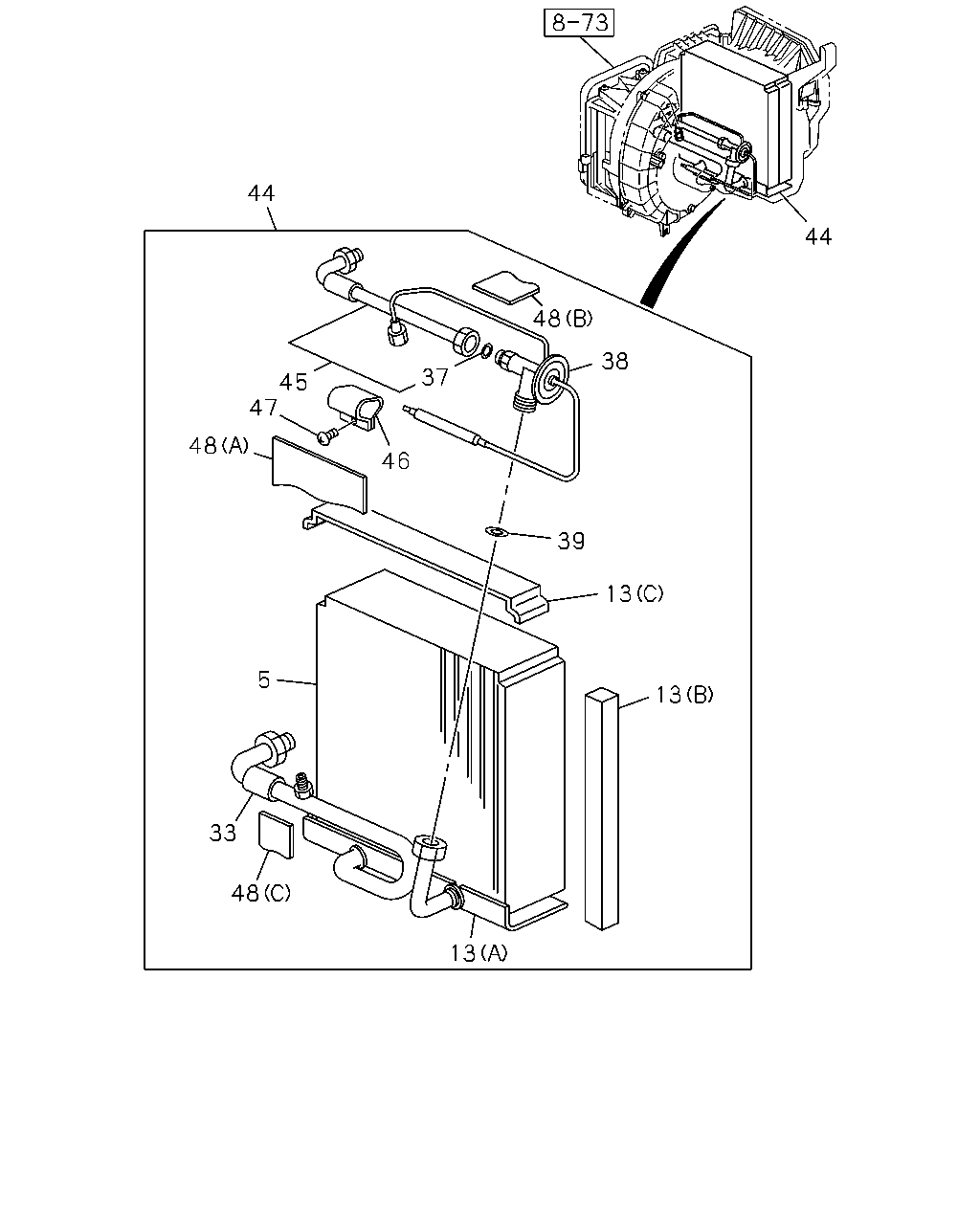

8-74 — EVAPORATOR
(#11513) — 15 parça
44
44
48
38
37
45
47
48
46
39
13
5
13
33
48
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83562-095-0
01
1
0106-
13
SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83579-669-1
01
1
0106-
13
SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83579-938-0
01
1
0106-
13
SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83579-939-0
01
1
0106-
33
LINING; EVAP
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-653-0
01
1
0106-
37
GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07
8-94461-902-0
01
1
0106-
38
VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60)
1-83569-158-0
01
1
0106-
39
GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60)
8-94481-717-0
01
1
0106-
44
EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83562-094-1
01
1
0106-
45
PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60)
1-83567-681-1
01
1
0106-
46
CLIP; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60)
1-83574-214-0
01
1
0106-
47
SCREW; EVAP
AIR CONDITIONER MANUAL CONTROL(C60)
8-97130-601-0
01
1
0106-
48
INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83579-784-0
01
1
0106-
48
INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83579-969-0
01
1
0106-
48
INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83579-970-0
01
1
0106-
