4-36 — POWER STEERING CONTROL; ENGINE SIDE (#115128) — 26 parça

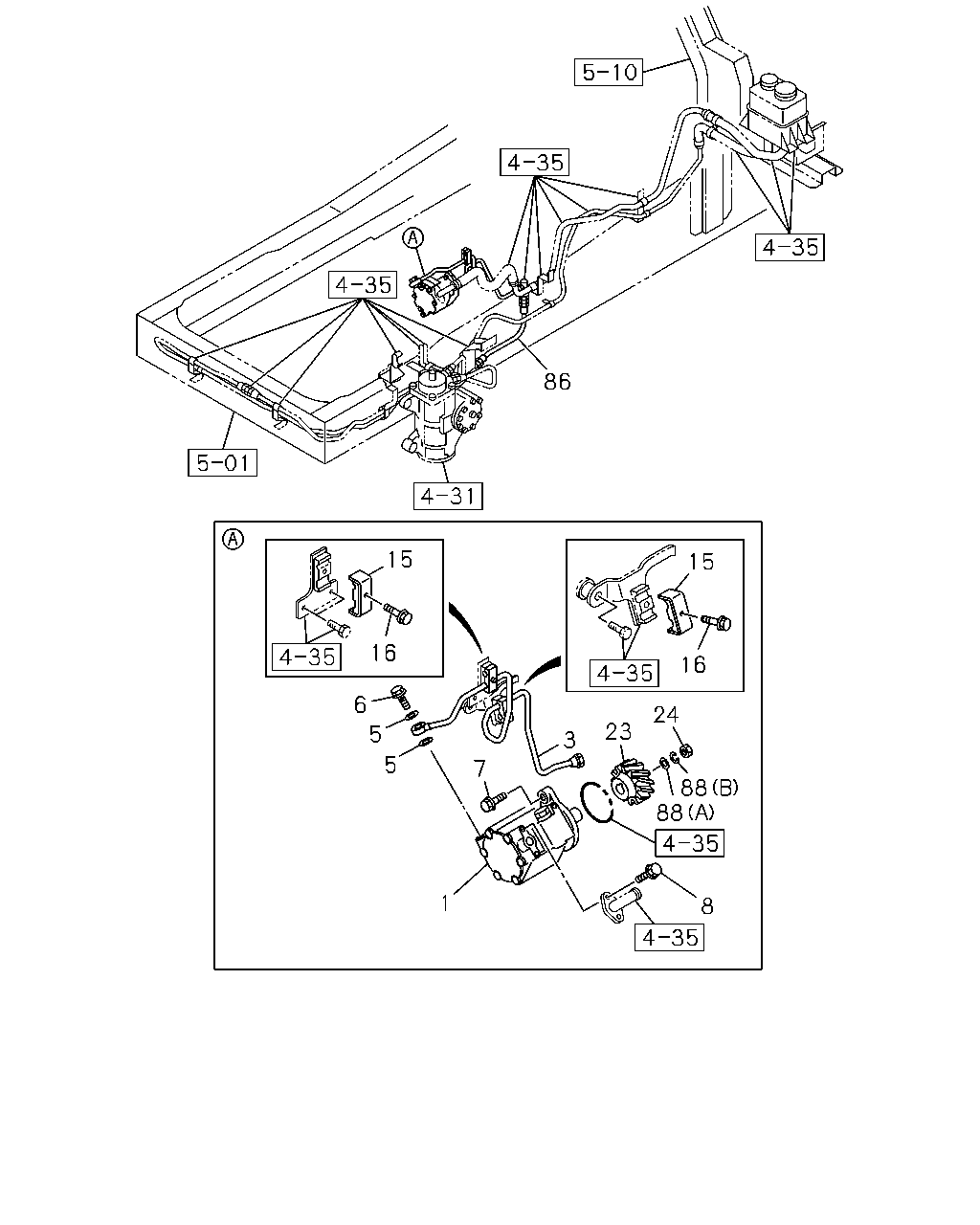

çizim 336443
86 15 16 15 16 24 23 3 6 5 5 7 1 88 88 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-616-3 01 1 1303-1511 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-616-3 01 1 1512- ● ●
3 PIPE; OIL,CHARGE,P/S 8-97618-554-0 01 1 1303-1511 ●
3 PIPE; OIL,CHARGE,P/S 8-97618-554-0 01 1 1512- ● ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 1303-1511 ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 1512- ● ●
6 BOLT; EYE,P/S PIPE
M18X33 		1-09675-058-0 01 1 1303-1511 ●
6 BOLT; EYE,P/S PIPE
M18X33 		1-09675-058-0 01 1 1512- ● ●
7 BOLT; OIL PUMP,P/S
M10X130 FLANGE 		0-28156-013-0 02 1 1303-1511 ●
7 BOLT; OIL PUMP,P/S
M10X130 FLANGE 		0-28156-013-0 02 1 1512- ● ●
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1303-1511 ●
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1512- ● ●
15 CLIP; OIL PIPE SUCTION 1-09701-195-3 02 1 1303-1511 ●
15 CLIP; OIL PIPE SUCTION 1-09701-195-3 02 1 1512- ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28650-635-0 02 1 1303-1511 ●
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28650-635-0 02 1 1512- ● ●
23 GEAR; OIL PUMP
Z=20 		1-19581-041-0 01 1 1303-1511 ●
23 GEAR; OIL PUMP
Z=20 		1-19581-041-0 01 1 1512- ● ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 1303-1511 ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 1512- ● ●
86 HOSE; FLEX,P/S
L=380 		1-09365-226-0 01 1 1303-1511 ●
86 HOSE; FLEX,P/S
L=380 		1-09365-226-0 01 1 1512- ● ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 1303-1511 ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 1512- ● ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 1303-1511 ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 1512- ● ●
