4-80 — ROAD WHEEL (#115127) — 97 parça

3 8 3 8 4 16 8 2 3 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-764-0	01	1	1512-	●	●
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR	1-42350-764-0	10	1	1512-	●	●
2	WHEEL; DISC FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (B) FRONT	8-98202-326-0	02	1	1512-	●	●
2	WHEEL; DISC FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (A) REAR	8-98217-247-0	08	1	1512-	●	●
2	WHEEL; DISC FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98202-326-0	01	1	1512-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (C) FRONT,REAR	1-42350-448-0	10	1	1512-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-448-0	01	1	1512-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1303-1407		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1408-1511		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1512-	●	●
2	WHEEL; DISC (A) FRONT,REAR	8-98217-247-0	10	1	1303-1407		●
2	WHEEL; DISC (A) FRONT,REAR	8-98281-497-0	10	1	1408-1511		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR	8-98281-497-0	10	1	1512-	●	●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1303-1511		●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1512-	●	●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1303-1511		●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1512-	●	●
8	VALVE; TIRE WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42370-041-1	01	1	1512-	●	●
8	VALVE; TIRE WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR	1-42370-041-1	10	1	1512-	●	●
8	VALVE; TIRE FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (A) FRONT,REAR	1-42370-048-0	10	1	1512-	●	●
8	VALVE; TIRE FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-048-0	01	1	1512-	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-048-0	01	1	1303-1407		●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-019-3	01	1	1408-1511		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-019-3	01	1	1512-	●	●
8	VALVE; TIRE (A) FRONT,REAR	1-42370-048-0	10	1	1303-1407		●
8	VALVE; TIRE (A) FRONT,REAR	1-42370-019-3	10	1	1408-1511		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR	1-42370-019-3	10	1	1512-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	8-98167-052-0	04	1	1303-1511		●
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	8-98167-052-0	04	1	1512-	●	●
33	COVER; WHEEL FT WHEEL COVER<JEH>	1-43139-065-1	02	1	1303-1511		●
33	COVER; WHEEL FT WHEEL COVER<JEH>	1-43139-065-1	02	1	1512-	●	●

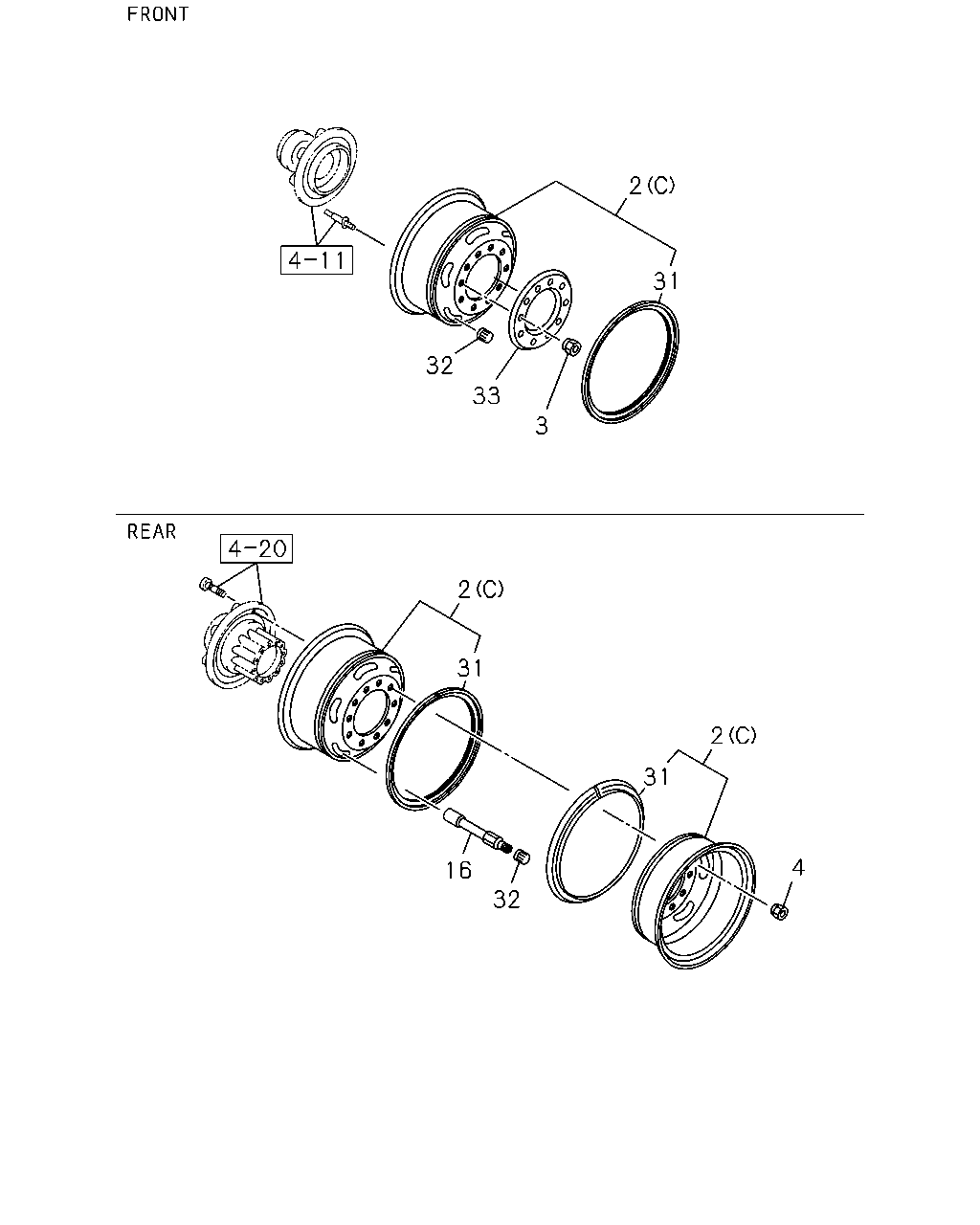

2 31 3 33 32 2 31 16 32 2 31 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-764-0	01	1	1512-	●	●
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR	1-42350-764-0	10	1	1512-	●	●
2	WHEEL; DISC FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (B) FRONT	8-98202-326-0	02	1	1512-	●	●
2	WHEEL; DISC FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (A) REAR	8-98217-247-0	08	1	1512-	●	●
2	WHEEL; DISC FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98202-326-0	01	1	1512-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (C) FRONT,REAR	1-42350-448-0	10	1	1512-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-448-0	01	1	1512-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1303-1407		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1408-1511		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1512-	●	●
2	WHEEL; DISC (A) FRONT,REAR	8-98217-247-0	10	1	1303-1407		●
2	WHEEL; DISC (A) FRONT,REAR	8-98281-497-0	10	1	1408-1511		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR	8-98281-497-0	10	1	1512-	●	●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1303-1511		●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1512-	●	●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1303-1511		●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1512-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	8-98167-052-0	04	1	1303-1511		●
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	8-98167-052-0	04	1	1512-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT,REAR	1-42355-014-0	10	1	1512-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-014-0	01	1	1512-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	1512-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	1512-	●	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1303-1511		●
32	CAP; VALVE FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH), DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	10	1	1512-	●	●
32	CAP; VALVE	1-42374-001-0	10	1	1303-1511		●
32	CAP; VALVE FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH), DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1512-	●	●
33	COVER; WHEEL FT WHEEL COVER<JEH>	1-43139-065-1	02	1	1303-1511		●
33	COVER; WHEEL FT WHEEL COVER<JEH>	1-43139-065-1	02	1	1512-	●	●

2 8 32 33 3 32 8 2 4 32 16 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-764-0	01	1	1512-	●	●
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR	1-42350-764-0	10	1	1512-	●	●
2	WHEEL; DISC FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (B) FRONT	8-98202-326-0	02	1	1512-	●	●
2	WHEEL; DISC FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (A) REAR	8-98217-247-0	08	1	1512-	●	●
2	WHEEL; DISC FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98202-326-0	01	1	1512-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (C) FRONT,REAR	1-42350-448-0	10	1	1512-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-448-0	01	1	1512-	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1303-1407		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1408-1511		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1512-	●	●
2	WHEEL; DISC (A) FRONT,REAR	8-98217-247-0	10	1	1303-1407		●
2	WHEEL; DISC (A) FRONT,REAR	8-98281-497-0	10	1	1408-1511		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR	8-98281-497-0	10	1	1512-	●	●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1303-1511		●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1512-	●	●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1303-1511		●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1512-	●	●
8	VALVE; TIRE WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42370-041-1	01	1	1512-	●	●
8	VALVE; TIRE WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR	1-42370-041-1	10	1	1512-	●	●
8	VALVE; TIRE FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (A) FRONT,REAR	1-42370-048-0	10	1	1512-	●	●
8	VALVE; TIRE FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-048-0	01	1	1512-	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-048-0	01	1	1303-1407		●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-019-3	01	1	1408-1511		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42370-019-3	01	1	1512-	●	●
8	VALVE; TIRE (A) FRONT,REAR	1-42370-048-0	10	1	1303-1407		●
8	VALVE; TIRE (A) FRONT,REAR	1-42370-019-3	10	1	1408-1511		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR	1-42370-019-3	10	1	1512-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	8-98167-052-0	04	1	1303-1511		●
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	8-98167-052-0	04	1	1512-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	1512-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	1512-	●	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1303-1511		●
32	CAP; VALVE FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH), DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	10	1	1512-	●	●
32	CAP; VALVE	1-42374-001-0	10	1	1303-1511		●
32	CAP; VALVE FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH), DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1512-	●	●
33	COVER; WHEEL FT WHEEL COVER<JEH>	1-43139-065-1	02	1	1303-1511		●
33	COVER; WHEEL FT WHEEL COVER<JEH>	1-43139-065-1	02	1	1512-	●	●
