7-43 — SUN VISOR AND ASSIST GRIP (#115126) — 162 parça

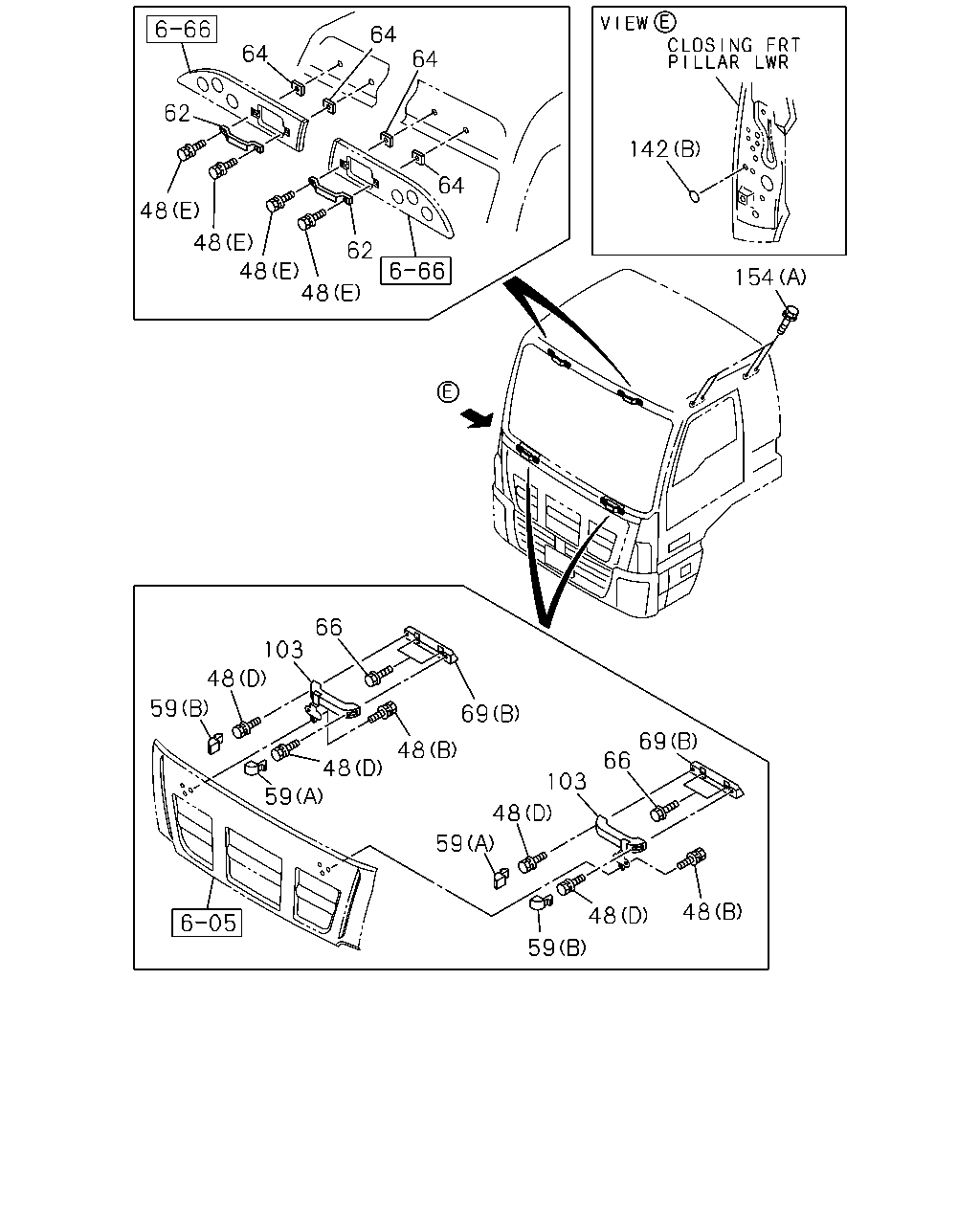

64 64 64 62 48 48 48 48 62 64 142 154 66 103 48 59 59 48 48 69 59 48 103 66 69 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1303-1511	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1512-	●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1303-1511	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1512-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1303-1511	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1512-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1303-1511	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1512-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-1511	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1512-	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1303-1511	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1512-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1303-1511	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1512-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	1303-1511	●
59	COVER; ASSIST GRIP TAIWAN EQUIPMENT(WW5) (C)	1-73617-565-0	02	1	1512-	●
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	1303-1511	●
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	1512-	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	1303-1511	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	1512-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	1303-1511	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	1512-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	1303-1511	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	1512-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	1303-1511	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	1512-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	1303-1511	●
69	BRACKET; ASSIST GRIP TAIWAN EQUIPMENT(WW5) (A)	1-73618-178-2	01	1	1512-	●
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	1303-1511	●
69	BRACKET; ASSIST GRIP TAIWAN EQUIPMENT(WW5) (A)	1-73618-181-1	01	1	1512-	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	1303-1511	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	1512-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	1303-1511	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	1512-	●	●
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	1303-1305	●
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	1306-1511	●
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	1512-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	1403-1511	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	1512-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25	8-94272-533-0	04	1	1403-1511	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25	8-94272-533-0	04	1	1512-	●	●
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1303-1402	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-1511	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1512-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1303-1511	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1512-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-1511	●
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1512-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-1511	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1512-	●	●

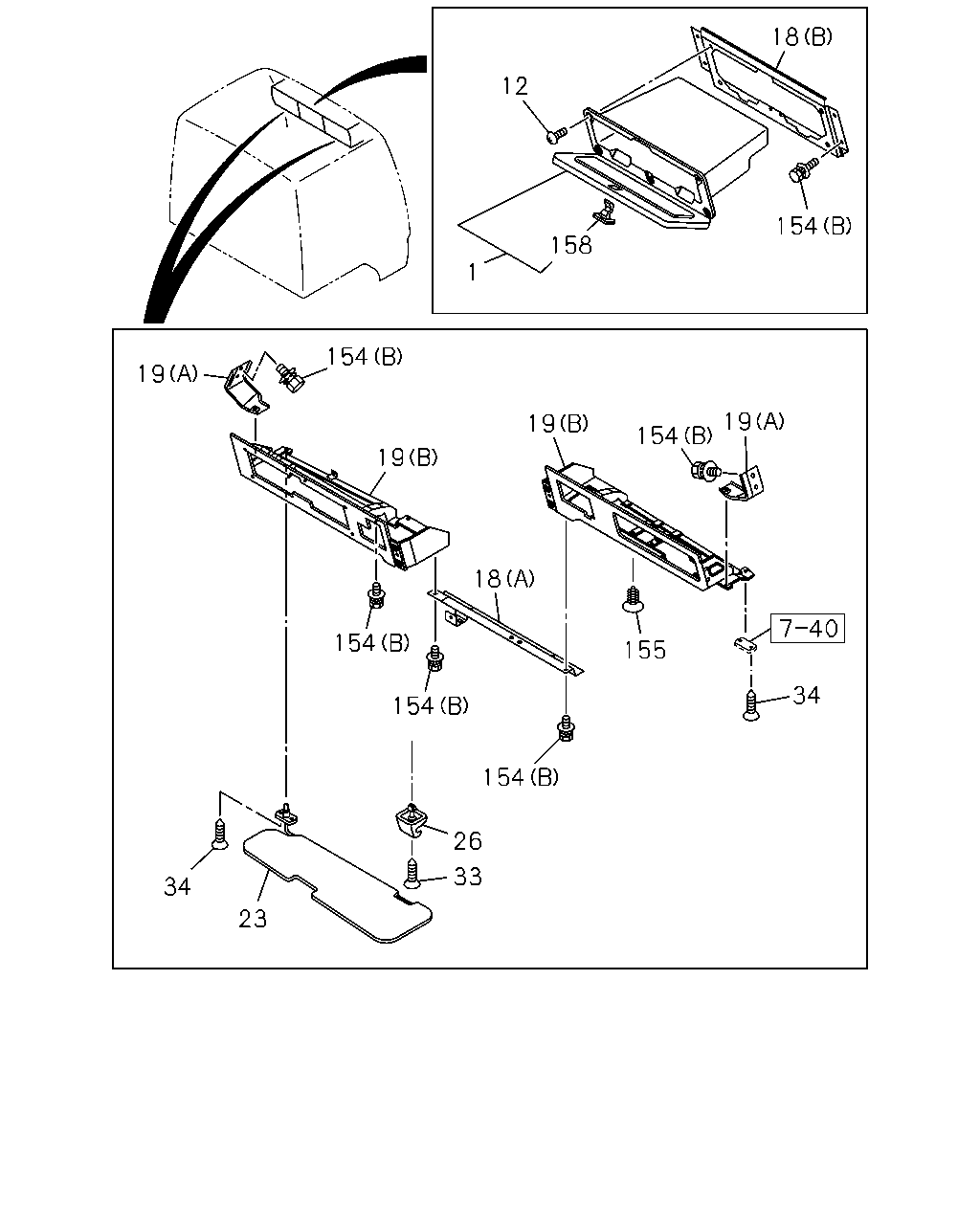

12 18 154 158 1 19 154 19 19 18 154 154 154 19 34 155 154 26 33 34 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF	1-72447-968-0	01	1	1303-1511	●
1	BOARD; HEADER SHELF	1-72447-968-0	01	1	1512-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1303-1511	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1512-	●	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1303-1511	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1512-	●	●
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	1303-1511	●
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	1512-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	1303-1511	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	1512-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-938-4	01	1	1303-1511	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-938-4	01	1	1512-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	1303-1511	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	1512-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	1303-1511	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	1512-	●	●
23	SUN VISOR	1-73138-156-1	01	1	1303-1511	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	1512-	●
23	SUN VISOR	1-73138-157-1	01	1	1303-1511	●
23	SUN VISOR	1-73138-157-1	01	1	1512-	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1303-1511	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1303-1511	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1512-	●	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	1512-	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1303-1511	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1303-1511	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1512-	●	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1512-	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	1303-1511	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	1512-	●	●
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1303-1402	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-1511	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1512-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1303-1511	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1512-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-1511	●
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1512-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-1511	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1512-	●	●
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	1512-	●
155	FASTENER; HOLDER	1-09983-181-0	01	1	1512-		●
158	LOCK; HEADER SHELF	1-72538-312-0	01	1	1303-1511	●
158	LOCK; HEADER SHELF	1-72538-312-0	01	1	1512-	●	●

71 54 49 54 48 69 71 59 71 150 54 48 76 87 71 48 56 106 55 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1303-1511	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1512-	●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1303-1511	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1512-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1303-1511	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1512-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1303-1511	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1512-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-1511	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1512-	●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	02	1	1303-1511	●
49	NUT; ASSIST GRIP TAIWAN EQUIPMENT(WW5) M6 FLANGE	0-91180-106-0	02	1	1512-	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	1303-1511	●
54	GRIP; ASSIST,QUARTER SIDE TAIWAN EQUIPMENT(WW5) (A)	1-73617-563-1	01	1	1512-	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	1303-1511	●
54	GRIP; ASSIST,QUARTER SIDE TAIWAN EQUIPMENT(WW5) (A)	1-73617-564-1	01	1	1512-	●
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-1	02	1	1303-1511	●
54	GRIP; ASSIST,QUARTER SIDE TAIWAN EQUIPMENT(WW5) (B)	1-73618-185-1	02	1	1512-	●
54	GRIP; ASSIST,QUARTER SIDE EXC. TAIWAN EQUIPMENT(WW5) (C)	8-98139-070-2	01	1	1512-	●
54	GRIP; ASSIST,QUARTER SIDE (C)	8-98139-070-2	01	1	1512-		●
54	GRIP; ASSIST,QUARTER SIDE EXC. TAIWAN EQUIPMENT(WW5) (C)	8-98139-071-2	01	1	1512-	●
54	GRIP; ASSIST,QUARTER SIDE (C)	8-98139-071-2	01	1	1512-		●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	01	1	1403-1511	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	01	1	1512-	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-73618-169-1	02	1	1403-1511	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-73618-169-1	02	1	1512-	●	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	1303-1511	●
56	GRIP; ASSIST,SIDE SILL TAIWAN EQUIPMENT(WW5)	8-98081-700-0	02	1	1512-	●
56	GRIP; ASSIST,SIDE SILL EXC. TAIWAN EQUIPMENT(WW5)	8-98139-072-1	01	1	1512-	●
56	GRIP; ASSIST,SIDE SILL	8-98139-072-1	01	1	1512-		●
56	GRIP; ASSIST,SIDE SILL EXC. TAIWAN EQUIPMENT(WW5)	8-98139-073-1	01	1	1512-	●
56	GRIP; ASSIST,SIDE SILL	8-98139-073-1	01	1	1512-		●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1303-1511	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	1512-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1303-1511	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	1512-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	1303-1511	●
59	COVER; ASSIST GRIP TAIWAN EQUIPMENT(WW5) (C)	1-73617-565-0	02	1	1512-	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	1303-1511	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	1512-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	1303-1511	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	1512-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	1303-1511	●
69	BRACKET; ASSIST GRIP TAIWAN EQUIPMENT(WW5) (A)	1-73618-178-2	01	1	1512-	●
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	1303-1511	●
69	BRACKET; ASSIST GRIP TAIWAN EQUIPMENT(WW5) (A)	1-73618-181-1	01	1	1512-	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	1303-1511	●
71	SCREW TAIWAN EQUIPMENT(WW5) (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	1512-	●
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	1303-1511	●
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	1512-	●	●
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	1303-1511	●
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	1512-	●	●
76	SPACER; ASSIST GRIP OD=13 T=4.5	8-94230-464-1	04	1	1303-1511	●
76	SPACER; ASSIST GRIP OD=13 T=4.5	8-94230-464-1	04	1	1512-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	1303-1511	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	1512-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	1403-1511	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	1512-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1403-1511	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1512-	●	●
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	1303-1305	●
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	1306-1511	●
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	1512-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	1403-1511	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	1512-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25	8-94272-533-0	04	1	1403-1511	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25	8-94272-533-0	04	1	1512-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. TAIWAN EQUIPMENT(WW5) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1512-	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1512-		●
