1 |

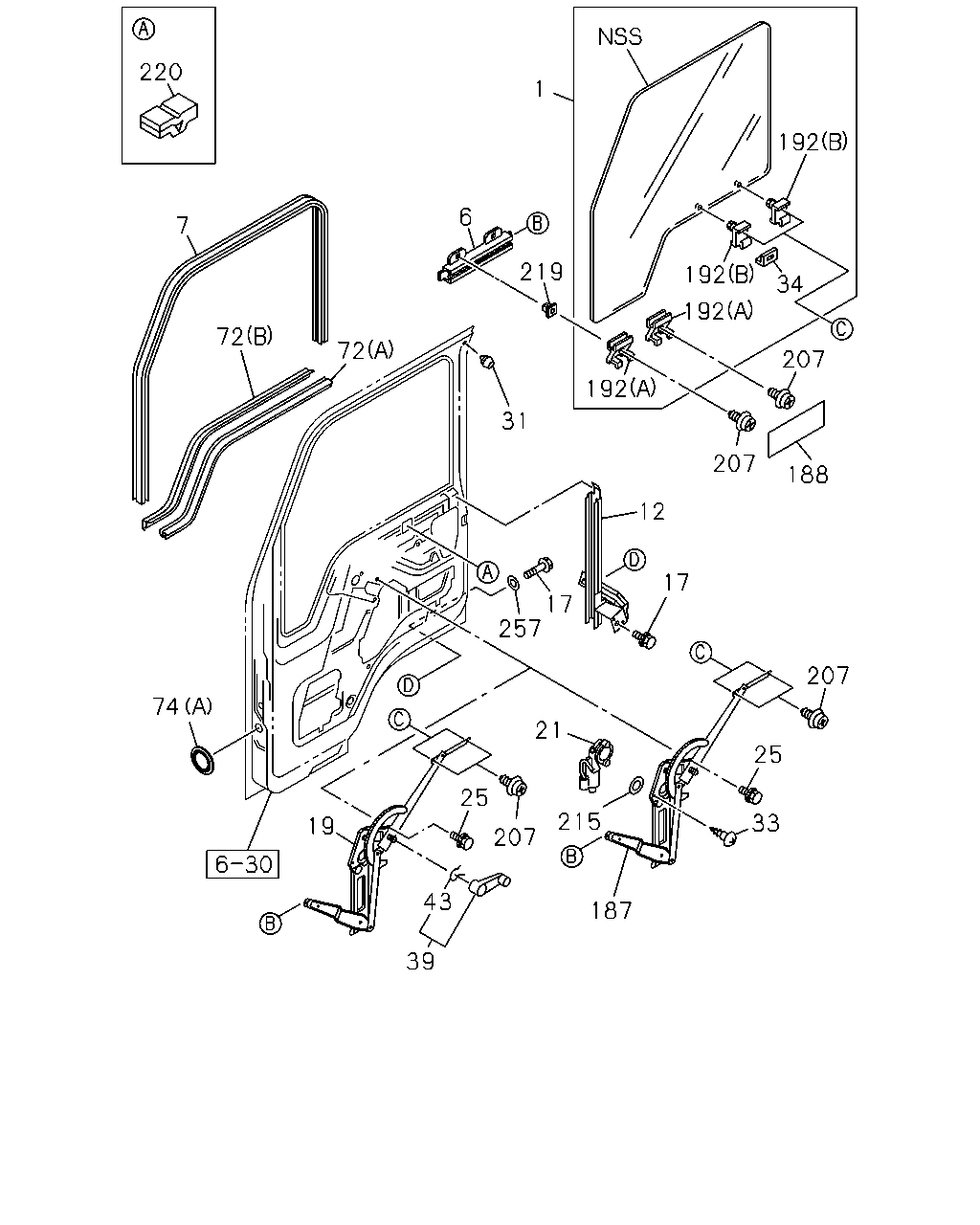

16.180 GLASS; FRT DOOR
ASAHI
|
8-97867-417-1 |
01 |
1 |
1302- |
| |
1 |
16.180 GLASS; FRT DOOR
ASAHI
|
8-97867-418-1 |
01 |
1 |
1302- |
| |
6 |
10.685 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR
|
8-97898-425-1 |
02 |
1 |
1302- |
| |
7 |
16.190 GLASS RUN; FRT DOOR
|
8-97852-142-4 |
01 |
1 |
1302- |
| |
7 |
16.190 GLASS RUN; FRT DOOR
|
8-97852-143-4 |
01 |
1 |
1302- |
| |
12 |
16.190 CHANNEL; GLASS RUN,FRT
|
8-97867-650-0 |
01 |
1 |
1302- |
| |
12 |
16.190 CHANNEL; GLASS RUN,FRT
|
8-97996-046-0 |
01 |
1 |
1302- |
| |
17 |
16.183 SCREW; RR CHANNEL
16.650
T25 M6X12 HEXALOBULAR SOCKET
|
0-38050-612-0 |
04 |
1 |
1302- |
| |
19 |
16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32>
|
8-97852-115-8 |
01 |
1 |
1302- |
| |
19 |
16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32>
|
8-97852-116-8 |
01 |
1 |
1302- |
| |
21 |
16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32>
|
8-97898-477-0 |
01 |
1 |
1302- |
| |
21 |
16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32>
|
8-97898-478-0 |
01 |
1 |
1302- |
| |
25 |
16.270 BOLT; WINDOW REG
16.230
M6X9 LK+W/PL WASHER&TORQUES
|
8-98108-677-0 |
10 |
1 |
1302- |
| |
31 |
16.225 STOPPER; RUBBER,DOOR INNER
|
8-97852-022-1 |
02 |
1 |
1302- |
| |
33 |
16.230 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32>
|
8-98097-389-0 |
06 |
1 |
1302- |
| |
34 |
16.270 STOPPER; WINDOW REG
|
8-97852-012-0 |
02 |
1 |
1302- |
| |
39 |
16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32>
GRAY
|
8-98090-302-0 |
02 |
1 |
1302- |
| |
43 |
16.270 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32>
|
8-94220-591-0 |
02 |
1 |
1302- |
| |
72 |
16.183 SEAL; WAIST,FRT DOOR
(A) INNER
|
8-97852-117-6 |
01 |
1 |
1302- |
| |
72 |
16.183 SEAL; WAIST,FRT DOOR
(A) INNER
|
8-97852-118-6 |
01 |
1 |
1302- |
| |
72 |
16.183 SEAL; WAIST,FRT DOOR
(B) OUTER
|
8-97855-292-6 |
01 |
1 |
1302- |
| |
72 |
16.183 SEAL; WAIST,FRT DOOR
(B) OUTER
|
8-97855-293-6 |
01 |
1 |
1302- |
| |
74 |
16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT
DOOR<A32>,ANTENNA<U73>,2-SPEAKER SYSTEM
BASE<U95>
09.656
(A)
OD=48 T=9.1
|
8-94279-053-0 |
02 |
1 |
1302- |
| |
74 |
16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT
DOOR<A32>,ANTENNA<U73>,2-SPEAKER SYSTEM
BASE<U95>
09.775
(B)
|
8-94279-736-0 |
02 |
1 |
1302- |
| |
187 |
16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32>
|
8-97868-113-3 |
01 |
1 |
1302- |
| |
187 |
16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32>
|
8-97868-114-3 |
01 |
1 |
1302- |
| |
188 |
16.225 PROTECTOR; DOOR SEAL
|
8-97994-698-1 |
02 |
1 |
1302- |
| |
192 |
16.183 HOLDER; DOOR GLASS
(A)
|
8-97852-076-1 |
04 |
1 |
1302- |
| |
192 |
16.183 HOLDER; DOOR GLASS
(B)
|
8-97852-077-1 |
04 |
1 |
1302- |
| |
207 |
16.183 SCREW; DOOR GLASS
M4X14.5 TAPPING
|
8-98020-522-2 |
08 |
1 |
1302- |
| |
215 |
63.121 SPACER; WINDOW REG
POWER WINDOW FRT DOOR<A32>
16.230
|
8-97388-942-0 |
02 |
1 |
1302- |
| |
219 |
16.175 GROMMET; SCREW,CHANNEL,REG
|
8-94326-756-0 |
04 |
1 |
1302- |
| |
220 |
16.332 SEAL; LINK ROD
|
8-97852-321-0 |
02 |
1 |
1302- |
| |
257 |
03.162 WASHER; G/RUN CHANNEL
ID=6.5 OD=30
|
9-09851-911-0 |
02 |
1 |
1302- |
