4-20 — REAR AXLE CASE AND SHAFT (#115121) — 173 parça

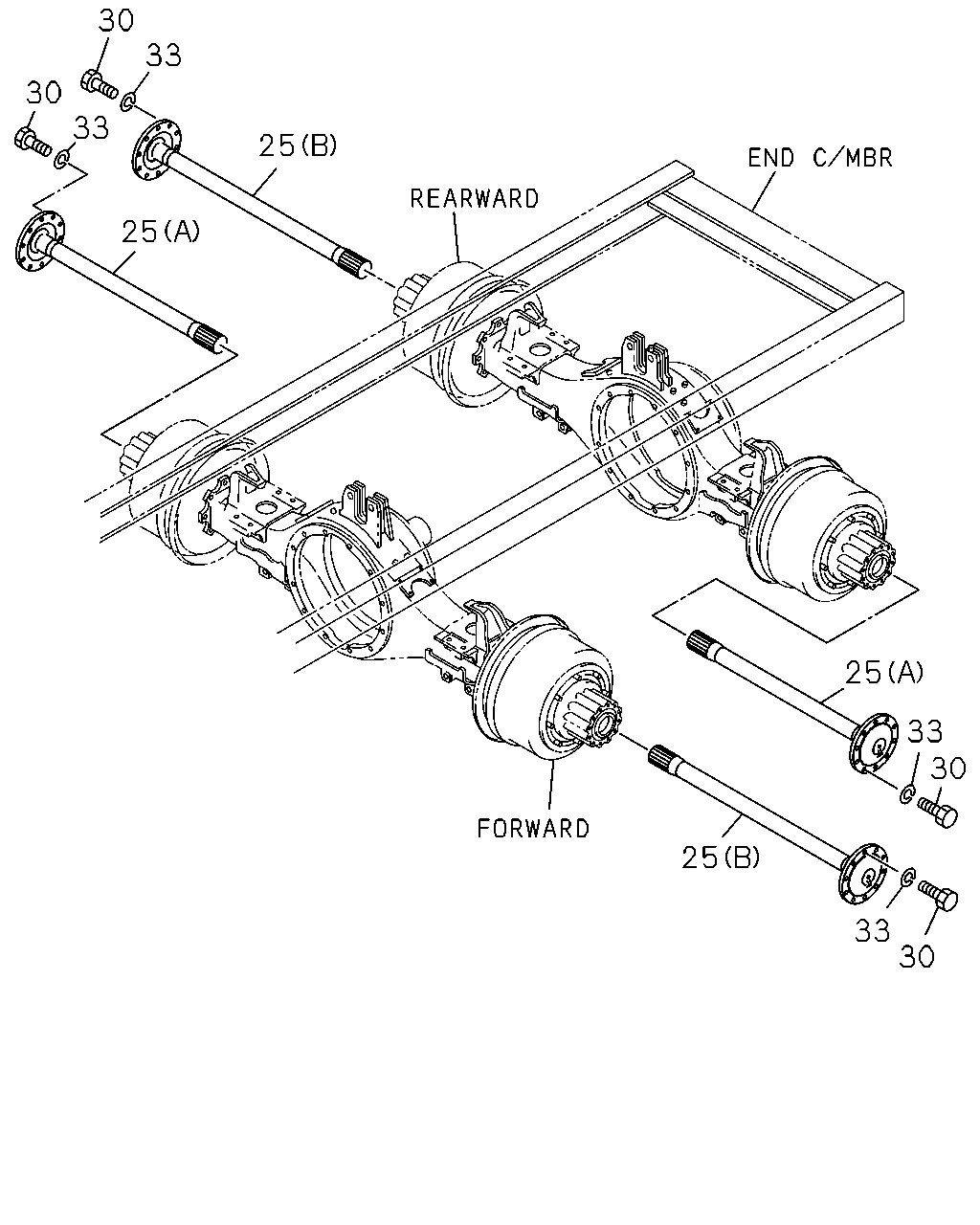

30 30 33 33 25 25 25 25 33 30 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1303-1511	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1303-1511	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1512-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1512-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1303-1511	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1303-1511	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1512-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1512-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1303-1511	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1303-1511	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1512-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1512-	●	●
25	SHAFT; AXLE,RR (A) L=990	8-98146-166-0	01	1	1303-1511	●
25	SHAFT; AXLE,RR (A) L=990	8-98146-166-0	01	1	1303-1511	●
25	SHAFT; AXLE,RR (A) L=990	8-98146-166-0	01	1	1512-	●	●
25	SHAFT; AXLE,RR (A) L=990	8-98146-166-0	01	1	1512-	●	●
25	SHAFT; AXLE,RR (B) L=1110	8-98146-167-0	01	1	1303-1511	●
25	SHAFT; AXLE,RR (B) L=1110	8-98146-167-0	01	1	1303-1511	●
25	SHAFT; AXLE,RR (B) L=1110	8-98146-167-0	01	1	1512-	●	●
25	SHAFT; AXLE,RR (B) L=1110	8-98146-167-0	01	1	1512-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1303-1511	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1303-1511	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1512-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1512-	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1303-1511	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1303-1511	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1512-	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1512-	●	●

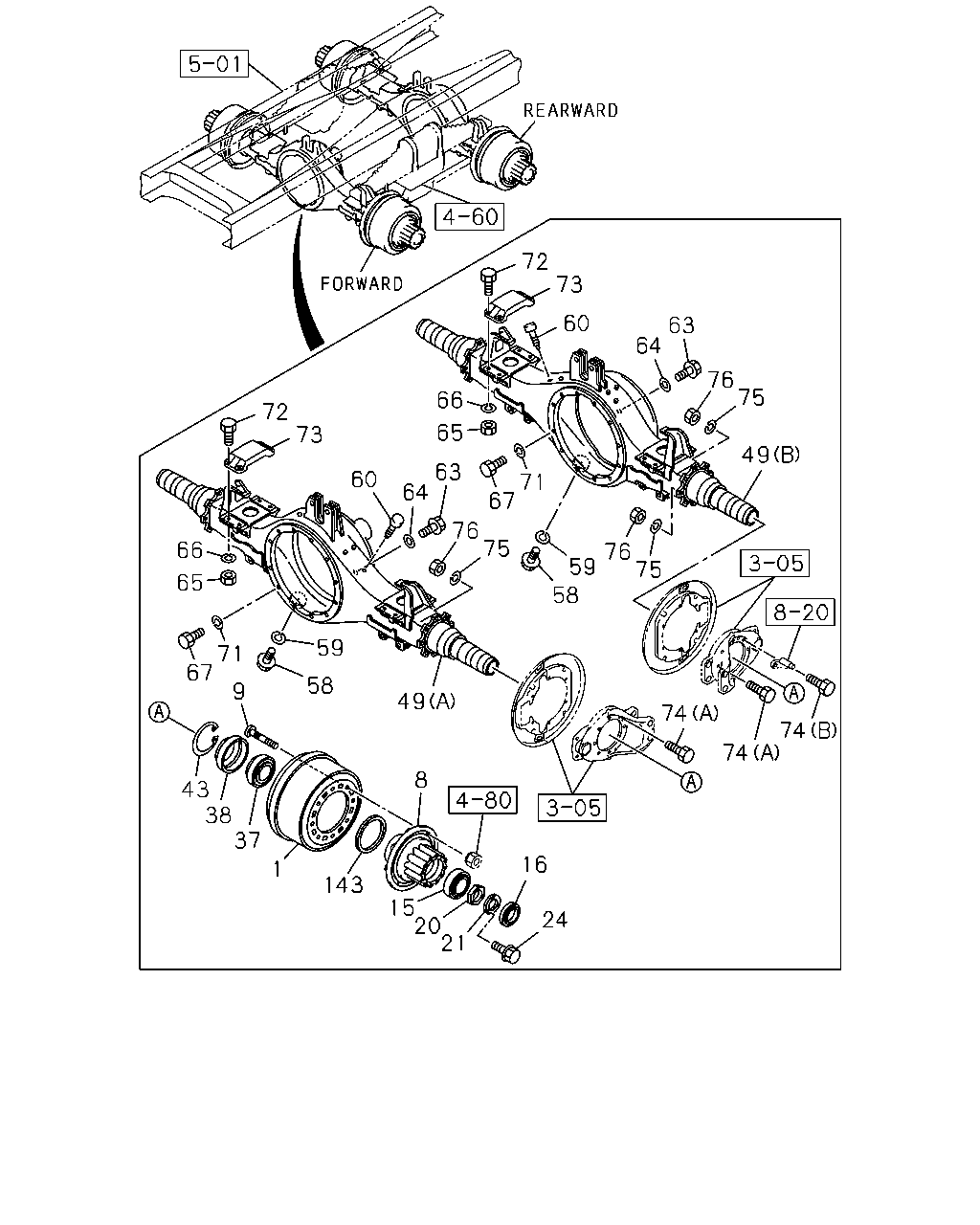

72 60 73 63 64 75 49 75 76 74 4 74 59 58 71 67 75 76 75 66 73 72 60 63 64 49 8 24 16 21 20 5 143 1 37 38 43 67 9 59 58 71 65 66 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-377-2	02	1	1303-1511	●
1	DRUM; BRK,RR	1-42315-377-2	02	1	1303-1511	●
1	DRUM; BRK,RR	1-42315-377-2	02	1	1512-	●	●
1	DRUM; BRK,RR	1-42315-377-2	02	1	1512-	●	●
8	HUB; RR AXLE FORWARD	1-42311-085-0	02	1	1303-1511	●
8	HUB; RR AXLE FORWARD	1-42311-085-0	02	1	1512-	●	●
8	HUB; RR AXLE REARWARD	1-42311-094-0	02	1	1303-1511	●
8	HUB; RR AXLE REARWARD	1-42311-094-0	02	1	1512-	●	●
9	PIN; WHEEL,RR AXLE M22X93 RH THREAD	1-42337-066-2	20	1	1303-1511	●
9	PIN; WHEEL,RR AXLE M22X93 RH THREAD	1-42337-066-2	20	1	1303-1511	●
9	PIN; WHEEL,RR AXLE M22X93 RH THREAD	1-42337-066-2	20	1	1512-	●	●
9	PIN; WHEEL,RR AXLE M22X93 RH THREAD	1-42337-066-2	20	1	1512-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1303-1511	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1303-1511	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1512-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1512-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1303-1511	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1303-1511	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1512-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1512-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1303-1511	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1303-1511	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1512-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1512-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1303-1511	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1303-1511	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1512-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1512-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1303-1511	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1303-1511	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1512-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1512-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1303-1511	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1303-1511	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1512-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1512-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1303-1511	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1303-1511	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1512-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1512-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1303-1511	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1303-1511	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1512-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1512-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1303-1511	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1303-1511	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1512-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1512-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1303-1511	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1303-1511	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1512-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1512-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1303-1511	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1303-1511	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1512-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1512-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1303-1511	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1303-1511	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1512-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1512-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1303-1511	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1303-1511	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1512-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1512-	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> MULTI LEAF SUSP RR<SAS> (A)	1-42190-488-2	01	1	1512-	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> MULTI LEAF SUSP RR<SAS> (B)	1-42190-539-2	01	1	1512-	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> RUSSIA EQUIPMENT(B12) TAPER LEAF SUSP RR<SAT> (B)	8-98147-802-1	01	1	1512-	●	●
49	CASE; RR AXLE RUSSIA EQUIPMENT(B12) (A)	8-98148-499-1	01	1	1512-	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> TAPER LEAF SUSP RR<SAT> EXC. RUSSIA EQUIPMENT(B12) (A)	1-42190-465-1	01	1	1512-	●	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> TAPER LEAF SUSP RR<SAT> EXC. RUSSIA EQUIPMENT(B12) (B)	8-98158-153-1	01	1	1512-	●	●
49	CASE; RR AXLE (A)	1-42190-477-1	01	1	1303-1511	●
49	CASE; RR AXLE REAR AXLE RT210<C2A> (A)	1-42190-477-1	01	1	1512-	●	●
49	CASE; RR AXLE (B)	1-42190-565-1	01	1	1303-1511	●
49	CASE; RR AXLE REAR AXLE RT210<C2A> (B)	1-42190-565-1	01	1	1512-	●	●
58	PLUG; DRAIN,AXLE CASE REAR AXLE RT210<C2A> M24X17 FLANGE	1-09604-023-0	01	1	1512-	●	●
58	PLUG; DRAIN,AXLE CASE REAR AXLE RT210<C2A> M24X17 FLANGE	1-09604-023-0	01	1	1512-	●	●
58	PLUG; DRAIN,AXLE CASE REAR AXLE RT260<C2B> EXC. RUSSIA EQUIPMENT(B12) M24X17 FLANGE	1-09604-023-0	01	1	1512-	●	●
58	PLUG; DRAIN,AXLE CASE REAR AXLE RT260<C2B> EXC. RUSSIA EQUIPMENT(B12) M24X17 FLANGE	1-09604-023-0	01	1	1512-	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1303-1511	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1303-1511	●
58	PLUG; DRAIN,AXLE CASE REAR AXLE RT260<C2B> RUSSIA EQUIPMENT(B12)	1-09605-092-0	01	1	1512-	●	●
58	PLUG; DRAIN,AXLE CASE REAR AXLE RT260<C2B> RUSSIA EQUIPMENT(B12)	1-09605-092-0	01	1	1512-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1303-1511	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1303-1511	●
59	GASKET; DRAIN PLUG REAR AXLE RT210<C2A> ID=26.8	9-09920-605-0	01	1	1512-	●	●
59	GASKET; DRAIN PLUG REAR AXLE RT210<C2A> ID=26.8	9-09920-605-0	01	1	1512-	●	●
59	GASKET; DRAIN PLUG REAR AXLE RT260<C2B> EXC. RUSSIA EQUIPMENT(B12) ID=26.8	9-09920-605-0	01	1	1512-	●	●
59	GASKET; DRAIN PLUG REAR AXLE RT260<C2B> EXC. RUSSIA EQUIPMENT(B12) ID=26.8	9-09920-605-0	01	1	1512-	●	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	1303-1412	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	1501-1509	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	1510-1511	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	1512-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1303-1511	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1303-1511	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1512-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1512-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1303-1511	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1303-1511	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1512-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1512-	●	●
65	NUT M14	0-91110-514-0	08	1	1303-1511	●
65	NUT M14	0-91110-514-0	08	1	1303-1511	●
65	NUT M14	0-91110-514-0	08	1	1512-	●	●
65	NUT M14	0-91110-514-0	08	1	1512-	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1303-1511	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1303-1511	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1512-	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1512-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	07	1	1303-1511	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	07	1	1512-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	1303-1511	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	1512-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	1303-1511	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	1303-1511	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	1512-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	1512-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1303-1511	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1303-1511	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1512-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1512-	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1303-1511	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1303-1511	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1512-	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1512-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1303-1511	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1303-1511	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1512-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1512-	●	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	12	1	1303-1511	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	12	1	1512-	●	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	16	1	1303-1511	●
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	16	1	1512-	●	●
74	BOLT; RR BRK ASM SETTING (B) M14X80	9-92621-480-0	04	1	1303-1504	●
74	BOLT; RR BRK ASM SETTING (B) M14X60	1-09040-084-0	04	1	1505-1511	●
74	BOLT; RR BRK ASM SETTING (B) M14X60	1-09040-084-0	04	1	1512-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1303-1511	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1303-1511	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1512-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1512-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1303-1511	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1303-1511	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1512-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1512-	●	●
143	RING; EXCITER	1-42319-173-0	02	1	1303-1511	●
143	RING; EXCITER	1-42319-173-0	02	1	1512-	●	●
