5-20 — BATTERY CARRIER (#115120) — 82 parça

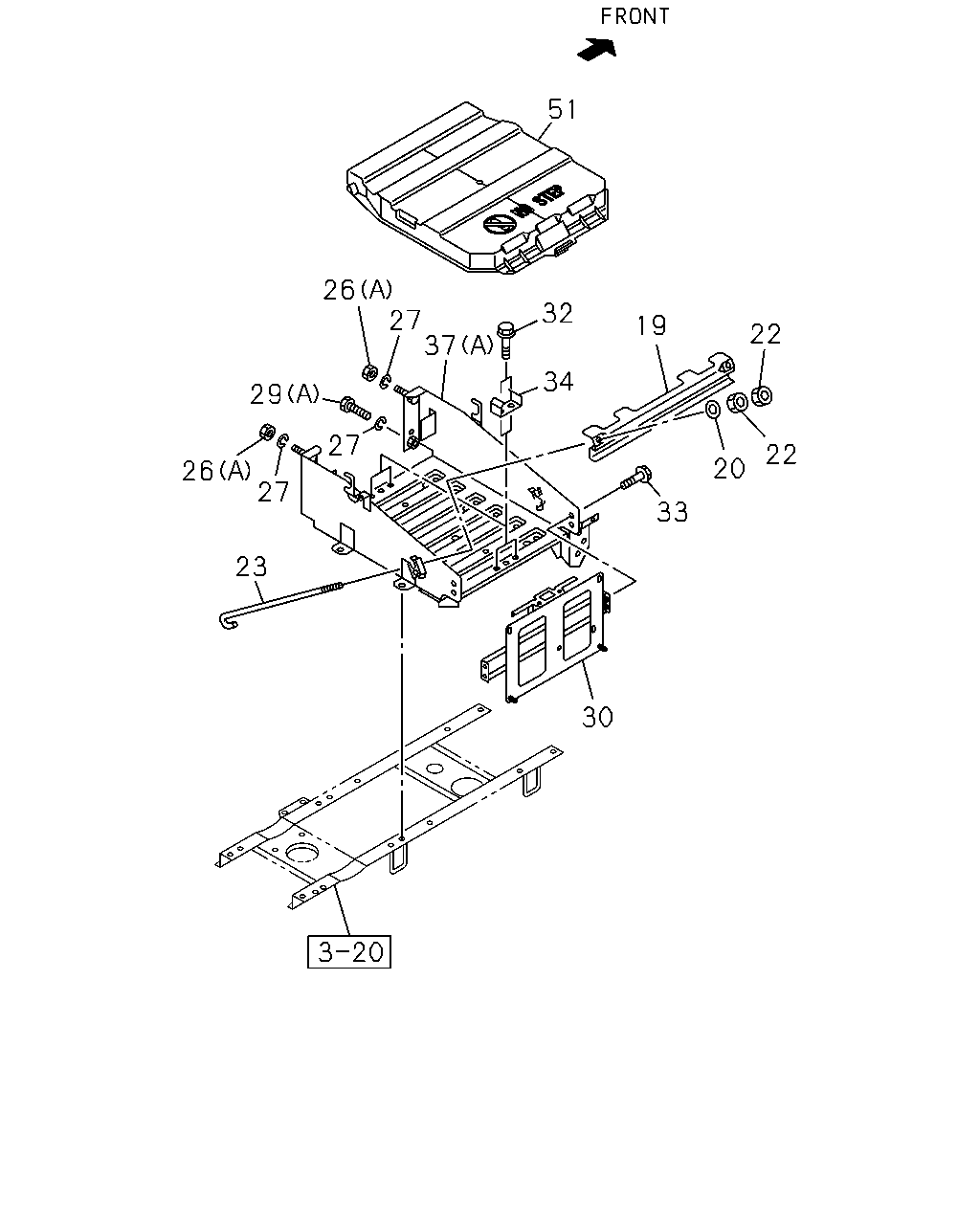

51 32 22 22 20 33 19 34 37 27 26 29 27 23 26 30 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY	1-53618-039-2	01	1	1303-1511	●
19	STAY; BATTERY	1-53618-039-2	01	1	1512-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1303-1511	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1512-	●	●
22	NUT; STAY M8	0-91110-508-0	04	1	1303-1511	●
22	NUT; STAY M8	0-91110-508-0	04	1	1512-	●	●
23	BOLT; STAY L=250	1-53616-108-0	02	1	1303-1511	●
23	BOLT; STAY L=250	1-53616-108-0	02	1	1512-	●	●
26	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M14	0-91110-514-0	02	1	1512-	●
26	NUT; BRKT (B) M14	0-91110-514-0	02	1	1512-		●
26	NUT; BRKT (A) M14	1-09440-072-0	02	1	1303-1511	●
26	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> (A) M14	1-09440-072-0	02	1	1512-	●
27	WASHER; LK,BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=14.2	0-91510-514-0	08	1	1512-	●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1512-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1303-1511	●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1512-	●	●
29	BOLT; BRKT TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M14X30	0-20851-430-0	02	1	1512-	●
29	BOLT; BRKT TO FRAME (B) M14X30	0-20851-430-0	02	1	1512-		●
29	BOLT; BRKT TO FRAME (A) M14X45	1-09000-764-0	02	1	1303-1511	●
29	BOLT; BRKT TO FRAME BATTERY LAYOUT REAR VAR1<NCT> (A) M14X45	1-09000-764-0	02	1	1512-	●
30	PLATE; BATTERY	8-97635-039-2	01	1	1303-1511	●
30	PLATE; BATTERY	8-97635-039-2	01	1	1512-	●	●
32	BOLT; PLATE TO SPACER M8X16 FLANGE	0-28050-816-0	04	1	1303-1511	●
32	BOLT; PLATE TO SPACER BATTERY 115F51 N120<SJ3> M8X16 FLANGE	0-28050-816-0	04	1	1512-	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1303-1511	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1512-	●	●
34	SPACER; BATTERY BRKT	1-53619-084-0	02	1	1303-1511	●
34	SPACER; BATTERY BRKT BATTERY 115F51 N120<SJ3>	1-53619-084-0	02	1	1512-	●	●
37	BRACKET; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (B)	8-98218-501-2	01	1	1512-	●
37	BRACKET; BATTERY (B)	8-98218-501-2	01	1	1512-		●
37	BRACKET; BATTERY (A)	8-98097-706-2	01	1	1303-1511	●
37	BRACKET; BATTERY BATTERY LAYOUT REAR VAR1<NCT> (A)	8-98097-706-2	01	1	1512-	●
51	COVER; BATTERY	8-98097-715-3	01	1	1303-1511	●
51	COVER; BATTERY	8-98097-715-3	01	1	1512-	●	●

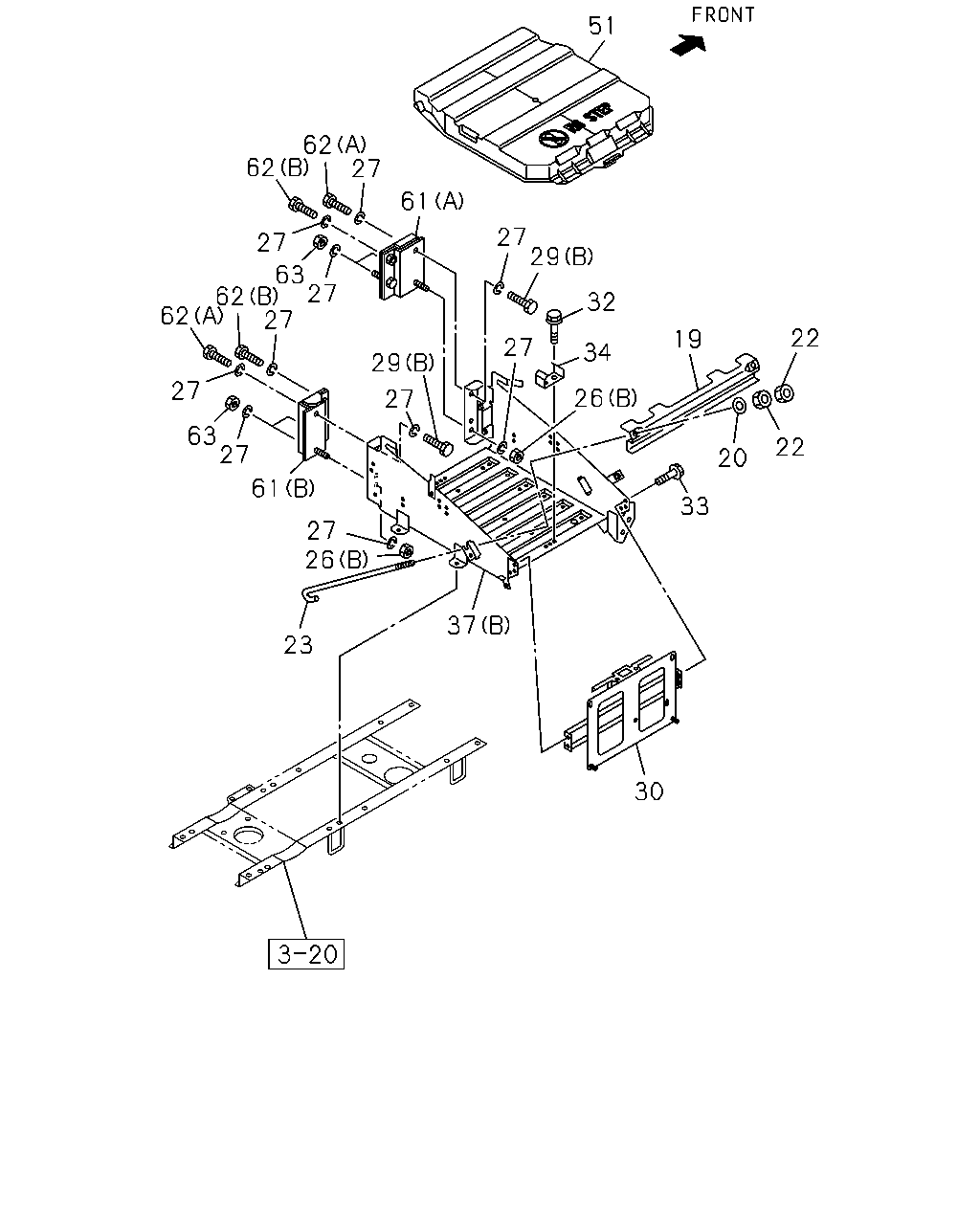

30 37 23 26 27 61 27 63 27 62 62 63 27 27 27 62 62 27 61 27 29 27 32 29 27 34 26 19 22 33 20 22 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY	1-53618-039-2	01	1	1303-1511	●
19	STAY; BATTERY	1-53618-039-2	01	1	1512-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1303-1511	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1512-	●	●
22	NUT; STAY M8	0-91110-508-0	04	1	1303-1511	●
22	NUT; STAY M8	0-91110-508-0	04	1	1512-	●	●
23	BOLT; STAY L=250	1-53616-108-0	02	1	1303-1511	●
23	BOLT; STAY L=250	1-53616-108-0	02	1	1512-	●	●
26	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M14	0-91110-514-0	02	1	1512-	●
26	NUT; BRKT (B) M14	0-91110-514-0	02	1	1512-		●
26	NUT; BRKT (A) M14	1-09440-072-0	02	1	1303-1511	●
26	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> (A) M14	1-09440-072-0	02	1	1512-	●
27	WASHER; LK,BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=14.2	0-91510-514-0	08	1	1512-	●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1512-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1303-1511	●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1512-	●	●
29	BOLT; BRKT TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M14X30	0-20851-430-0	02	1	1512-	●
29	BOLT; BRKT TO FRAME (B) M14X30	0-20851-430-0	02	1	1512-		●
29	BOLT; BRKT TO FRAME (A) M14X45	1-09000-764-0	02	1	1303-1511	●
29	BOLT; BRKT TO FRAME BATTERY LAYOUT REAR VAR1<NCT> (A) M14X45	1-09000-764-0	02	1	1512-	●
30	PLATE; BATTERY	8-97635-039-2	01	1	1303-1511	●
30	PLATE; BATTERY	8-97635-039-2	01	1	1512-	●	●
32	BOLT; PLATE TO SPACER M8X16 FLANGE	0-28050-816-0	04	1	1303-1511	●
32	BOLT; PLATE TO SPACER BATTERY 115F51 N120<SJ3> M8X16 FLANGE	0-28050-816-0	04	1	1512-	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1303-1511	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1512-	●	●
34	SPACER; BATTERY BRKT	1-53619-084-0	02	1	1303-1511	●
34	SPACER; BATTERY BRKT BATTERY 115F51 N120<SJ3>	1-53619-084-0	02	1	1512-	●	●
37	BRACKET; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (B)	8-98218-501-2	01	1	1512-	●
37	BRACKET; BATTERY (B)	8-98218-501-2	01	1	1512-		●
37	BRACKET; BATTERY (A)	8-98097-706-2	01	1	1303-1511	●
37	BRACKET; BATTERY BATTERY LAYOUT REAR VAR1<NCT> (A)	8-98097-706-2	01	1	1512-	●
51	COVER; BATTERY	8-98097-715-3	01	1	1303-1511	●
51	COVER; BATTERY	8-98097-715-3	01	1	1512-	●	●
61	DISTANCE; BRKT,BATTERY MIXER TRUCK<RA2> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53613-489-0	01	1	1512-		●
61	DISTANCE; BRKT,BATTERY SILENCER SINGLE VERTICAL<N28> MIXER TRUCK<RA2> (A)	8-98177-609-0	01	1	1512-		●
61	DISTANCE; BRKT,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (B)	1-53613-505-0	01	1	1512-	●
61	DISTANCE; BRKT,BATTERY (B)	1-53613-505-0	01	1	1512-		●
61	DISTANCE; BRKT,BATTERY SILENCER SINGLE VERTICAL<N28> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A)	8-97623-013-0	01	1	1512-	●
61	DISTANCE; BRKT,BATTERY SILENCER SINGLE VERTICAL<N28> EXC. MIXER TRUCK<RA2> (A)	8-97623-013-0	01	1	1512-		●
61	DISTANCE; BRKT,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>,SILENCER SINGLEVERTICAL<N28> (A)	1-53613-504-0	01	1	1512-	●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> (A)	1-53613-504-0	01	1	1512-		●
62	BOLT; DIST TO FRAME,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) M14X45	1-09000-764-0	02	1	1512-	●
62	BOLT; DIST TO FRAME,BATTERY (A) M14X45	1-09000-764-0	02	1	1512-		●
62	BOLT; DIST TO FRAME,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M14X60	1-09000-778-0	02	1	1512-	●
62	BOLT; DIST TO FRAME,BATTERY (B) M14X60	1-09000-778-0	02	1	1512-		●
63	NUT; DIST TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> M14	1-09440-072-0	04	1	1512-	●
63	NUT; DIST TO FRAME M14	1-09440-072-0	04	1	1512-		●
