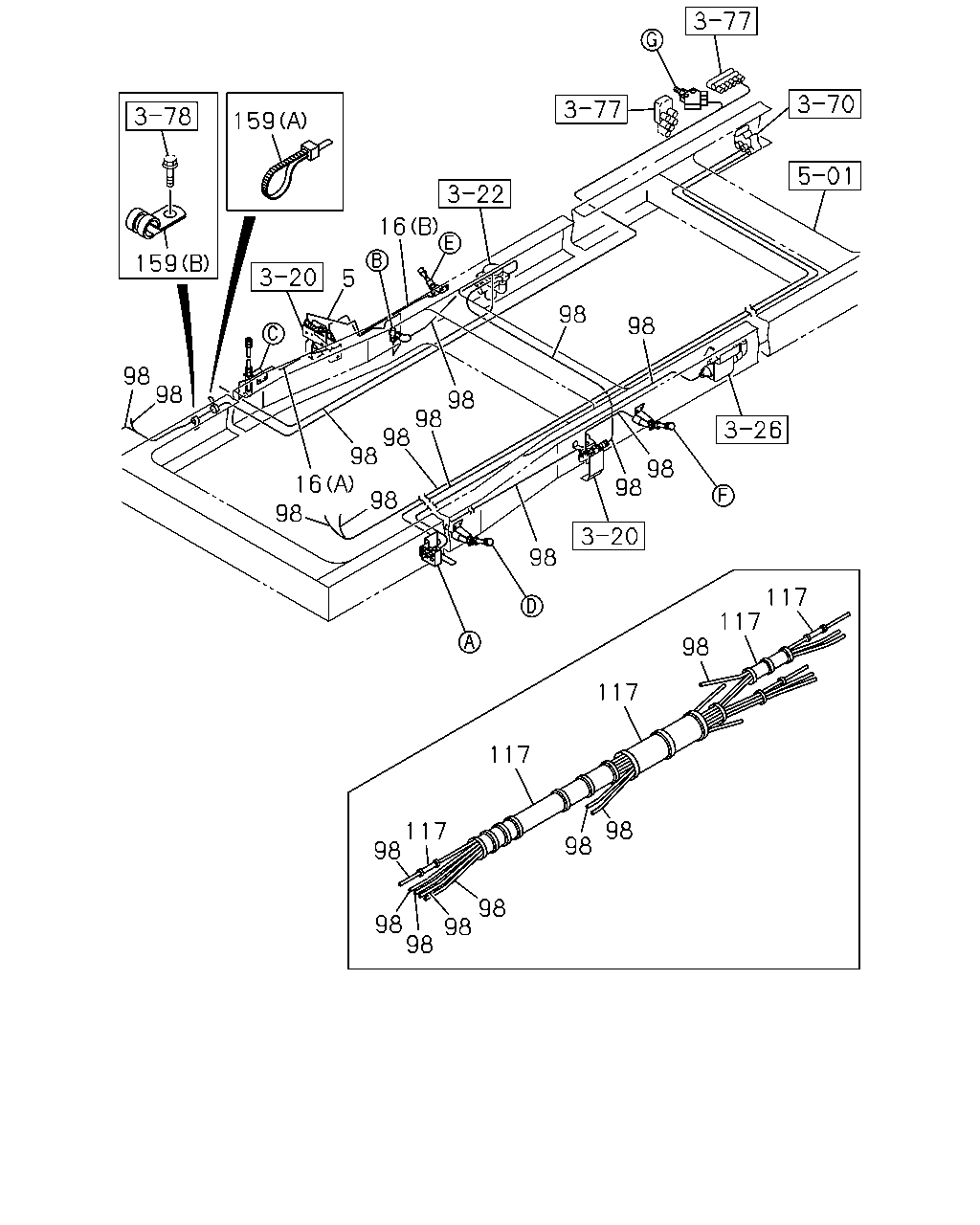

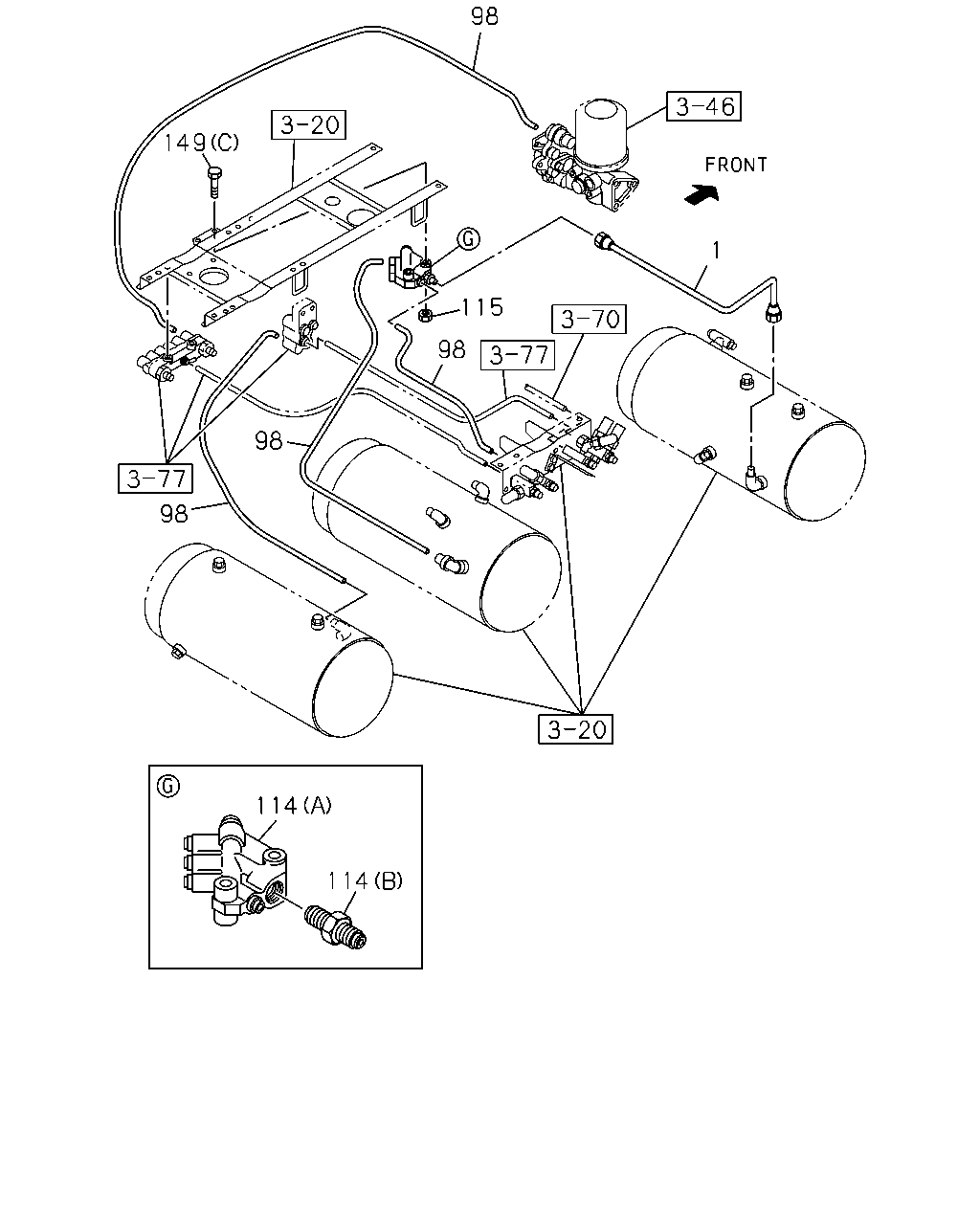

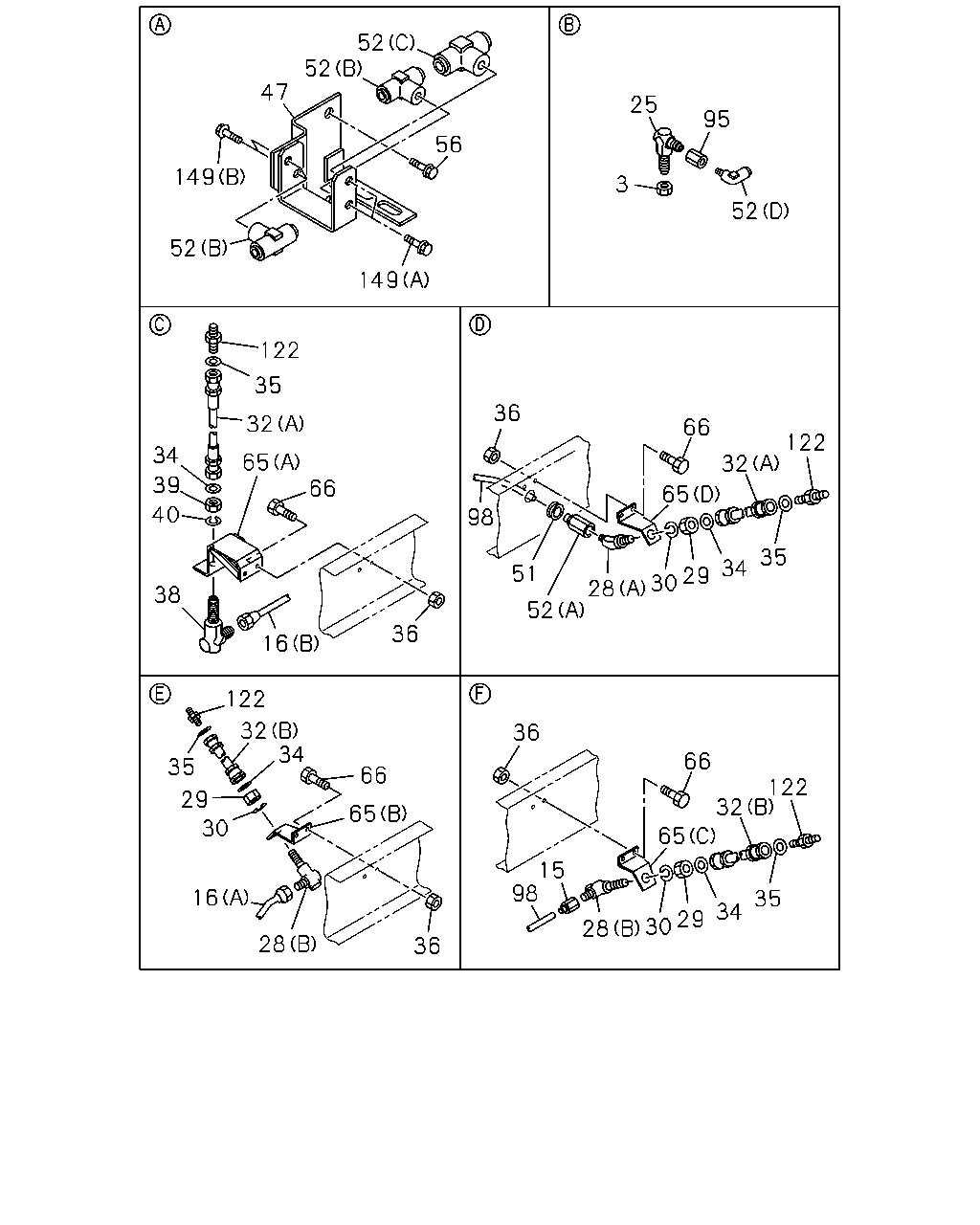

3-75 — BRAKE PIPING; AIR,FRONT (#115118) — 94 parça

159 159 16 5 98 98 98 98 98 98 98 98 16 98 98 98 98 117 117 117 98 117 98 98 98 117 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PIPE; AIR,UNION TO UNION L=1438 SERVICED BY L=1450	1-49115-466-0	01	1	1303-
16	PIPE; AIR,UNION TO MODULATOR (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	1303-
16	PIPE; AIR,UNION TO MODULATOR (A) L=1590 SERVICED BY L=1600	1-49115-467-0	01	1	1303-1504
16	PIPE; AIR,UNION TO MODULATOR (A) L=1592 SERVICED BY L=1600	1-49115-490-0	01	1	1505-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	04	1	1306-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1306-
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	03	1	1306-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1306-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1303-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1303-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1303-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1303-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	1303-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1303-
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	04	1	1303-
159	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	09	1	1303-

52 52 47 56 149 52 149 25 52 95 3 122 35 32 66 65 34 40 39 38 16 36 36 66 65 32 122 98 51 52 30 28 34 29 35 36 66 122 32 35 34 29 30 28 65 15 98 36 28 16 65 66 34 32 122 35 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	NUT; PIPE UNION M20	0-91111-520-0	01	1	1303-
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1303-
16	PIPE; AIR,UNION TO MODULATOR (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	1303-
16	PIPE; AIR,UNION TO MODULATOR (A) L=1590 SERVICED BY L=1600	1-49115-467-0	01	1	1303-1504
16	PIPE; AIR,UNION TO MODULATOR (A) L=1592 SERVICED BY L=1600	1-49115-490-0	01	1	1505-
25	UNION; AIR PIPE M20	0-92135-212-0	01	1	1303-
28	NIPPLE; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	02	1	1303-
28	NIPPLE; AIR PIPE (A) M20	1-09654-199-2	01	1	1303-
29	NUT; NIPPLE M20	0-91111-520-0	01	1	1303-
29	NUT; NIPPLE M20	0-91111-520-0	02	1	1303-
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	01	1	1303-
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	02	1	1303-
32	HOSE; FLEX,FRT (B) L=430	0-57847-430-1	02	1	1303-
32	HOSE; FLEX,FRT (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT (A) L=500	0-57847-500-1	01	1	1303-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1303-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1303-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
38	UNION; AIR PIPE M20 & M20 ELBOW	1-09654-128-1	01	1	1303-
39	NUT; PIPE UNION M20	0-91111-520-0	01	1	1303-
40	WASHER; LK,PIPE UNION ID=20.2	0-91510-520-0	01	1	1303-
47	BRACKET; PIPE UNION	8-97636-508-0	01	1	1303-
51	GROMMET; NYLON TUBE ID=24 OD=30 T=17	9-09956-092-1	01	1	1303-
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1303-
52	CONNECTOR; NYLON TUBE (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-
52	CONNECTOR; NYLON TUBE (C) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1303-
56	BOLT; UNION BRKT M12X30 FLANGE	0-28051-230-0	02	1	1303-
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	1303-
65	BRACKET; FLEX HOSE (D)	1-47477-369-1	01	1	1303-
65	BRACKET; FLEX HOSE (B)	1-47479-605-0	01	1	1303-
65	BRACKET; FLEX HOSE (C)	1-47479-676-0	01	1	1303-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	04	1	1303-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
95	ADAPTER; BRKT M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1303-
95	ADAPTER; BRKT M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1302-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	04	1	1306-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1306-
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	1303-
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	1303-
149	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-
149	BOLT; UNION (B) M8X20 FLANGE	0-28050-820-0	02	1	1303-
149	BOLT; UNION (C) M8X45 FLANGE	0-28050-845-0	02	1	1303-

98 115 98 149 98 98 114 114 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION	1-49123-983-0	01	1	1303-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	04	1	1306-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1306-
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1303-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1303-
114	UNION; NYLON TUBE (A)	1-09661-611-0	01	1	1303-
114	UNION; NYLON TUBE (B) M22X2 STRAIGHT	8-98107-103-0	01	1	1303-
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	02	1	1303-
149	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-
149	BOLT; UNION (B) M8X20 FLANGE	0-28050-820-0	02	1	1303-
149	BOLT; UNION (C) M8X45 FLANGE	0-28050-845-0	02	1	1303-
