Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶

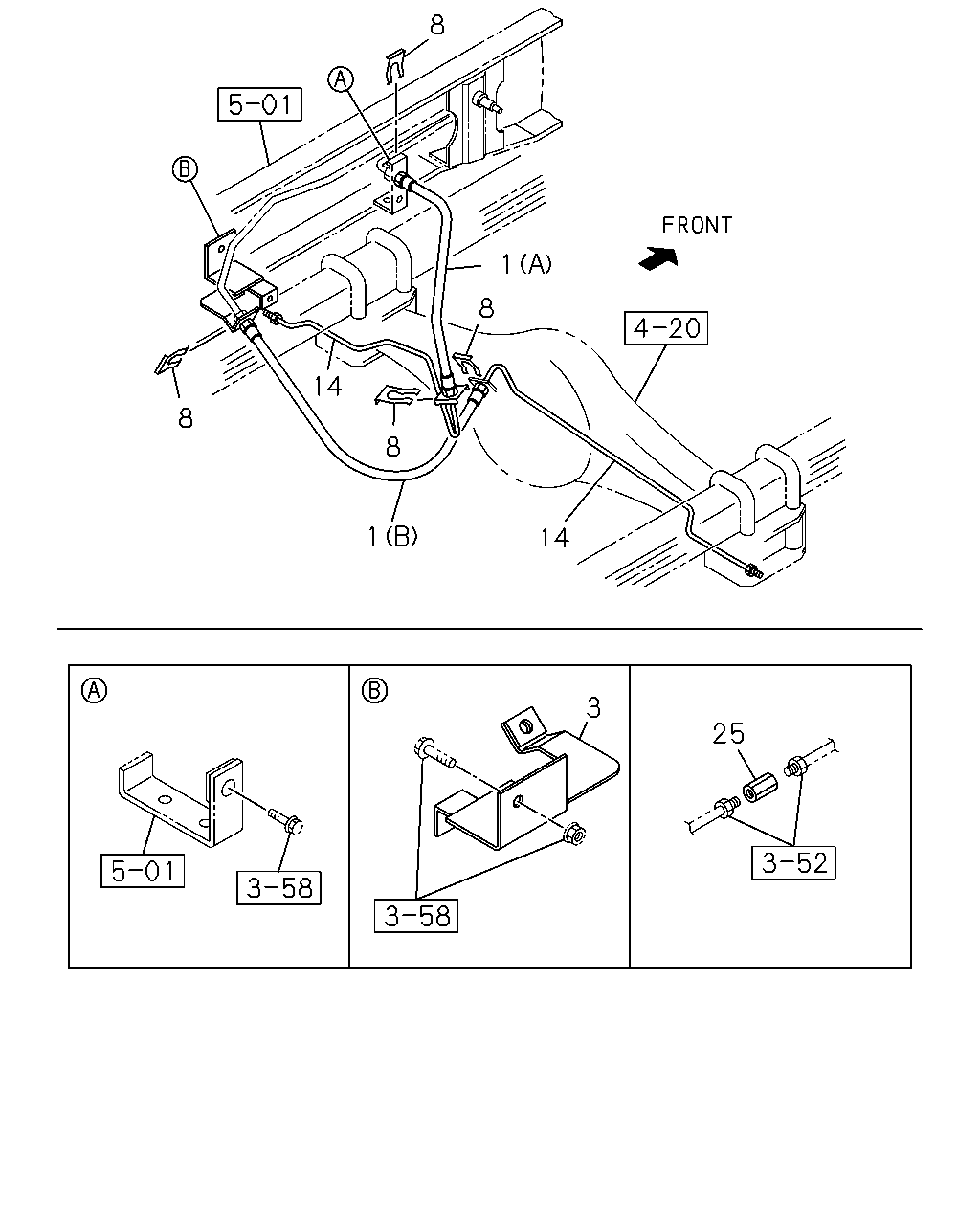

3-55 — BRAKE PIPING; OIL,REAR
(#115116) — 11 parça
8
1
8
8
14
8
1
14
25
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.680 HOSE; FLEX,RR BRK
(A) L=370
8-97035-574-0
01
1
1302-
1
04.680 HOSE; FLEX,RR BRK
(B) L=430
8-97077-458-0
01
1
1309-
3
04.681 BRACKET; FLEX HOSE,RR BRK
8-98178-774-0
01
1
1302-1308
3
04.681 BRACKET; FLEX HOSE,RR BRK
REAR WIDE TREAD(V4T)
8-98178-774-0
01
1
1309-
8
04.686 CLIP; RR BRK
8-97360-054-0
04
1
1302-1308
8
04.686 CLIP; RR BRK
8-97360-054-0
04
1
1309-
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-98021-871-0
01
1
1302-1308
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T)
8-98021-871-0
01
1
1309-
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-98021-879-0
01
1
1302-1308
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T)
8-98021-879-0
01
1
1309-
25
04.686 CONNECTOR
M10 STRAIGHT
0-92107-005-0
01
1
1302-
