8-60 — HEATER UNIT; FRONT (#115105) — 42 parça

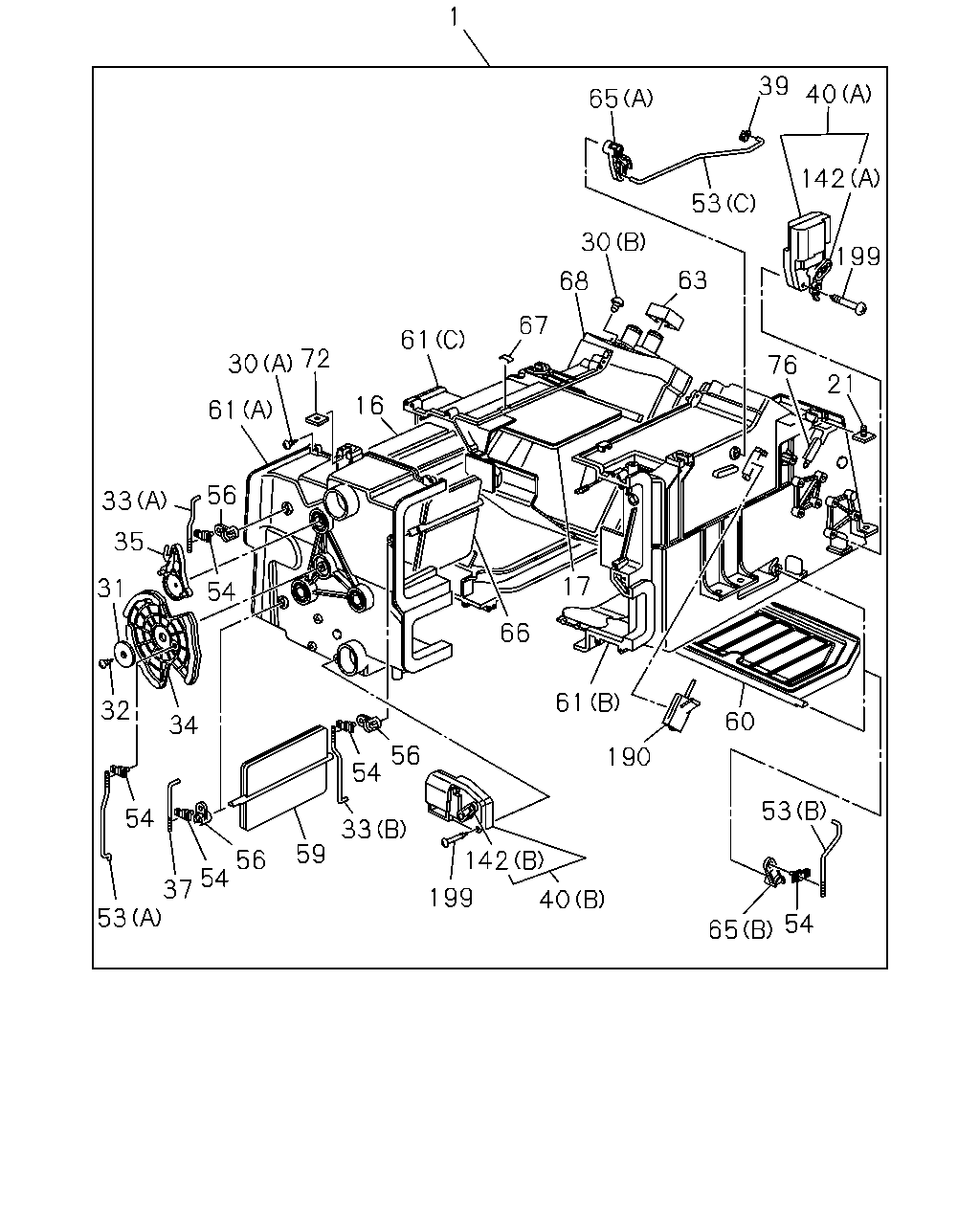

çizim 336461
40 142 199 33 59 56 54 37 53 54 34 32 31 33 61 35 56 30 54 54 66 56 61 190 65 53 60 61 16 72 67 68 30 65 1 39 53 63 199 76 142 40 21 54 17
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-184-1 01 1 1303-1409
1 HEATER UNIT 8-98238-482-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 1303-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 1303-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1303-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 1303-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 1303-1409
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1303-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 1303-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1303-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1303-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 1303-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 1303-
37 ROD; LEVER 1-83579-620-1 01 1 1303-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1303-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-2 01 1 1303-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 1303-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 1303-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 1303-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 1303-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1303-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1303-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 1303-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 1303-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 1303-
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 1303-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 1303-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1303-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 1303-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 1303-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 1303-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1303-
68 CORE; HTR UNIT 1-83562-078-1 01 1 1303-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1303-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 1303-
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 1303-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 1303-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 1303-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1303-
