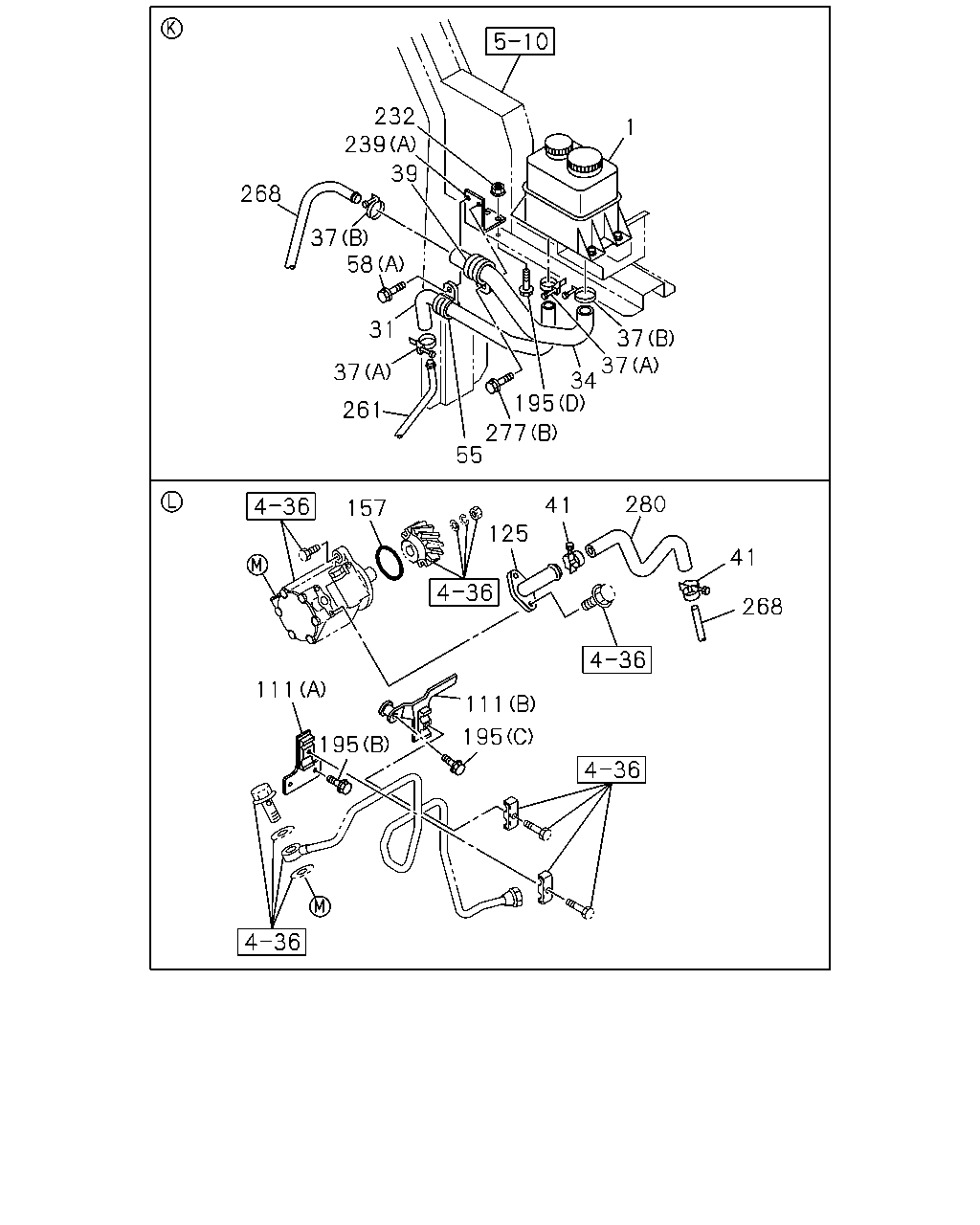

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#115104) — 135 parça

195 111 111 280 41 268 41 195 157 125 1 37 37 34 195 277 55 261 31 37 58 268 232 239 37 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1303-
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1303-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	1303-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	1303-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1303-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1303-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1303-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1303-
58	BOLT; CLIP (D) M8X50 FLANGE	0-28050-850-0	01	1	1303-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1303-
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1303-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1303-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1303-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1303-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1303-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1303-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1303-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1303-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1303-
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1303-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1303-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1303-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1303-
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-

54 58 63 62 67 79 54 58 258 45 238 81 64 84 239 84 238 81 238 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2539	1-21117-744-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98240-513-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98240-515-0	01	1	1303-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98233-186-0	01	1	1303-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	04	1	1303-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1303-
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	1303-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1303-
58	BOLT; CLIP (D) M8X50 FLANGE	0-28050-850-0	01	1	1303-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1303-
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1303-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1303-
63	BRACKET; CLIP,P/S	1-47478-371-0	03	1	1303-
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1303-
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1303-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	1303-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1303-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1303-
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91180-108-0	02	1	1303-
238	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	1303-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1303-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1303-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1303-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	01	1	1303-

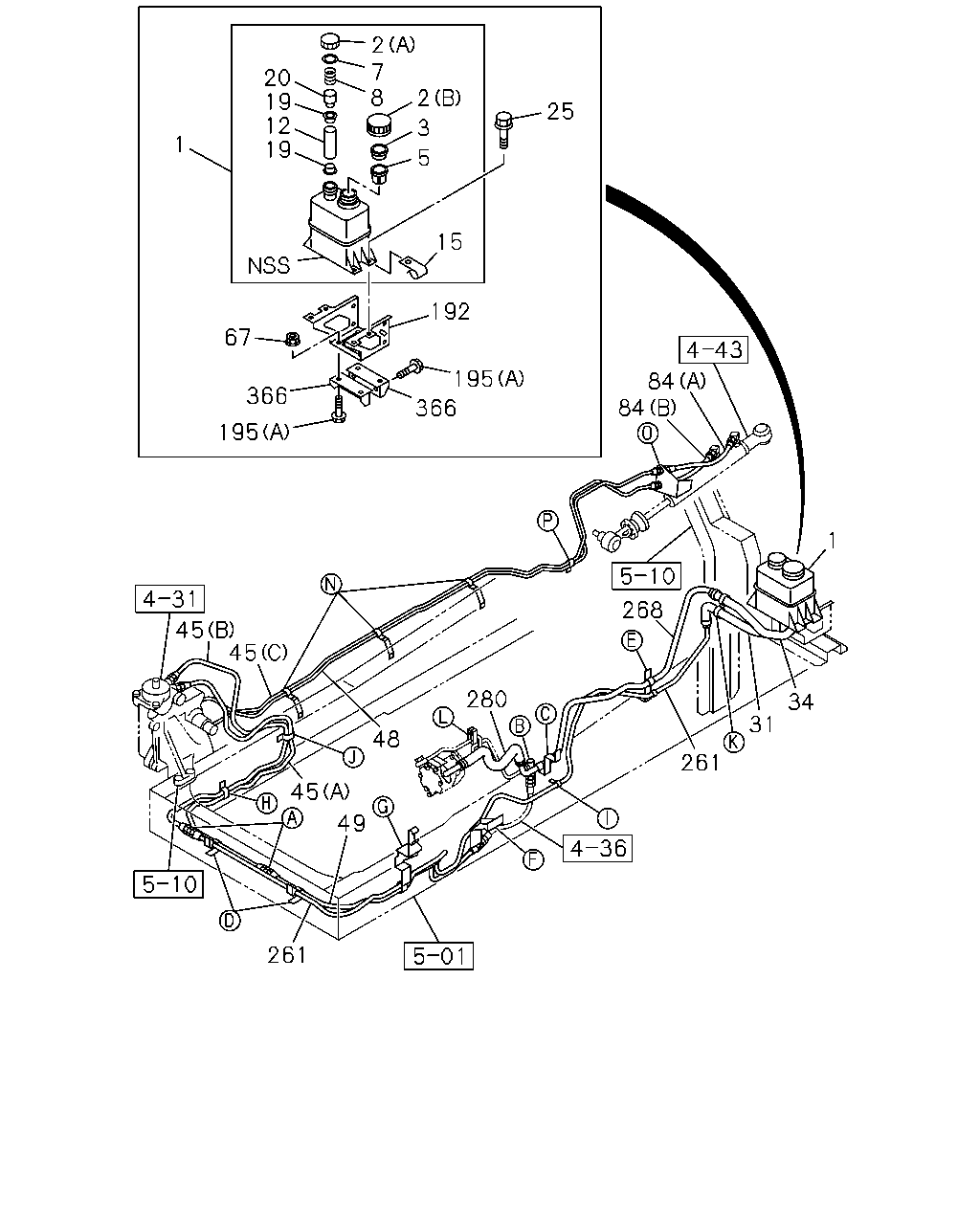

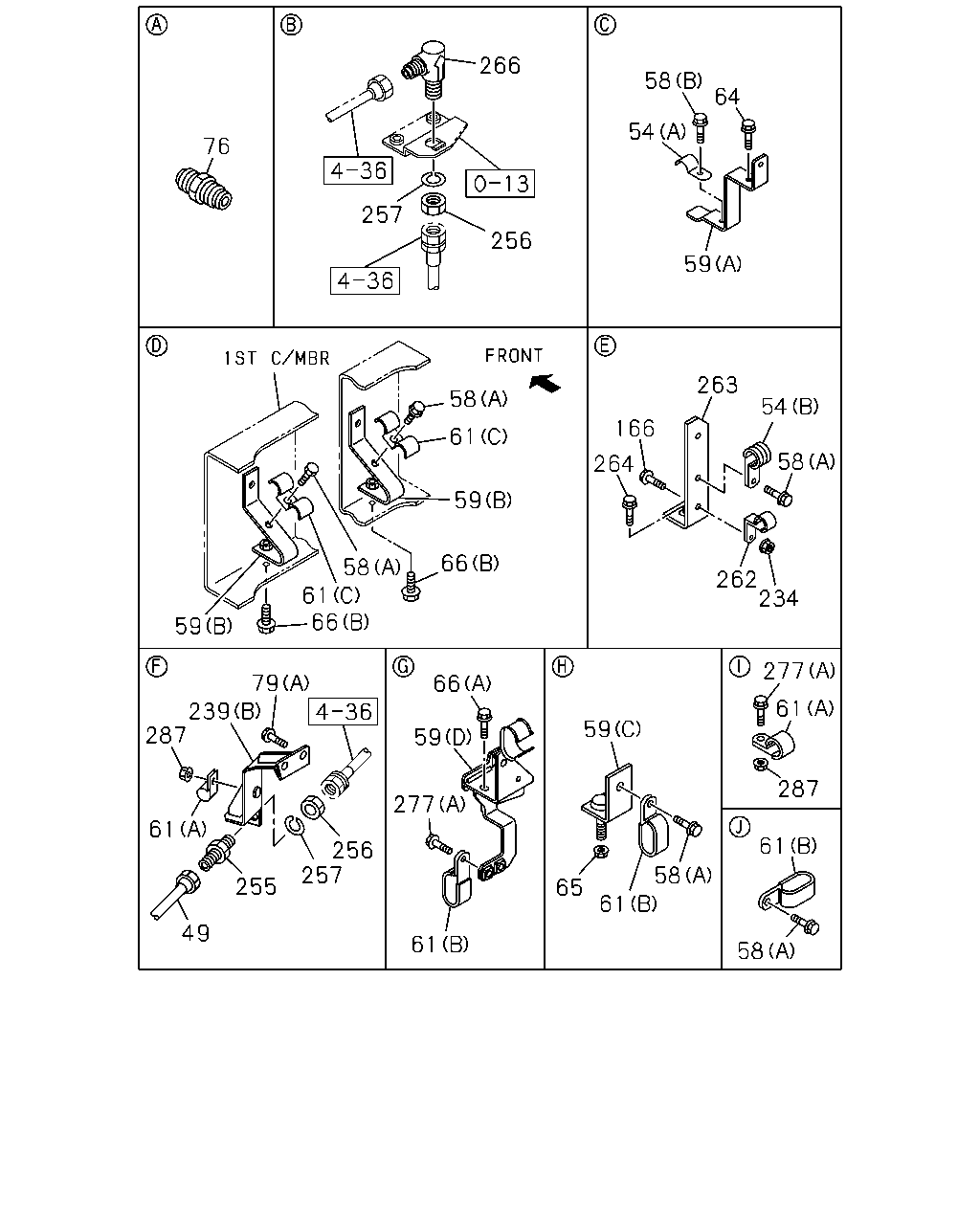

1 34 31 261 280 48 45 45 45 49 195 366 195 366 67 192 15 25 2 5 3 19 12 19 20 1 2 8 7 268 84 84 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1303-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1303-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1303-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1303-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1303-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1303-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1303-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1303-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1303-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1303-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1303-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1303-
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2539	1-21117-744-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98240-513-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98240-515-0	01	1	1303-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98233-186-0	01	1	1303-
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1303-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1303-
192	BRACKET; P/S OIL TANK	8-98137-323-0	01	1	1303-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1303-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1303-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1303-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1303-
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1303-

76 266 257 256 59 54 58 64 59 61 66 66 58 59 61 58 166 264 263 58 262 234 54 287 61 255 49 257 79 239 256 66 59 277 61 65 59 61 58 277 61 287 61 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	04	1	1303-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1303-
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	1303-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1303-
58	BOLT; CLIP (D) M8X50 FLANGE	0-28050-850-0	01	1	1303-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1303-
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	1303-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1303-
59	BRACKET; CLIP,OIL PIPE (A)	1-47471-183-0	01	1	1303-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	1303-
59	BRACKET; CLIP,OIL PIPE (D)	8-98239-922-0	01	1	1303-
59	BRACKET; CLIP,OIL PIPE (C)	8-98240-516-0	01	1	1303-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1303-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1303-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1303-
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1303-
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1303-
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1303-
66	BOLT; BRKT,OIL PIPE (B) M8X20 FLANGE	0-28650-820-0	02	1	1303-
66	BOLT; BRKT,OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	1303-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1303-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1303-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1303-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1303-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1303-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1303-
256	NUT; UNION M22	0-91111-522-0	01	1	1303-
256	NUT; UNION M22	0-91111-522-0	01	1	1303-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1303-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1303-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1303-
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	1303-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1303-
266	UNION; OIL PIPE,P/S M20 & M22 ELBOW	1-09654-154-1	01	1	1303-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-
