◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51429 - NKR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#115101) — 37 parça

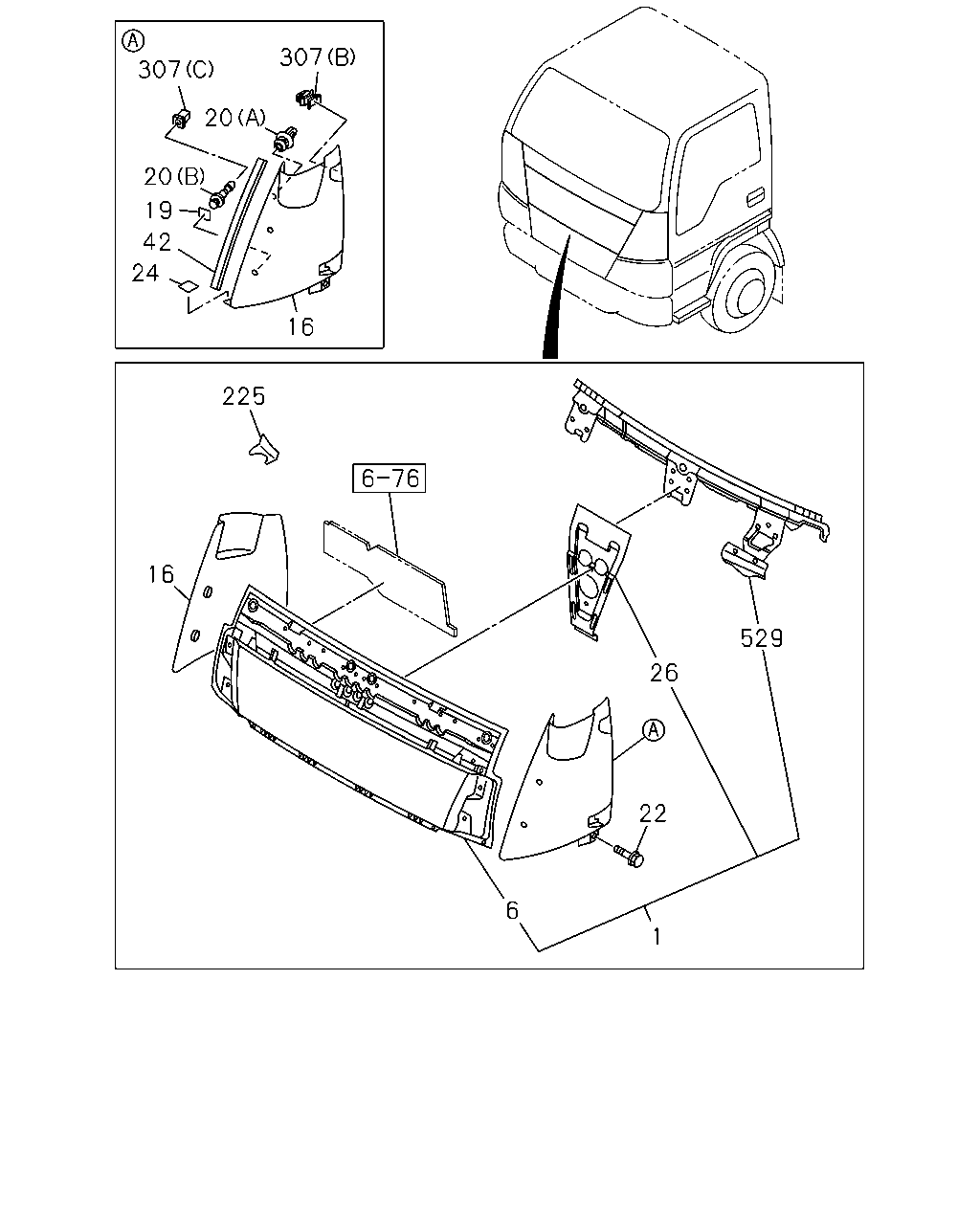

çizim 336194
529 26 22 1 16 225 16 24 42 19 20 307 20 307
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT 8-97582-868-0 01 1 1302-
6 16.570 PANEL; FRONT 8-97582-871-2 01 1 1302-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-451-5 01 1 1401-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97582-467-5 01 1 1401-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-455-5 01 1 1302-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 1302-1312
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 1404-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-459-5 01 1 1302-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 1302-1312
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 1404-
19 16.588 SEAL; FRT SIDE PANEL
EXC. KD PREPARATORY PACK VAR.4<7TV> 16.069 		8-98015-057-0 02 1 1302-
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 1302-
20 16.588 CLIP; FRT PANEL SIDE
(A) H=11.6 		8-98013-823-0 02 1 1302-
22 16.588 SCREW; FRT PANEL SIDE
02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 1302-
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 1302-
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 1302-
42 01.303 FINISHER; FRT PANEL,SIDE 8-97581-613-3 01 1 1302-
42 01.303 FINISHER; FRT PANEL,SIDE 8-97581-614-3 01 1 1302-
225 16.069 COVER; SIDE,FRT
BODY COLOR POLAR SILVER MET(845) EXC. KD PREPARATORY PACK VAR.4<7TV> SILVER 		8-97582-833-5 01 1 1401-
225 16.069 COVER; SIDE,FRT
BODY COLOR POLAR SILVER MET(845) EXC. KD PREPARATORY PACK VAR.4<7TV> SILVER 		8-97582-842-4 01 1 1401-
225 16.069 COVER; SIDE,FRT
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97582-831-5 01 1 1302-
225 16.069 COVER; SIDE,FRT
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97582-840-4 01 1 1302-1312
225 16.069 COVER; SIDE,FRT
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> WHITE 		8-97582-840-4 01 1 1401-
225 16.069 COVER; SIDE,FRT
BODY COLOR MARINE BLUE(890) EXC. KD PREPARATORY PACK VAR.4<7TV> BLUE 		8-97582-835-5 01 1 1302-
225 16.069 COVER; SIDE,FRT
BODY COLOR MARINE BLUE(890) EXC. KD PREPARATORY PACK VAR.4<7TV> BLUE 		8-97582-844-4 01 1 1302-1312
225 16.069 COVER; SIDE,FRT
BODY COLOR MARINE BLUE(890) EXC. KD PREPARATORY PACK VAR.4<7TV> BLUE 		8-97582-844-4 01 1 1401-
307 16.125 GROMMET; FRT PANEL
16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 1302-
307 16.125 GROMMET; FRT PANEL
16.588 (B) 		8-97581-632-1 04 1 1302-
307 16.125 GROMMET; FRT PANEL
(C) 		8-97583-397-0 04 1 1302-
529 16.578 REINFORCEMENT; PANEL 8-97851-373-2 01 1 1302-
çizim 336539
307 164
BalonParca AdiParca NoAdetTipApplied Date
6 16.570 PANEL; FRONT 8-97582-871-2 01 1 1302-
164 16.125 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1302-
164 16.125 SEAL; FRT PILLAR
BODY COLOR MARINE BLUE(890) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1302-1312
164 16.125 SEAL; FRT PILLAR
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1401-
307 16.125 GROMMET; FRT PANEL
16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 1302-
307 16.125 GROMMET; FRT PANEL
16.588 (B) 		8-97581-632-1 04 1 1302-
307 16.125 GROMMET; FRT PANEL
(C) 		8-97583-397-0 04 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
