9-01 — TOOLS (#115100) — 197 parça

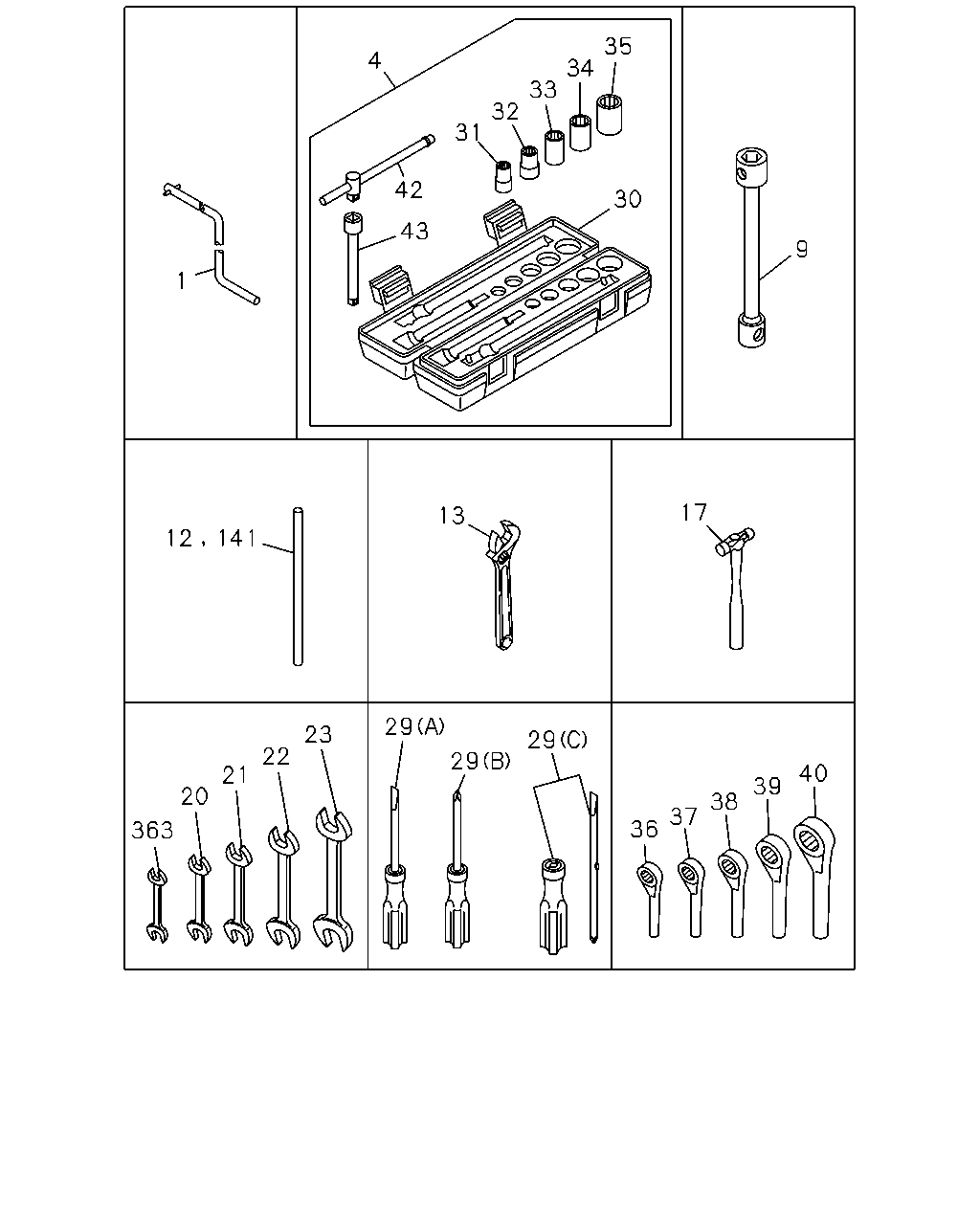

1 4 42 31 32 33 34 35 9 30 43 12 13 17 29 23 22 21 20 363 29 36 39 37 40 29 38 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>	9-23110-018-0	01	1	1303-1511	●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>	9-23110-018-0	01	1	1512-	●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	9-23110-018-0	01	1	1512-		●
4	WRENCH KIT; SOCKET	1-85000-491-0	01	1	1303-1511	●
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	1512-	●	●
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	1303-1511	●
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	1512-	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	1303-1501	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1502-1511	●
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1512-	●	●
13	WRENCH; MONKEY L=247	1-85117-006-0	01	1	1303-1407	●
13	WRENCH; MONKEY L=255	8-98270-303-0	01	1	1408-1511	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1512-	●	●
17	HAMMER	9-85121-406-0	01	1	1303-1511	●
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	1512-	●	●
20	WRENCH; 10X12 10X12	0-95902-510-0	01	1	1303-1511	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	1512-	●	●
21	WRENCH; 14X17 14X17	0-95902-514-0	01	1	1303-1511	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	1512-	●	●
22	WRENCH; 19X22 19X22	0-95902-519-0	01	1	1303-1511	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	1512-	●	●
23	WRENCH; 24X27 24X27	0-95902-524-0	01	1	1303-1511	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	1512-	●	●
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	1303-1511	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	1512-	●	●
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	1303-1511	●
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	1512-	●	●
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	1303-1511	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	1512-	●	●
30	BOX; SOCKET WRENCH	1-85000-492-0	01	1	1303-1511	●
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	1512-	●	●
31	WRENCH; 12	1-85000-495-0	01	1	1303-1511	●
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	1512-	●	●
32	WRENCH; 14	1-85000-496-0	01	1	1303-1511	●
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	1512-	●	●
33	WRENCH; 17	1-85000-497-0	01	1	1303-1511	●
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	1512-	●	●
34	WRENCH; 19	1-85000-498-0	01	1	1303-1511	●
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	1512-	●	●
35	WRENCH; 22	1-85000-499-0	01	1	1303-1511	●
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	1512-	●	●
36	WRENCH; 24	9-85111-377-0	01	1	1303-1511	●
36	WRENCH; 24	9-85111-377-0	01	1	1512-	●	●
37	WRENCH; 27	9-85111-375-0	01	1	1303-1511	●
37	WRENCH; 27	9-85111-375-0	01	1	1512-	●	●
38	WRENCH; 32	9-85111-358-0	01	1	1303-1511	●
38	WRENCH; 32	9-85111-358-0	01	1	1512-	●	●
39	WRENCH; 36	9-85111-374-0	01	1	1303-1511	●
39	WRENCH; 36	9-85111-374-0	01	1	1512-	●	●
40	WRENCH; 41	9-85111-356-0	01	1	1303-1511	●
40	WRENCH; 41	9-85111-356-0	01	1	1512-	●	●
42	HANDLE; SLIDING	1-85000-500-0	01	1	1303-1511	●
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	1512-	●	●
43	BAR; EXTENSION,SOCKET WRENCH	1-85000-501-0	01	1	1303-1511	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	1-85000-501-0	01	1	1512-	●	●
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	1303-1511	●
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	1512-	●	●
363	WRENCH; OPEN END 8X10 8X10	0-95902-508-0	01	1	1303-1511	●
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	1512-	●	●

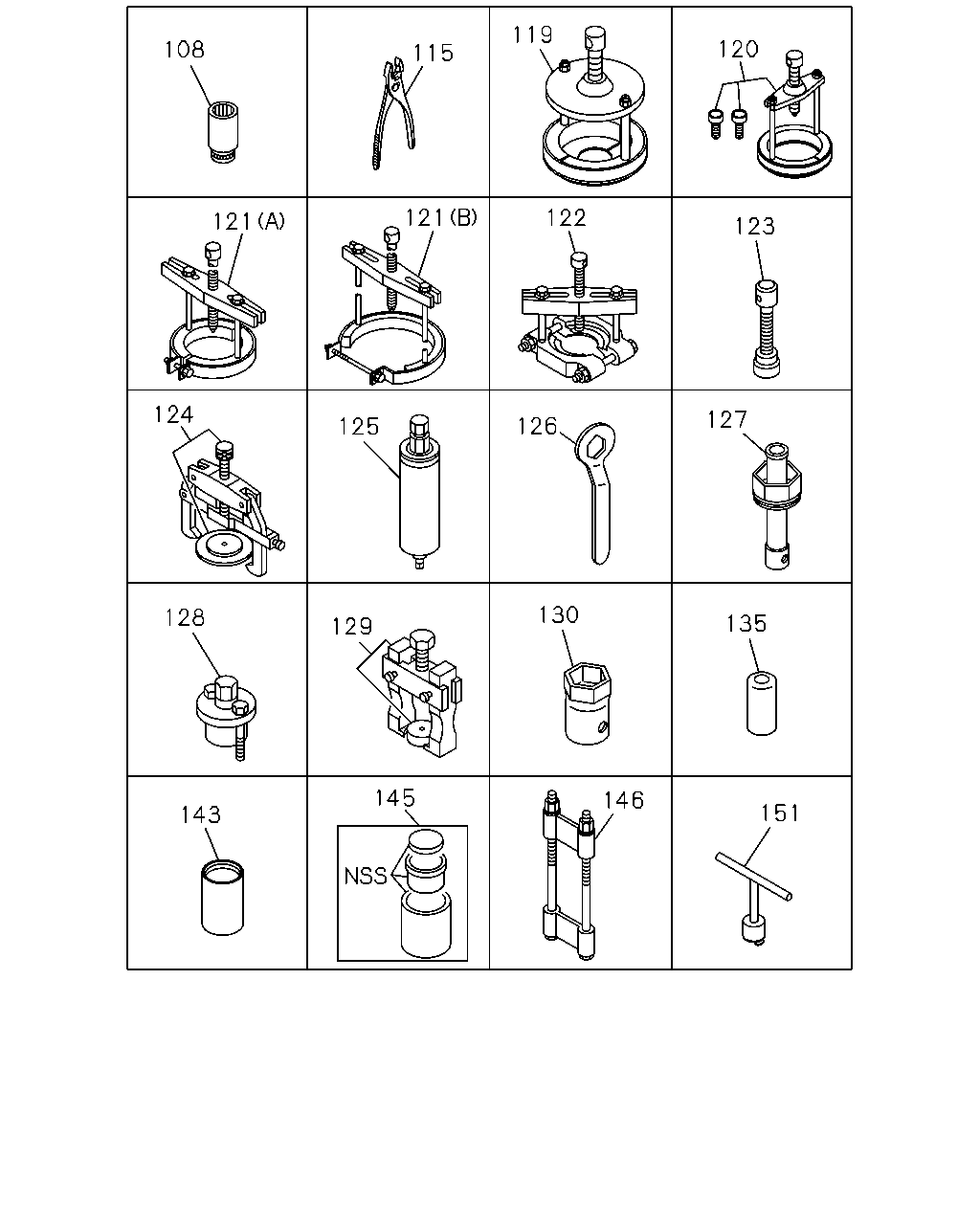

120 119 115 108 121 121 122 123 124 125 126 127 135 130 129 128 143 145 146 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
108	WRENCH; SOCKET	9-85113-132-0	01	1	1303-1511	●
108	WRENCH; SOCKET	9-85113-132-0	01	1	1512-	●	●
115	PLIER	5-85171-002-0	01	1	1303-1410	●
115	PLIER	8-98282-845-0	01	1	1411-1511	●
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1512-	●	●
119	PULLER ASM; TOP GEAR BRG MAP6U M/T(Y4B) L=235	9-85210-190-0	01	1	1303-	●
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	1303-1511	●
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	1512-	●	●
121	PULLER ASM; COUNTER REAR MJT7S M/T(Y3E),MJX16P M/T(Y3Z) (A)	1-85210-069-0	01	1	1512-	●
121	PULLER ASM; COUNTER REAR (A)	1-85210-069-0	01	1	1512-		●
121	PULLER ASM; COUNTER REAR MJT7 M/T<Y9E> (B) OD=146	1-85210-074-0	01	1	1512-	●	●
122	PULLER ASM; COUNTER FRT	9-85210-195-0	01	1	1303-1511	●
122	PULLER ASM; COUNTER FRT	9-85210-195-0	01	1	1512-	●	●
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	1303-1511	●
123	PULLER; SPEEDOMETER BUSHING MJT7S M/T(Y3E),MAP6U M/T(Y4B)	9-85210-091-0	01	1	1512-	●
123	PULLER; SPEEDOMETER BUSHING MJT7S M/T(Y3E)	9-85210-091-0	01	1	1512-		●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1303-1511	●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1512-	●	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	1303-1511	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	1512-	●	●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	1303-1511	●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	1512-	●	●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	1303-1511	●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	1512-	●	●
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	1303-1511	●
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	1512-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1303-1511	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1512-	●	●
130	WRENCH; BOX B=63	9-85111-368-0	01	1	1303-1511	●
130	WRENCH; BOX B=63	9-85111-368-0	01	1	1512-	●	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	1303-1510	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	1511-1511	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	1511-1511	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	1512-	●	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	1512-	●
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	1303-1511	●
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	1512-	●	●
145	REPLACER ASM; BUSHING	1-85230-008-0	01	1	1303-1511	●
145	REPLACER ASM; BUSHING	1-85230-008-0	01	1	1512-	●	●
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	1303-1511	●
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	1512-	●	●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	1303-1511	●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	1512-	●	●

153 154 156 160 163 163 163 163 165 167 169 171 189 186 182 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	1303-1511	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	1512-	●	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	1303-1511	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	1512-	●	●
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	1303-1511	●
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	1512-	●	●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	1303-1511	●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	1512-	●	●
163	TOOL; SETTING (C) L=195	1-85221-162-1	01	1	1303-1511	●
163	TOOL; SETTING (C) L=195	1-85221-162-1	01	1	1512-	●	●
163	TOOL; SETTING (D) L=150	1-85221-163-0	01	1	1303-1511	●
163	TOOL; SETTING MJT7S M/T(Y3E),MAP6U M/T(Y4B) (D) L=150	1-85221-163-0	01	1	1512-	●
163	TOOL; SETTING MJT7S M/T(Y3E) (D) L=150	1-85221-163-0	01	1	1512-		●
163	TOOL; SETTING (B) OD=150	1-85221-167-0	01	1	1303-1511	●
163	TOOL; SETTING MJT7S M/T(Y3E),MAP6U M/T(Y4B) (B) OD=150	1-85221-167-0	01	1	1512-	●
163	TOOL; SETTING MJT7S M/T(Y3E) (B) OD=150	1-85221-167-0	01	1	1512-		●
163	TOOL; SETTING (A)	9-85221-231-0	01	1	1303-1511	●
163	TOOL; SETTING (A)	9-85221-231-0	01	1	1512-	●	●
165	SETTING TOOL; PTO MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-85221-177-0	01	1	1512-	●	●
167	ALIGNER; CLU PILOT CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) L=300 OD=52.5	1-85253-025-0	01	1	1512-	●	●
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1303-1511	●
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1512-	●	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1303-1511	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1512-	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1303-1511	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1512-	●	●
182	REMOVER ASM	1-85239-008-0	01	1	1303-1511	●
182	REMOVER ASM	1-85239-008-0	01	1	1512-	●	●
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	1303-1511	●
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	1512-	●	●
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	1303-1511	●
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	1512-	●	●

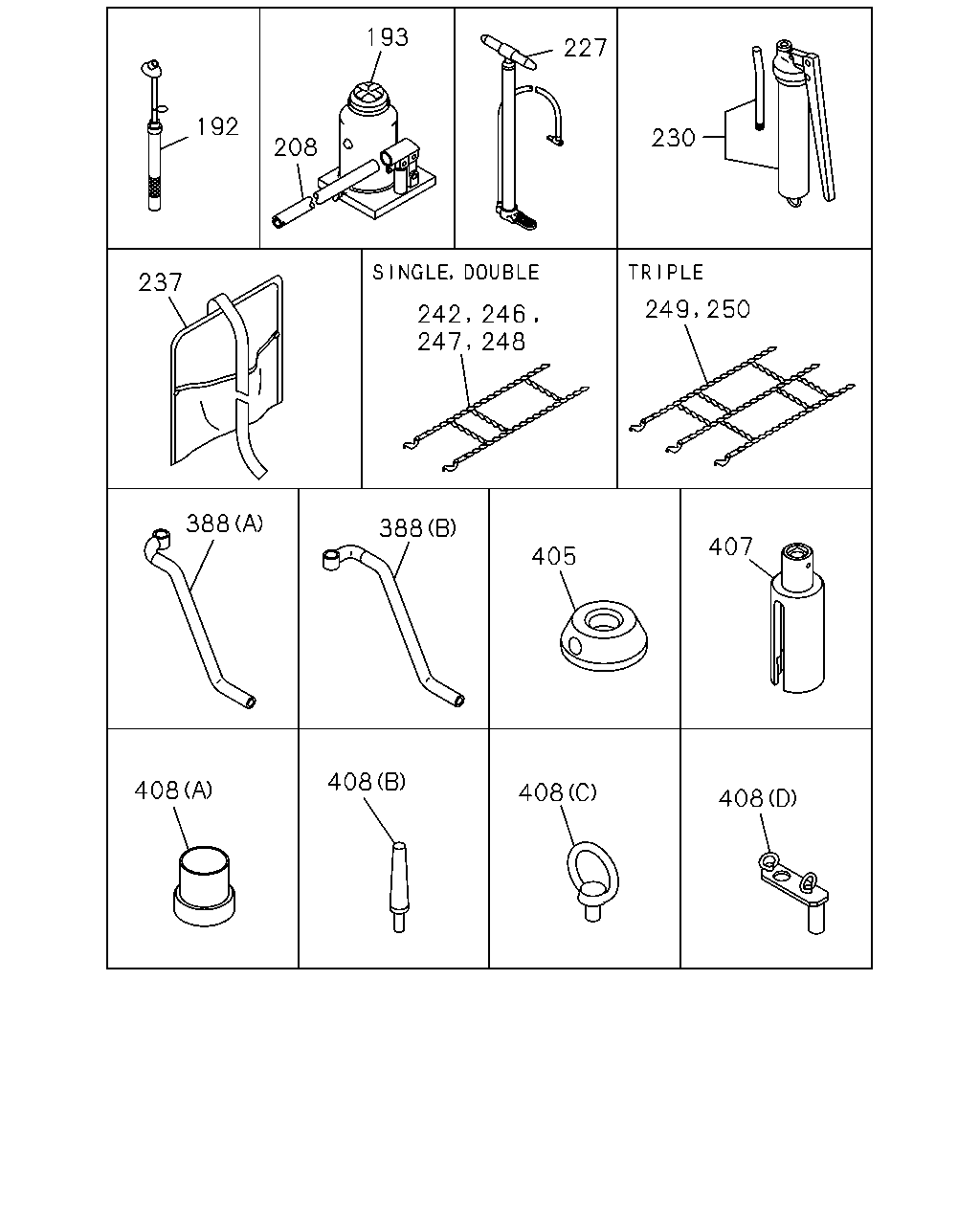

192 237 388 408 193 208 242 246 247 248 388 408 408 405 249 250 230 227 407 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1303-1511	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1512-	●	●
193	JACK ASM 15TON	1-85510-019-2	01	1	1303-1511	●
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	1512-	●	●
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1303-1511	●
208	HANDLE; JACK TOOL B KIT<SL1> L=600	8-98181-437-0	01	1	1512-	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1303-1511	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1512-	●	●
230	PUMP; GREASE	1-85556-007-5	01	1	1303-1511	●
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	1512-	●	●
237	BAG; TOOL	8-97130-902-1	01	1	1303-1511	●
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-1	01	1	1512-	●	●
242	DRAWER ASM; ENG TRANS & DIFF 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	1303-1511	●
242	DRAWER ASM; ENG TRANS & DIFF 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	1512-	●	●
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	1303-1511	●
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	1512-	●	●
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	1303-1511	●
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	1512-	●	●
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	1303-1511	●
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	1512-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	1303-1511	●
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	1512-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	1303-1511	●
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	1512-	●	●
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	1303-1511	●
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	1512-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	1303-1511	●
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	1512-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	1303-1511	●
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	1512-	●	●
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	1303-1511	●
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	1512-	●	●
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	1303-1511	●
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	1512-	●	●
405	GUIDE; COUNTER MJT7S M/T(Y3E),MJX16P M/T(Y3Z)	1-85221-264-0	01	1	1512-	●
405	GUIDE; COUNTER	1-85221-264-0	01	1	1512-		●
407	SOCKET; SW MJT7S M/T(Y3E),MJX16P M/T(Y3Z)	1-85221-267-1	01	1	1512-	●
407	SOCKET; SW	1-85221-267-1	01	1	1512-		●
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E),MJX16P M/T(Y3Z) (C)	1-85221-262-0	02	1	1512-	●
408	TOOL; SETTING,SHIFT ASSISTER (C)	1-85221-262-0	02	1	1512-		●
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E),MJX16P M/T(Y3Z) (A)	1-85221-268-0	01	1	1512-	●
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-268-0	01	1	1512-		●
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E),MJX16P M/T(Y3Z) (B)	1-85221-269-0	01	1	1512-	●
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-269-0	01	1	1512-		●
408	TOOL; SETTING,SHIFT ASSISTER MJT7 M/T<Y9E> (D)	1-85221-257-0	01	1	1512-	●	●
408	TOOL; SETTING,SHIFT ASSISTER MJT7 M/T<Y9E> (E)	1-85221-259-0	01	1	1512-	●	●
408	TOOL; SETTING,SHIFT ASSISTER MJT7 M/T<Y9E> (F)	1-85221-260-0	01	1	1512-	●	●
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-268-0	01	1	1303-1305	●
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-269-0	01	1	1303-1305	●

408 417 408 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E),MJX16P M/T(Y3Z) (C)	1-85221-262-0	02	1	1512-	●
408	TOOL; SETTING,SHIFT ASSISTER (C)	1-85221-262-0	02	1	1512-		●
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E),MJX16P M/T(Y3Z) (A)	1-85221-268-0	01	1	1512-	●
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-268-0	01	1	1512-		●
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E),MJX16P M/T(Y3Z) (B)	1-85221-269-0	01	1	1512-	●
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-269-0	01	1	1512-		●
408	TOOL; SETTING,SHIFT ASSISTER MJT7 M/T<Y9E> (D)	1-85221-257-0	01	1	1512-	●	●
408	TOOL; SETTING,SHIFT ASSISTER MJT7 M/T<Y9E> (E)	1-85221-259-0	01	1	1512-	●	●
408	TOOL; SETTING,SHIFT ASSISTER MJT7 M/T<Y9E> (F)	1-85221-260-0	01	1	1512-	●	●
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-268-0	01	1	1303-1305	●
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-269-0	01	1	1303-1305	●
417	BOLT; CHAMBER RELEASE FRT BRK AIR D410 WEDGE-160-24/24<B7R> (B)	1-85576-378-1	02	1	1512-	●	●
417	BOLT; CHAMBER RELEASE (A) 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	1303-1511	●
417	BOLT; CHAMBER RELEASE (A) 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
