◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10863 - EXR RHD FUEL TANK 200L+200L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#11510) — 317 parça

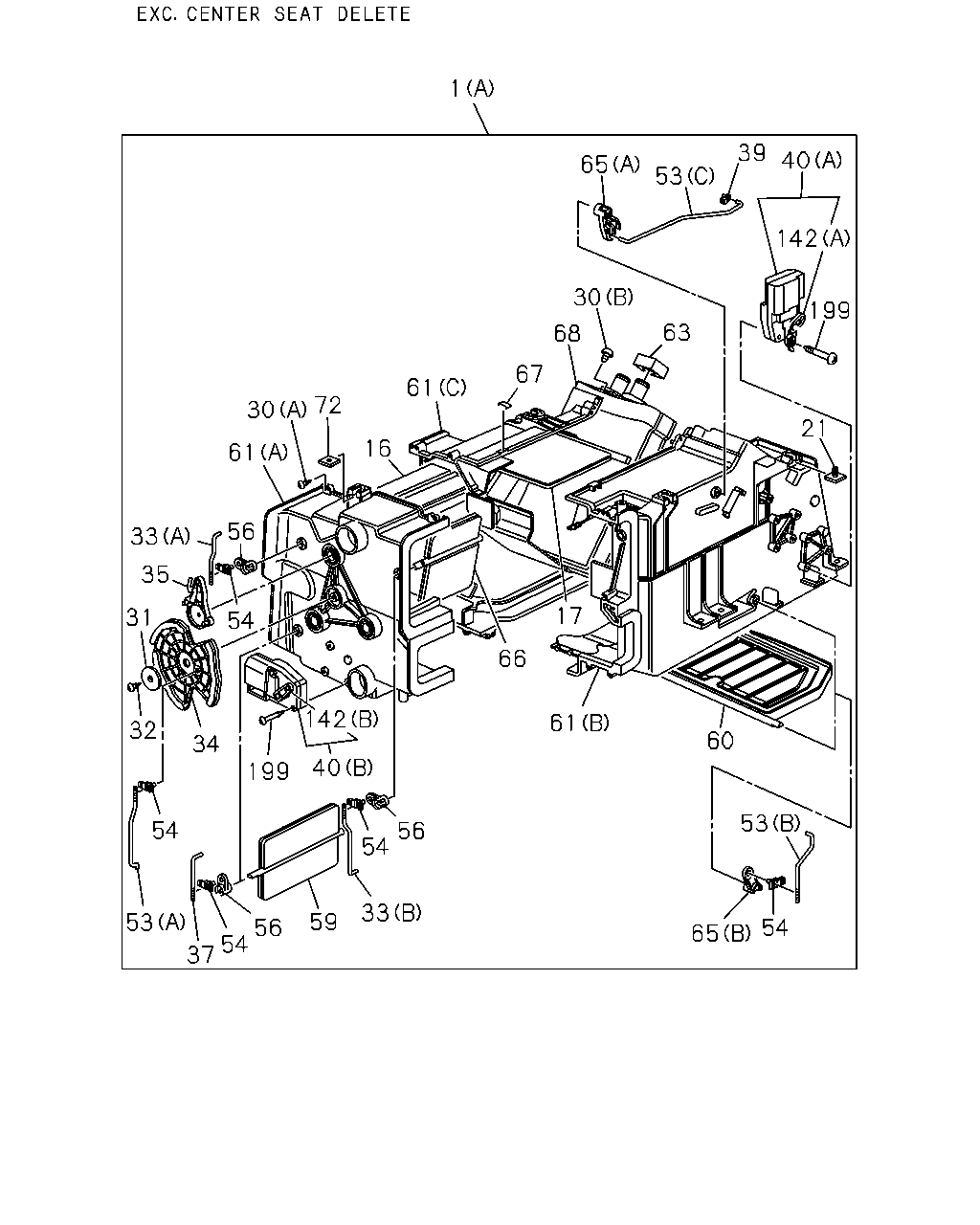

çizim 18694
1 65 39 53 40 142 63 30 68 67 61 16 72 30 61 33 35 31 32 34 199 40 54 56 33 59 56 54 37 53 54 142 54 56 66 17 61 60 21 199 53 65 54
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) 		1-83511-134-6 01 1 0106-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) 		1-83511-179-1 01 1 0110-
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83511-129-8 01 1 0106-0108
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83511-129-8 01 1 0109-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83511-129-8 01 1 0109-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83511-175-1 01 1 0110-
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83511-175-1 01 1 0110-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83511-139-3 01 1 0106-
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 0106-0108
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 0109-
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-628-1 01 1 0106-0108
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-628-1 01 1 0109-
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 02 1 0106-0108
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 02 1 0109-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X20 		9-09829-324-1 01 1 0106-0108
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X20 		9-09829-324-1 01 1 0109-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 0106-0108
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 0109-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M4X16 		8-94324-850-0 11 1 0106-
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 0106-0108
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 0109-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 0106-0108
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 0109-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 02 1 0106-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 0106-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 0106-0108
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 0109-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 0106-0108
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 0109-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 0106-0108
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 0109-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 0106-0108
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 0109-
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 02 1 0106-
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 0106-0108
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 0109-
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-136-0 01 1 0106-0108
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-136-0 01 1 0109-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83579-676-1 01 1 0106-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 0106-0108
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 0109-
40 ACTUATOR; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0106-0108
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0106-0108
40 ACTUATOR; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0109-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0109-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83579-649-1 01 1 0109-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 0106-0108
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 0109-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 0106-0108
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 0109-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 0106-0108
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 0109-
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 0106-0108
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 0109-
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 03 1 0106-
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 0106-0108
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 0109-
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 02 1 0106-
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-2 01 1 0106-0108
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-2 01 1 0109-
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-629-0 01 1 0106-0108
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-629-0 01 1 0109-0109
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-084-0 01 1 0110-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83564-323-5 01 1 0106-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) 		1-83564-347-3 01 1 0106-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 0106-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 0109-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0106-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0106-0108
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0109-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0109-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-401-0 01 1 0109-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0106-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0106-0108
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0109-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0109-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83564-402-0 01 1 0109-
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 0106-0108
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 0109-
63 LINING; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83578-033-0 01 1 0106-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-327-0 01 1 0106-0108
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-327-0 01 1 0109-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-328-1 01 1 0106-0108
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-328-1 01 1 0109-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) 		1-83579-680-0 01 1 0106-
66 SHUTTER; HTR UNIT,CENTER LWR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0106-0108
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0106-0108
66 SHUTTER; HTR UNIT,CENTER LWR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0109-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0109-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) 		1-83579-627-0 01 1 0109-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 0106-0108
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 0109-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-078-1 01 1 0106-0108
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-078-1 01 1 0109-
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-4 02 1 0106-0108
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-4 02 1 0109-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83564-409-0 01 1 0106-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 0106-0108
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 0109-
142 LEVER; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0106-0108
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0106-0108
142 LEVER; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0109-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0109-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-345-1 01 1 0109-
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 0106-0108
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 0109-
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 0106-

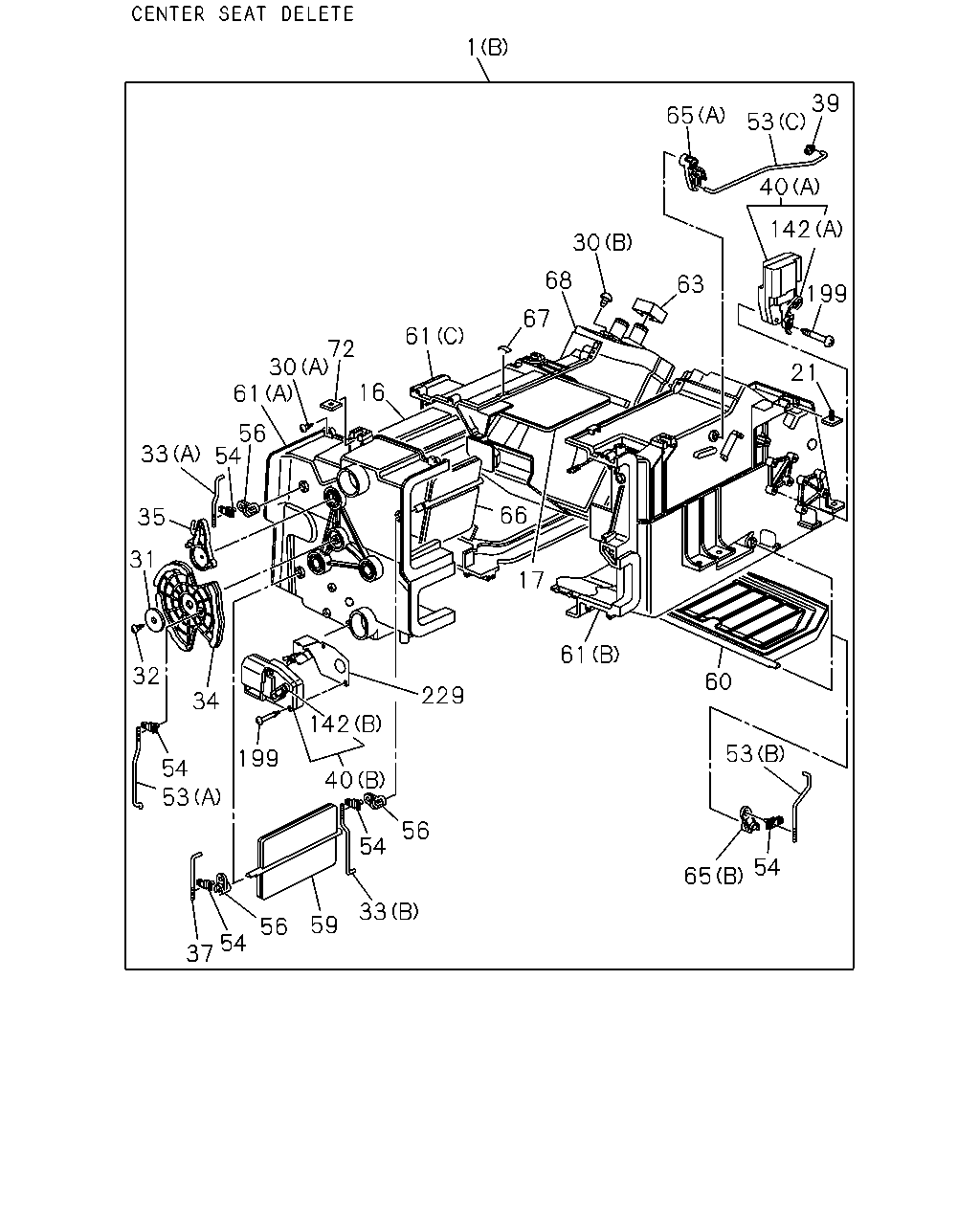

çizim 18695
1 39 53 65 40 142 30 68 63 199 67 61 72 30 61 21 16 56 54 33 66 35 31 17 61 32 60 229 34 142 53 199 54 53 40 56 54 54 65 33 59 56 54 37
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) 		1-83511-134-6 01 1 0106-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) 		1-83511-179-1 01 1 0110-
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83511-129-8 01 1 0106-0108
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83511-129-8 01 1 0109-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83511-129-8 01 1 0109-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83511-175-1 01 1 0110-
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83511-175-1 01 1 0110-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83511-139-3 01 1 0106-
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 0106-0108
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 0109-
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-628-1 01 1 0106-0108
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-628-1 01 1 0109-
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 02 1 0106-0108
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 02 1 0109-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X20 		9-09829-324-1 01 1 0106-0108
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X20 		9-09829-324-1 01 1 0109-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 0106-0108
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 0109-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M4X16 		8-94324-850-0 11 1 0106-
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 0106-0108
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 0109-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 0106-0108
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 0109-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 02 1 0106-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 0106-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 0106-0108
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 0109-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 0106-0108
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 0109-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 0106-0108
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 0109-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 0106-0108
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 0109-
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 02 1 0106-
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 0106-0108
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 0109-
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-136-0 01 1 0106-0108
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-136-0 01 1 0109-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83579-676-1 01 1 0106-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 0106-0108
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 0109-
40 ACTUATOR; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0106-0108
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0106-0108
40 ACTUATOR; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0109-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0109-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83579-649-1 01 1 0109-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 0106-0108
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 0109-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 0106-0108
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 0109-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 0106-0108
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 0109-
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 0106-0108
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 0109-
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 03 1 0106-
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 0106-0108
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 0109-
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 02 1 0106-
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-2 01 1 0106-0108
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-2 01 1 0109-
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-629-0 01 1 0106-0108
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-629-0 01 1 0109-0109
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-084-0 01 1 0110-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83564-323-5 01 1 0106-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) 		1-83564-347-3 01 1 0106-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 0106-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 0109-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0106-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0106-0108
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0109-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0109-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-401-0 01 1 0109-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0106-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0106-0108
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0109-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0109-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83564-402-0 01 1 0109-
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 0106-0108
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 0109-
63 LINING; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83578-033-0 01 1 0106-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-327-0 01 1 0106-0108
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-327-0 01 1 0109-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-328-1 01 1 0106-0108
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-328-1 01 1 0109-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) 		1-83579-680-0 01 1 0106-
66 SHUTTER; HTR UNIT,CENTER LWR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0106-0108
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0106-0108
66 SHUTTER; HTR UNIT,CENTER LWR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0109-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0109-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) 		1-83579-627-0 01 1 0109-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 0106-0108
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 0109-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-078-1 01 1 0106-0108
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-078-1 01 1 0109-
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-4 02 1 0106-0108
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-4 02 1 0109-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83564-409-0 01 1 0106-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 0106-0108
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 0109-
142 LEVER; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0106-0108
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0106-0108
142 LEVER; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0109-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0109-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-345-1 01 1 0109-
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 0106-0108
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 0109-
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 0106-
229 SWITCH ASM; MICRO,HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) 		1-83579-786-2 01 1 0106-

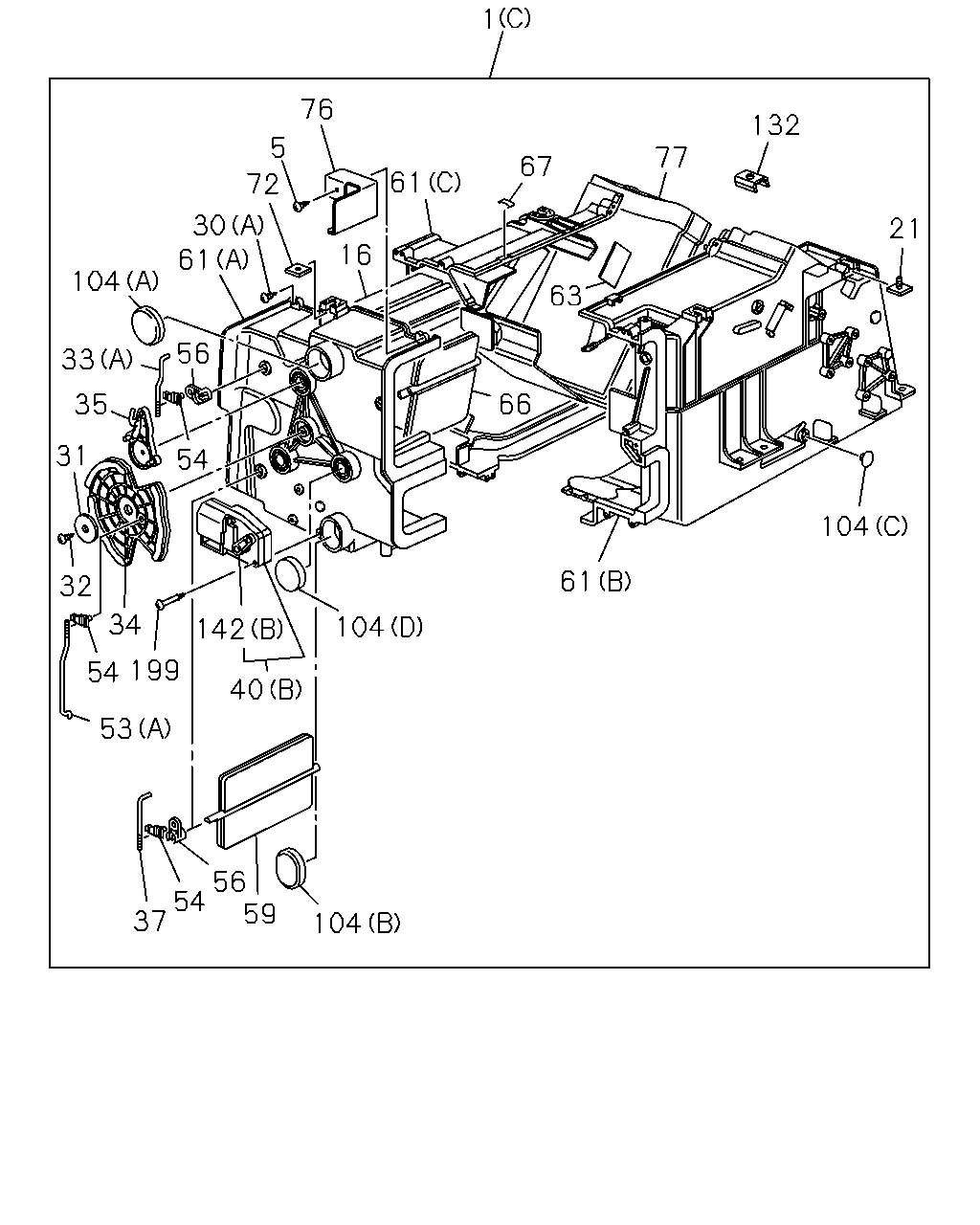

çizim 19631
76 132 5 77 67 61 72 30 61 21 16 104 63 56 33 66 35 31 54 104 61 32 34 104 142 199 54 40 53 56 54 59 37 104 1
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) 		1-83511-134-6 01 1 0106-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) 		1-83511-179-1 01 1 0110-
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83511-129-8 01 1 0106-0108
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83511-129-8 01 1 0109-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83511-129-8 01 1 0109-0109
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83511-175-1 01 1 0110-
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83511-175-1 01 1 0110-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83511-139-3 01 1 0106-
5 SCREW; BRKT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 01 1 0106-
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 0106-0108
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 0109-
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 02 1 0106-0108
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 02 1 0109-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X20 		9-09829-324-1 01 1 0106-0108
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X20 		9-09829-324-1 01 1 0109-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 0106-0108
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 0109-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M4X16 		8-94324-850-0 11 1 0106-
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 0106-0108
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 01 1 0109-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 0106-0108
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 0109-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 02 1 0106-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 0106-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 0106-0108
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 0109-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 0106-0108
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 0109-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 0106-0108
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 0109-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 0106-0108
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 0109-
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 02 1 0106-
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 0106-0108
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 0109-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83579-676-1 01 1 0106-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 0106-0108
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 0109-
40 ACTUATOR; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0106-0108
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0106-0108
40 ACTUATOR; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0109-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0109-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83579-649-1 01 1 0109-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 0106-0108
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 0109-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 0106-0108
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 0109-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 0106-0108
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 0109-
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 0106-0108
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 0109-
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 03 1 0106-
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 0106-0108
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 0109-
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 02 1 0106-
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-2 01 1 0106-0108
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-2 01 1 0109-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83564-323-5 01 1 0106-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) 		1-83564-347-3 01 1 0106-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 0106-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 0109-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0106-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0106-0108
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0109-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0109-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-401-0 01 1 0109-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0106-0108
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0106-0108
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0109-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0109-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A) 		1-83564-402-0 01 1 0109-
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 0106-0108
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 0109-
63 LINING; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83578-033-0 01 1 0106-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) 		1-83579-680-0 01 1 0106-
66 SHUTTER; HTR UNIT,CENTER LWR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0106-0108
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0106-0108
66 SHUTTER; HTR UNIT,CENTER LWR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0109-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0109-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) 		1-83579-627-0 01 1 0109-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 0106-0108
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 0109-
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-4 02 1 0106-0108
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-4 02 1 0109-
76 BRACKET; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83573-194-0 01 1 0106-
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97102-661-0 01 1 0106-
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-617-0 01 1 0106-
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-618-0 01 1 0106-
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-94328-657-0 04 1 0106-
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-94387-703-0 01 1 0106-
132 BRACKET; HTR CORE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83573-195-0 01 1 0106-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) 		1-83564-409-0 01 1 0106-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 0106-0108
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 0109-
142 LEVER; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0106-0108
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0106-0108
142 LEVER; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0109-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0109-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (B) 		1-83564-345-1 01 1 0109-
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 0106-0108
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 0109-
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
