8-80 — WINDSHIELD WIPER AND WASHER (#115097) — 95 parça

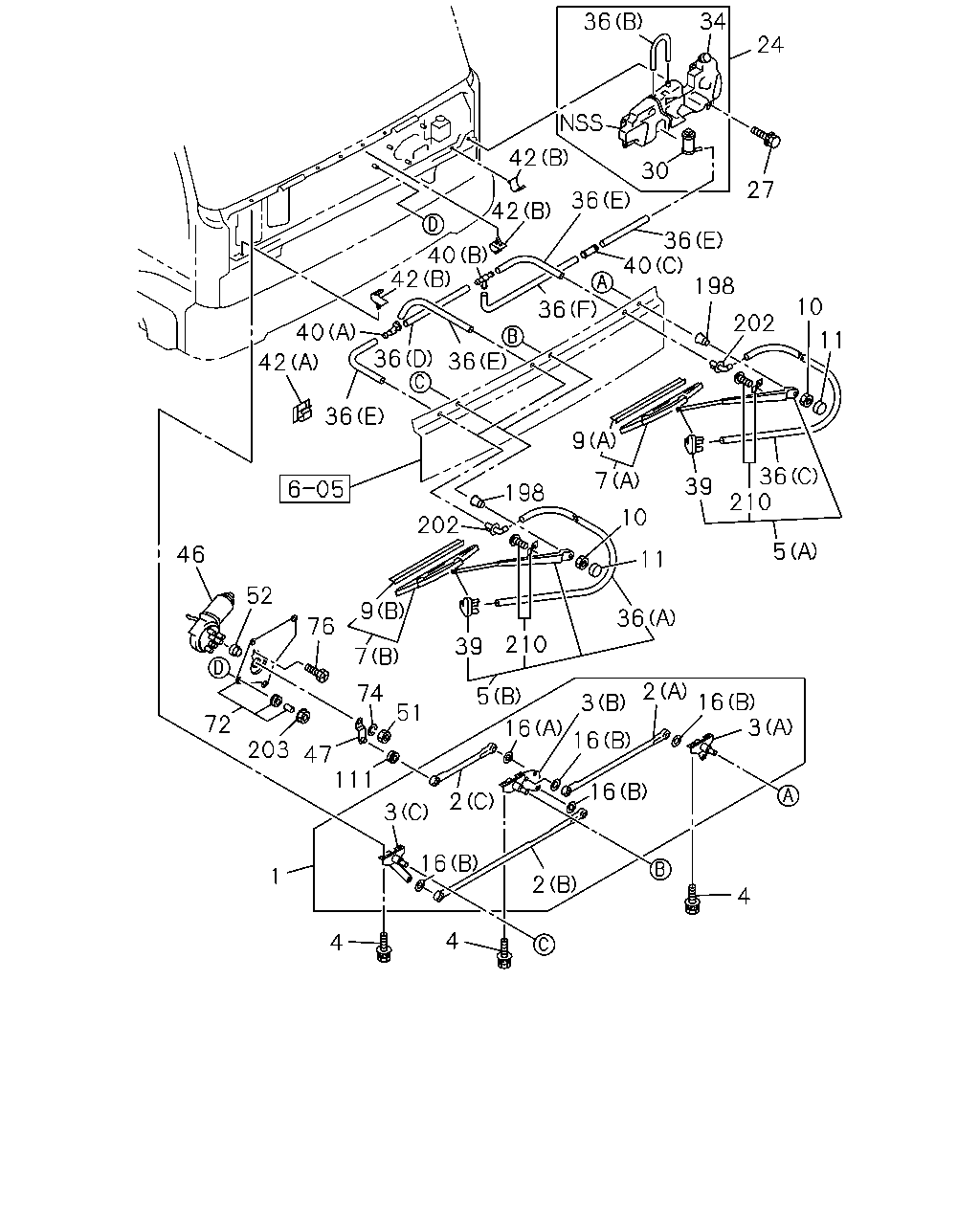

çizim 337077
36 34 24 30 27 42 40 42 40 42 36 36 36 42 36 36 40 36 46 52 76 72 203 47 111 3 2 16 2 5 39 210 16 16 3 16 2 16 3 51 74 7 9 202 198 9 7 10 11 36 5 210 36 39 202 10 11 198 4 4 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER 1-83312-113-3 01 1 1303-1511 ●
1 LINK ASM; FRT WIPER 1-83312-113-3 01 1 1512- ● ●
2 LINK; FRT WIPER
(A) 		1-83312-132-1 01 1 1303-1511 ●
2 LINK; FRT WIPER
(A) 		1-83312-132-1 01 1 1512- ● ●
2 LINK; FRT WIPER
(C) 		1-83312-134-1 01 1 1303-1511 ●
2 LINK; FRT WIPER
(C) 		1-83312-134-1 01 1 1512- ● ●
2 LINK; FRT WIPER
(B) 		1-83312-184-0 01 1 1303-1511 ●
2 LINK; FRT WIPER
(B) 		1-83312-184-0 01 1 1512- ● ●
3 PIVOT ASM; FRT WIPER
(C) 		1-83313-104-1 01 1 1303-1511 ●
3 PIVOT ASM; FRT WIPER
(C) 		1-83313-104-1 01 1 1512- ● ●
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-106-1 01 1 1303-1511 ●
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-106-1 01 1 1512- ● ●
3 PIVOT ASM; FRT WIPER
(A) 		1-83313-107-1 01 1 1303-1511 ●
3 PIVOT ASM; FRT WIPER
(A) 		1-83313-107-1 01 1 1512- ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1303-1511 ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1512- ● ●
5 ARM; WIPER
(A) 		1-83314-139-0 01 1 1303-1511 ●
5 ARM; WIPER
(A) 		1-83314-139-0 01 1 1512- ● ●
5 ARM; WIPER
(B) 		1-83314-140-0 02 1 1303-1511 ●
5 ARM; WIPER
(B) 		1-83314-140-0 02 1 1512- ● ●
7 BLADE; WIPER
(A) L=550 		1-86810-029-0 01 1 1303-1511 ●
7 BLADE; WIPER
(A) L=550 		1-86810-029-0 01 1 1512- ● ●
7 BLADE; WIPER
(B) L=500 		8-97134-561-1 02 1 1303-1511 ●
7 BLADE; WIPER
(B) L=500 		8-97134-561-1 02 1 1512- ● ●
7 BLADE; WIPER
(A) BEST VALUE PARTS 		5-87610-035-0 01 1 1303-1511 ●
7 BLADE; WIPER
(A) BEST VALUE PARTS 		5-87610-035-0 01 1 1512- ● ●
9 RUBBER; FRT WIPER BLADE
(B) 		1-83355-017-0 02 1 1303-1511 ●
9 RUBBER; FRT WIPER BLADE
(B) 		1-83355-017-0 02 1 1512- ● ●
9 RUBBER; FRT WIPER BLADE
(A) L=550 		1-86810-051-0 01 1 1303-1511 ●
9 RUBBER; FRT WIPER BLADE
(A) L=550 		1-86810-051-0 01 1 1512- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 1303-1511 ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 1512- ● ●
11 COVER; WIPER ARM 1-86810-028-0 03 1 1303-1511 ●
11 COVER; WIPER ARM 1-86810-028-0 03 1 1512- ● ●
16 SEAL; BALL JOINT
(B) 		1-83318-115-0 04 1 1303-1511 ●
16 SEAL; BALL JOINT
(B) 		1-83318-115-0 04 1 1512- ● ●
16 SEAL; BALL JOINT
(A) 		1-83318-116-0 01 1 1303-1511 ●
16 SEAL; BALL JOINT
(A) 		1-83318-116-0 01 1 1512- ● ●
24 TANK ASM; WASHER 1-86815-023-3 01 1 1303-1511 ●
24 TANK ASM; WASHER 1-86815-023-3 01 1 1512- ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 1303-1511 ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 1512- ● ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 1303-1511 ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 1512- ● ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 1303-1511 ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 1512- ● ●
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 1303-1511 ●
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 1512- ● ●
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 1303-1511 ●
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 1512- ● ●
36 HOSE; WASHER
(B) L=260 		1-86815-019-0 01 1 1303-1511 ●
36 HOSE; WASHER
(B) L=260 		1-86815-019-0 01 1 1512- ● ●
36 HOSE; WASHER
(D) SERVICED BY L=10000 		8-94153-780-0 01 1 1303-1511 ●
36 HOSE; WASHER
(D) SERVICED BY L=10000 		8-94153-780-0 01 1 1512- ● ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		8-94389-303-0 01 1 1303-1511 ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		8-94389-303-0 01 1 1512- ● ●
36 HOSE; WASHER
(F) SERVICED BY L=10000 		9-09914-906-0 01 1 1303-1511 ●
36 HOSE; WASHER
(F) SERVICED BY L=10000 		9-09914-906-0 01 1 1512- ● ●
39 NOZZLE; WINDSHIELD WASHER
3WAY 		1-83334-029-0 03 1 1303-1511 ●
39 NOZZLE; WINDSHIELD WASHER
3WAY 		1-83334-029-0 03 1 1512- ● ●
40 JOINT; WASHER HOSE
(A) 3WAY 		1-83338-005-0 01 1 1303-1511 ●
40 JOINT; WASHER HOSE
(A) 3WAY 		1-83338-005-0 01 1 1512- ● ●
40 JOINT; WASHER HOSE
(B) 3WAY 		5-83363-033-0 01 1 1303-1511 ●
40 JOINT; WASHER HOSE
(B) 3WAY 		5-83363-033-0 01 1 1512- ● ●
40 JOINT; WASHER HOSE
(C) 2WAY 		8-94239-402-0 01 1 1303-1511 ●
40 JOINT; WASHER HOSE
(C) 2WAY 		8-94239-402-0 01 1 1512- ● ●
42 CLIP; WASHER HOSE
(A) 1 SET=5 PIECE 		1-09987-214-0 01 1 1303-1511 ●
42 CLIP; WASHER HOSE
(A) 1 SET=5 PIECE 		1-09987-214-0 01 1 1512- ● ●
42 CLIP; WASHER HOSE
(B) 		1-09987-247-0 06 1 1303-1511 ●
42 CLIP; WASHER HOSE
(B) 		1-09987-247-0 06 1 1512- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98232-330-0 01 1 1303-1405 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98281-677-0 01 1 1406-1511 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98281-677-0 01 1 1512- ● ●
47 ARM; CRANK,WIPER MOTOR 1-86810-124-0 01 1 1303-1511 ●
47 ARM; CRANK,WIPER MOTOR 1-86810-124-0 01 1 1512- ● ●
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 1303-1511 ●
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 1512- ● ●
52 BUSHING; BRKT,WIPER MOTOR 1-83318-020-0 01 1 1303-1511 ●
52 BUSHING; BRKT,WIPER MOTOR 1-83318-020-0 01 1 1512- ● ●
72 BRACKET; WIPER MOTOR 1-86810-122-0 01 1 1303-1511 ●
72 BRACKET; WIPER MOTOR 1-86810-122-0 01 1 1512- ● ●
74 WASHER; ARM TO MOTOR
ID=8.2 		9-09150-508-0 01 1 1303-1511 ●
74 WASHER; ARM TO MOTOR
ID=8.2 		9-09150-508-0 01 1 1512- ● ●
76 SCREW; BRKT TO WIPER MOTOR 8-94232-910-0 03 1 1303-1511 ●
76 SCREW; BRKT TO WIPER MOTOR 8-94232-910-0 03 1 1512- ● ●
111 SEAL; FRT WIPER MOTOR TO BRKT 8-94167-624-0 01 1 1303-1511 ●
111 SEAL; FRT WIPER MOTOR TO BRKT 8-94167-624-0 01 1 1512- ● ●
198 COVER; PIVOT,WIPER 1-86810-017-0 03 1 1303-1511 ●
198 COVER; PIVOT,WIPER 1-86810-017-0 03 1 1512- ● ●
202 GROMMET; WIPER 1-86815-003-2 03 1 1303-1511 ●
202 GROMMET; WIPER 1-86815-003-2 03 1 1512- ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1303-1511 ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1512- ● ●
210 BRACKET KIT; HOSE 1-86810-046-0 03 1 1303-1511 ●
210 BRACKET KIT; HOSE 1-86810-046-0 03 1 1512- ● ●
