Isuzu WW
▶
TRUCKS
▶
NKR
▶
51429 - NKR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

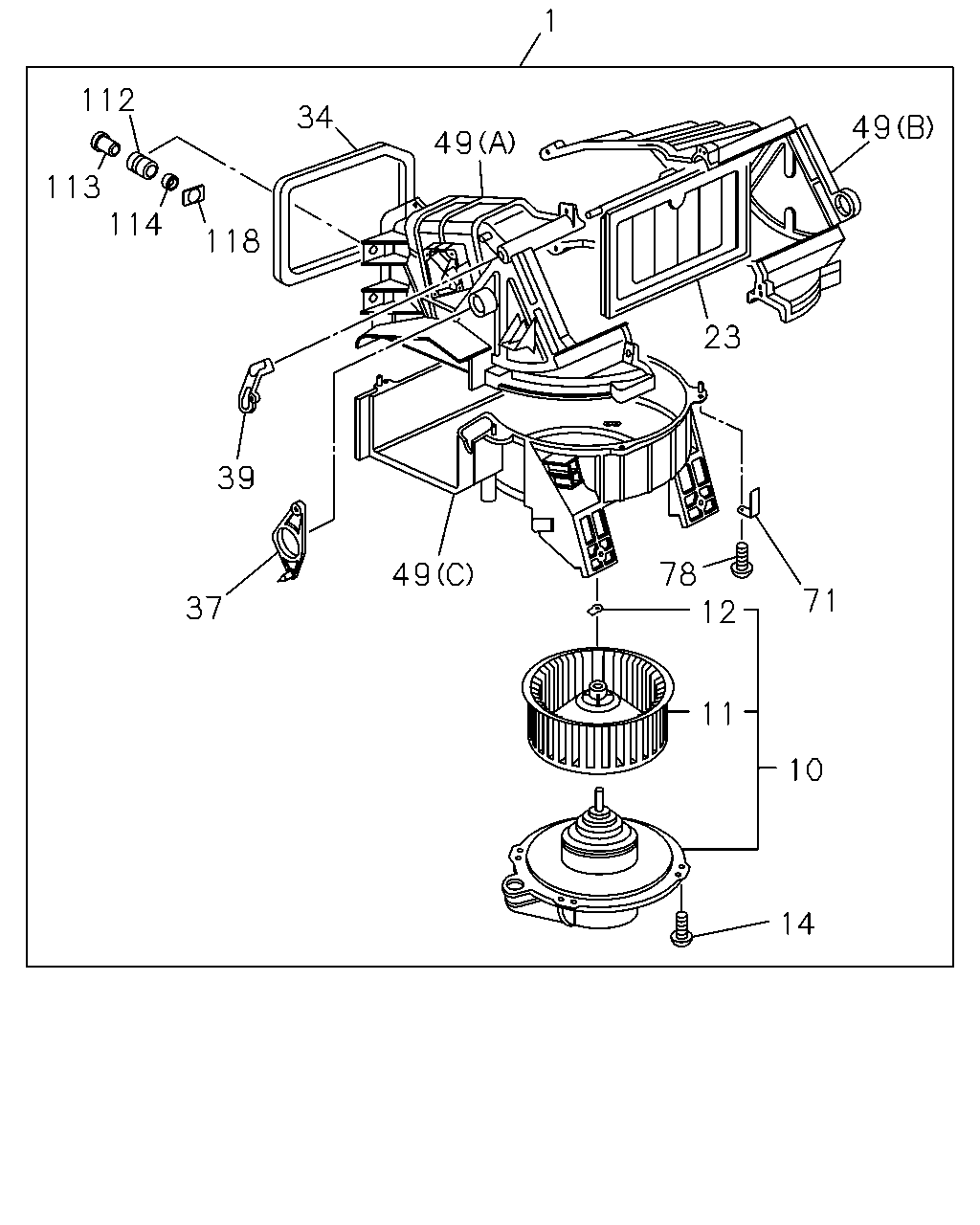

8-73 — BLOWER UNIT
(#115096) — 18 parça
14
10
11
12
78
71
23
49
49
1
34
112
113
114
118
39
37
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
08.855 BLOWER ASM
8-97288-167-0
01
1
1302-
10
08.855 MOTOR ASM; FAN,BLOWER UNIT
8-97211-953-0
01
1
1302-
11
08.857 IMPELLER; FAN MOTOR
8-97096-067-0
01
1
1302-
12
08.857 RING; SNAP,FAN MOTOR
8-94243-962-0
01
1
1302-
14
08.857 SCREW; COVER TO CASE
10.240 M5X20
9-09829-324-1
04
1
1302-
23
08.857 SHUTTER; BLOWER UNIT
8-97096-640-3
01
1
1302-
34
08.856 LINING; BLOWER UNIT
8-97085-612-1
01
1
1302-
37
09.786 LEVER; MODE LEVER
8-97101-667-1
01
1
1302-
39
09.786 LEVER; SHUTTER,BLOWER UNIT
8-97101-666-1
01
1
1302-
49
08.857 CASE; BLOWER UNIT
(A)
8-97101-647-3
01
1
1302-
49
08.857 CASE; BLOWER UNIT
(B)
8-97101-648-1
01
1
1302-
49
08.857 CASE; BLOWER UNIT
(C)
8-97101-649-0
01
1
1302-
71
08.857 CLIP; HARNESS
08.854
8-94158-260-0
01
1
1302-
78
08.857 SCREW; CASE TO CASE
08.852 M4X16
8-94324-850-0
08
1
1302-
112
08.857 ISOLATOR; CASE
8-97096-641-0
02
1
1302-
113
08.857 BUSHING; ISOLATOR
8-97096-642-0
02
1
1302-
114
08.857 NUT; ISOLATOR
00.854 M8 FLANGE
5-09440-005-0
02
1
1302-
118
08.857 BRACKET; BUSHING
8-97107-979-0
01
1
1302-
