8-10 — WIRING HARNESS AND FUSE (#115091) — 98 parça
çizim 336321

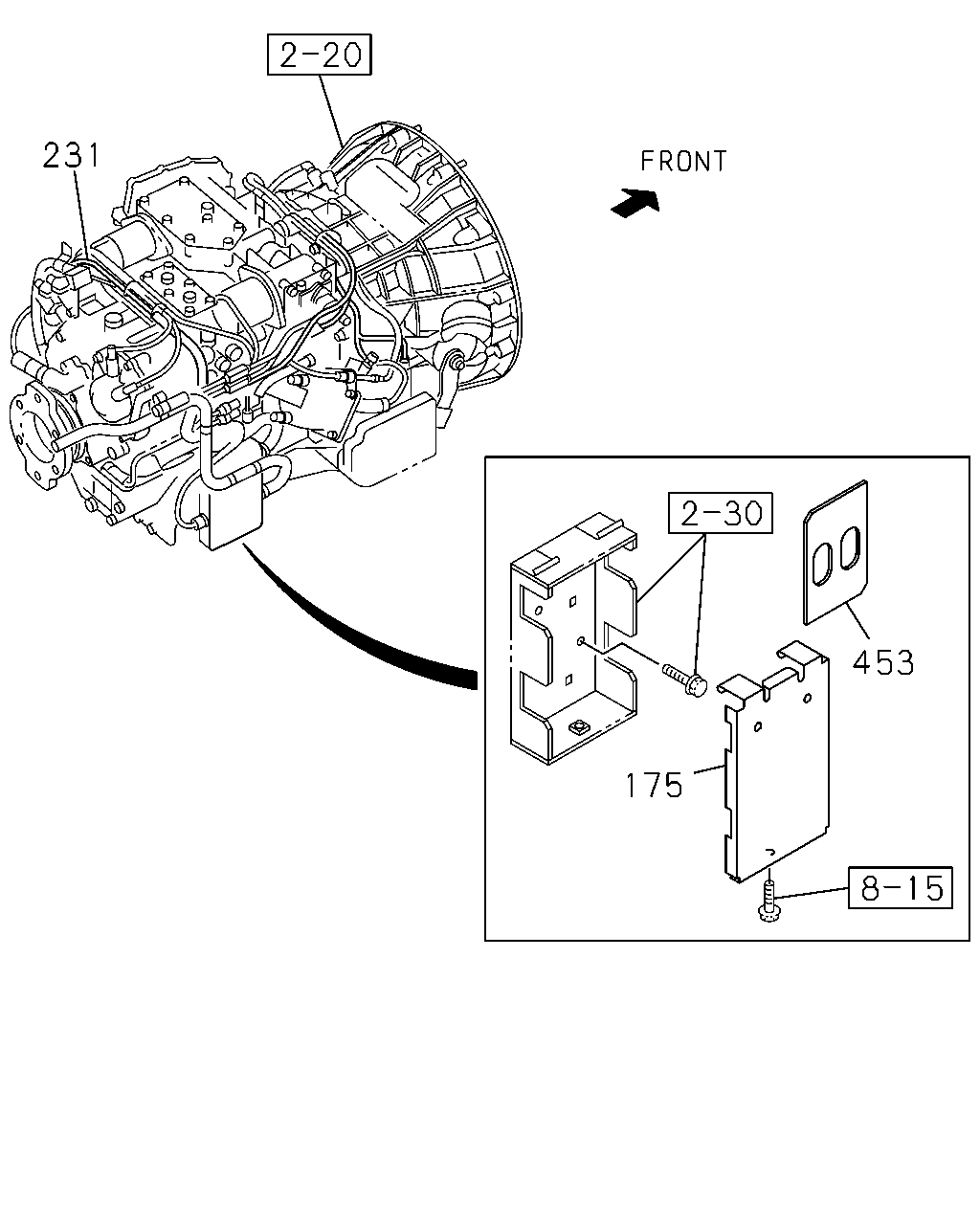

231 175 453
BalonParca AdiParca NoAdetTipApplied Date
175 BOX; CONNECTOR 1-82569-435-1 01 1 1303-
231 HARNESS; TRANS 8-97624-216-1 01 1 1303-
453 PROTECTOR; HARNESS 8-98213-847-1 01 1 1303-

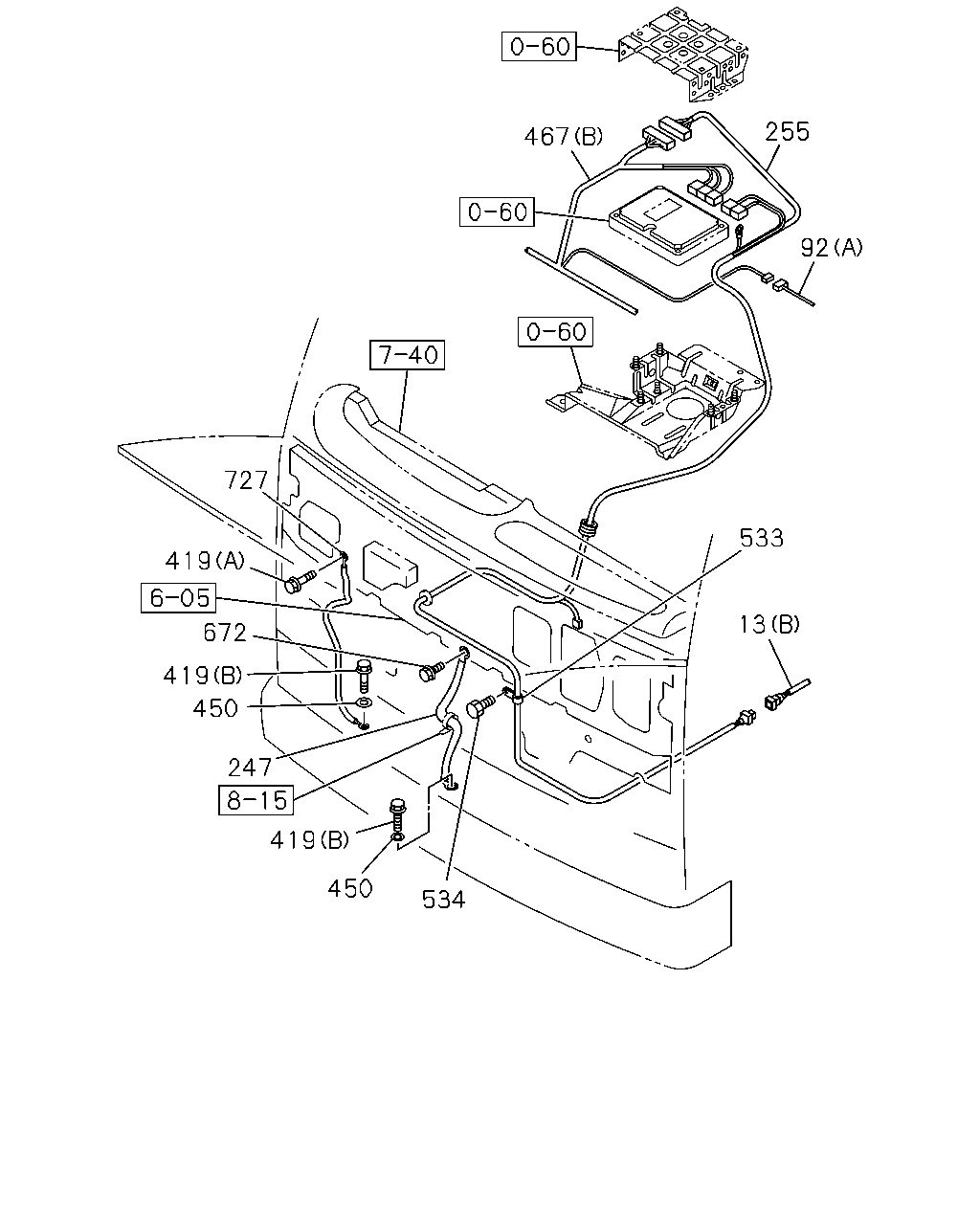

çizim 336453
467 255 92 533 13 534 450 419 247 450 419 672 419 727
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(A) 		8-98126-840-2 01 1 1303-
13 HARNESS; ENG
(B) 		8-98210-224-0 01 1 1303-
92 HARNESS; FLOOR
(B) 		8-97645-738-0 01 1 1303-1401
92 HARNESS; FLOOR
(B) 		8-98258-217-0 01 1 1402-
92 HARNESS; FLOOR
(A) 		8-97645-741-1 01 1 1303-
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 1303-
255 HARNESS; ELEC GOV 8-97645-325-2 01 1 1303-
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1303-
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1303-
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 1303-
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303-
467 HARNESS; FACIA
(B) 		8-97645-736-1 01 1 1303-
533 CLIP
ID=28 & 34 L=63 		1-09701-310-0 01 1 1303-
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 1303-
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1303-
727 HARNESS; CAB,EARTH
L=760 		8-97632-854-0 01 1 1303-
çizim 336459
199 201
BalonParca AdiParca NoAdetTipApplied Date
199 HARNESS; STARTER 8-97607-313-0 01 1 1303-
201 HARNESS; AIR TANK 8-98236-452-1 01 1 1303-
çizim 336557
9 9 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98232-959-2 01 1 1303-1502
6 HARNESS; FRAME
(B) 		8-98306-826-0 01 1 1503-
6 HARNESS; FRAME
(A) 		8-98236-448-2 01 1 1303-
9 HARNESS; FRAME,RR
(B) 		8-98236-451-0 01 1 1303-
9 HARNESS; FRAME,RR
(A) 		8-98236-486-0 01 1 1303-
çizim 336615

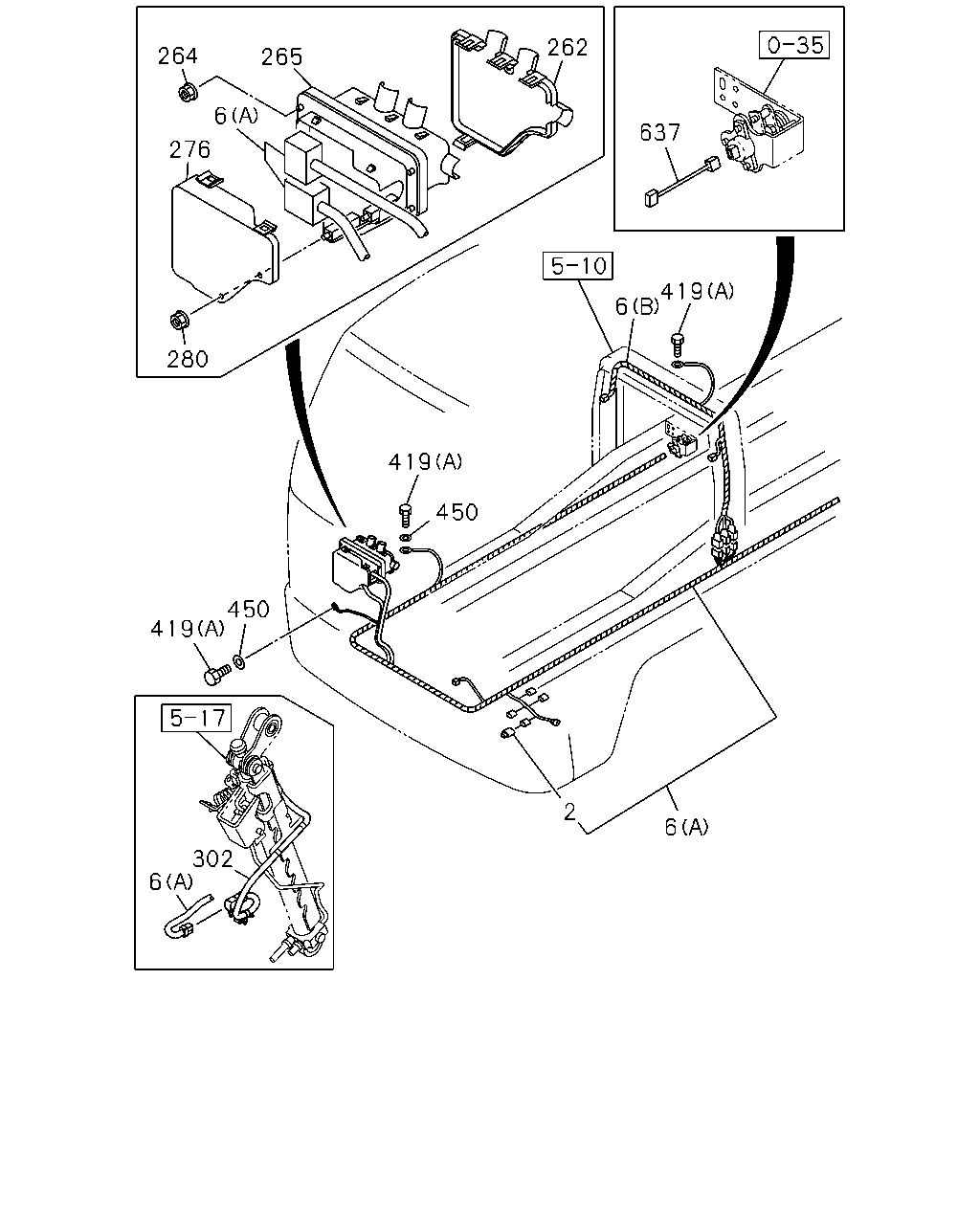

264 265 262 637 419 6 2 302 6 419 450 450 419 280 6 276 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 1303-
6 HARNESS; FRAME
(B) 		8-98232-959-2 01 1 1303-1502
6 HARNESS; FRAME
(B) 		8-98306-826-0 01 1 1503-
6 HARNESS; FRAME
(A) 		8-98236-448-2 01 1 1303-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 1303-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1303-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 1303-
276 COVER; BOX,FRAME HARNESS 1-82699-585-2 01 1 1303-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1303-
302 HARNESS; POWER CAB TILT 8-97636-525-0 01 1 1303-
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1303-
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1303-
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 1303-
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 1303-
çizim 336616

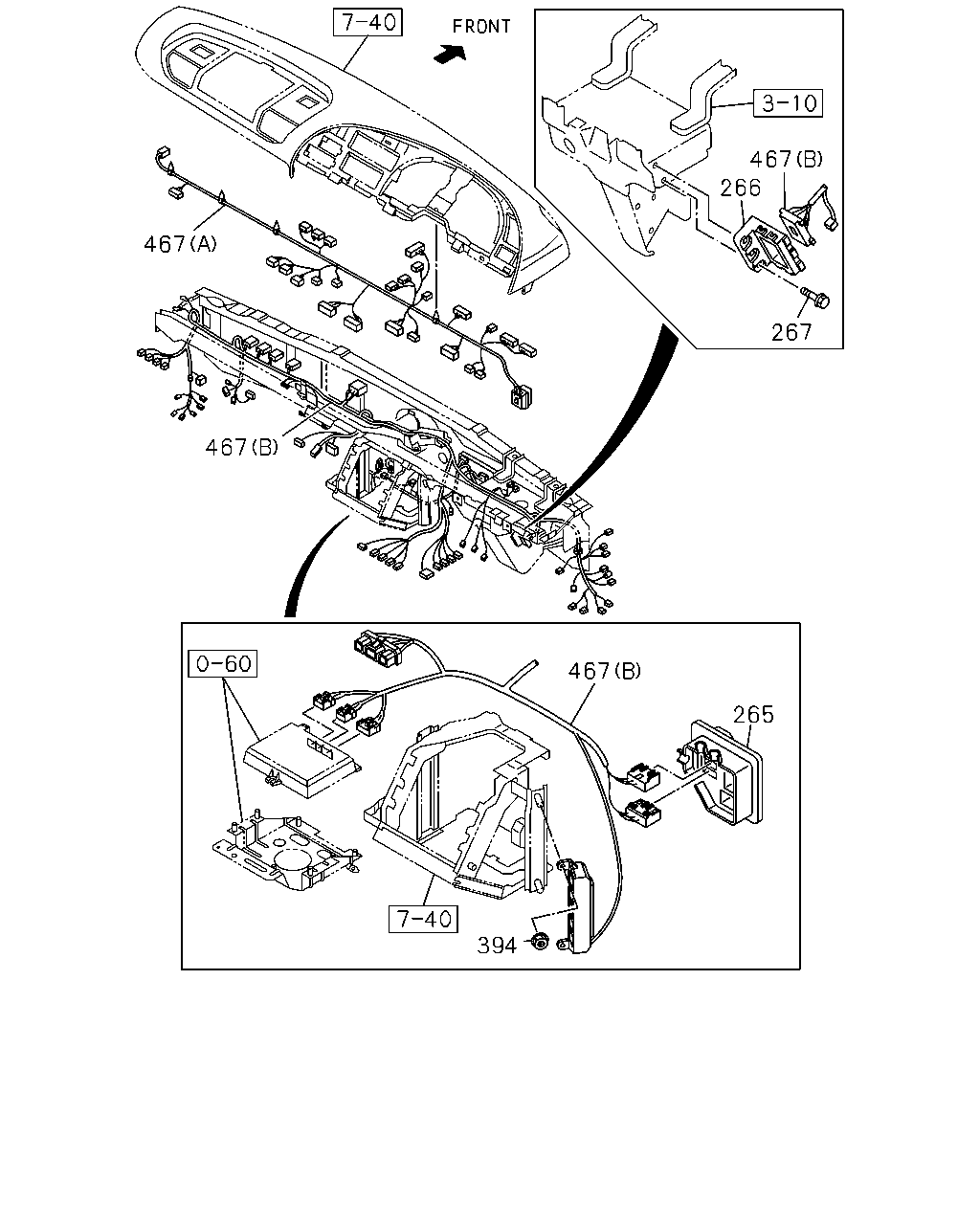

266 467 267 467 467 467 265 394
BalonParca AdiParca NoAdetTipApplied Date
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 1303-
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1303-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 1303-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 1303-
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303-
467 HARNESS; FACIA
(B) 		8-97645-736-1 01 1 1303-
çizim 336672

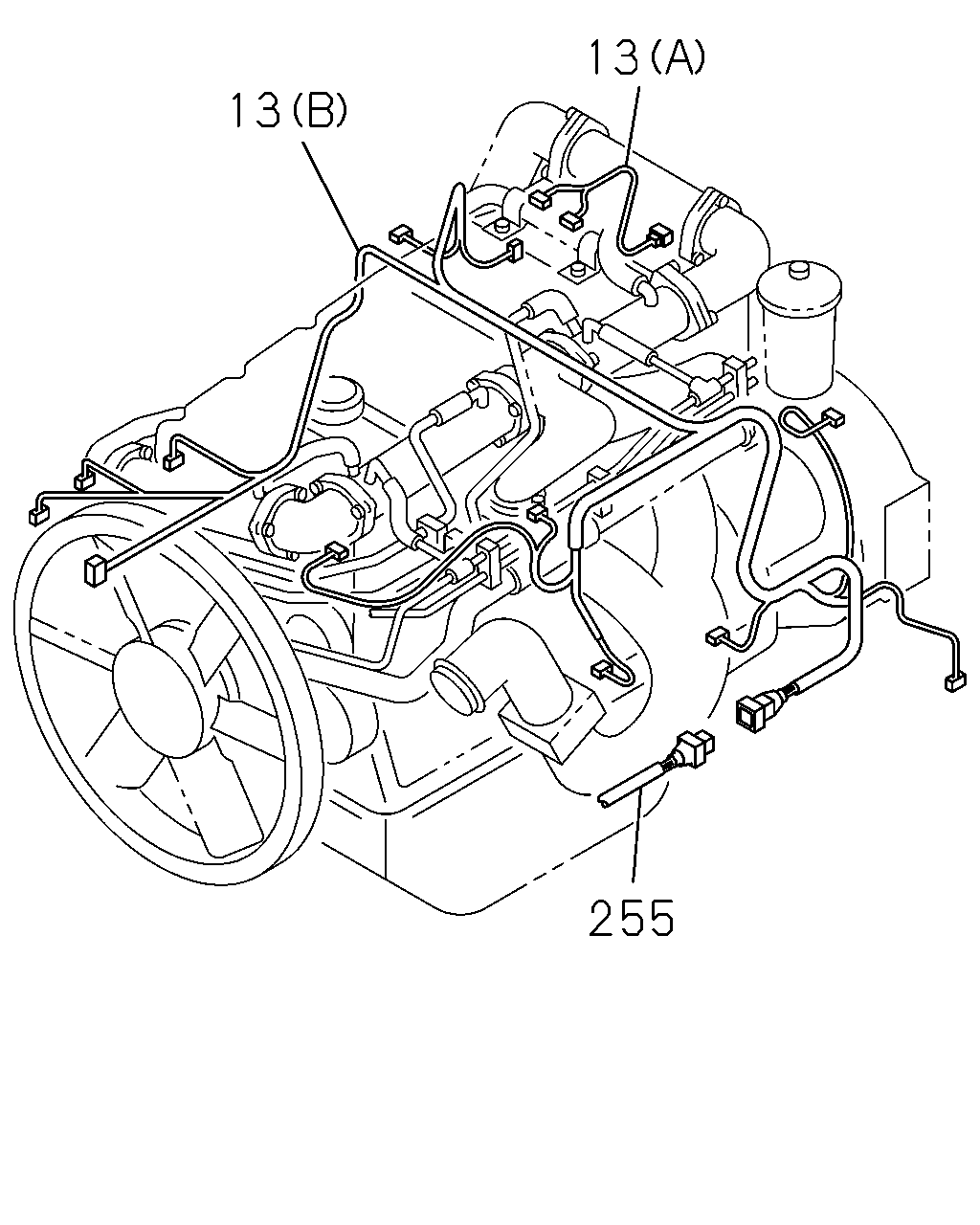

13 13 255
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(A) 		8-98126-840-2 01 1 1303-
13 HARNESS; ENG
(B) 		8-98210-224-0 01 1 1303-
255 HARNESS; ELEC GOV 8-97645-325-2 01 1 1303-
çizim 336730

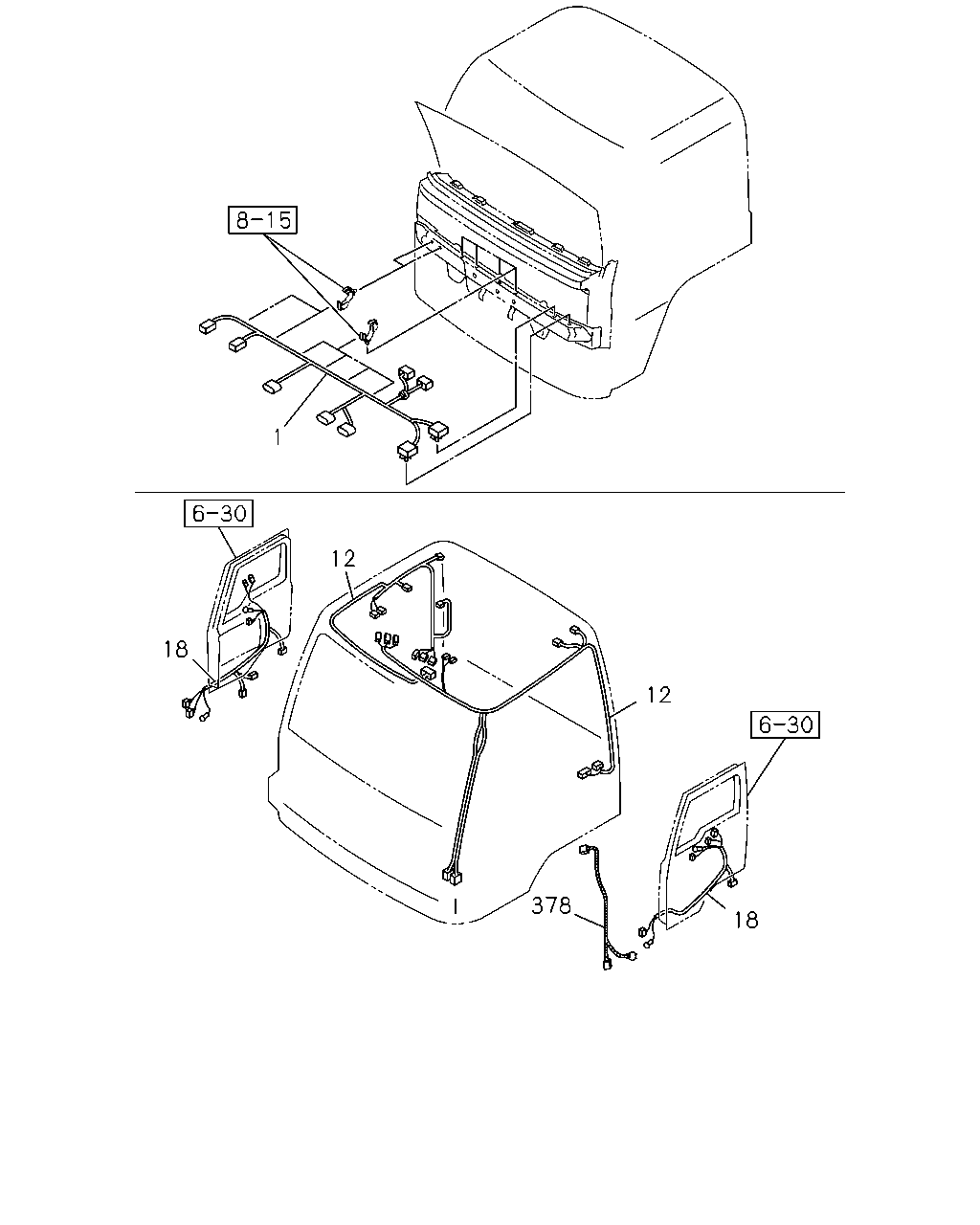

12 18 378 12 18 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 1-82662-363-1 01 1 1303-
12 HARNESS; ROOF 8-97611-862-0 01 1 1303-
12 HARNESS; ROOF 8-97644-079-3 01 1 1303-1410
12 HARNESS; ROOF 8-98284-066-0 01 1 1411-
18 HARNESS; DOOR 8-97632-130-0 01 1 1303-
18 HARNESS; DOOR 8-97632-131-0 01 1 1303-
378 HARNESS; EXT,MIRROR 8-97621-787-0 02 1 1303-
çizim 336742

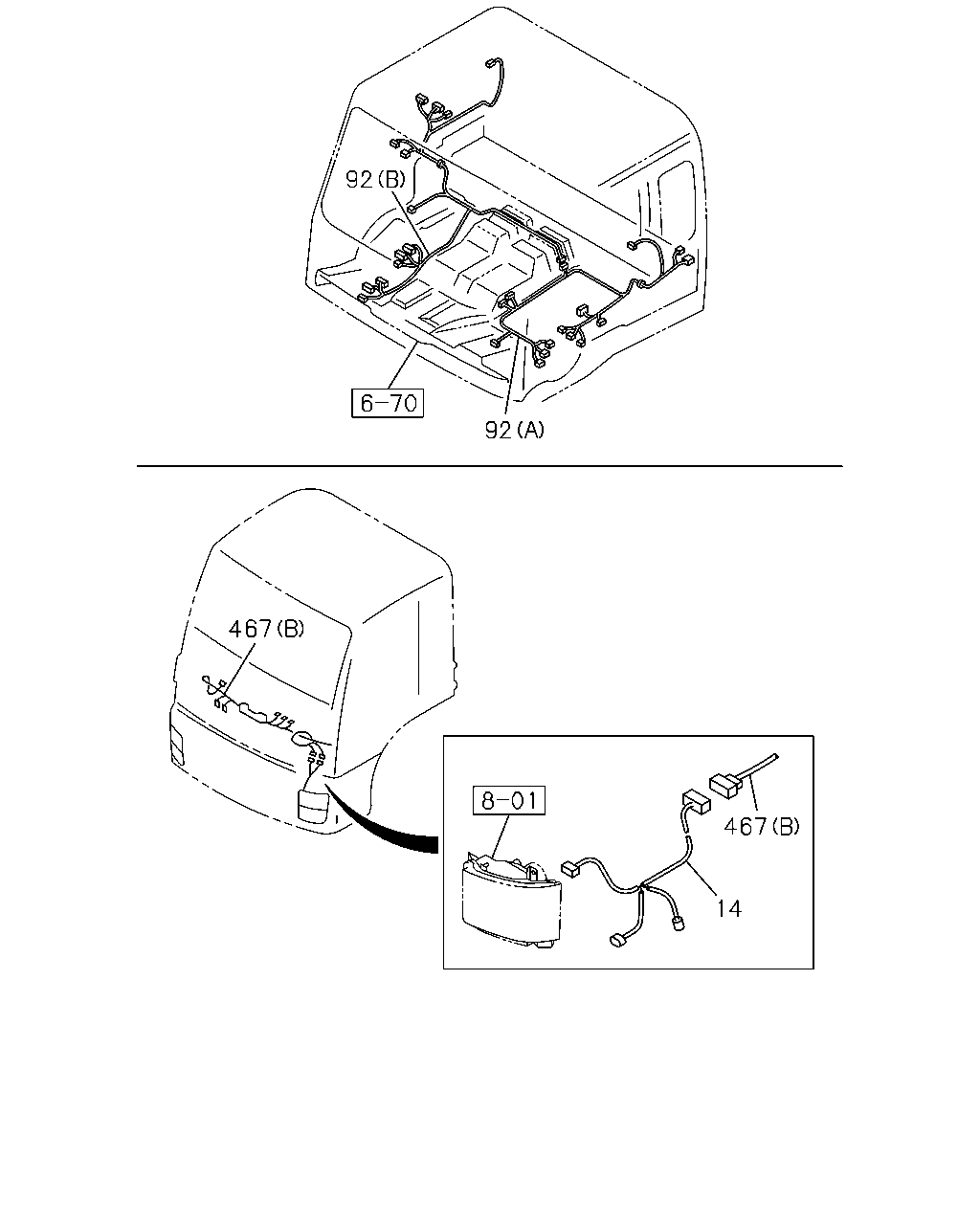

92 92 467 467 14
BalonParca AdiParca NoAdetTipApplied Date
14 HARNESS; HEADLAMP 8-98156-954-2 02 1 1303-
92 HARNESS; FLOOR
(B) 		8-97645-738-0 01 1 1303-1401
92 HARNESS; FLOOR
(B) 		8-98258-217-0 01 1 1402-
92 HARNESS; FLOOR
(A) 		8-97645-741-1 01 1 1303-
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303-
467 HARNESS; FACIA
(B) 		8-97645-736-1 01 1 1303-
çizim 336784

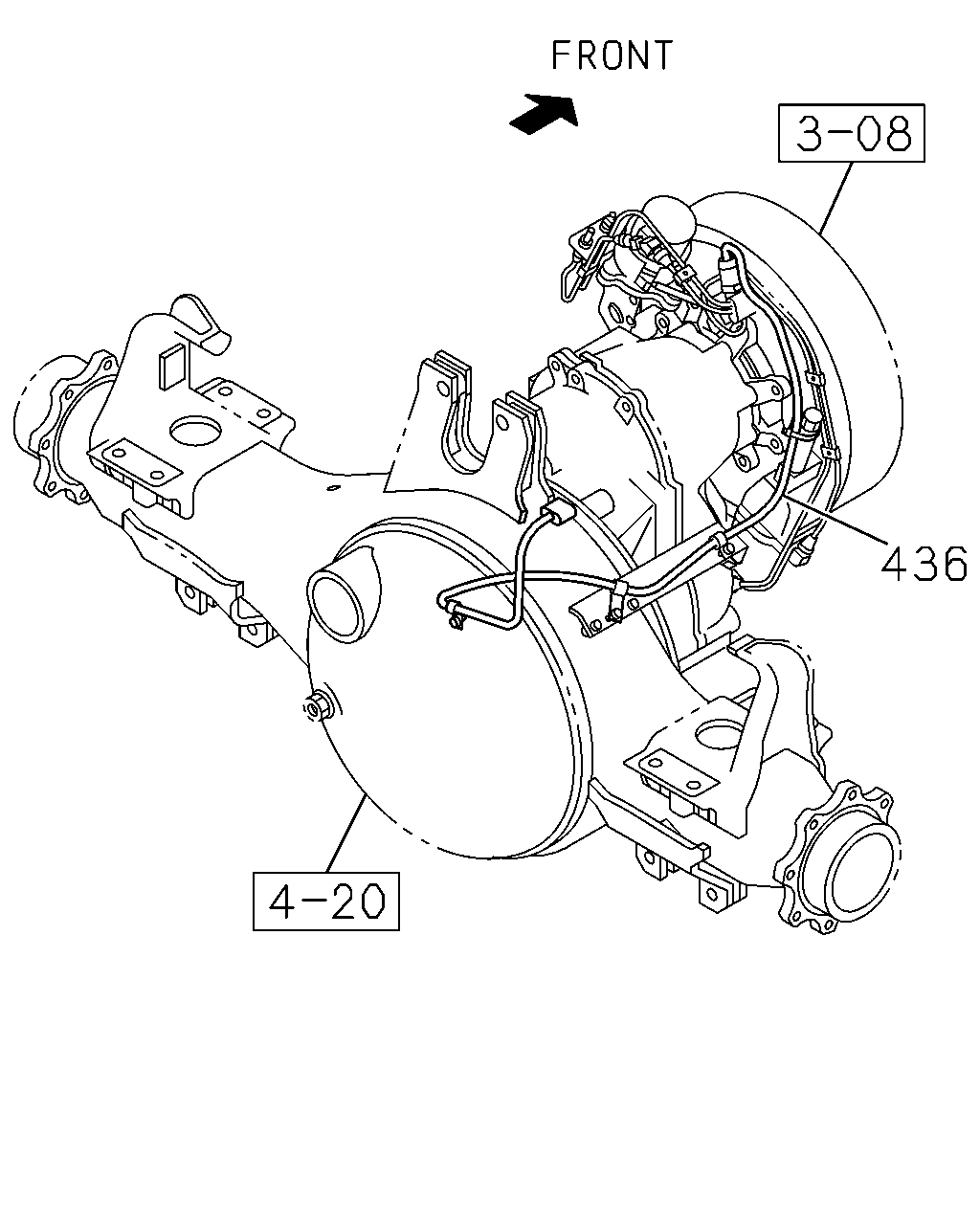

436
BalonParca AdiParca NoAdetTipApplied Date
436 HARNESS; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82677-224-2 01 1 1303-
çizim 336794

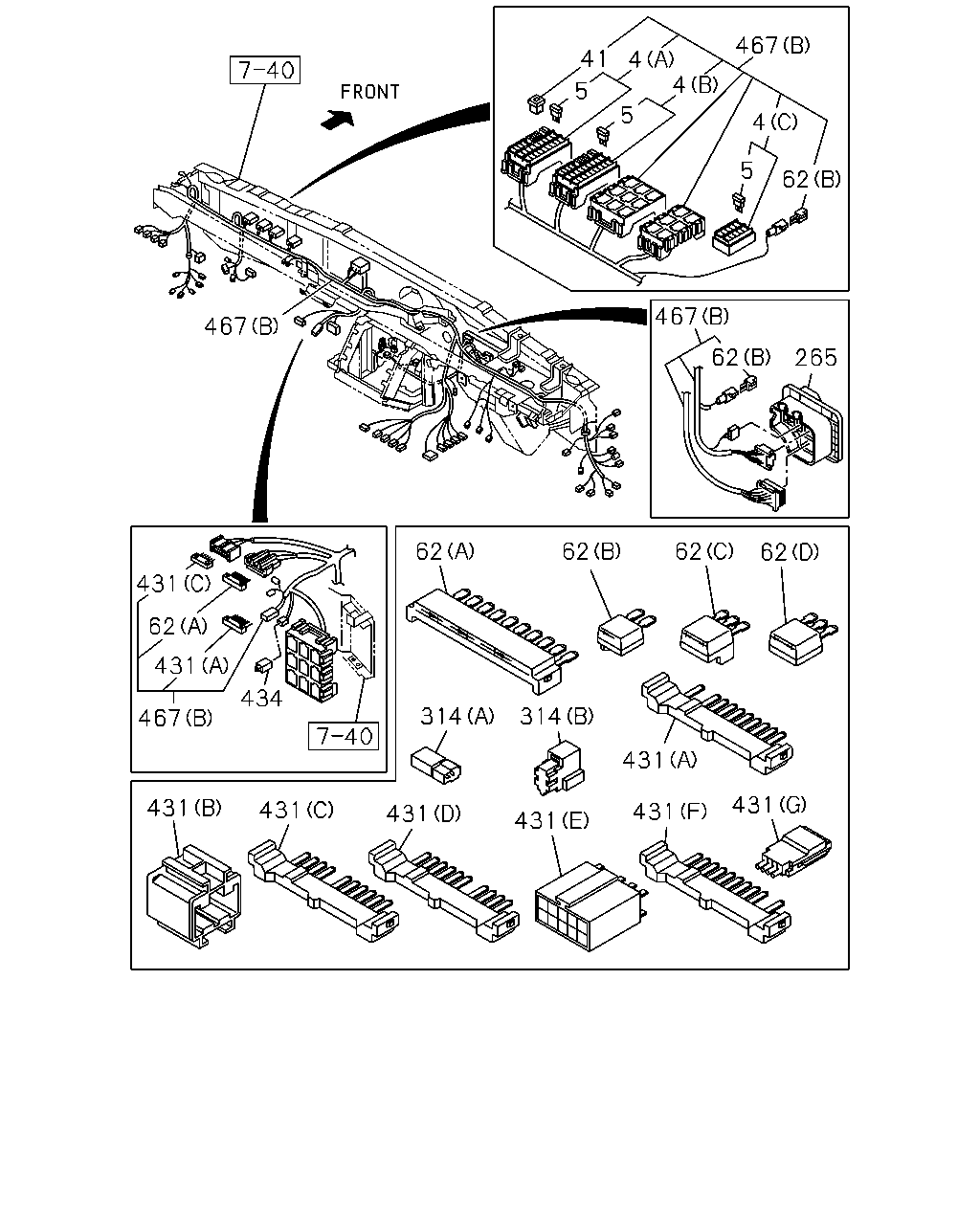

431 431 431 431 431 431 431 314 314 467 434 431 62 431 62 62 62 62 265 62 467 467 62 5 4 467 5 4 4 41 5
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX22 10AX4 		1-82510-455-0 01 1 1303-1309
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX20 10AX4 15AX1 		1-82510-478-0 01 1 1310-
4 BOX ASM; FUSE,HARNESS
(B) 15AX25 25AX2 		1-82510-602-0 01 1 1303-
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 1303-
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 04 1 1303-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 28 1 1303-1309
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 26 1 1310-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 1303-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 22 1 1303-1309
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 20 1 1310-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1303-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 03 1 1303-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1303-1309
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 01 1 1310-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 09 1 1303-1309
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1310-
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 03 1 1303-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 1303-
314 RESISTOR; HARNESS
(A) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 1303-
314 RESISTOR; HARNESS
(B) BLUE 		1-82691-204-0 02 1 1303-
431 CONNECTOR; JOINT
(B) 6P 		1-82691-206-0 01 1 1303-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 1303-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 13 1 1303-1309
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 12 1 1310-
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 03 1 1303-1309
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 04 1 1310-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 08 1 1303-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 1303-
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 17 1 1303-1309
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 11 1 1310-
434 CONNECTOR; SHORT CIRCUIT 1-82691-051-0 01 1 1303-
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303-
467 HARNESS; FACIA
(B) 		8-97645-736-1 01 1 1303-
